Shift Paddle Switch: Installation

INSTALL SHIFT PADDLE SWITCH
1. Install the 2 shift paddle switches and 2 brackets with the 4 screws.
  Torque: 1.7 N*m (17 kgf*cm, 15 in.*lbf)

  NOTE: Make sure that the brackets are securely installed.

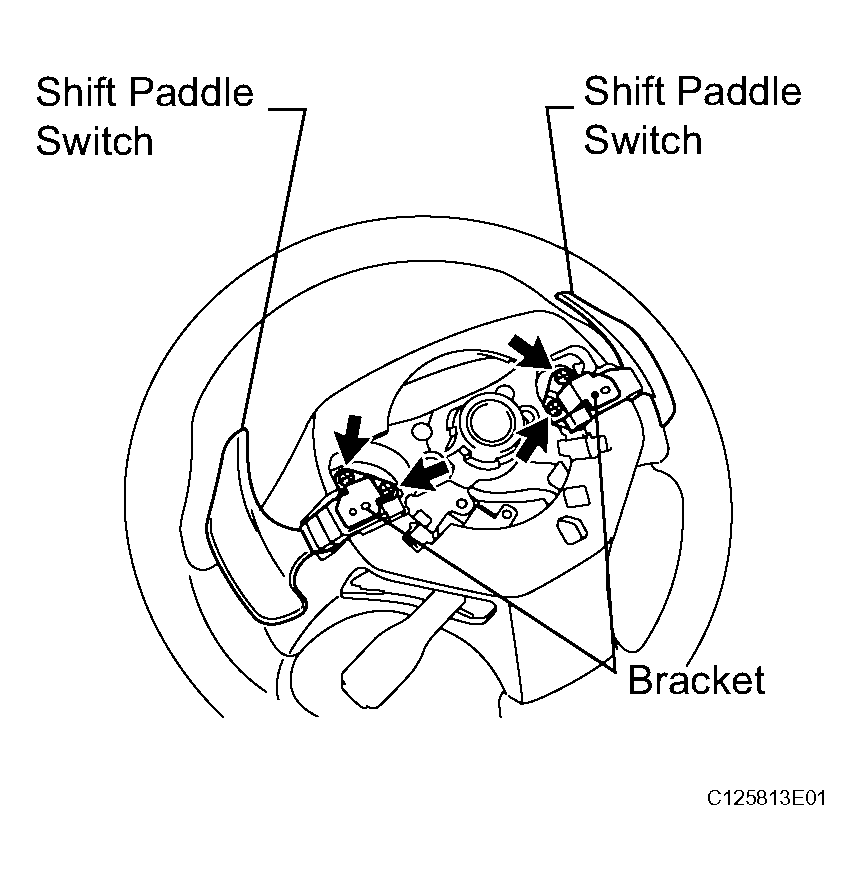

  Fig 1: Identifying Shift Paddle Switches
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 2 switch wire connectors to the shift paddle switches.

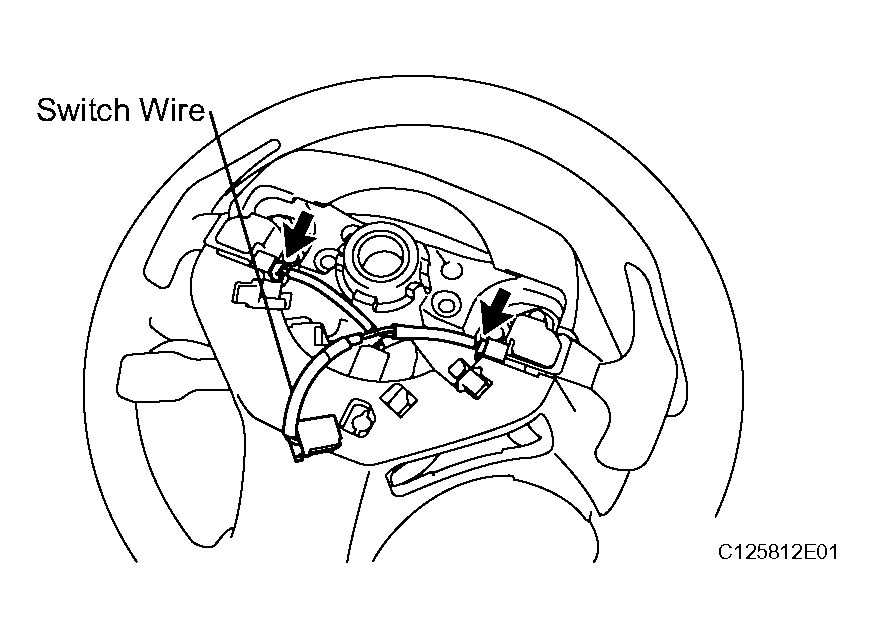

  Fig 2: Identifying Switch Wire Connectors And Shift Paddle Switches
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the connector to the steering wheel assembly.
4. Install the clamp to the steering wheel assembly.
REMOVE SPIRAL CABLE SUB-ASSEMBLY (See REMOVAL )
INSTALL STEERING WHEEL ASSEMBLY (See INSTALLATION )

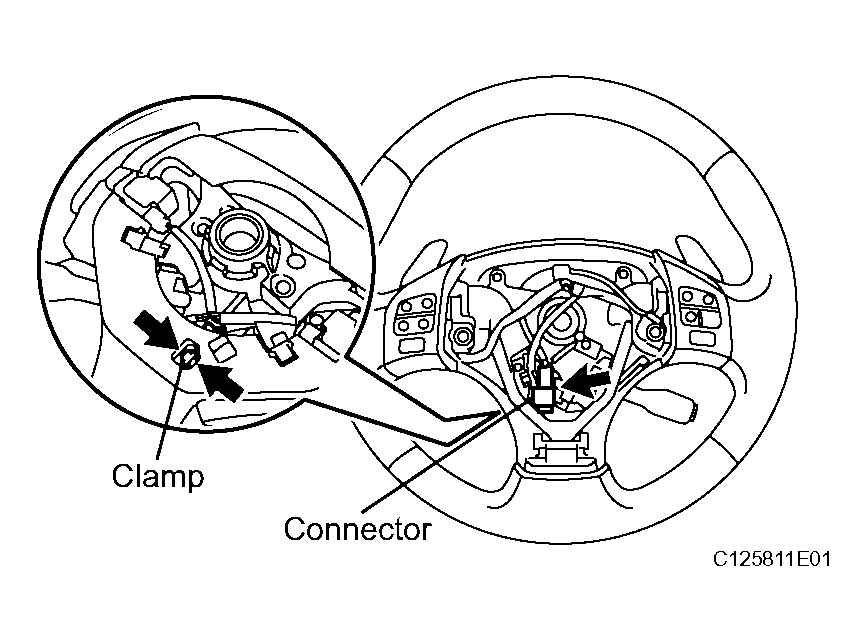

Fig 3: Identifying Clamp And Steering Wheel Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING PAD (See INSTALLATION )
INSTALL LOWER NO. 3 STEERING WHEEL COVER (See INSTALLATION )
INSTALL LOWER NO. 2 STEERING WHEEL COVER (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
Some systems need initialization after reconnecting the cable to the negative battery terminal

(See INITIALIZATION ).
INSPECT STEERING PAD (See ON-VEHICLE INSPECTION )
INSPECT SRS WARNING LIGHT
(See DIAGNOSIS SYSTEM )
