Speed Sensor: Installation

INSTALL TRANSMISSION REVOLUTION SENSOR (SP2)
1. Coat a new O-ring with ATF and install it to the transmission revolution sensor.

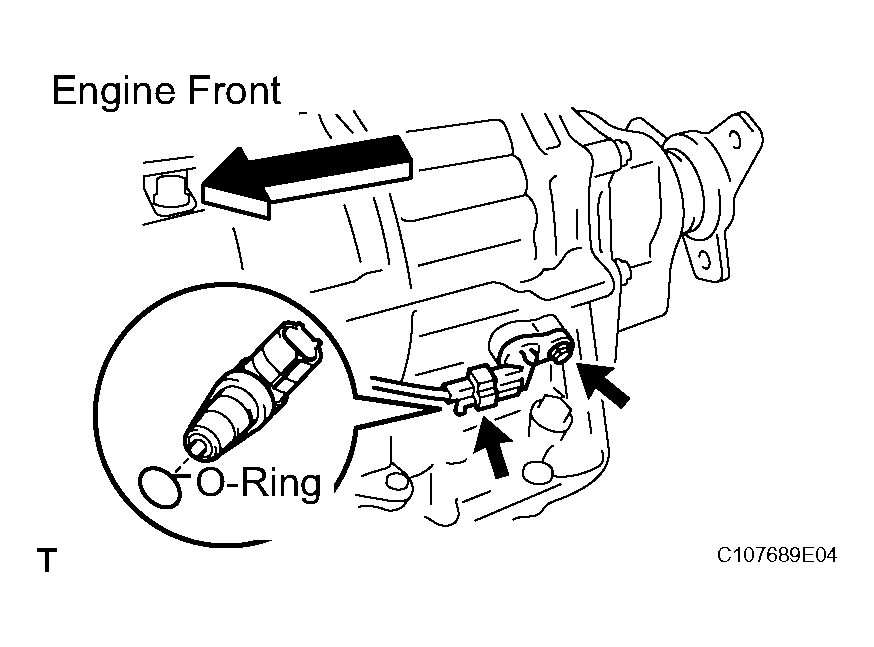

  Fig 1: Identifying Transmission Revolution Sensor (SP2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the transmission revolution sensor with the bolt.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
3. Connect the transmission revolution sensor connector.
INSTALL TRANSMISSION REVOLUTION SENSOR (NT)
1. Coat a new O-ring with ATF and install it to the transmission revolution sensor.
2. Install the transmission revolution sensor with the bolt.

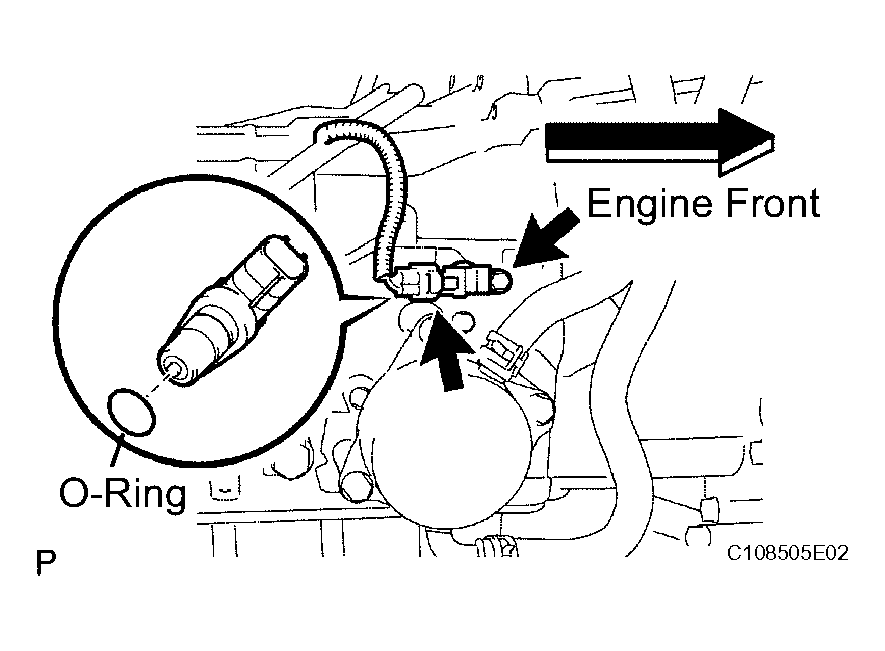

  Fig 2: Identifying Transmission Revolution Sensor (NT)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
3. Connect the transmission revolution sensor connector.
