Transmission Control Switch: Inspection

  1. INSPECT TRANSMISSION CONTROL SWITCH
    1. Connect the park/neutral position switch connector.
    2. Disconnect the transmission control switch connector of the shift lock control unit assembly.
    3. Measure the resistance according to the value(s) in the table below.

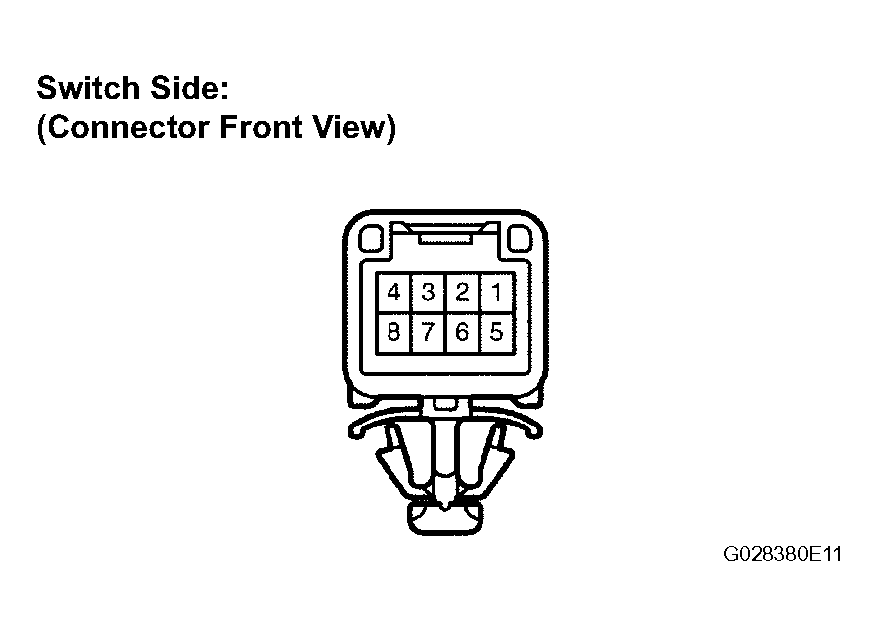

      Fig 1: Inspecting Transmission Control Switch
      G04053054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Shift Position Tester Connection Specified Condition
      S, "+" and "-" 3 - 7 Below 1 Ω
      Except S, "+" and "-" 3 - 7 10 kΩ or higher

      If the resistance value is not as specified, replace the transmission control switch.
