Diagnostic Trouble Code Chart
- DTC CHECK

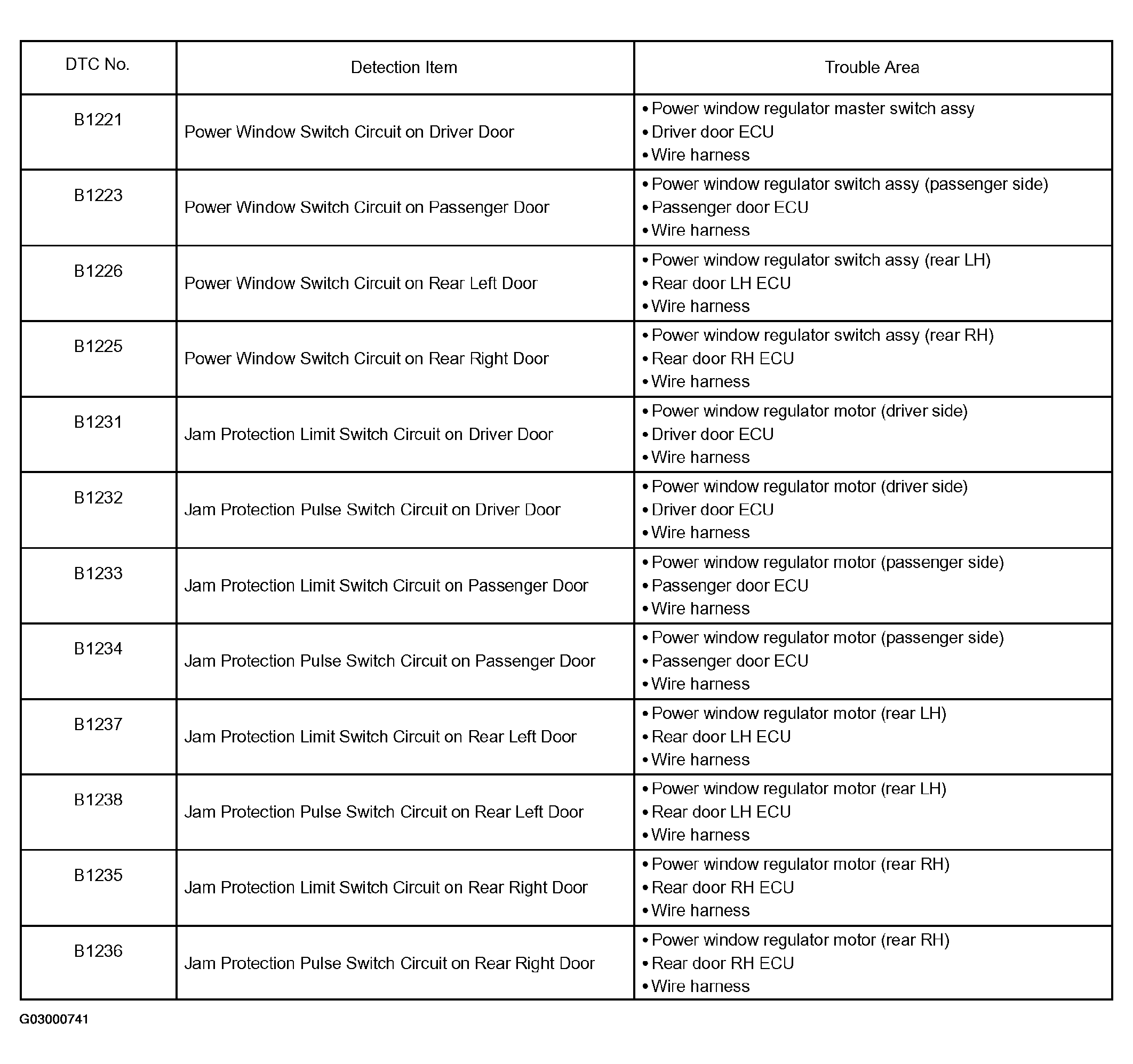

If a malfunction code is displayed during the DTC check, check the suspected area listed for that code in the table below.
DIAGNOSTIC TROUBLE CODESDTC Description DTC B1221 POWER WINDOW SWITCH CIRCUIT ON DRIVER DOOR DTC B1223 POWER WINDOW SWITCH CIRCUIT ON PASSENGER DOOR DTC B1226 POWER WINDOW SWITCH CIRCUIT ON REAR LEFT DOOR DTC B1225 POWER WINDOW SWITCH CIRCUIT ON REAR RIGHT DOOR DTC B1231, B1232 JAM PROTECTION LIMIT SWITCH CIRCUIT ON DRIVER DOOR, JAM PROTECTION PULSE SWITCH CIRCUIT ON DRIVER DOOR DTC B1233, B1234 JAM PROTECTION LIMIT SWITCH CIRCUIT ON PASSENGER DOOR, JAM PROTECTION PULSE SWITCH CIRCUIT ON PASSENGER DOOR DTC B1237, B1238 JAM PROTECTION LIMIT SWITCH CIRCUIT ON REAR LEFT DOOR, JAM PROTECTION PULSE SWITCH CIRCUIT ON REAR LEFT DOOR DTC B1235, B1236 JAM PROTECTION LIMIT SWITCH CIRCUIT ON REAR RIGHT DOOR, JAM PROTECTION PULSE SWITCH CIRCUIT ON REAR RIGHT DOOR
