System Diagram

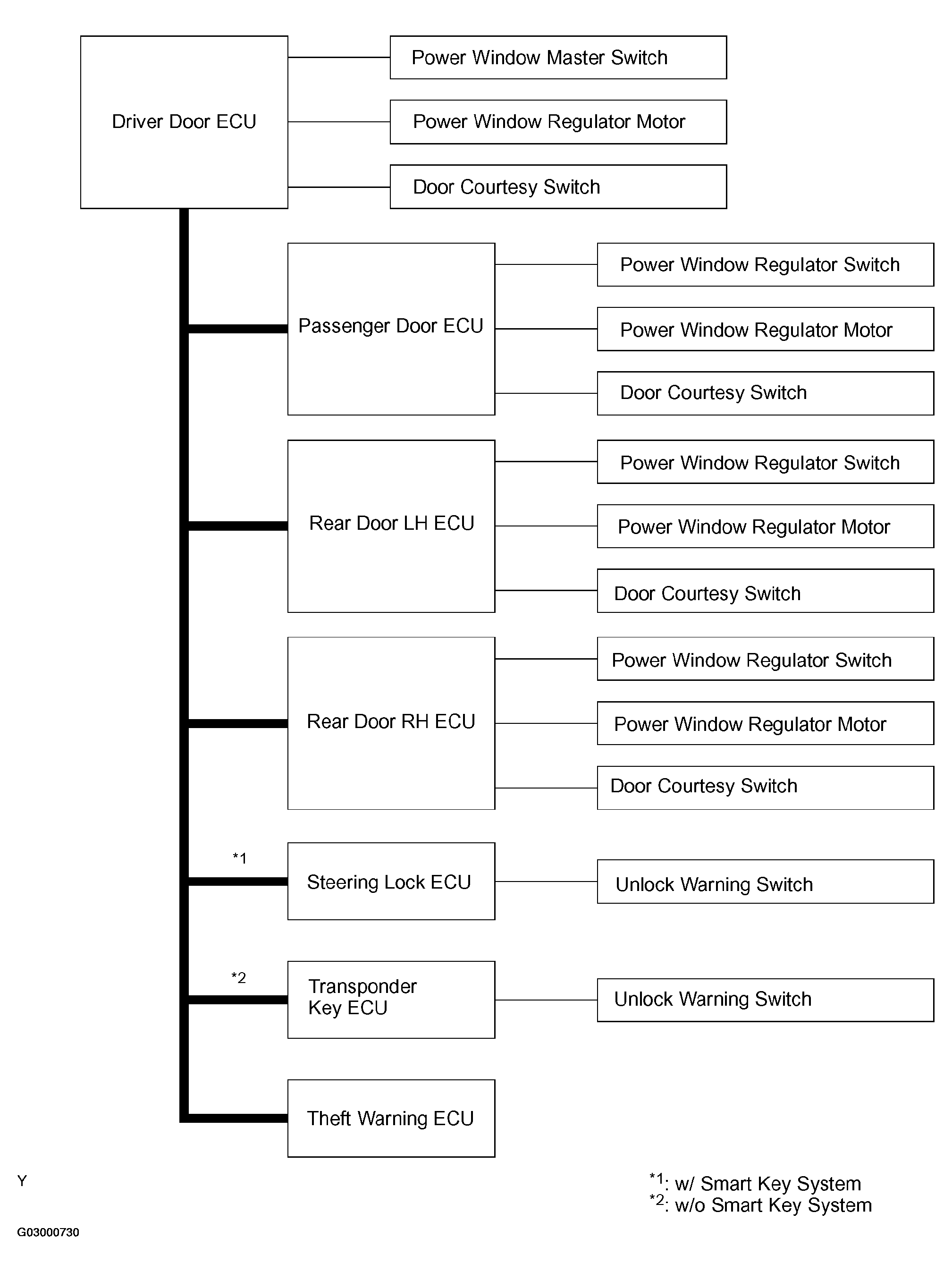

Fig 1: Power Window Control System Diagram
G03000730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

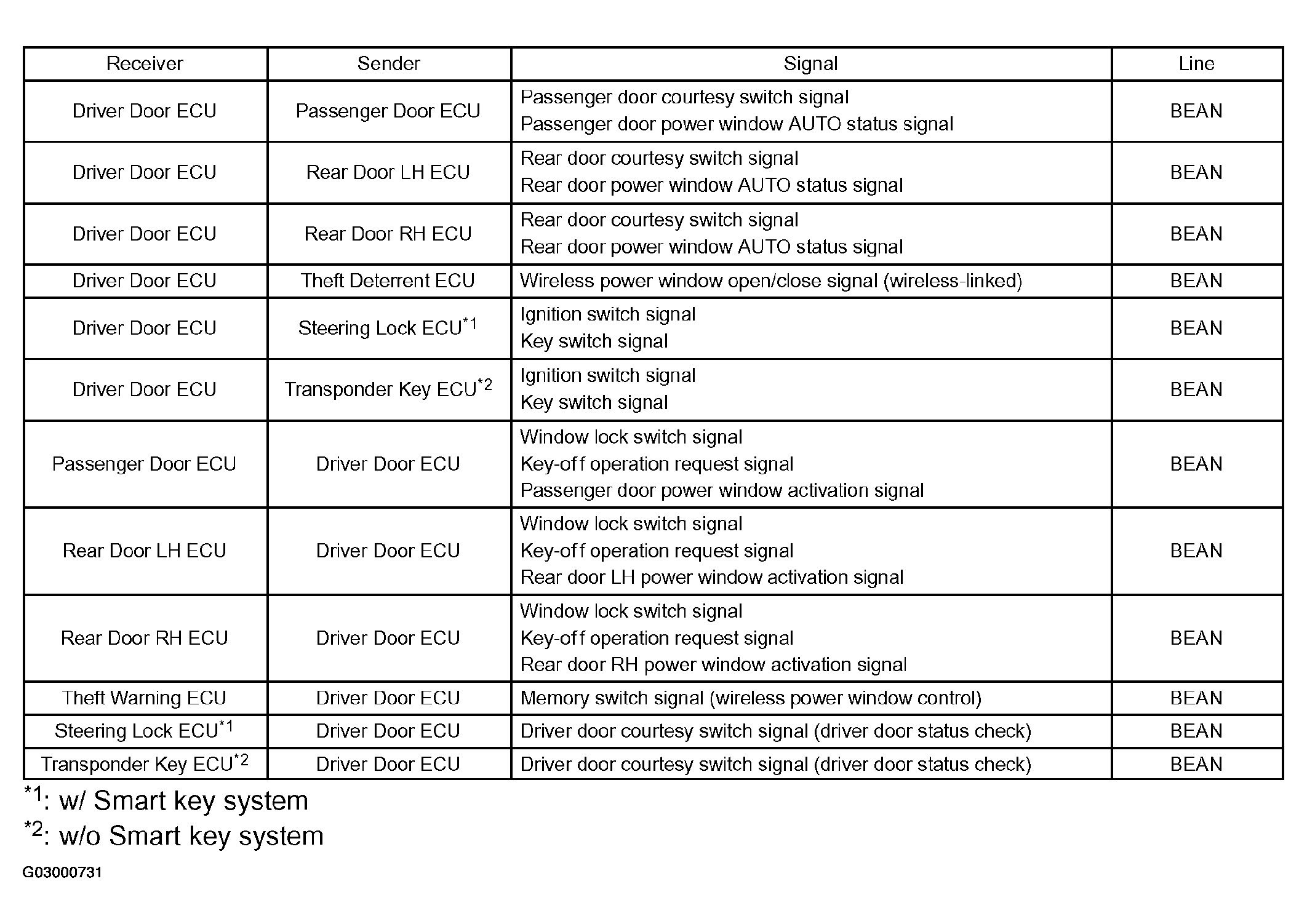

Fig 2: ECU Signal Reference Chart
G03000731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
