Power Mirror Control System: Location

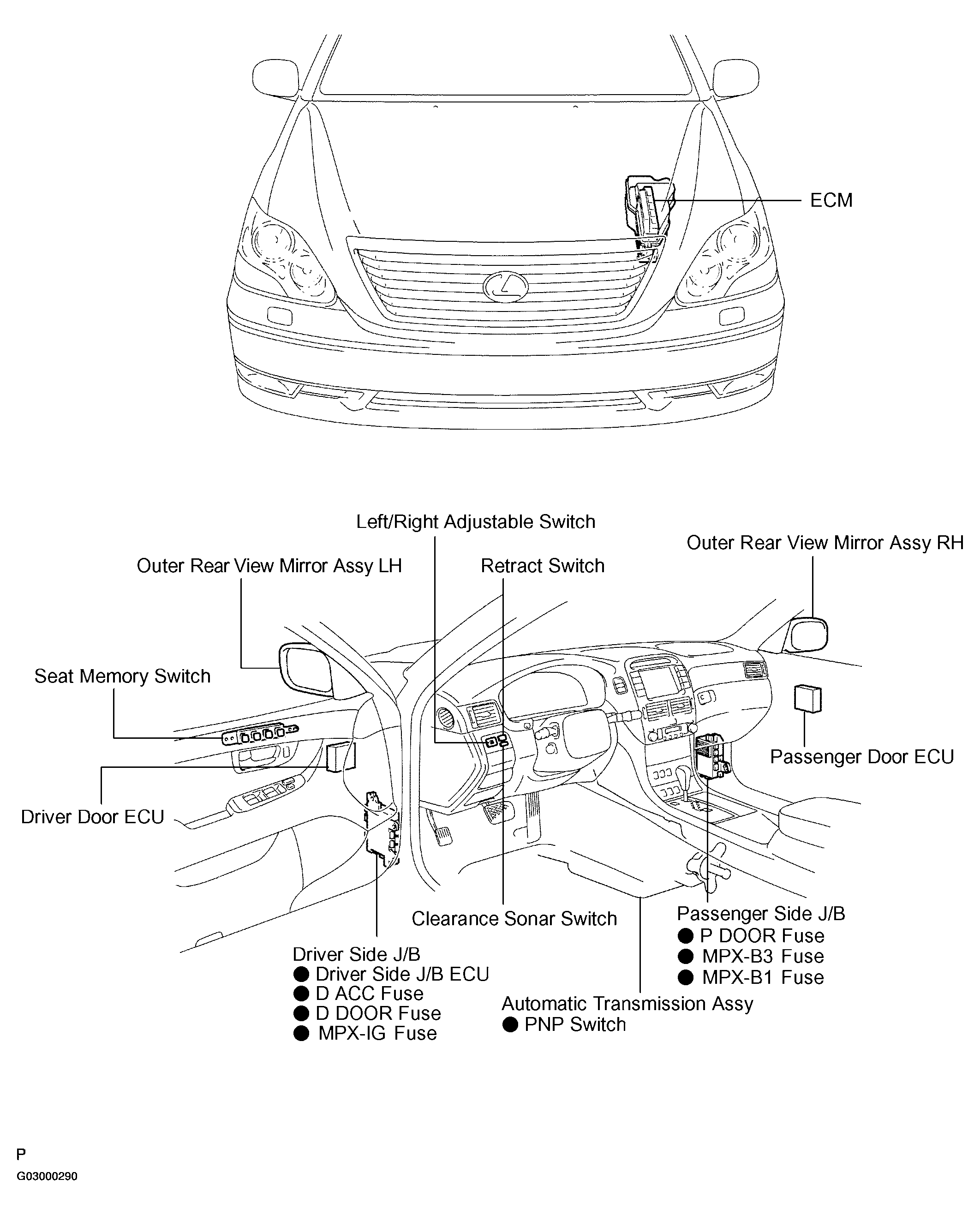

Fig 1: Identifying Power Mirror Control System Components And Replacements Location
G03000290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
