Window Defogger System: Location

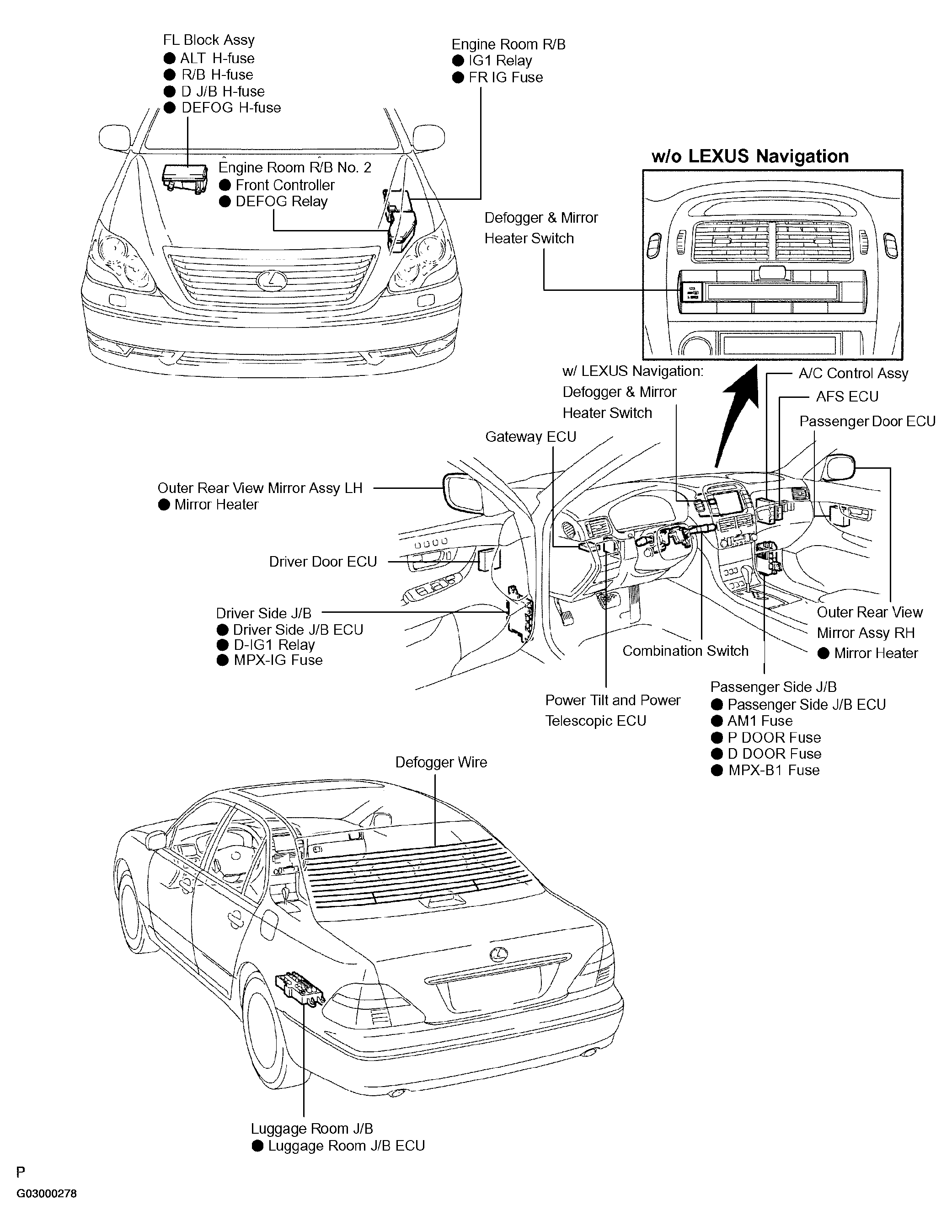

Fig 1: Identifying Window Defogger System Components And Replacements Location
G03000278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
