Windshield Glass: Components

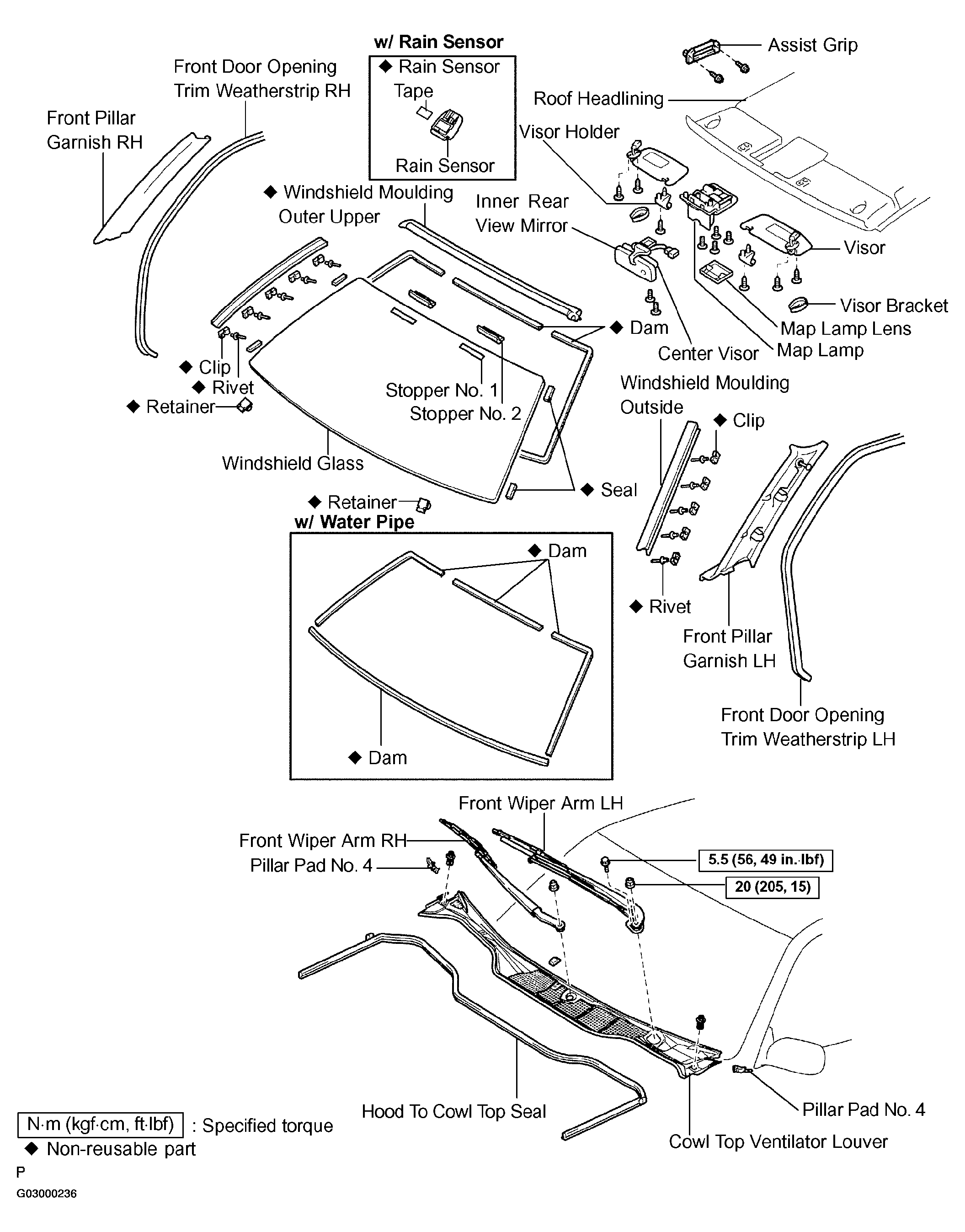

Fig 1: Identifying Windshield Glass Components And Replacements
G03000236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
