Audio System: Notes

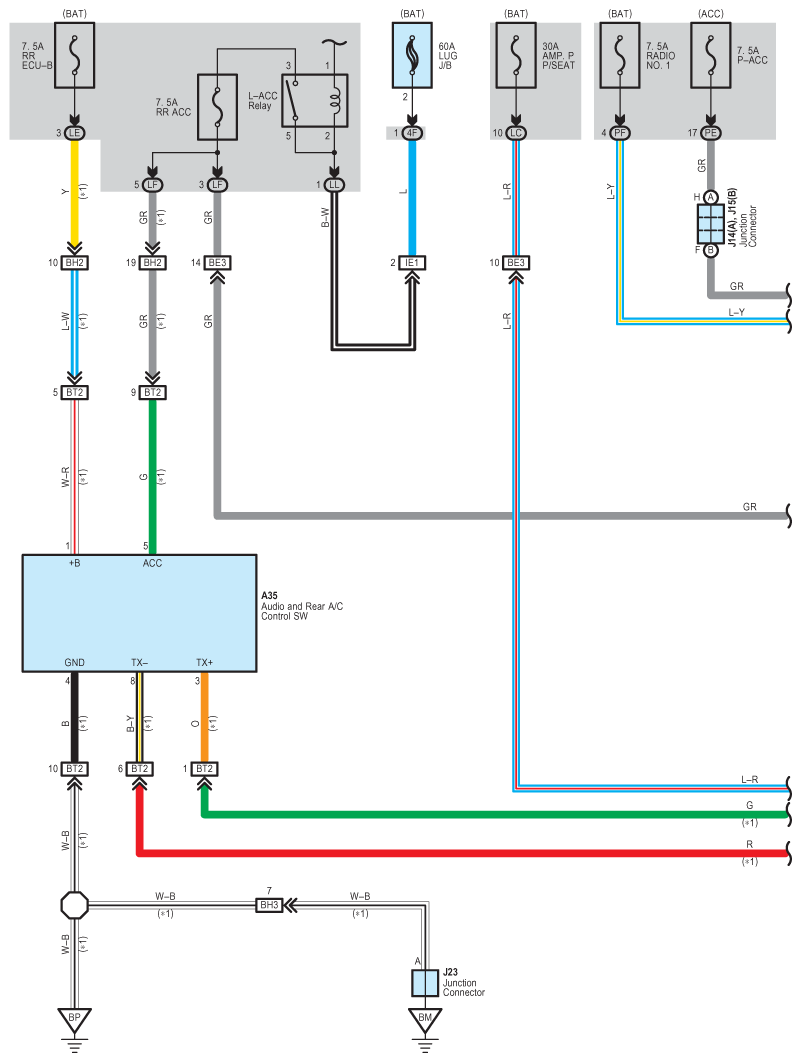

Fig 1: Audio System Wiring Diagram (1 Of 6)
G08913928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

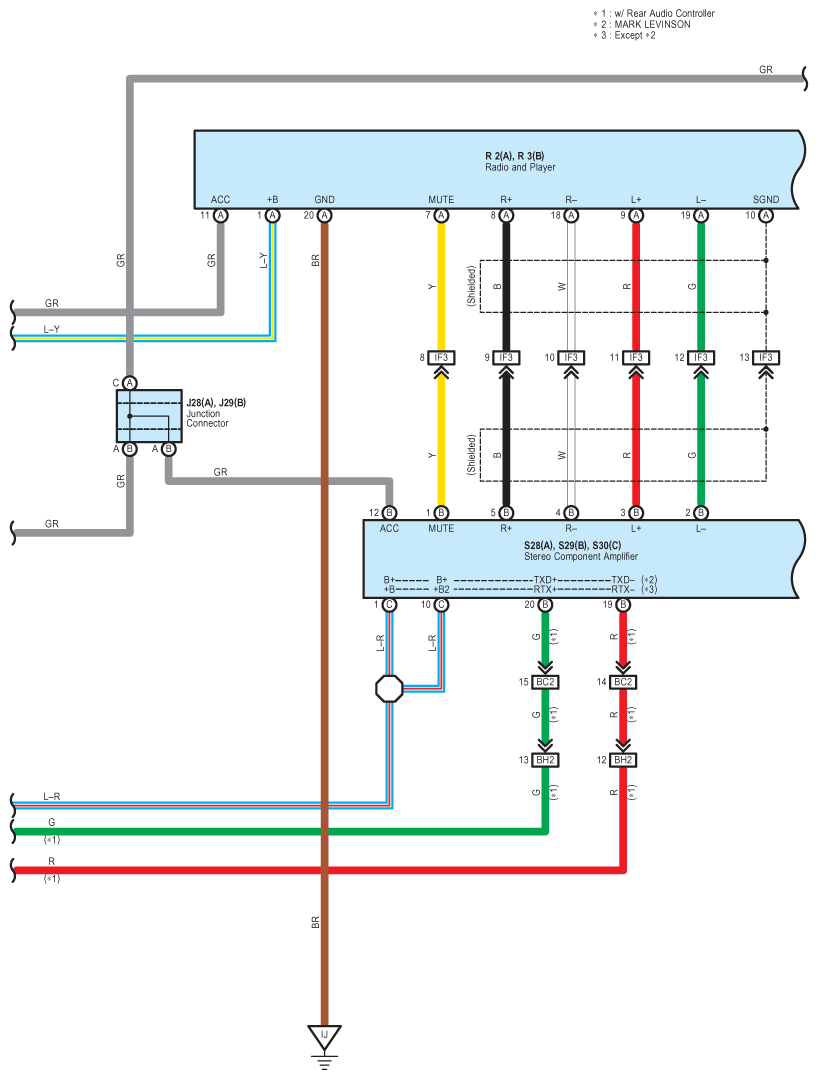

Fig 2: Audio System Wiring Diagram (2 Of 6)
G08913929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

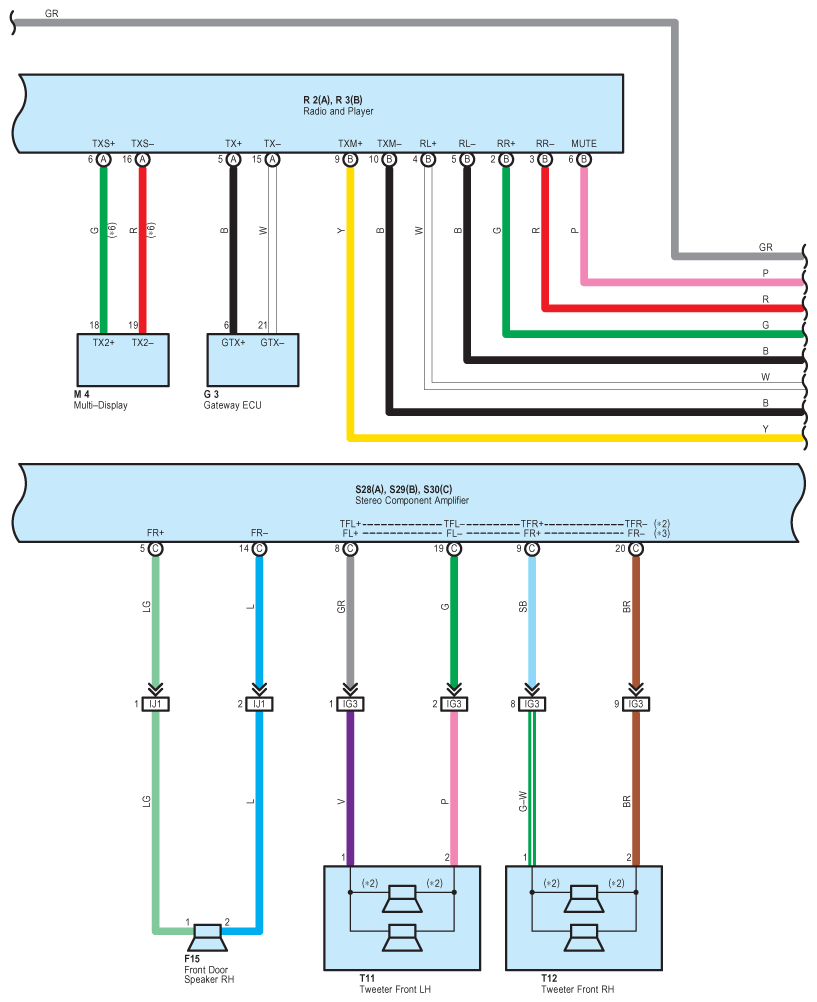

Fig 3: Audio System Wiring Diagram (3 Of 6)
G08913930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

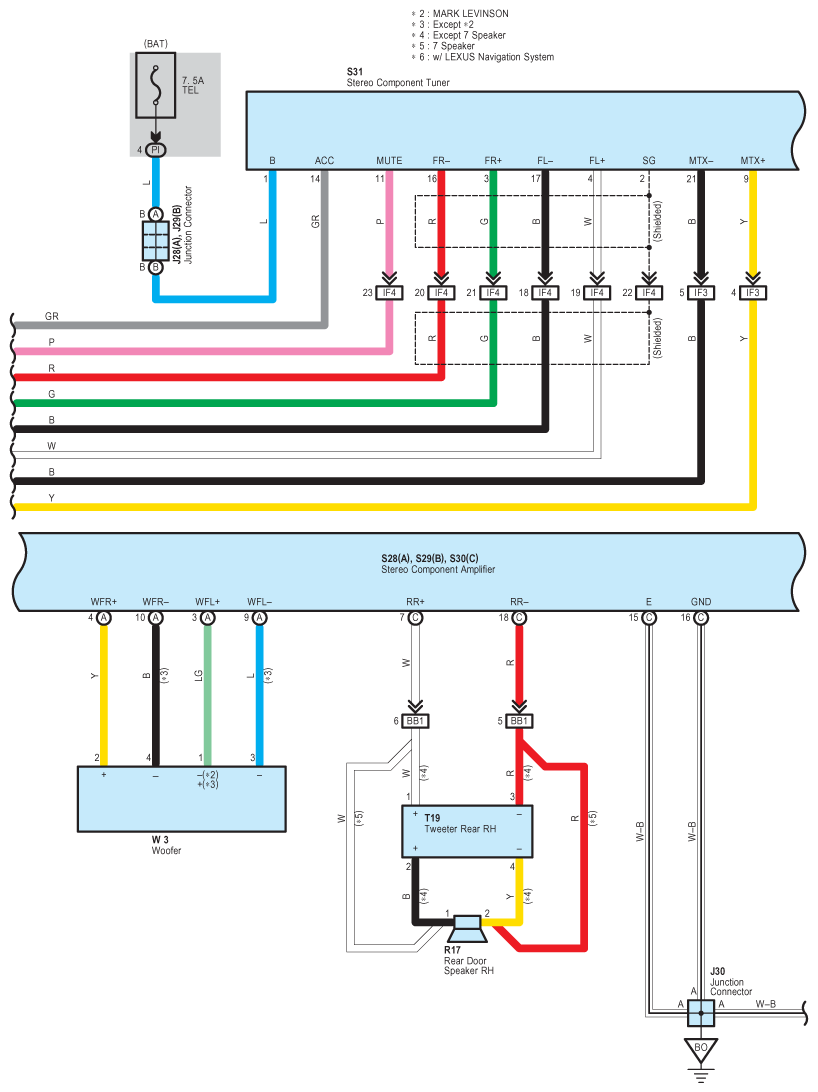

Fig 4: Audio System Wiring Diagram (4 Of 6)
G08913931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

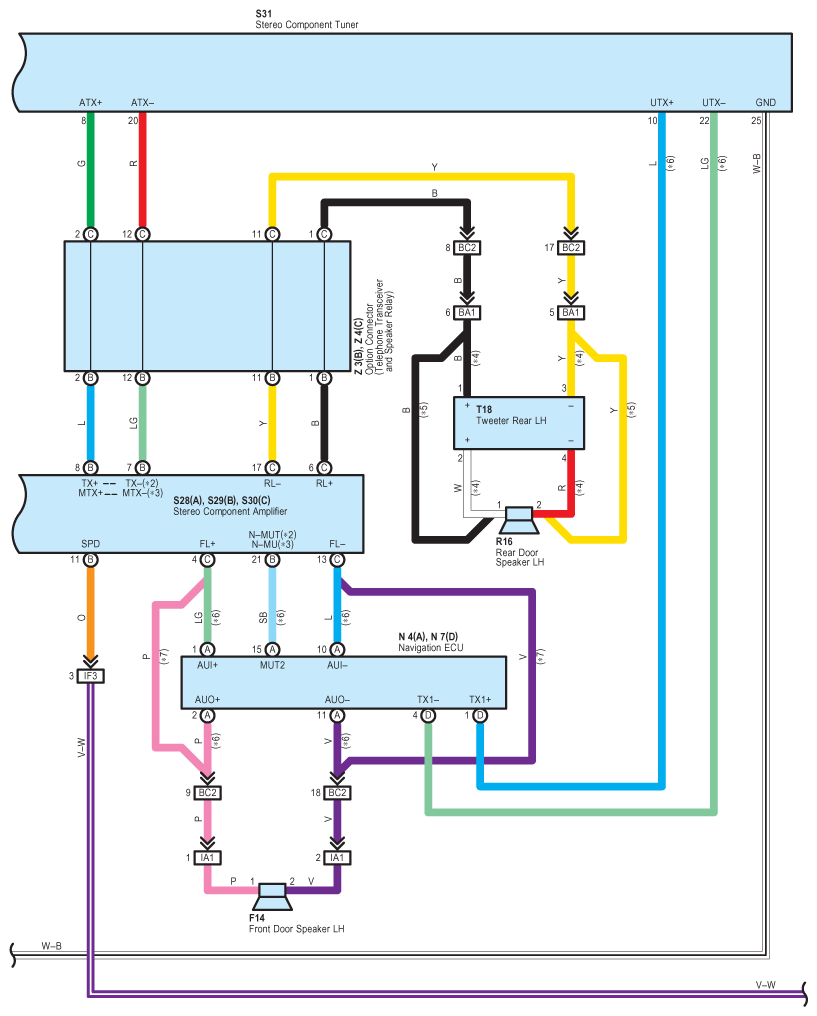

Fig 5: Audio System Wiring Diagram (5 Of 6)
G08913932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

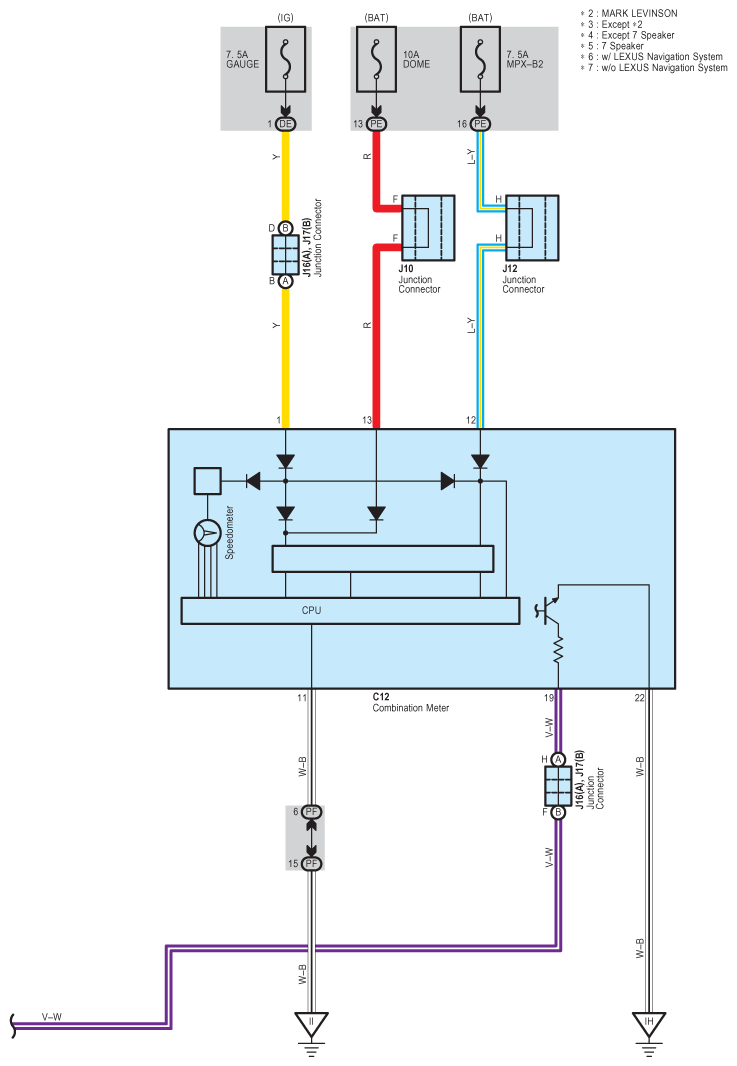

Fig 6: Audio System Wiring Diagram (6 Of 6)
G08913933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
