Clock without Navigation System: Notes

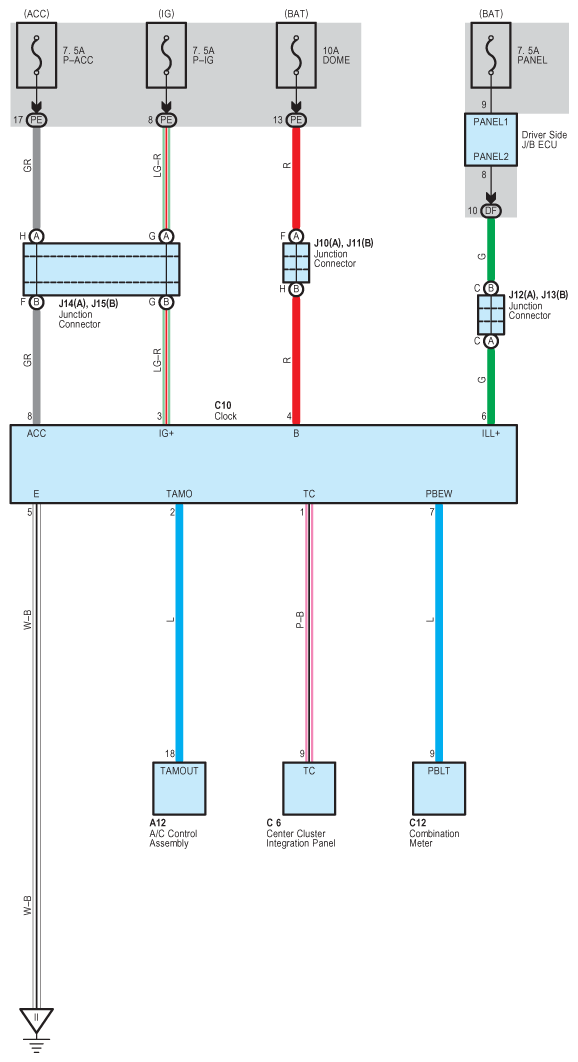

Fig 1: Clock Without Navigation System Wiring Diagram
G08913913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
