Cruise Control: Notes

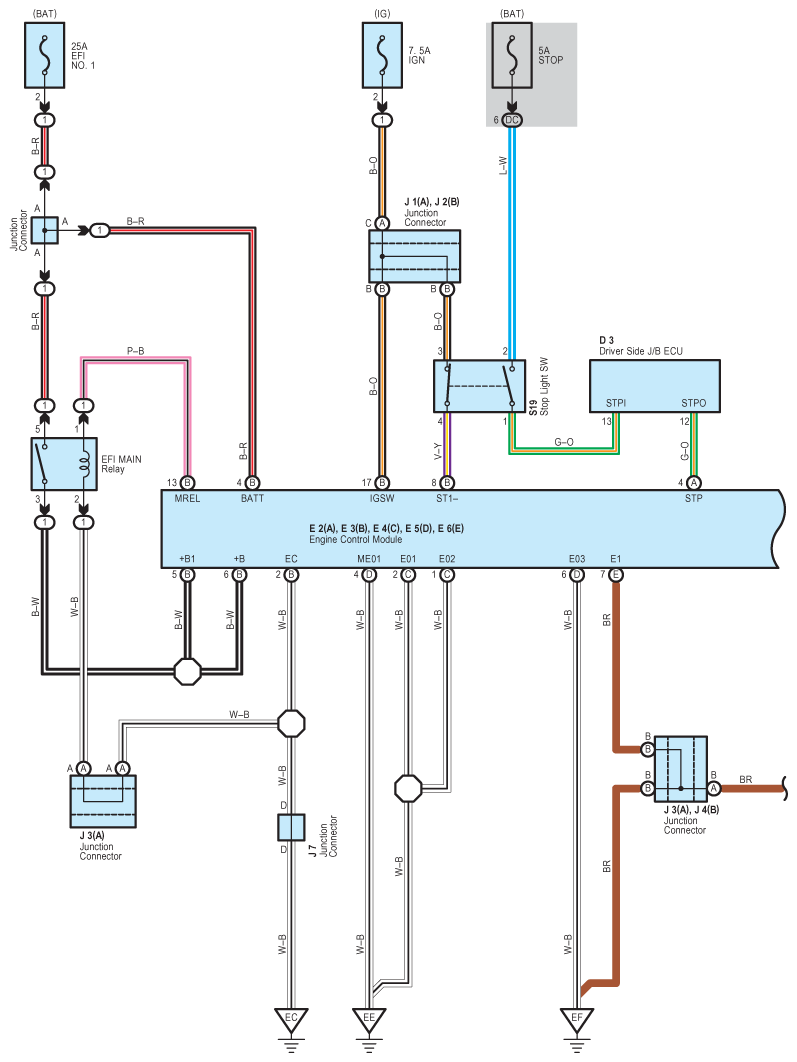

Fig 1: Cruise Control System Wiring Diagram (1 Of 5)
G08913850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

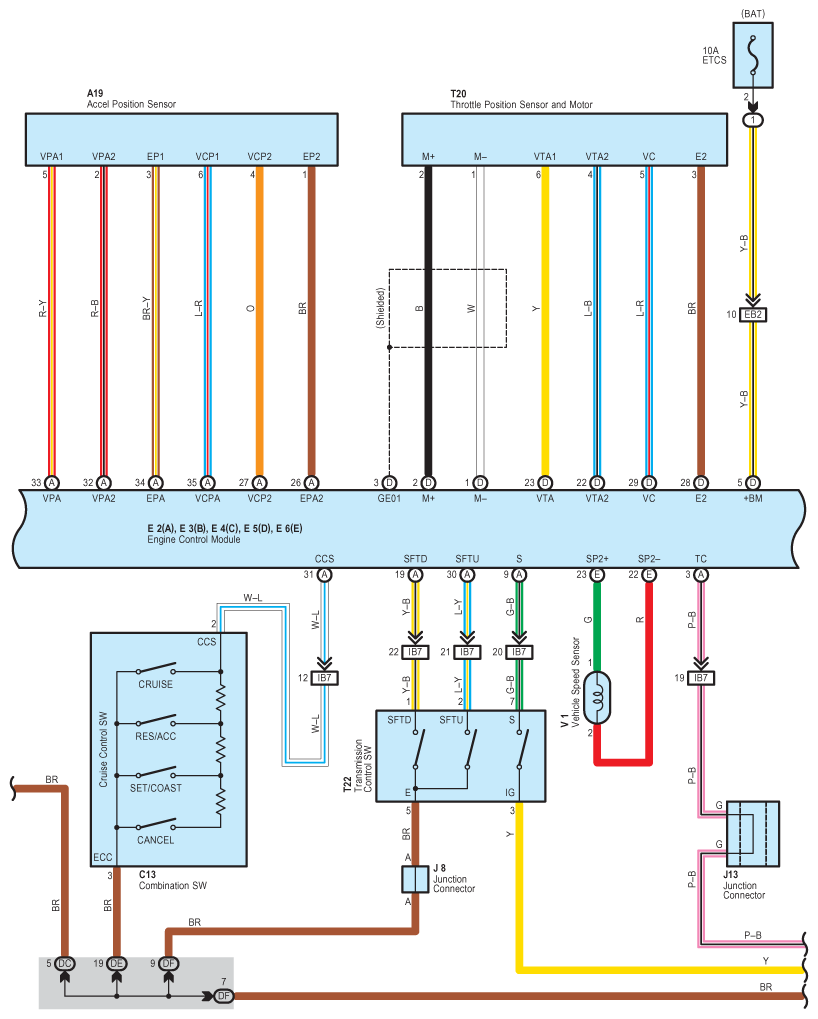

Fig 2: Cruise Control System Wiring Diagram (2 Of 5)
G08913851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

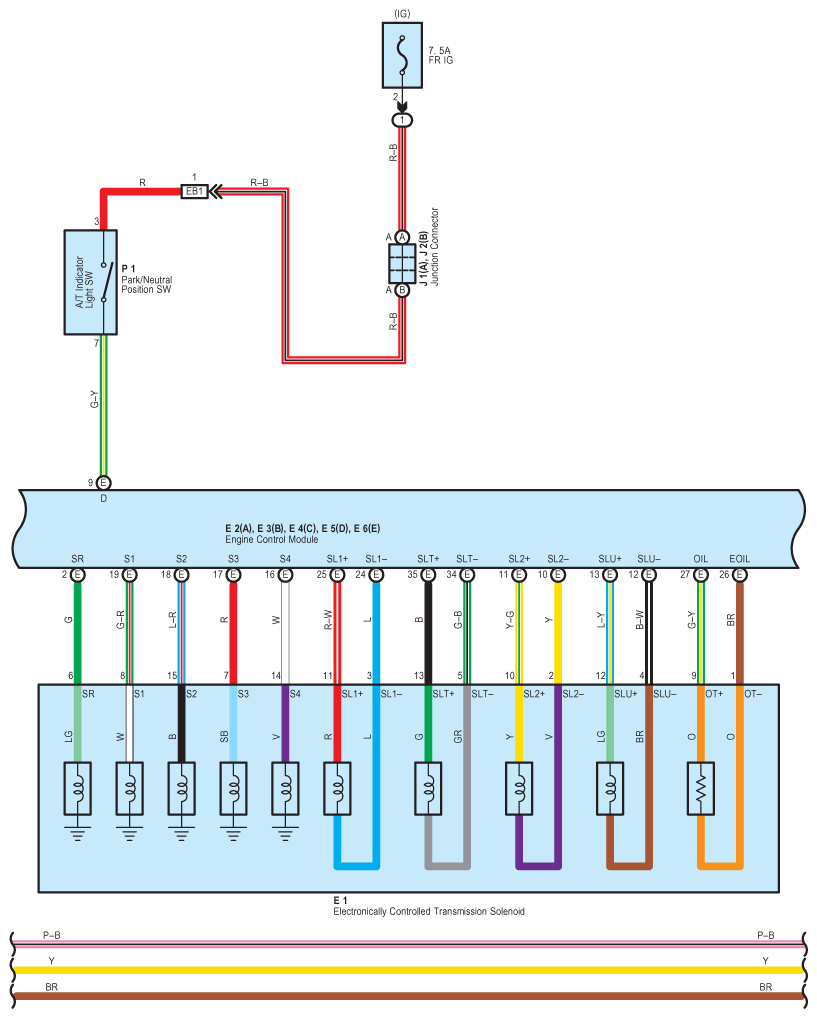

Fig 3: Cruise Control System Wiring Diagram (3 Of 5)
G08913852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

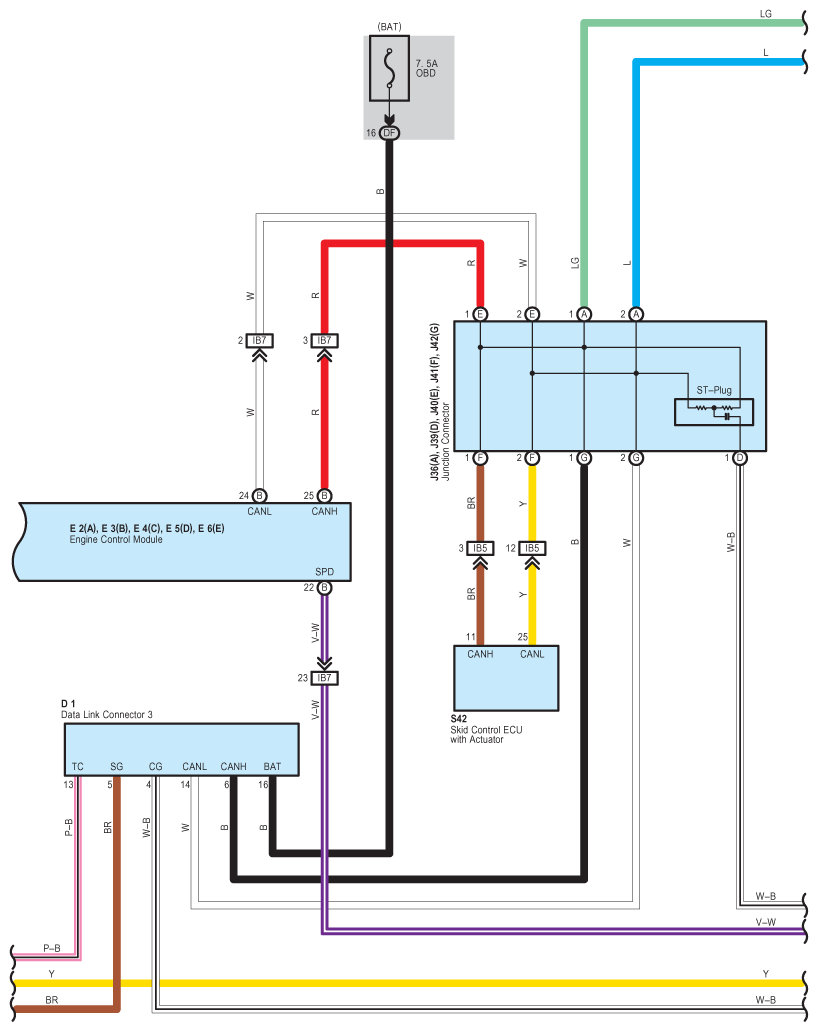

Fig 4: Cruise Control System Wiring Diagram (4 Of 5)
G08913853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

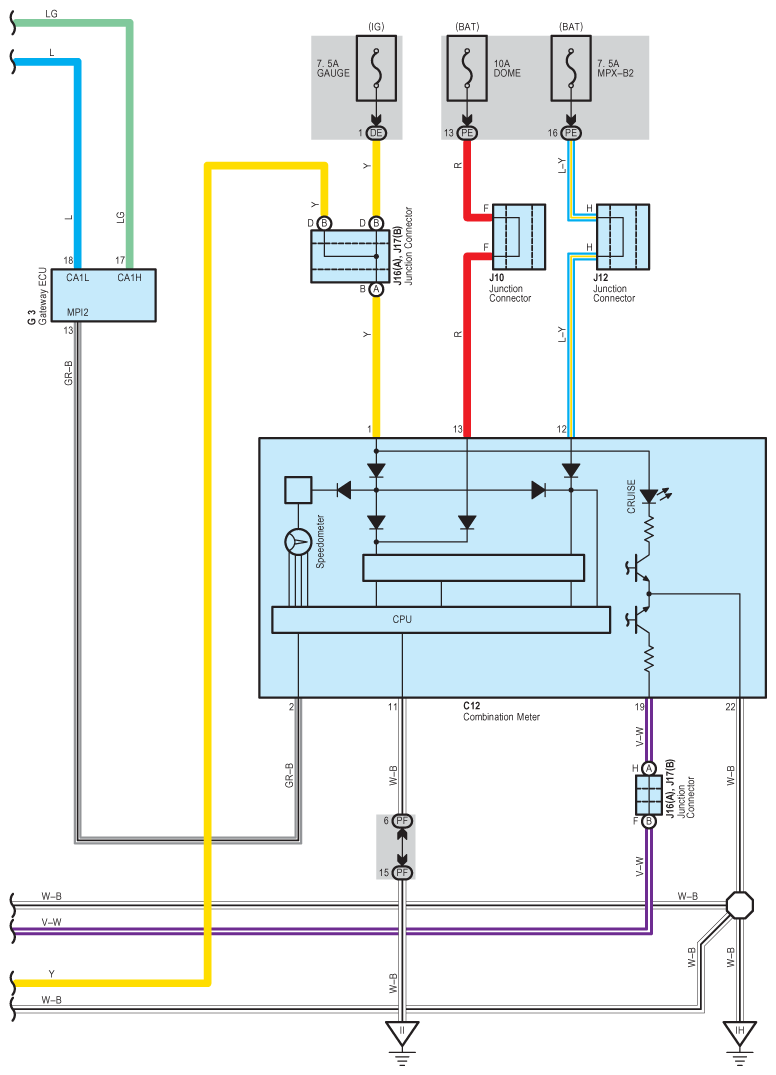

Fig 5: Cruise Control System Wiring Diagram (5 Of 5)
G08913854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
