Dynamic Radar/Laser Cruise Control System: Notes

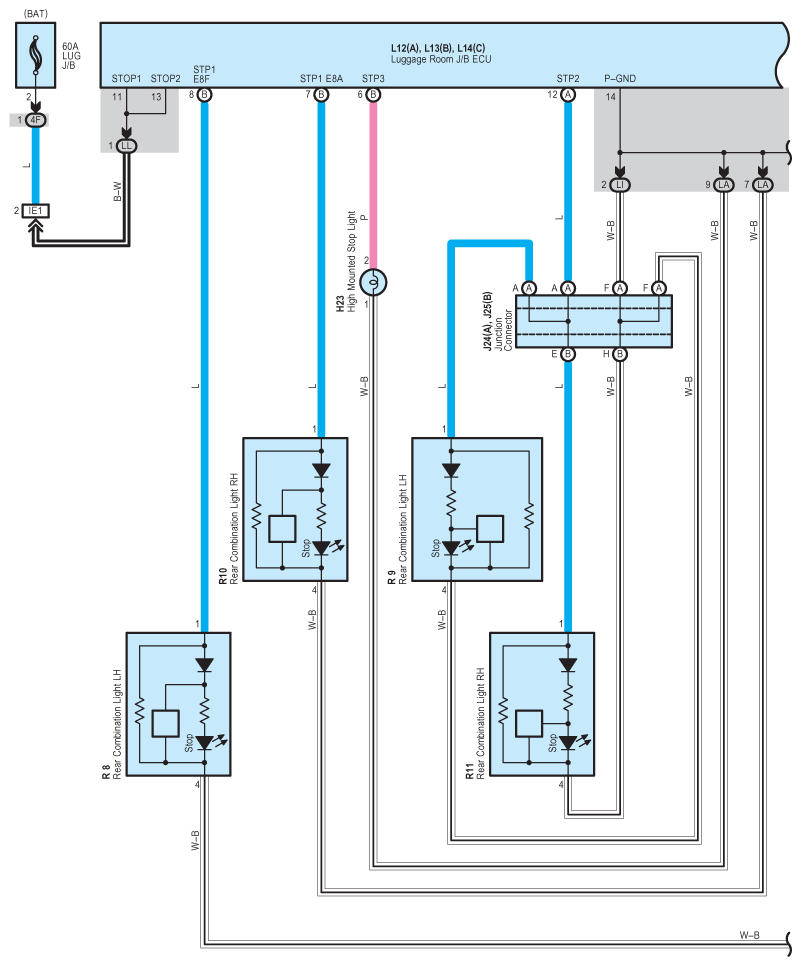

Fig 1: Dynamic Radar/Laser Cruise Control System Wiring Diagram (1 Of 11)
G08913839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

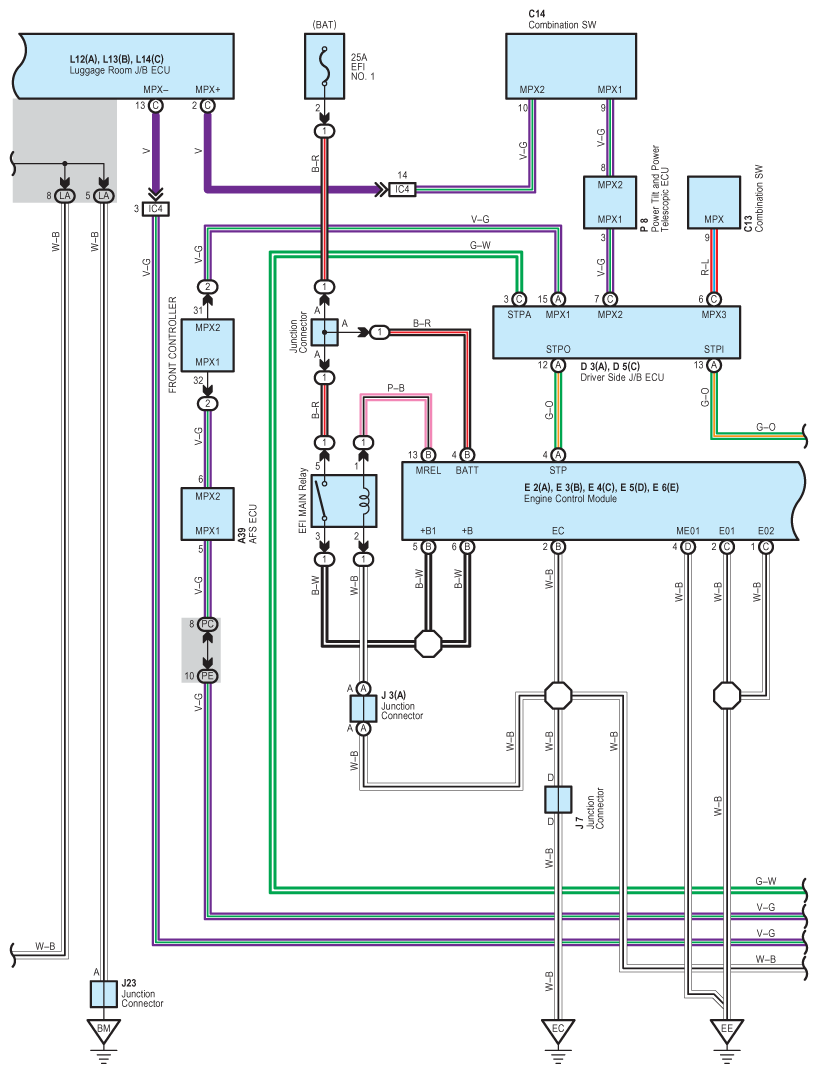

Fig 2: Dynamic Radar/Laser Cruise Control System Wiring Diagram (2 Of 11)
G08913840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

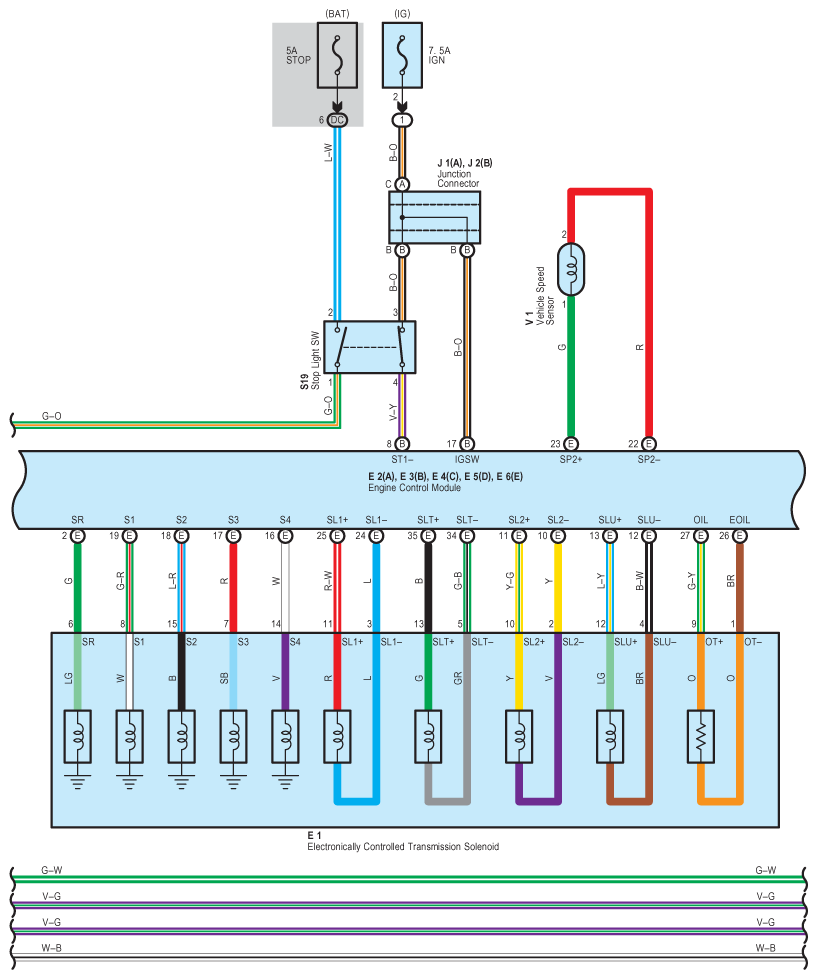

Fig 3: Dynamic Radar/Laser Cruise Control System Wiring Diagram (3 Of 11)
G08913841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

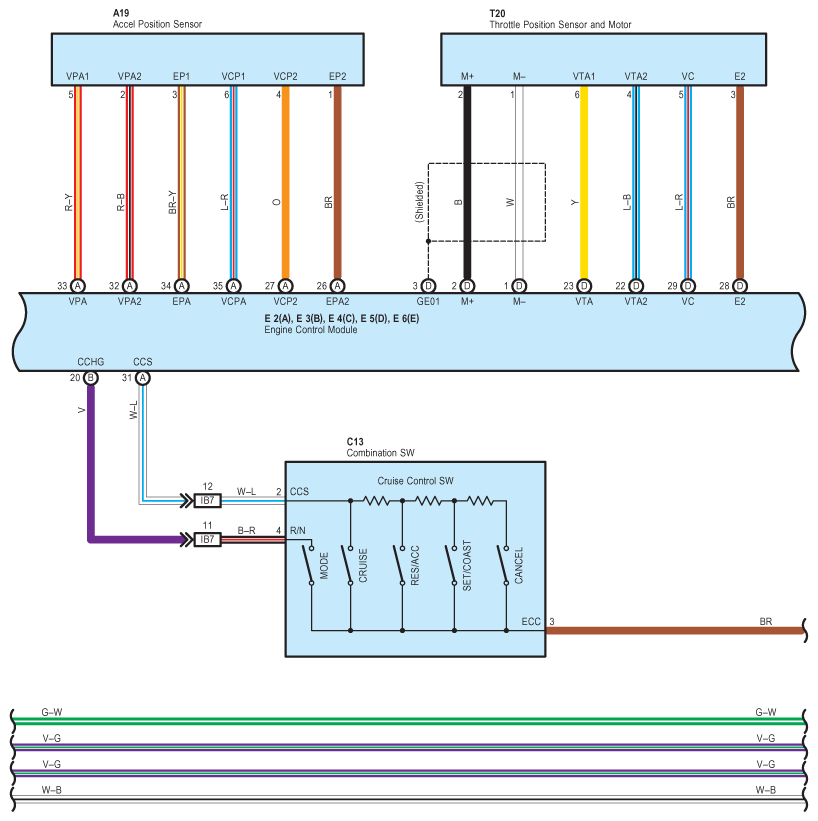

Fig 4: Dynamic Radar/Laser Cruise Control System Wiring Diagram (4 Of 11)
G08913842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

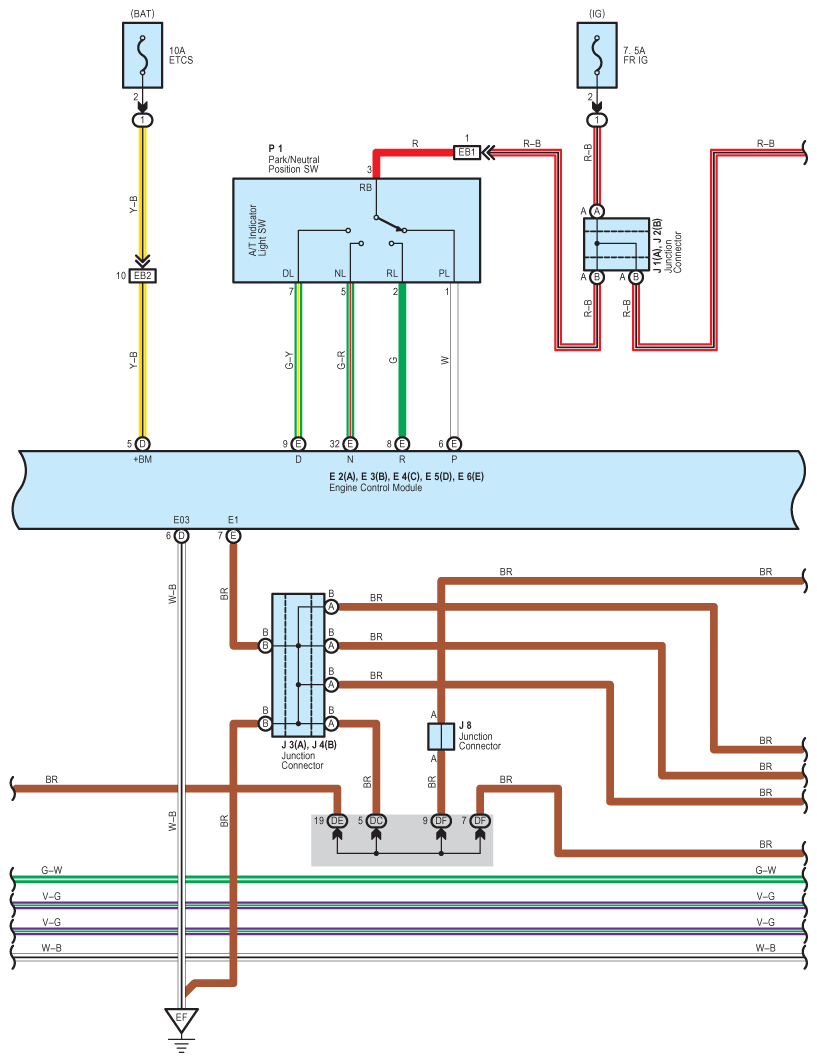

Fig 5: Dynamic Radar/Laser Cruise Control System Wiring Diagram (5 Of 11)
G08913843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

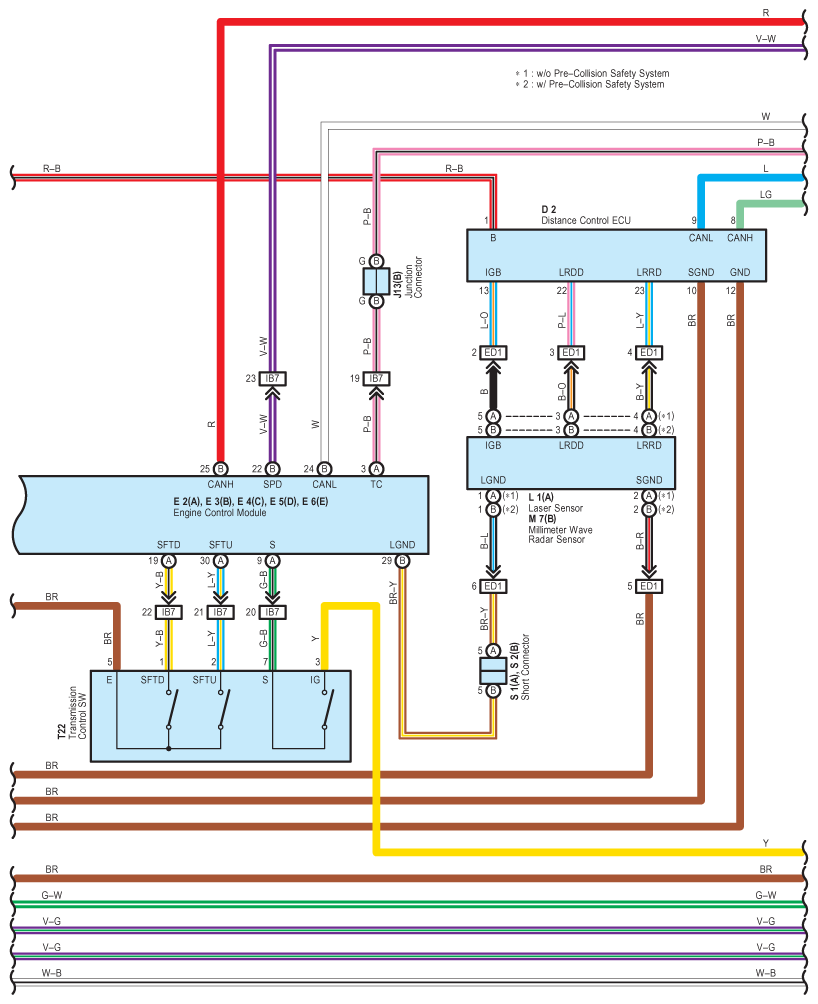

Fig 6: Dynamic Radar/Laser Cruise Control System Wiring Diagram (6 Of 11)
G08913844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 7: Dynamic Radar/Laser Cruise Control System Wiring Diagram (7 Of 11)

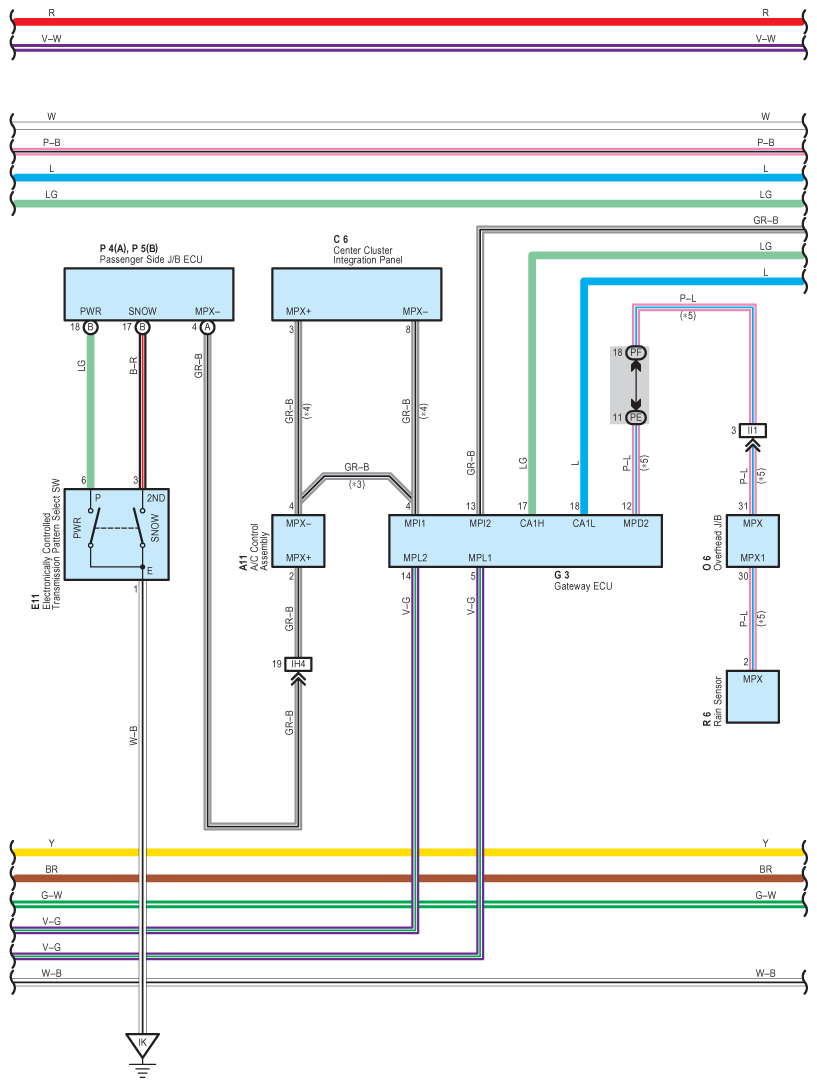

G08913845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

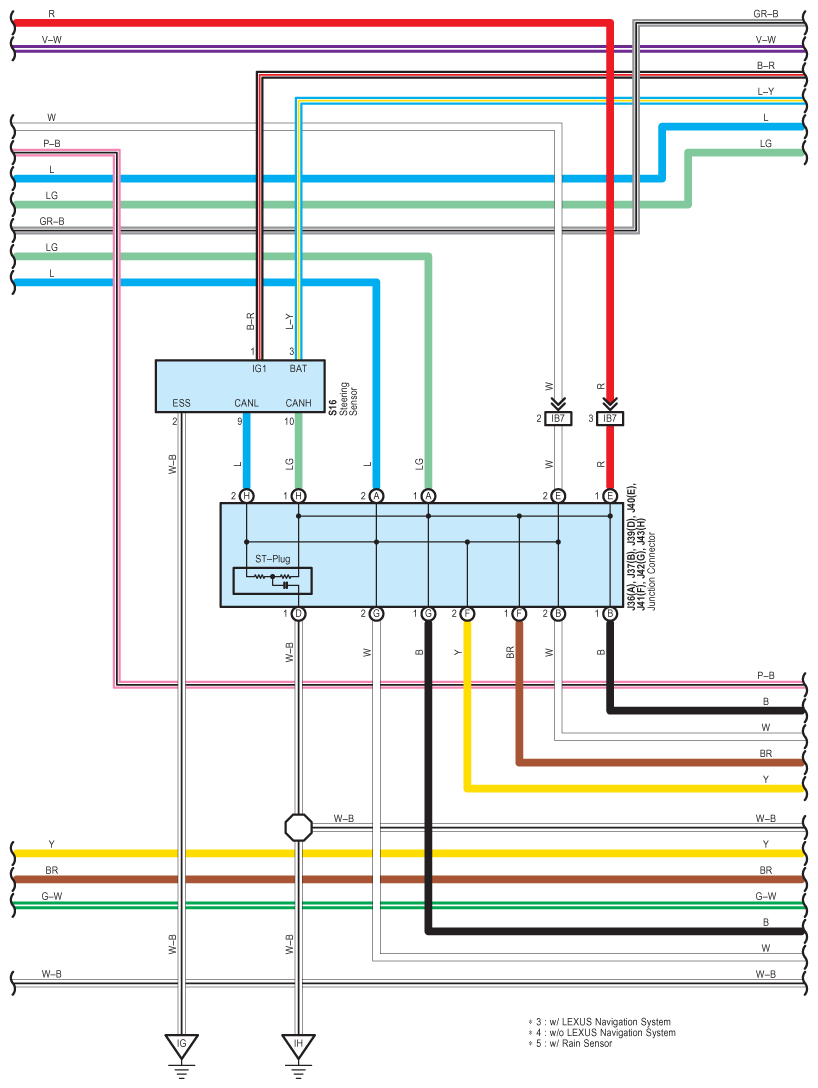

Fig 8: Dynamic Radar/Laser Cruise Control System Wiring Diagram (8 Of 11)
G08913846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

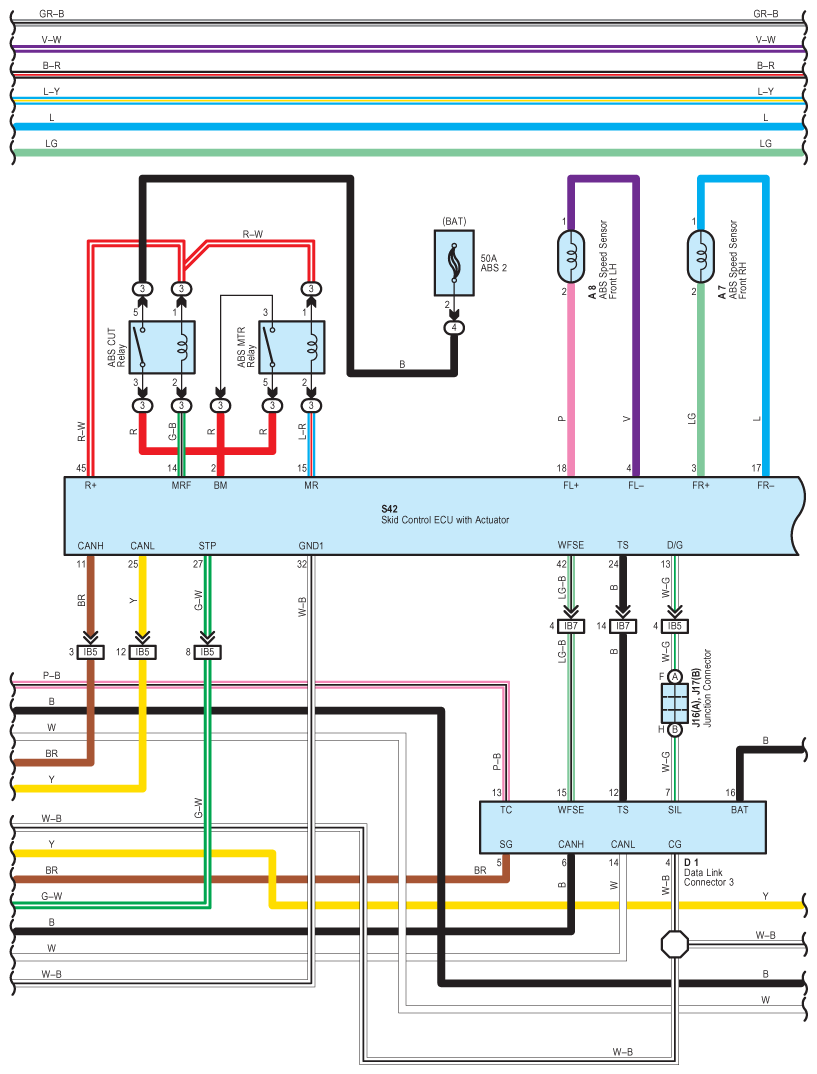

Fig 9: Dynamic Radar/Laser Cruise Control System Wiring Diagram (9 Of 11)
G08913847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

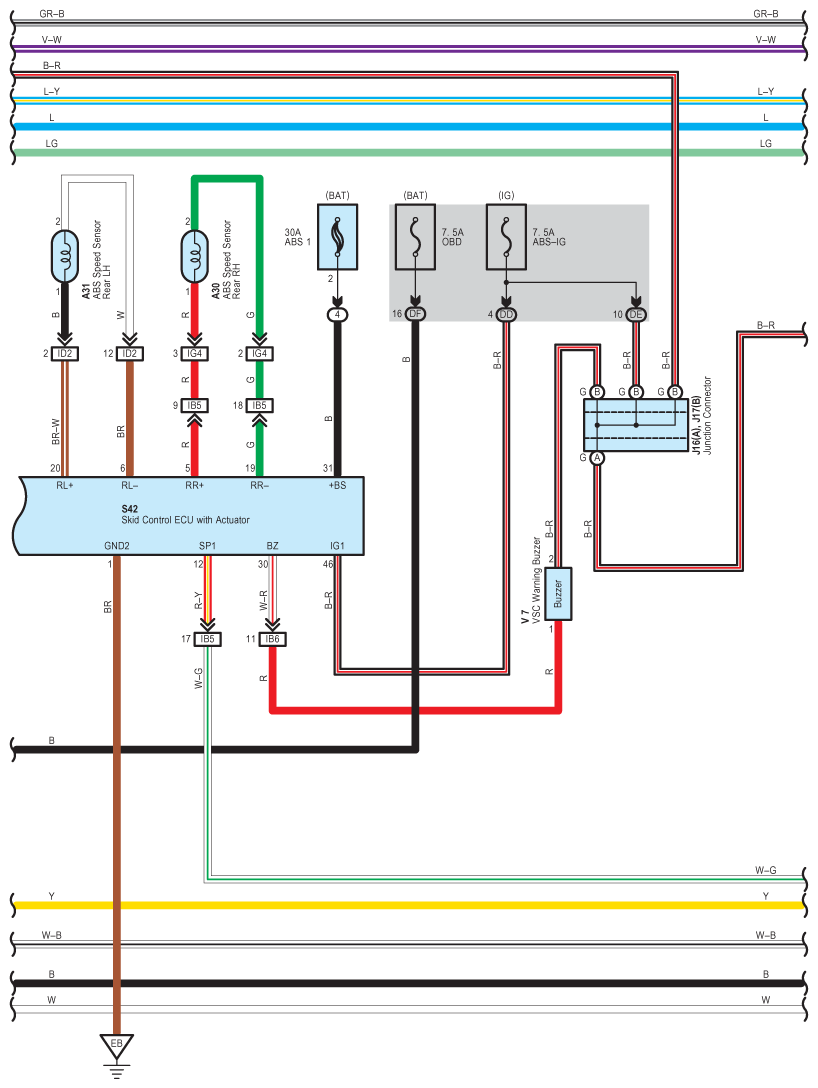

Fig 10: Dynamic Radar/Laser Cruise Control System Wiring Diagram (10 Of 11)
G08913848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

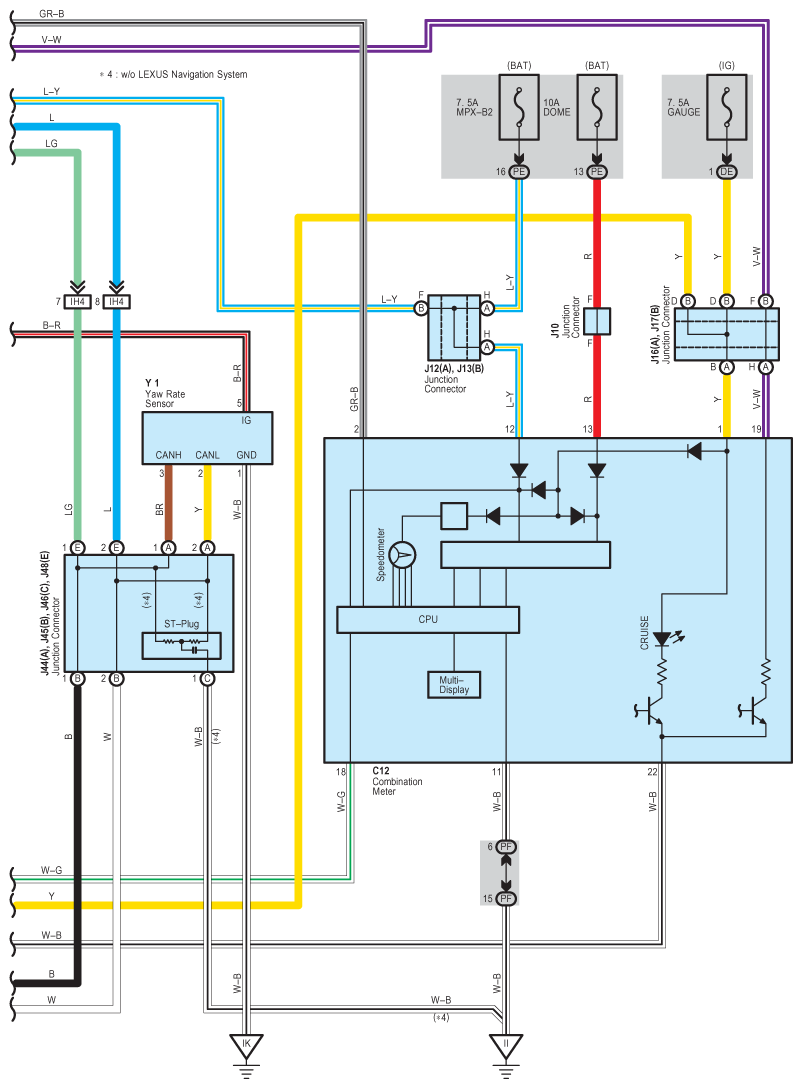

Fig 11: Dynamic Radar/Laser Cruise Control System Wiring Diagram (11 Of 11)
G08913849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
