Interior Light: Notes

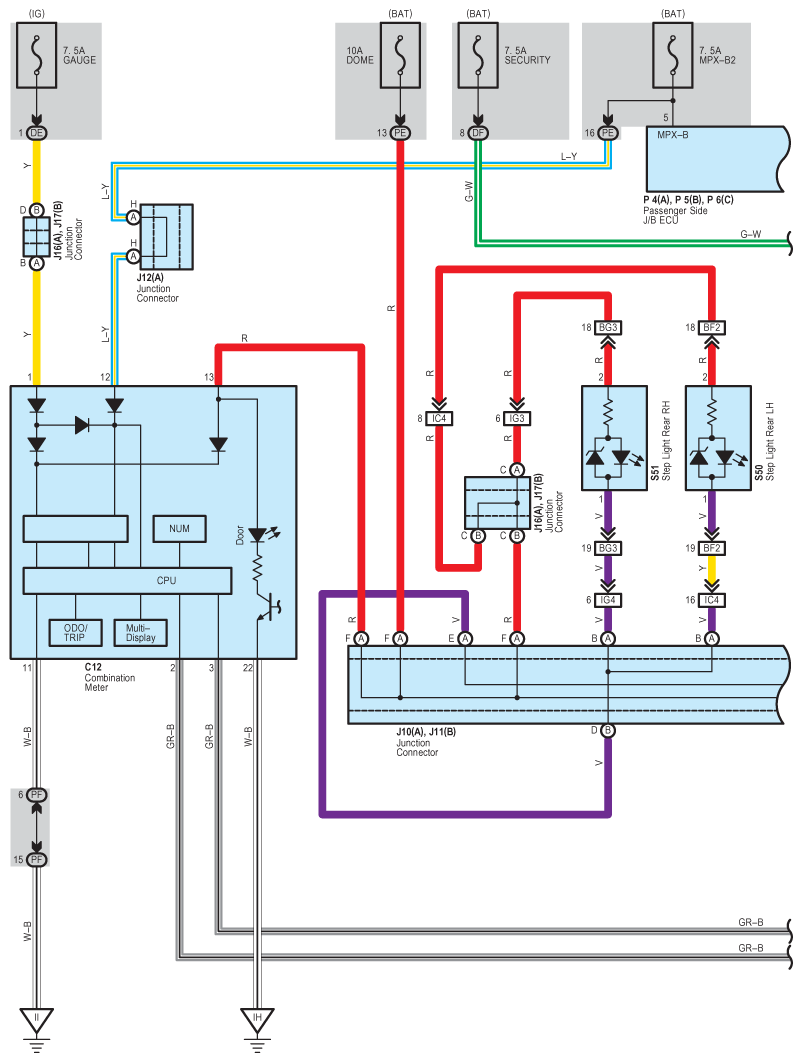

Fig 1: Interior Light System Wiring Diagram (1 Of 7)
G08913762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

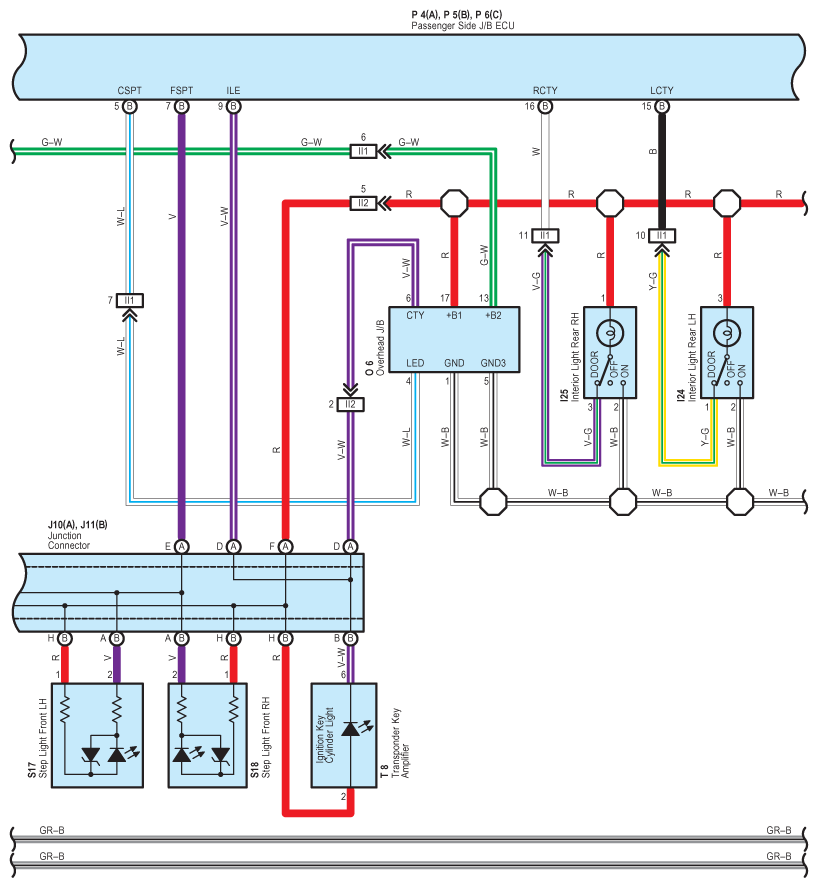

Fig 2: Interior Light System Wiring Diagram (2 Of 7)
G08913763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

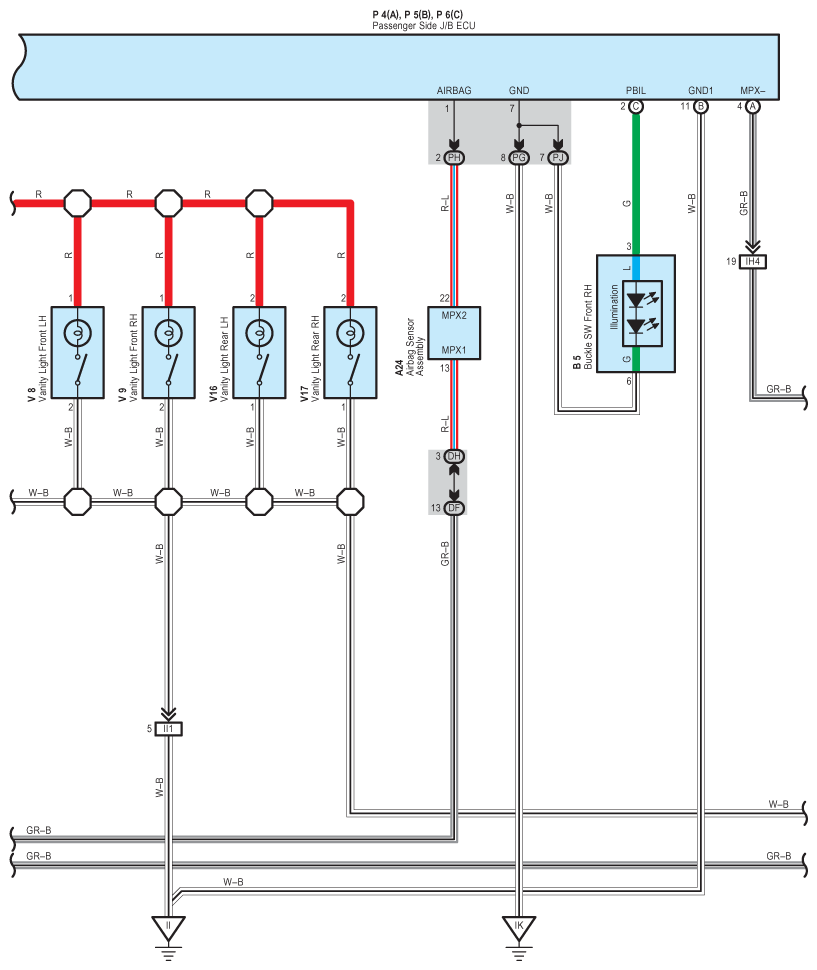

Fig 3: Interior Light System Wiring Diagram (3 Of 7)
G08913764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

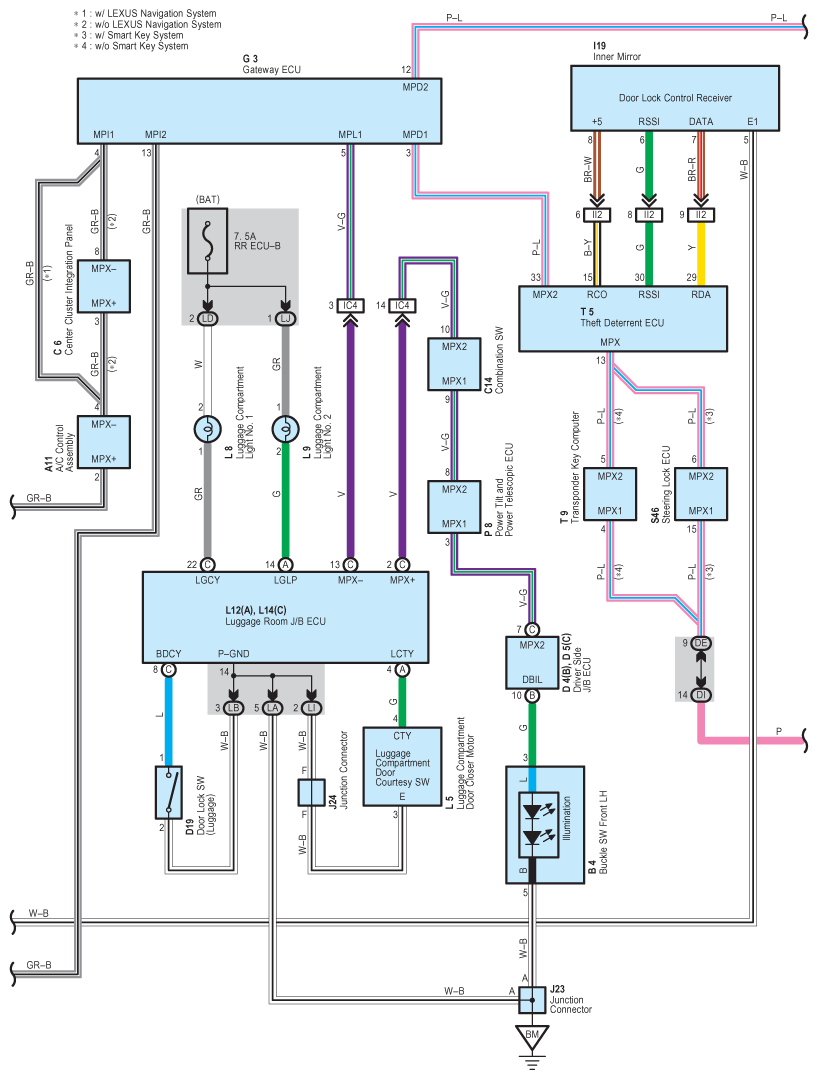

Fig 4: Interior Light System Wiring Diagram (4 Of 7)
G08913765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

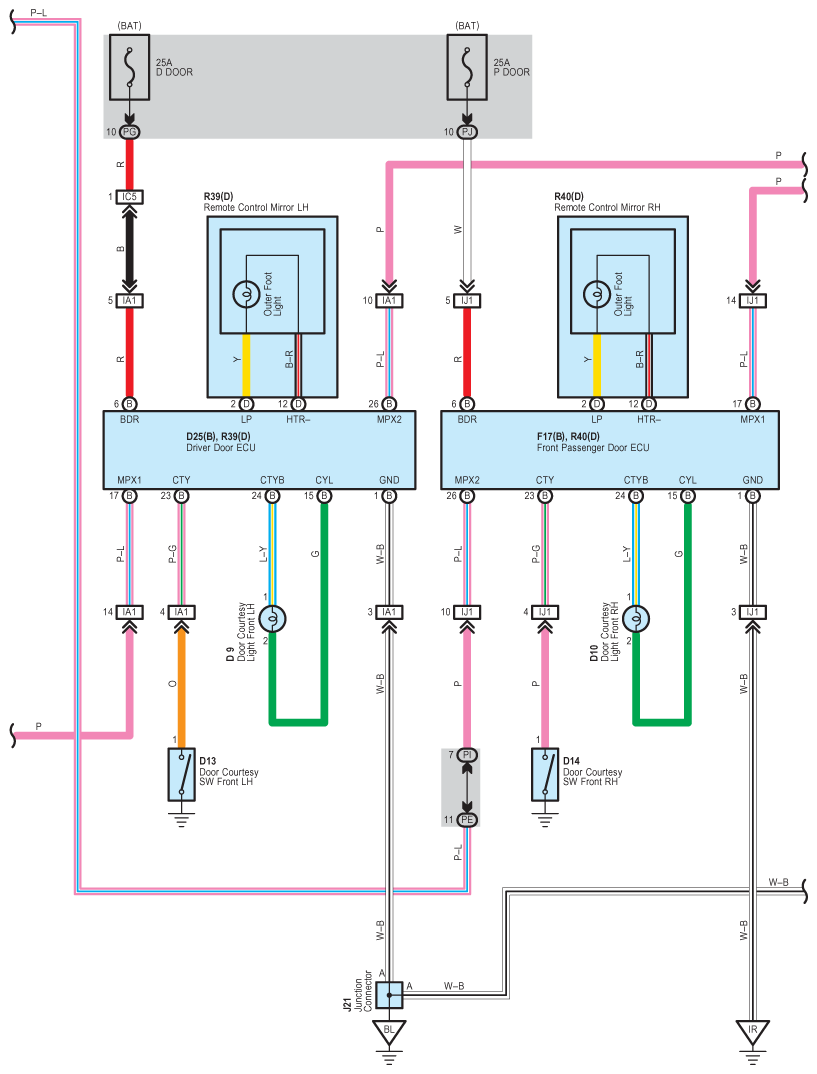

Fig 5: Interior Light System Wiring Diagram (5 Of 7)
G08913766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

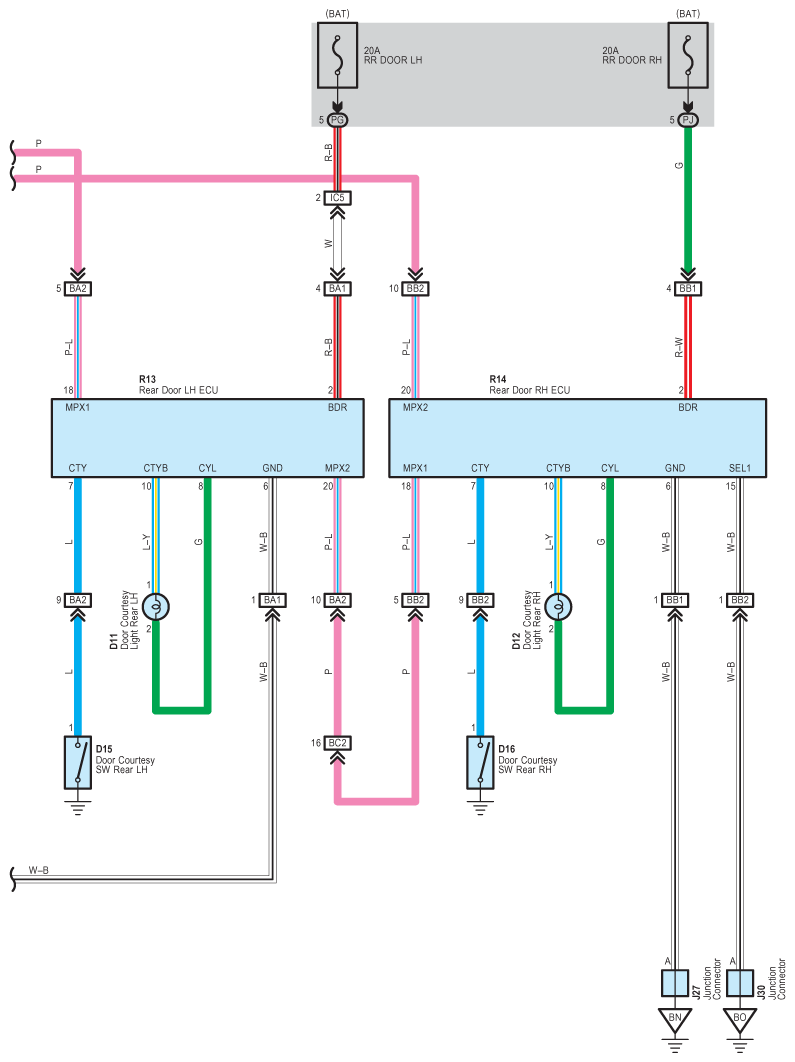

Fig 6: Interior Light System Wiring Diagram (6 Of 7)
G08913767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

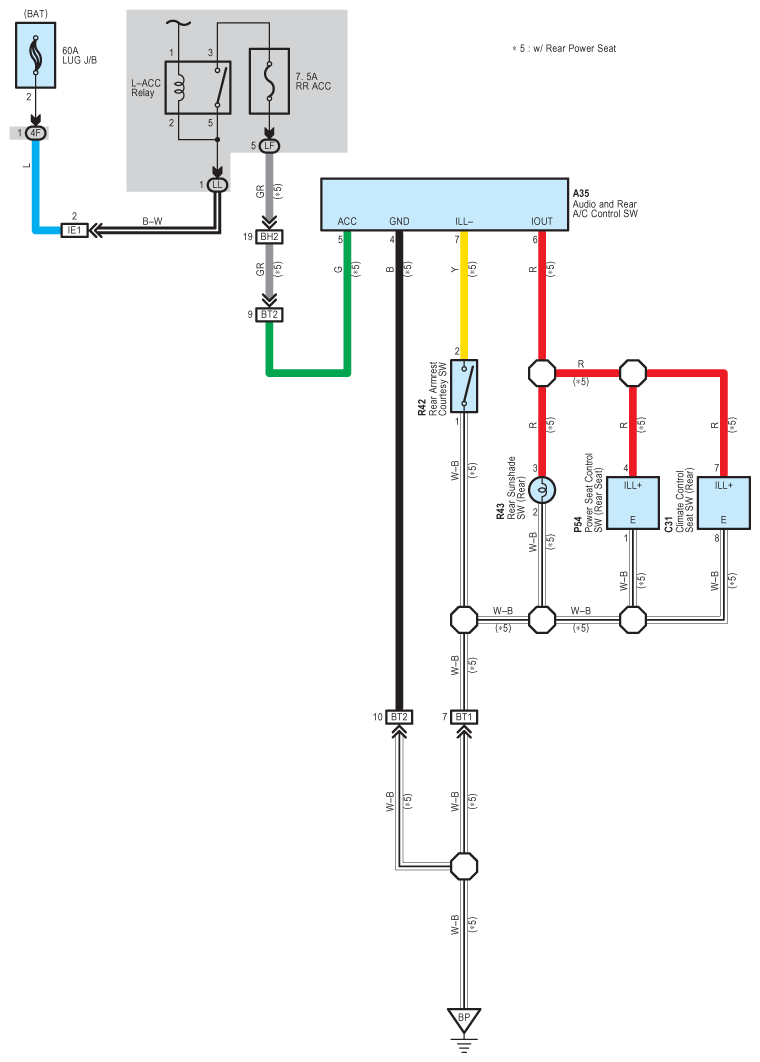

Fig 7: Interior Light System Wiring Diagram (7 Of 7)
G08913768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
