Light Auto Turn Off System: Notes

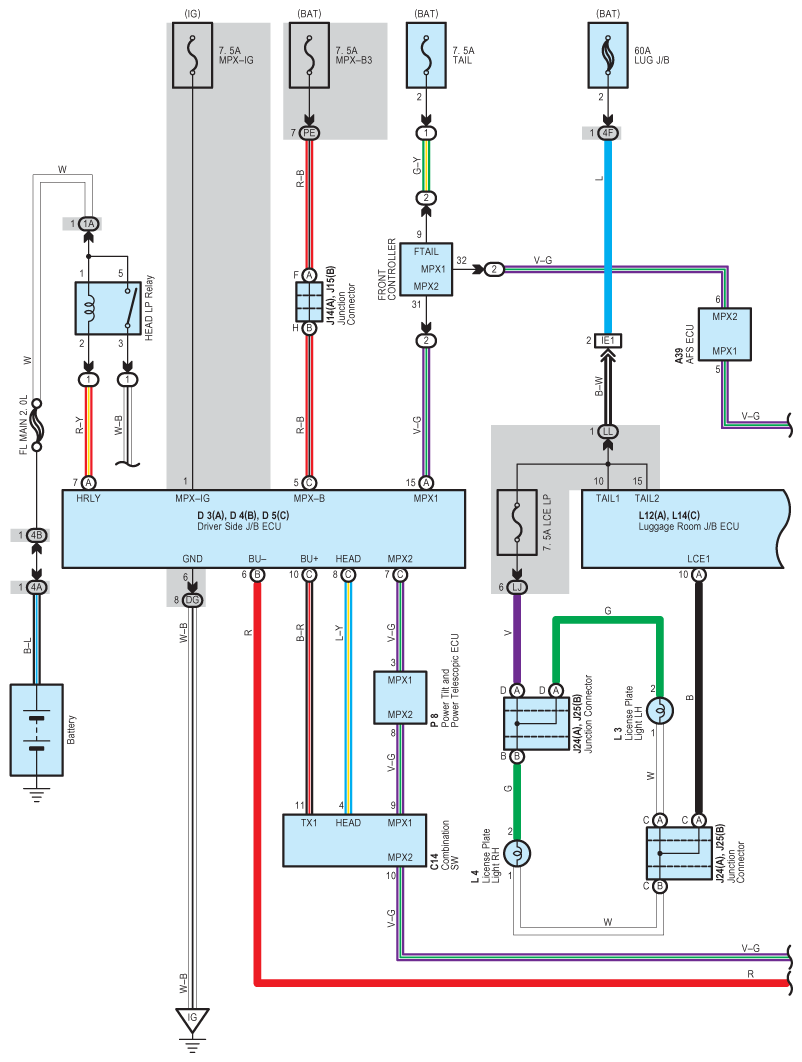

Fig 1: Light Auto Turn Off System Wiring Diagram (1 Of 3)
G08913771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

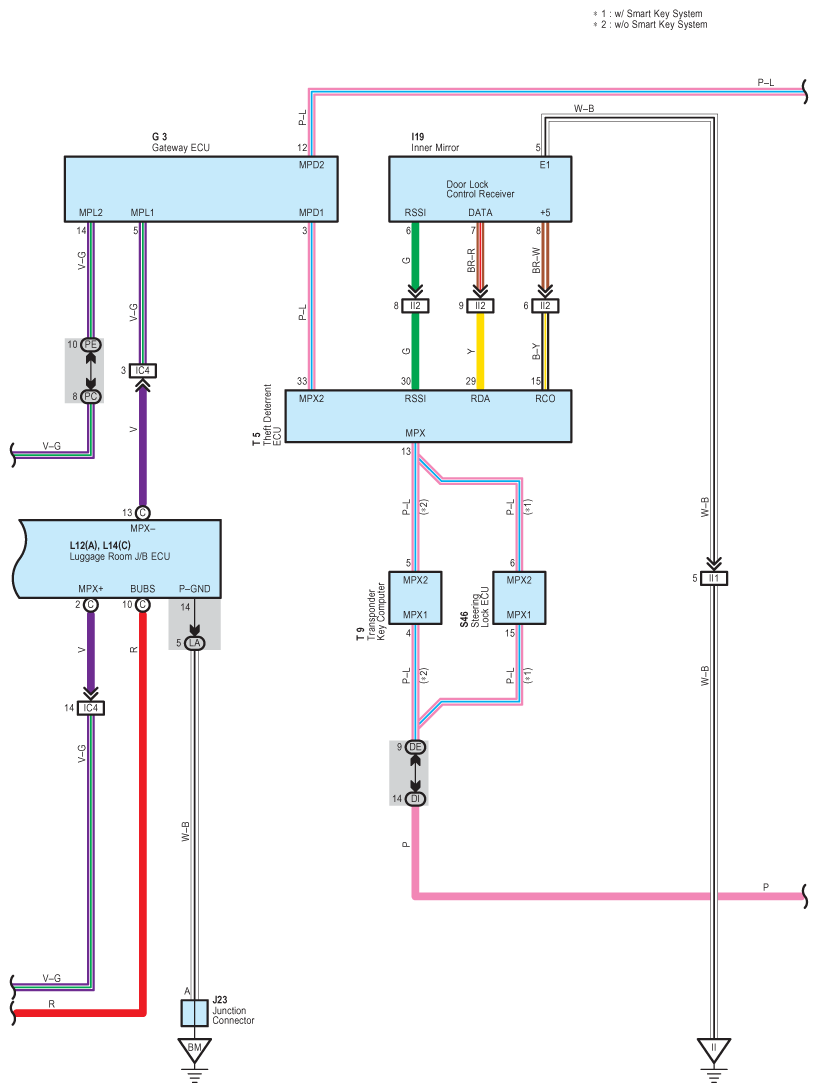

Fig 2: Light Auto Turn Off System Wiring Diagram (2 Of 3)
G08913772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

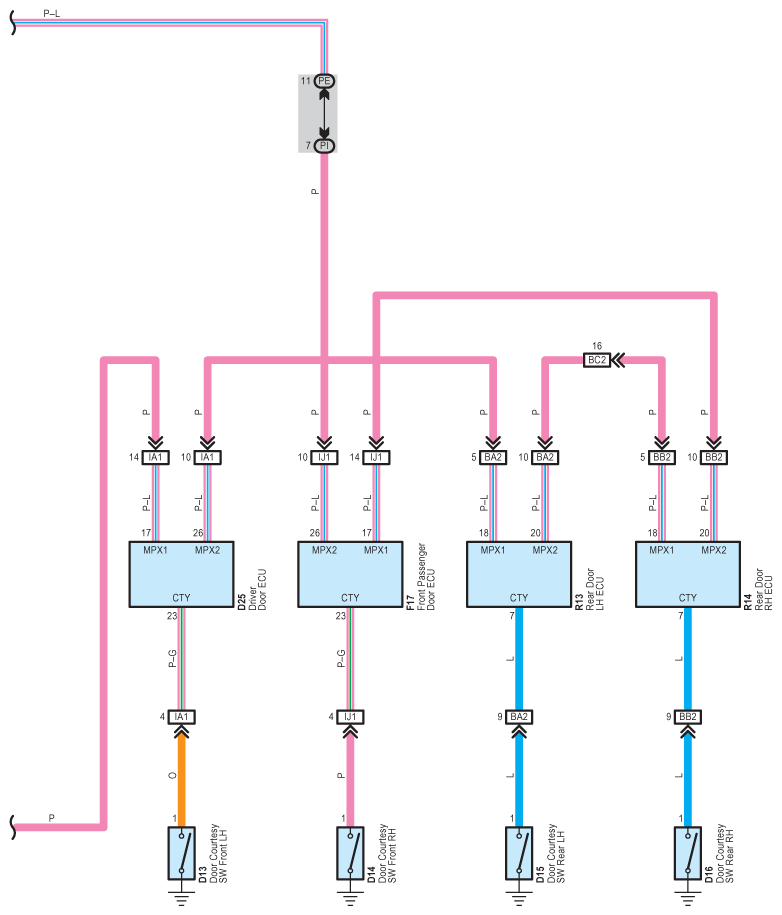

Fig 3: Light Auto Turn Off System Wiring Diagram (3 Of 3)
G08913773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
