Power Seat for Driver's Seat: Notes

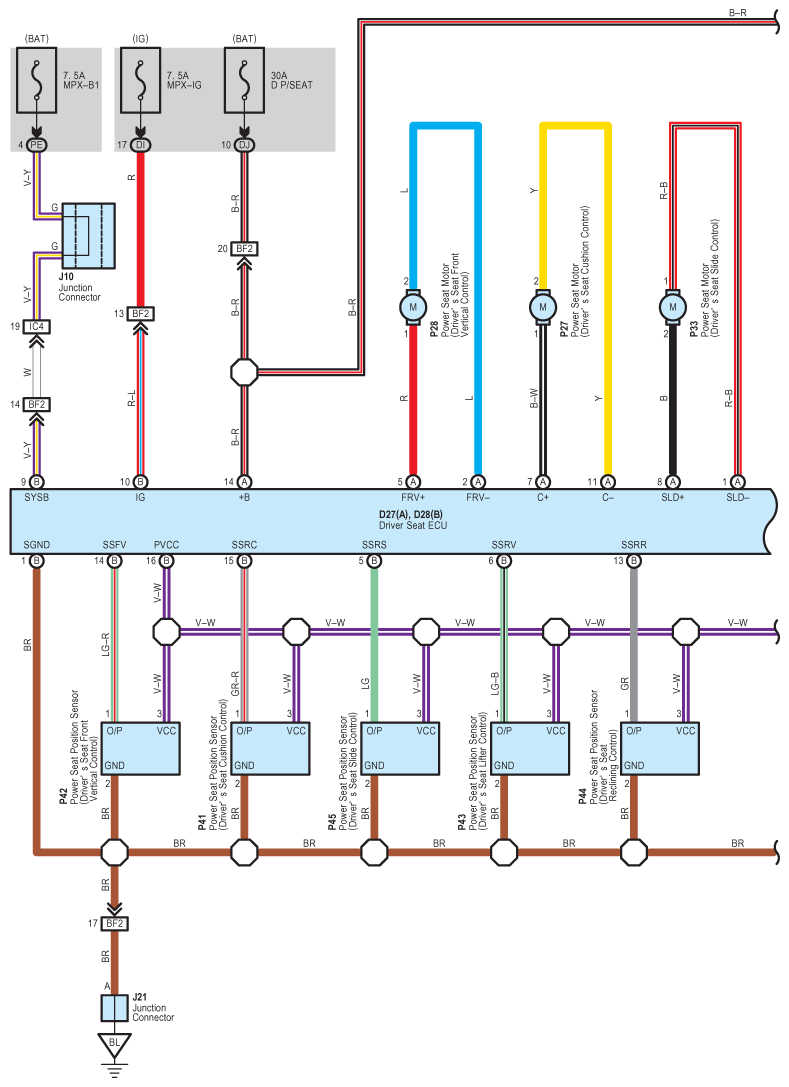

Fig 1: Power Seat For Driver's Seat System Wiring Diagram (1 Of 3)
G08913891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

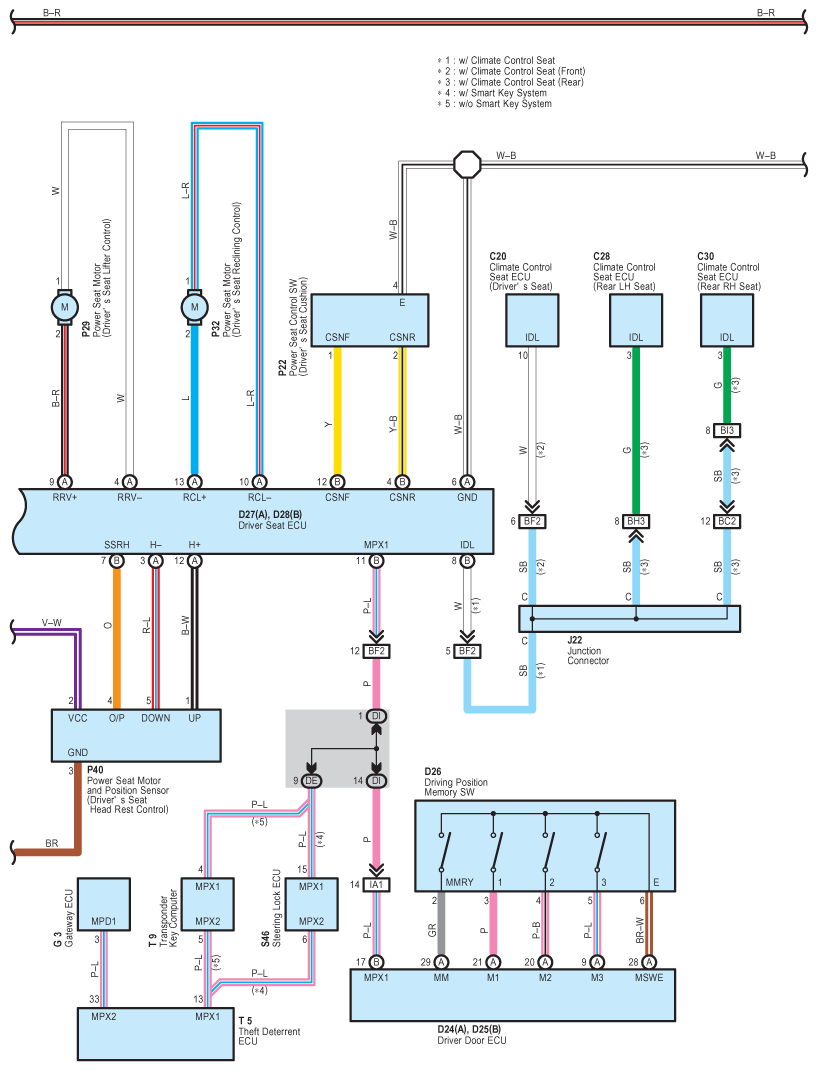

Fig 2: Power Seat For Driver's Seat System Wiring Diagram (2 Of 3)
G08913892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

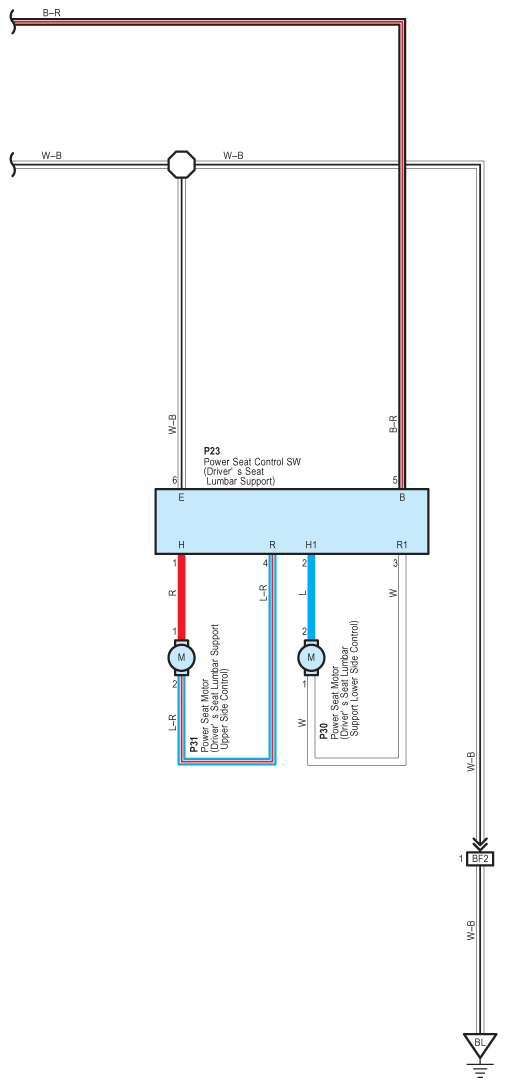

Fig 3: Power Seat For Driver's Seat System Wiring Diagram (3 Of 3)
G08913893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
