Radiator Fan: Notes

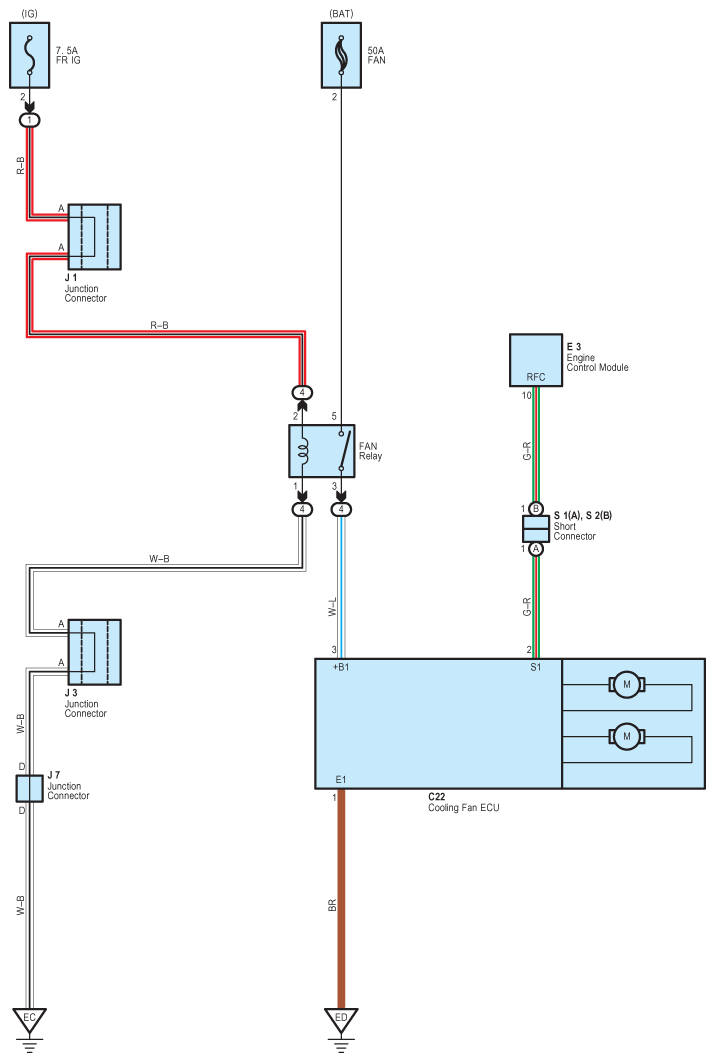

Fig 1: Radiator Fan System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
