Remote Control Mirror: Notes

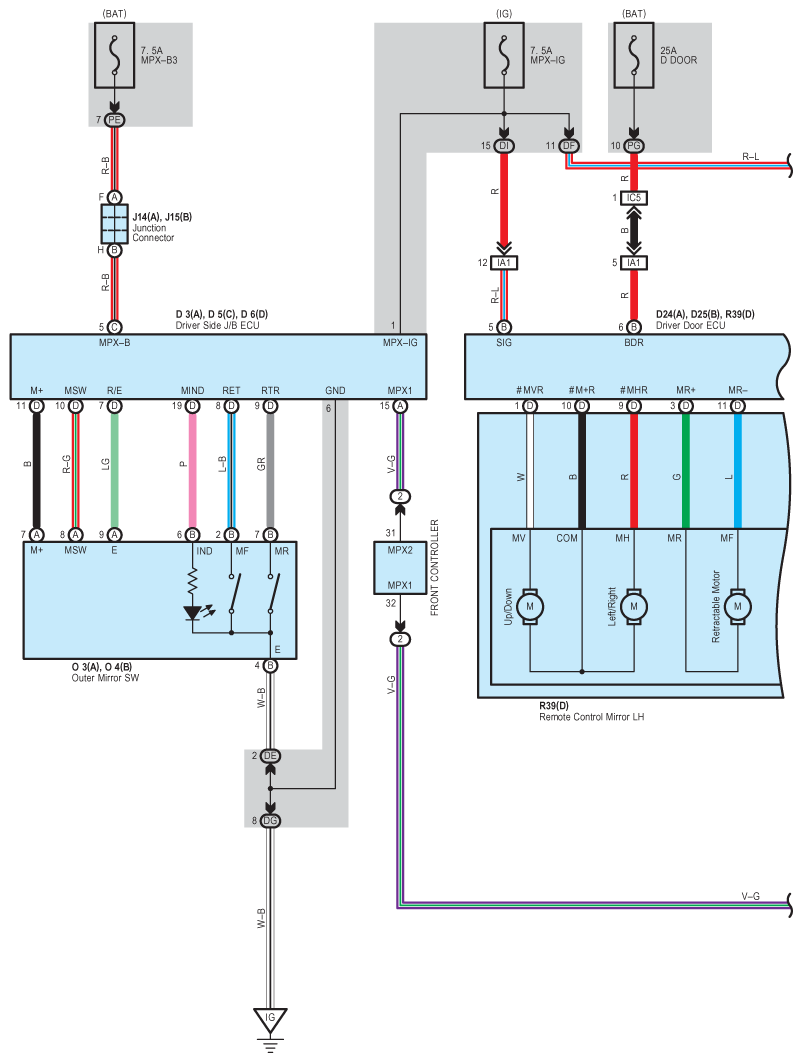

Fig 1: Remote Control Mirror System Wiring Diagram (1 Of 5)
G08913822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

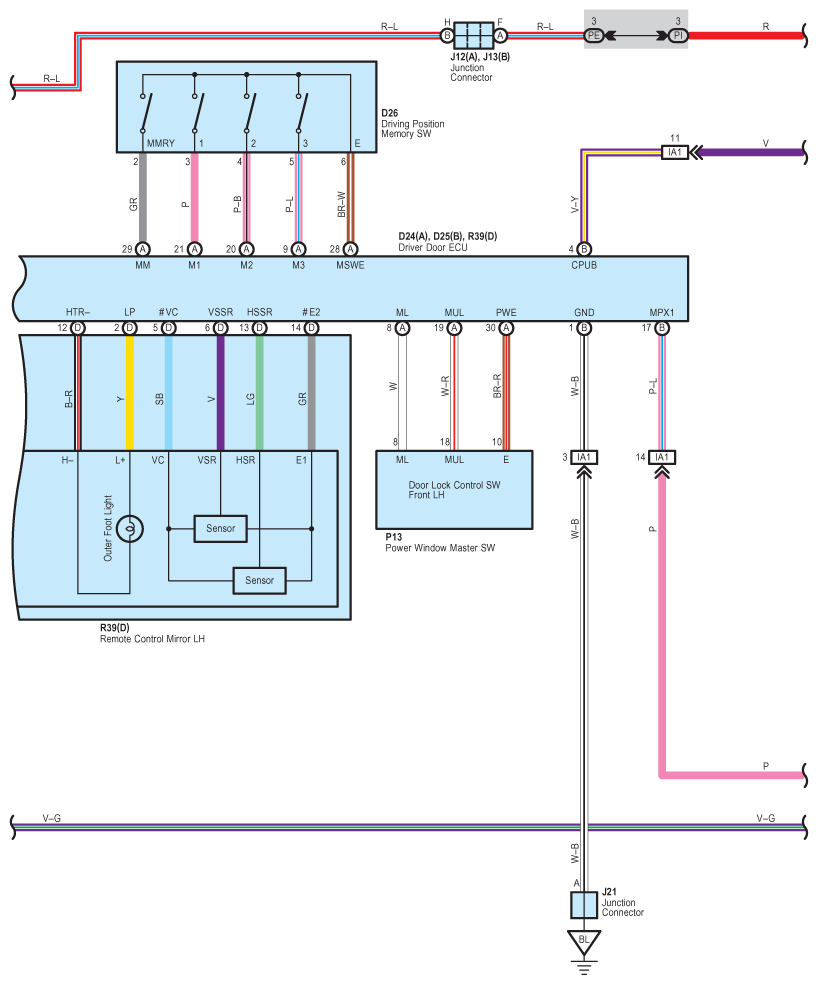

Fig 2: Remote Control Mirror System Wiring Diagram (2 Of 5)
G08913823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

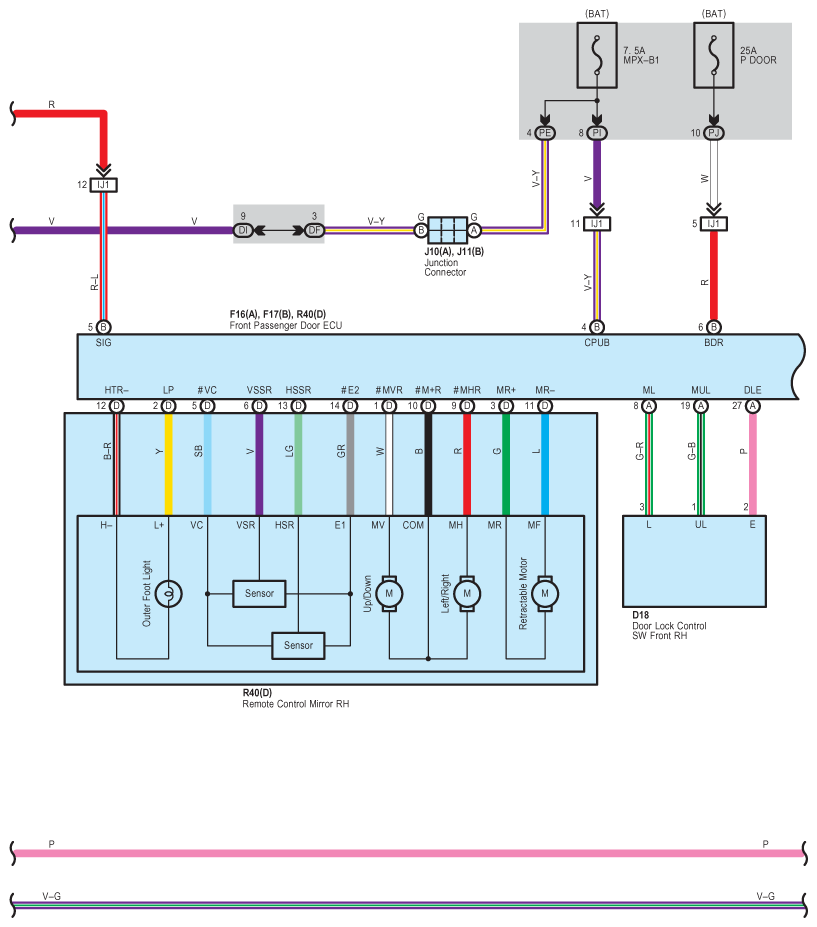

Fig 3: Remote Control Mirror System Wiring Diagram (3 Of 5)
G08913824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

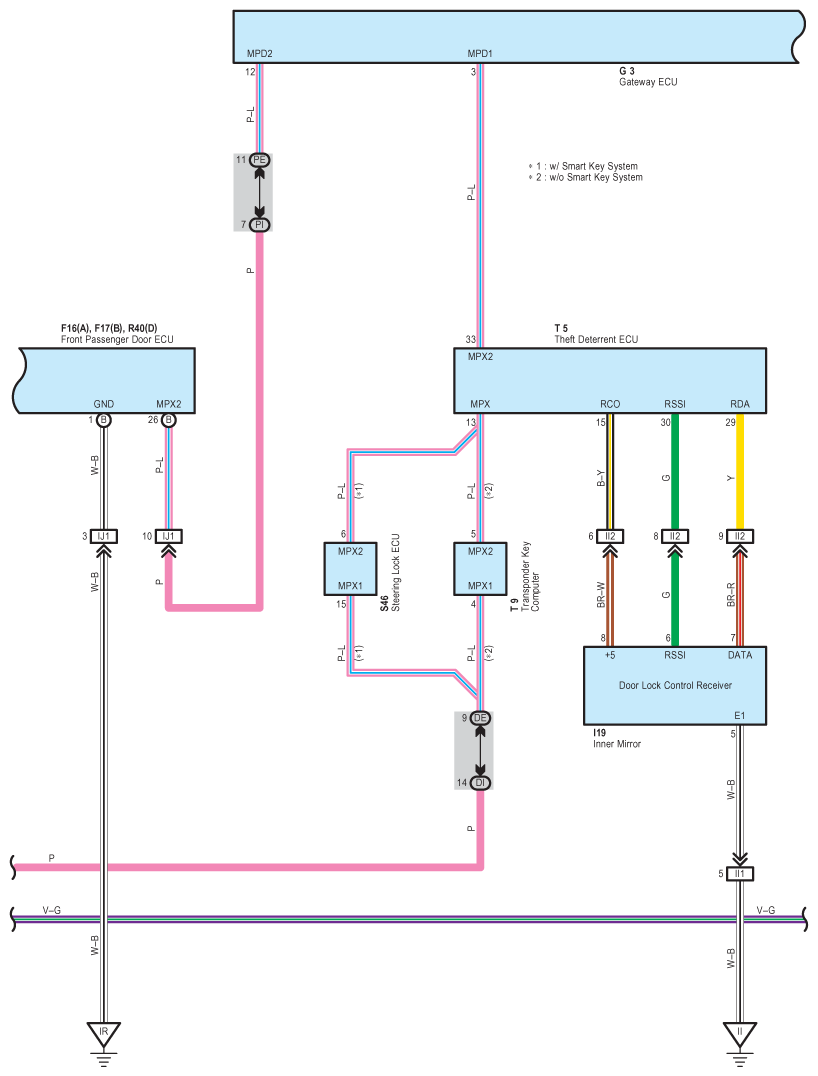

Fig 4: Remote Control Mirror System Wiring Diagram (4 Of 5)
G08913825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

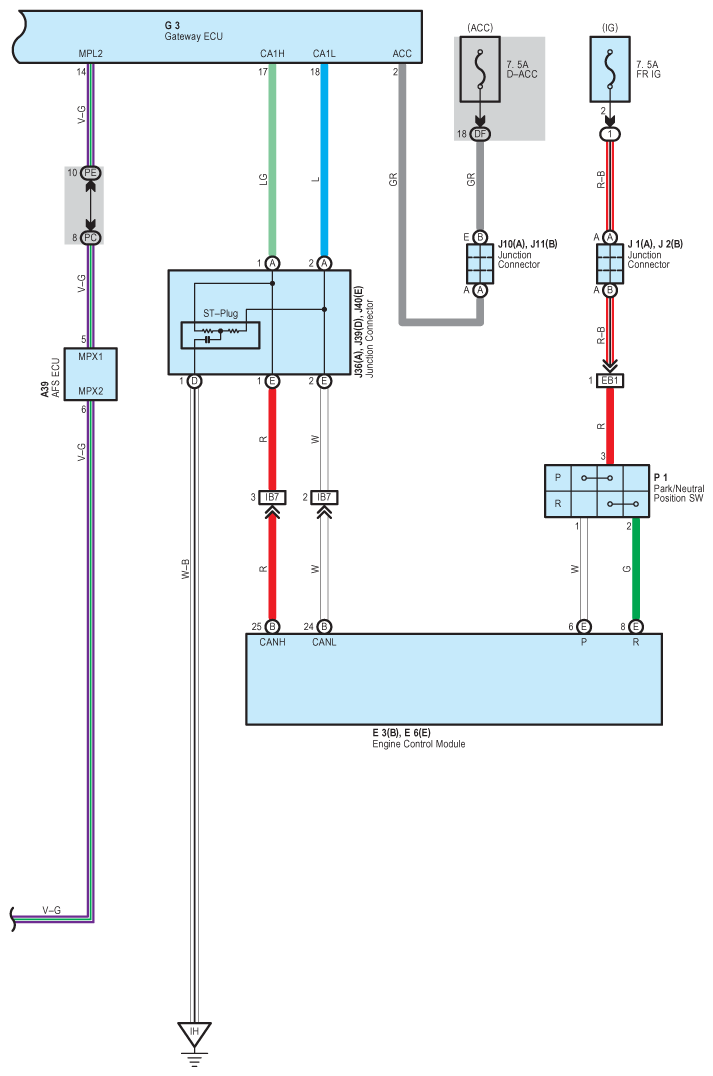

Fig 5: Remote Control Mirror System Wiring Diagram (5 Of 5)
G08913826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
