Seat Heater (Rear): Notes

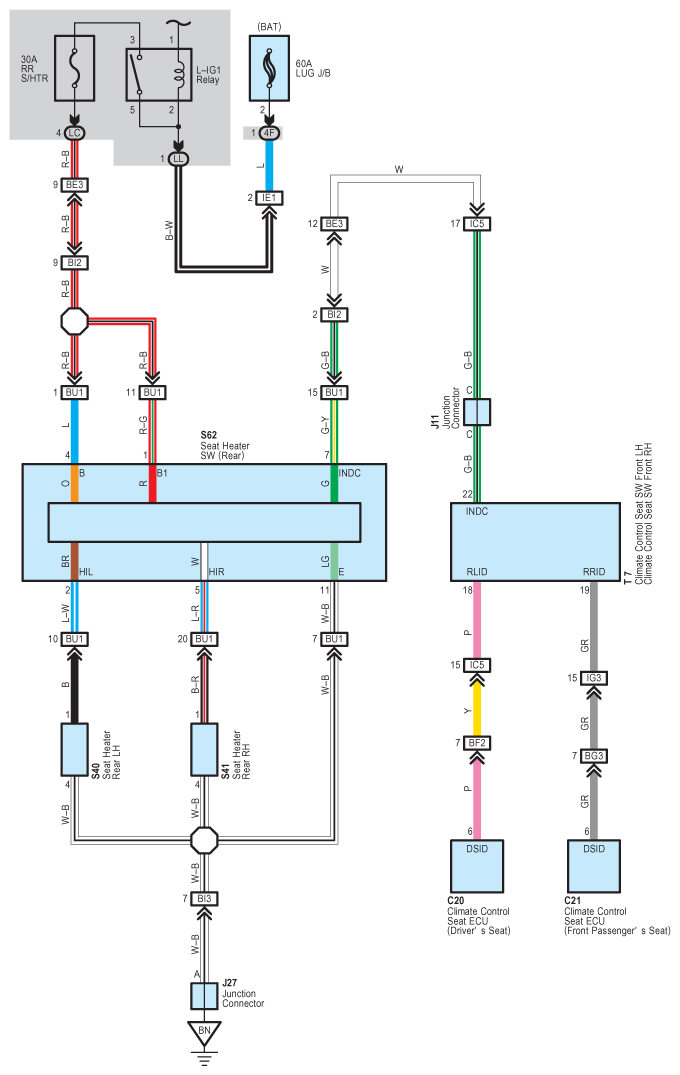

Fig 1: Seat Heater (Rear) System Wiring Diagram
G08913909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
