Starting and Ignition: Notes

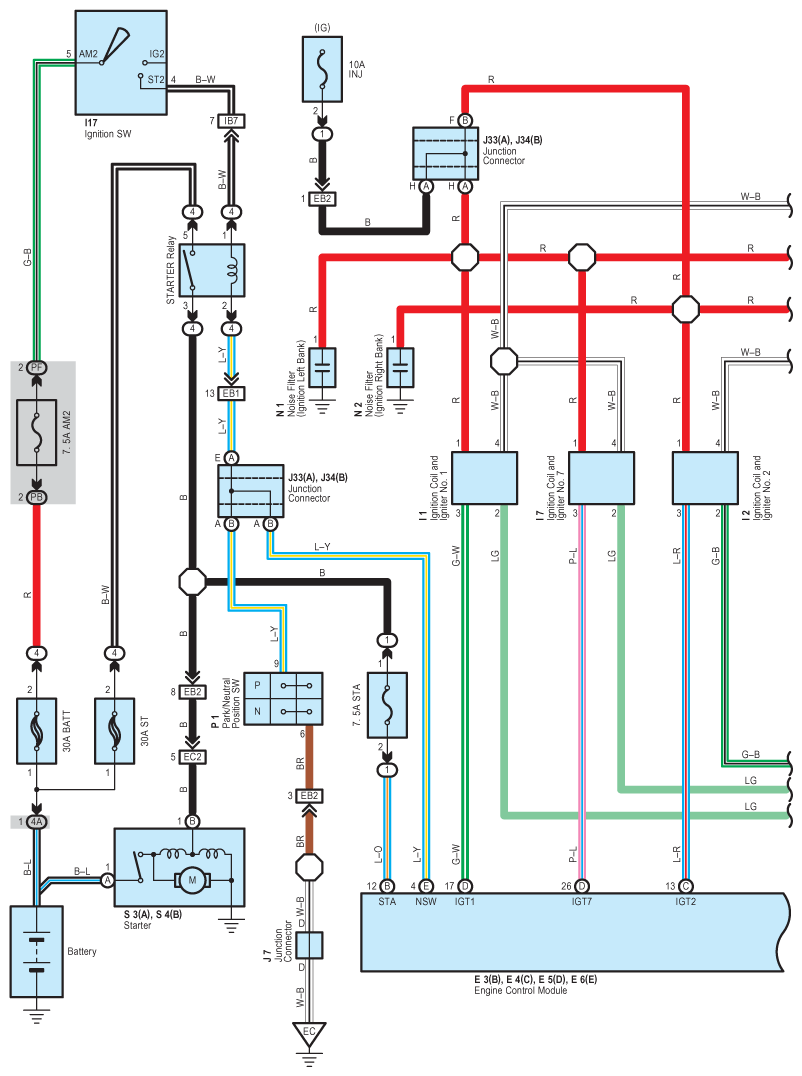

Fig 1: Starting And Ignition System Wiring Diagram (1 Of 2)
G08913679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

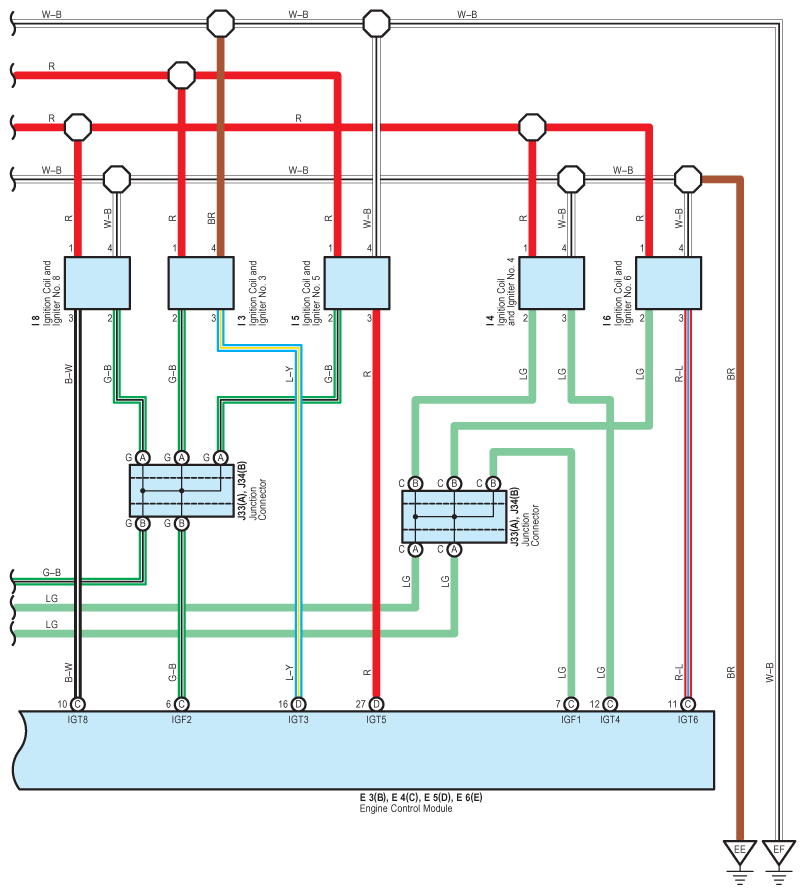

Fig 2: Starting And Ignition System Wiring Diagram (2 Of 2)
G08913680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
