Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

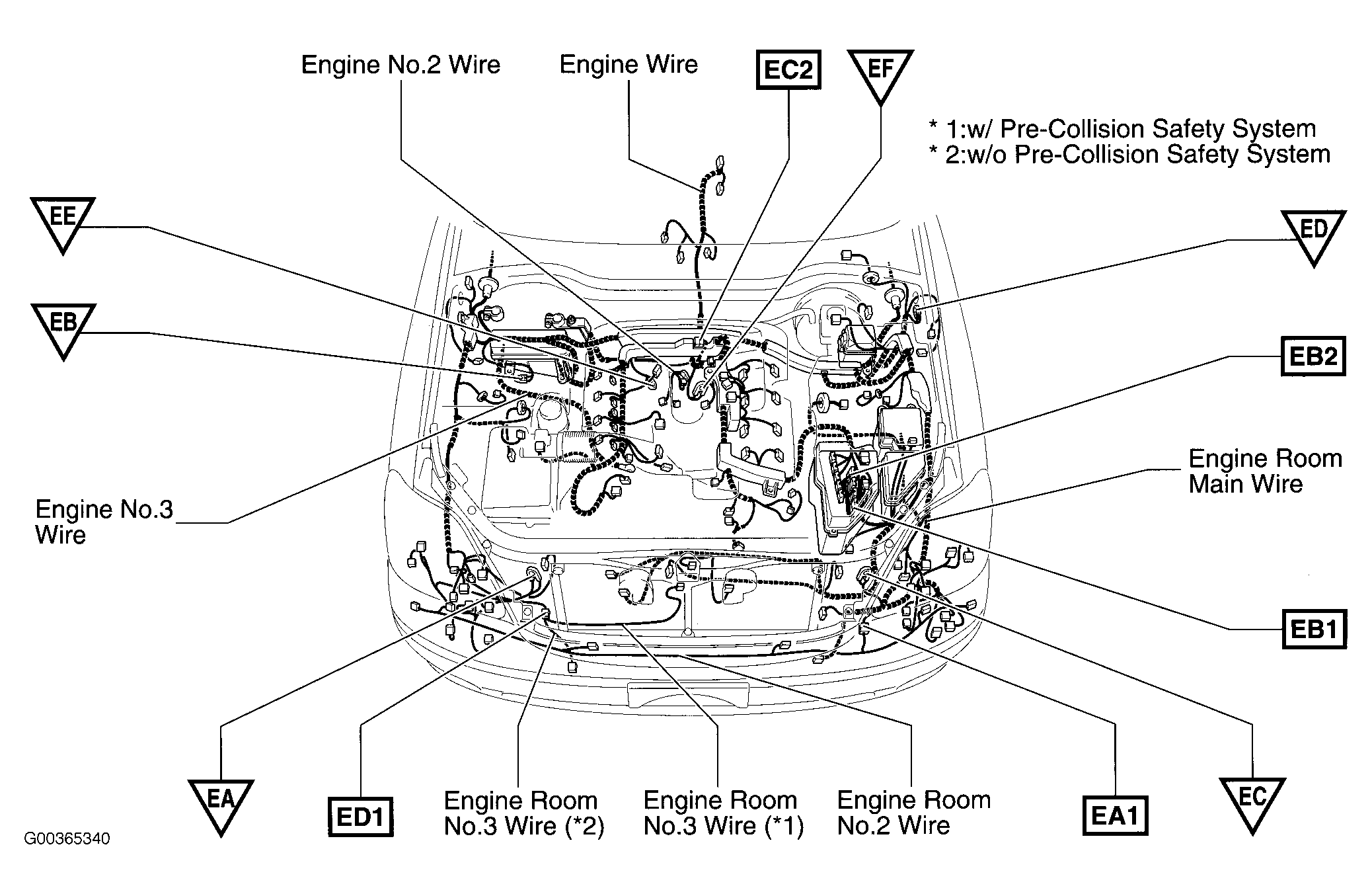

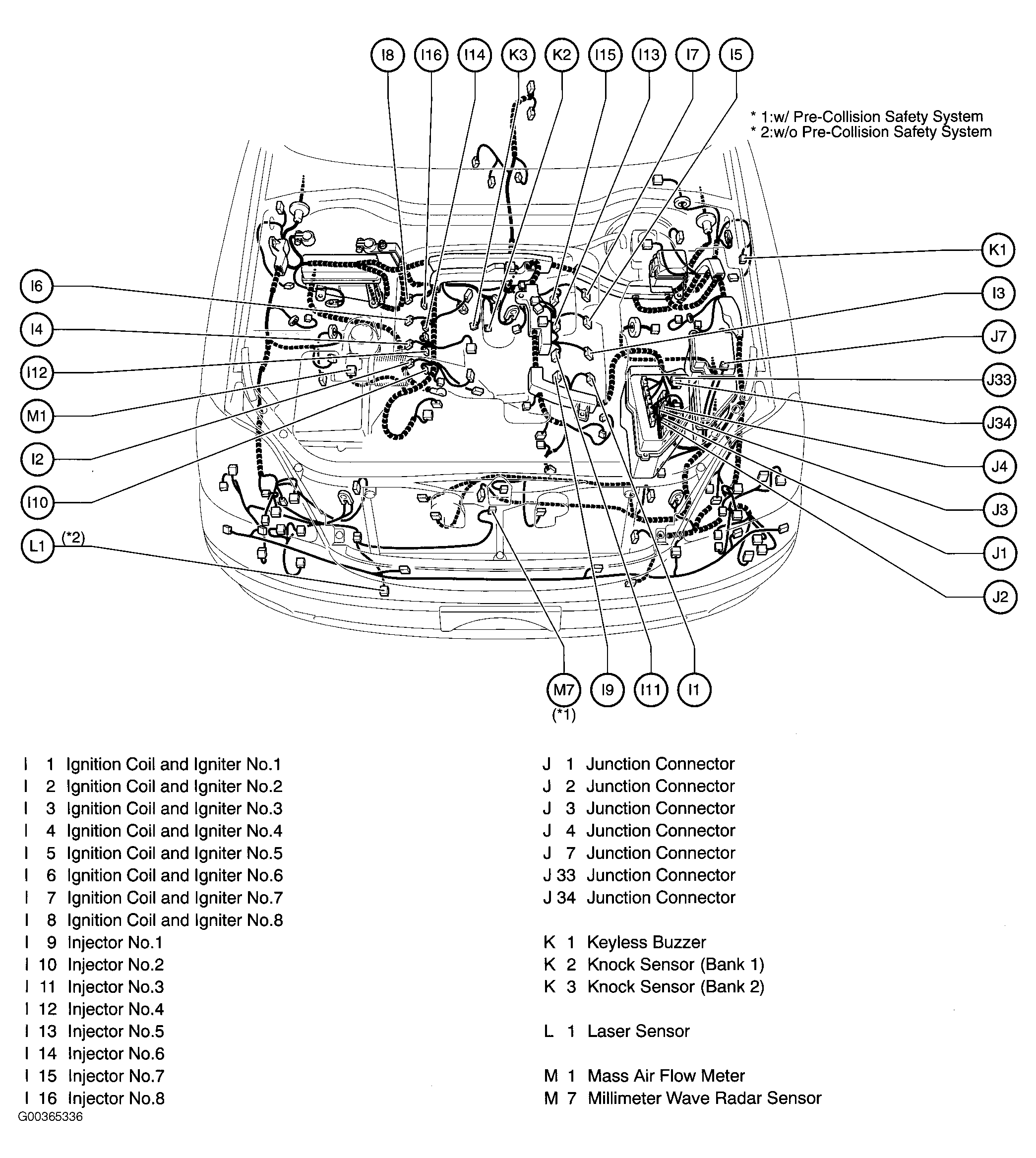

Fig 1: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM RELAY IDENTIFICATION

RELAY DESCRIPTION
Headlight Cleaner Control Relay

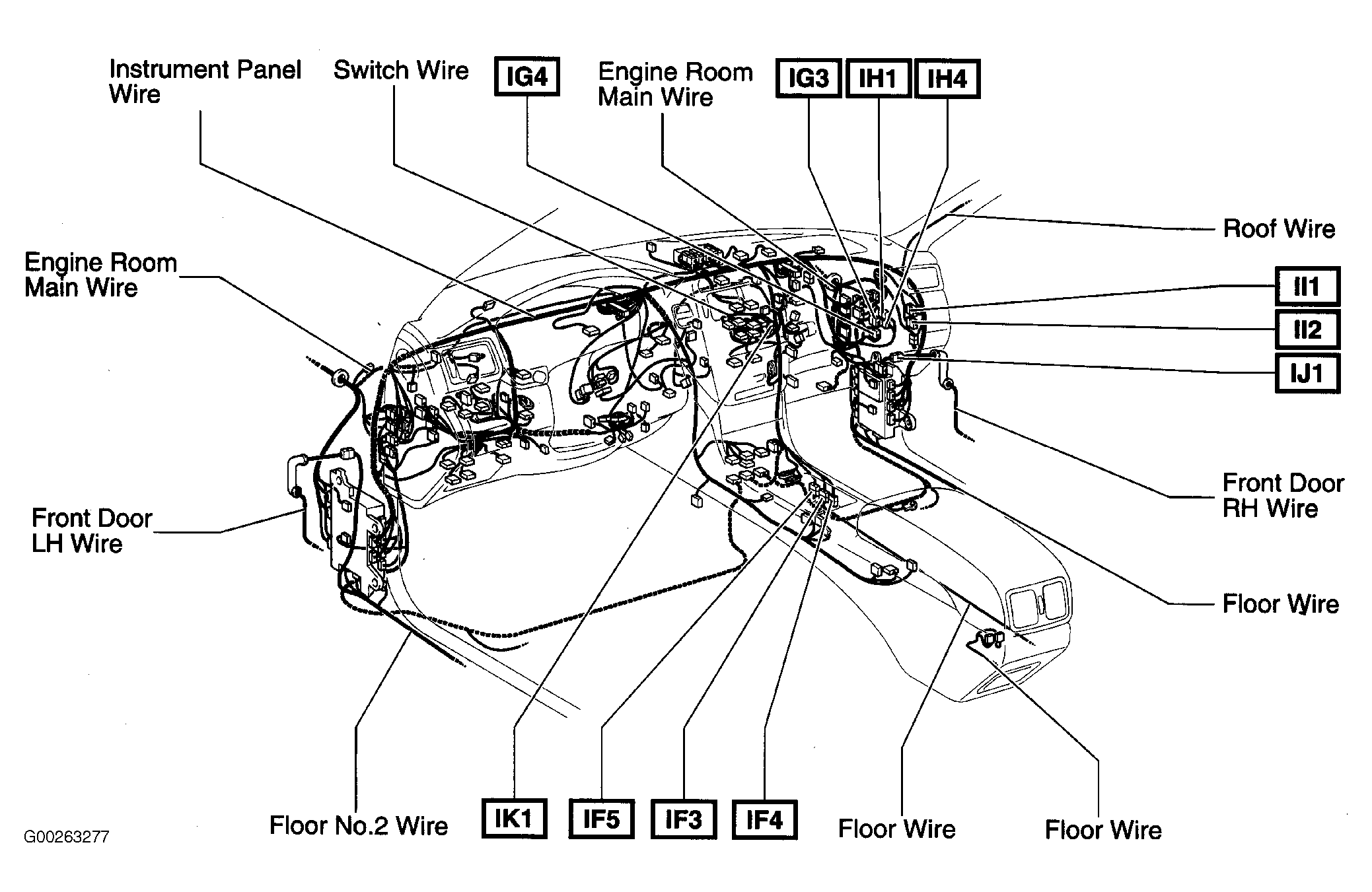

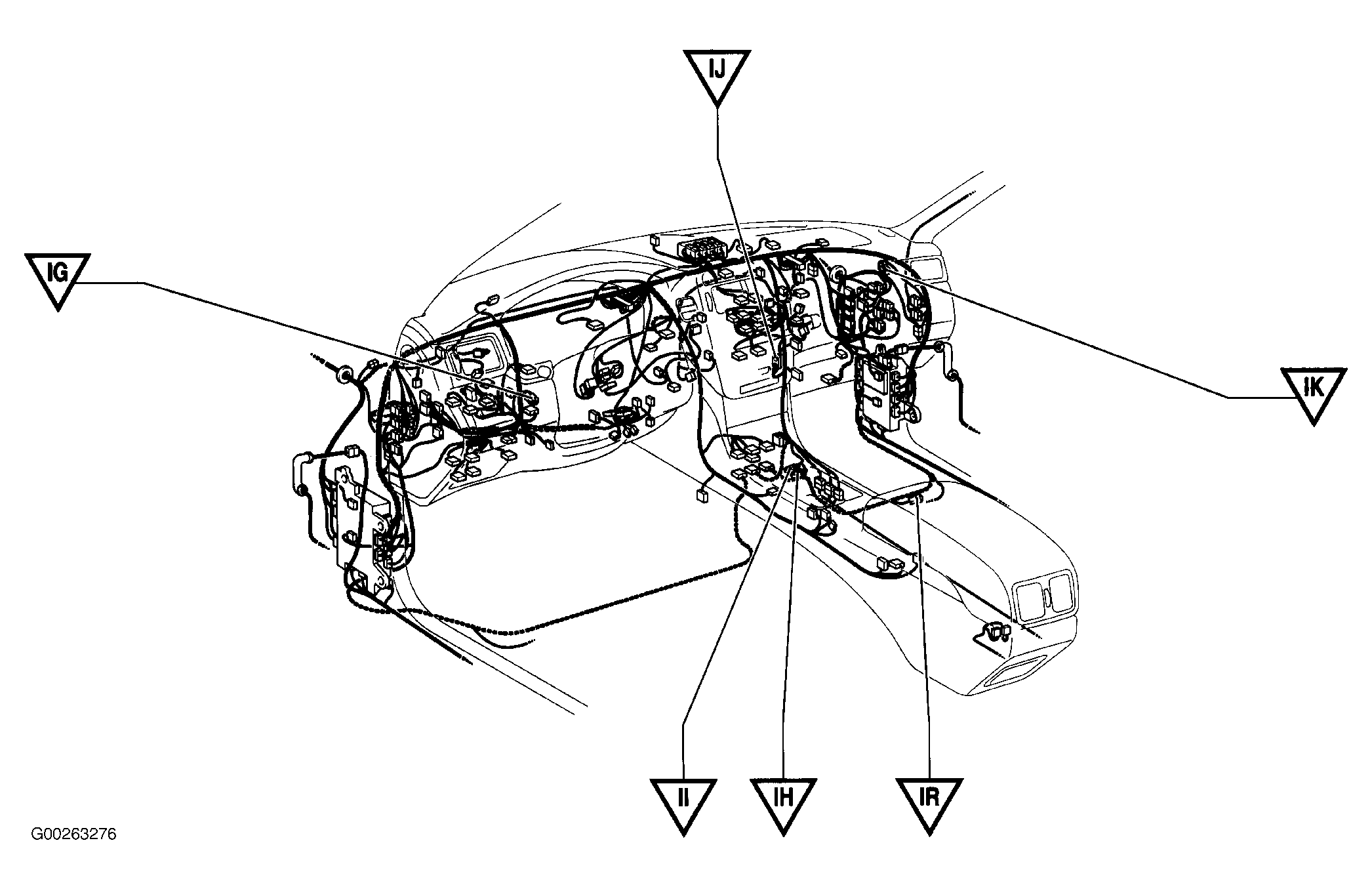

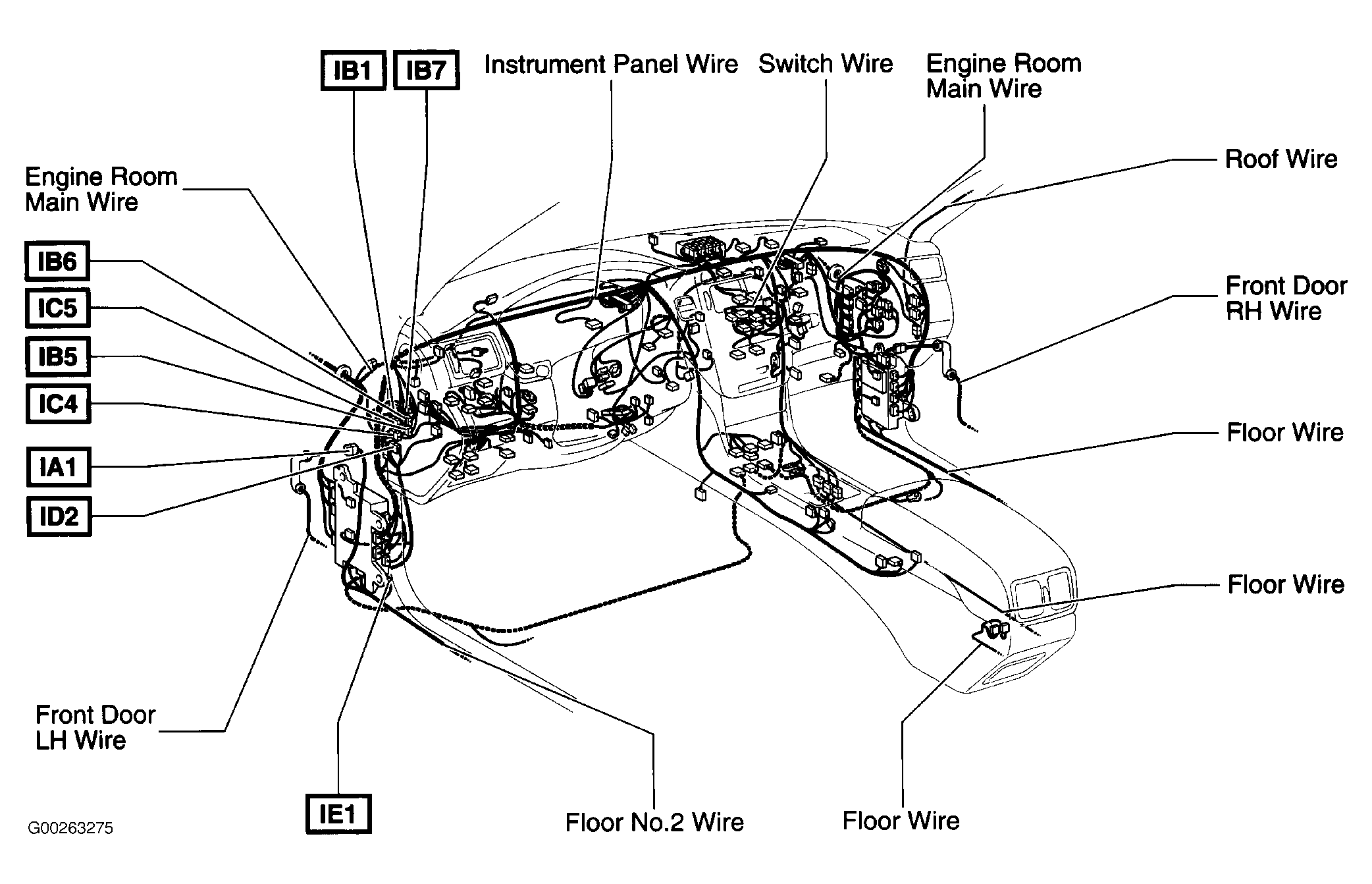

Fig 2: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

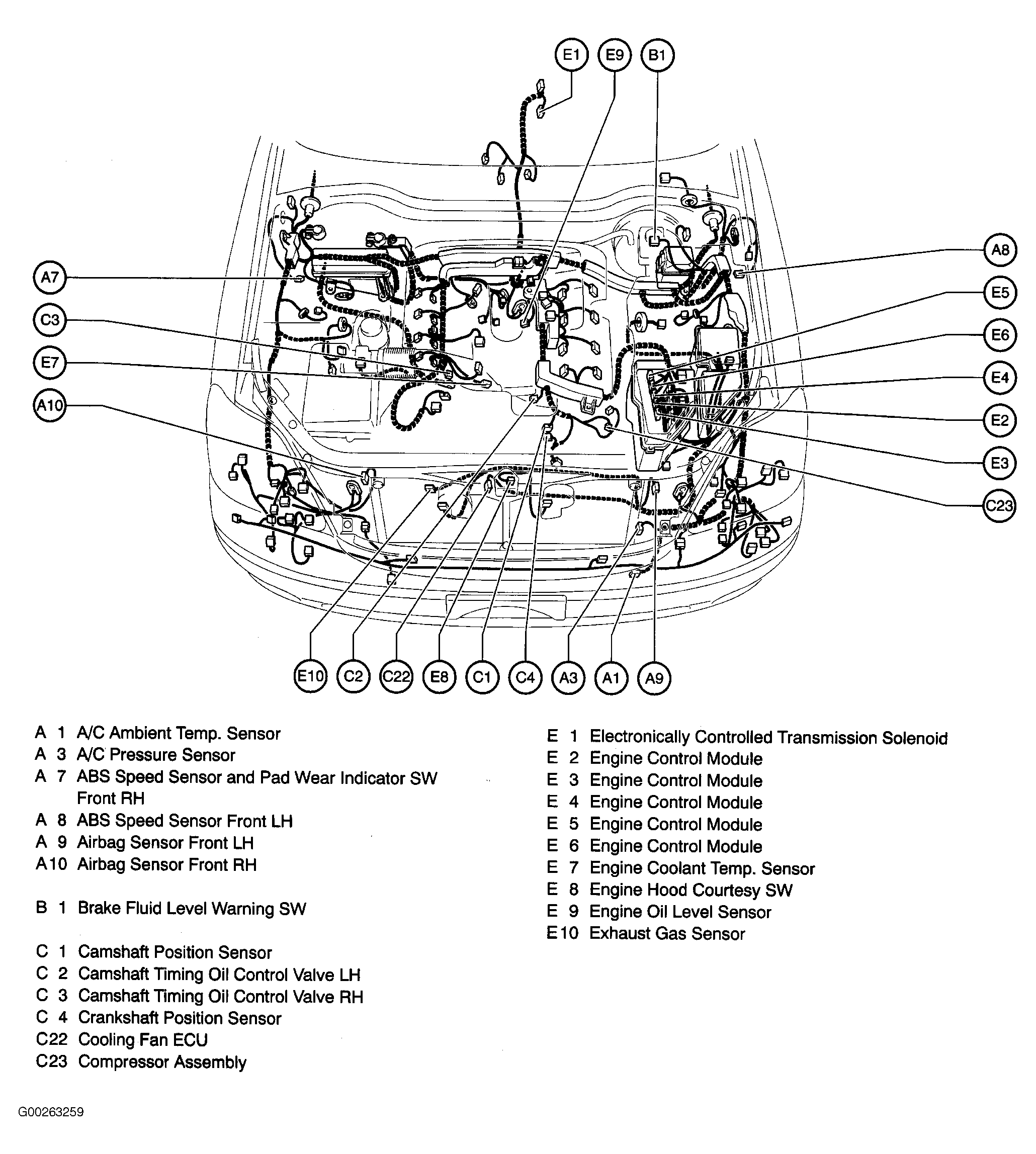

Fig 3: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

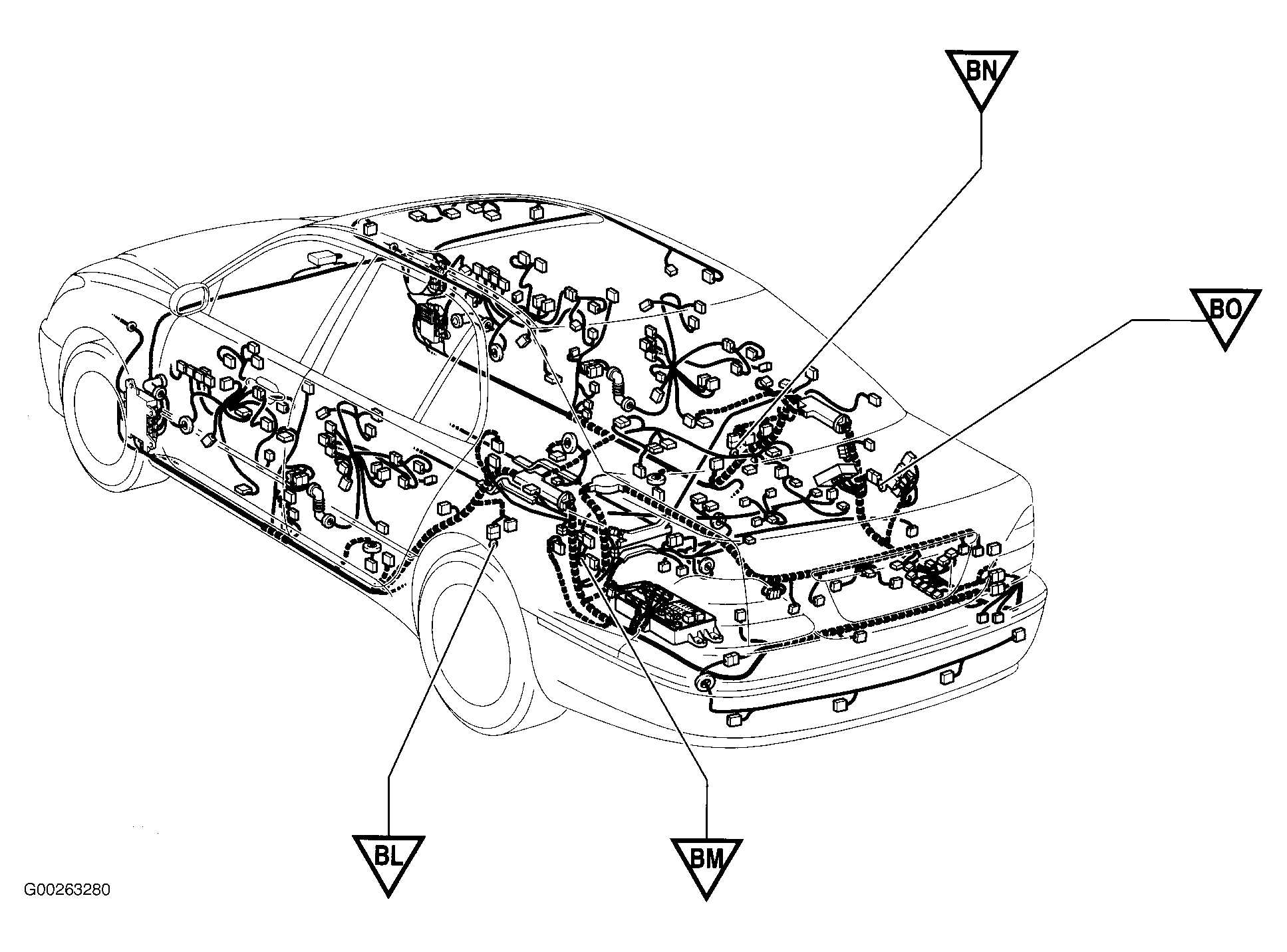

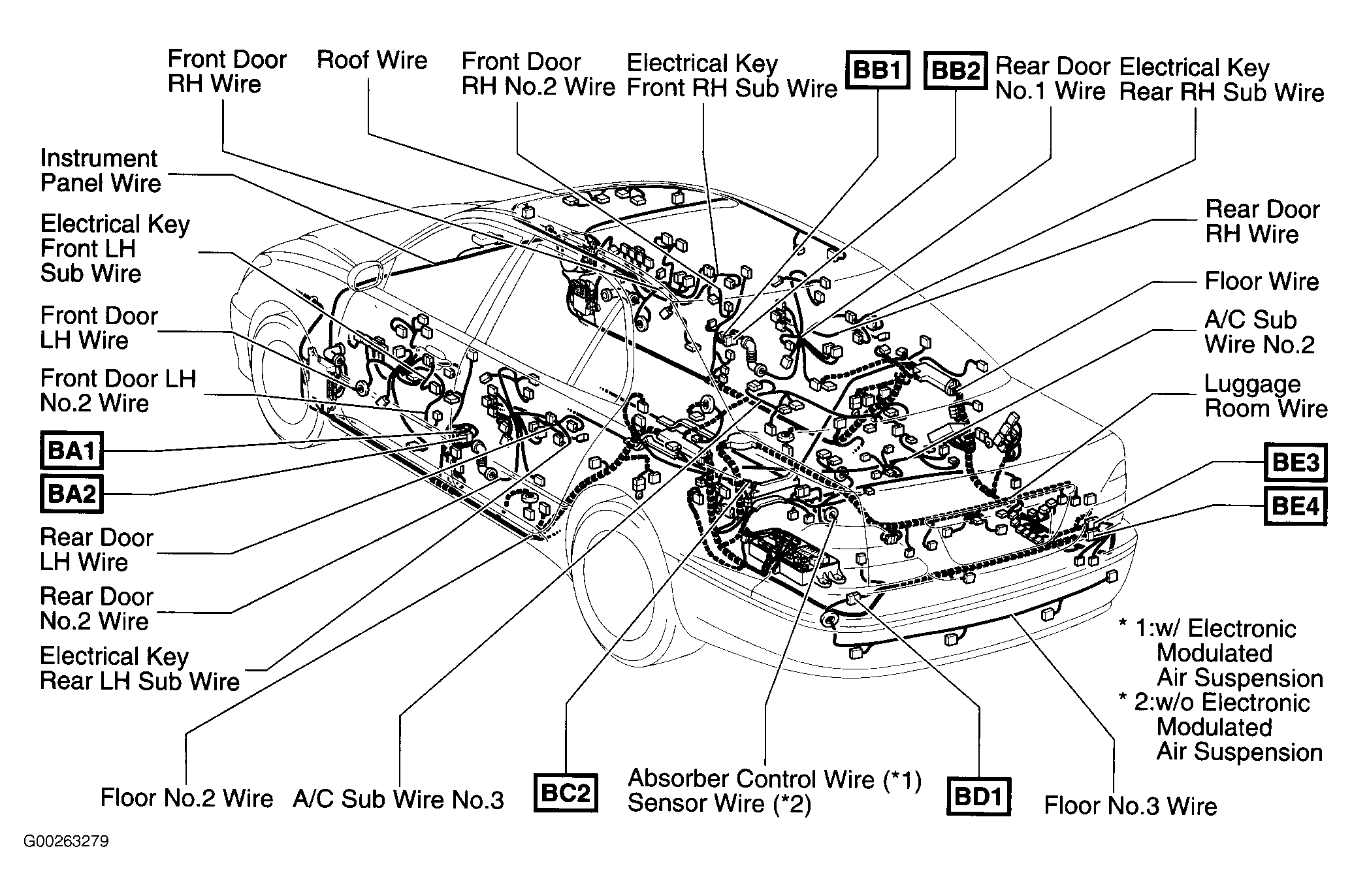

Fig 4: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

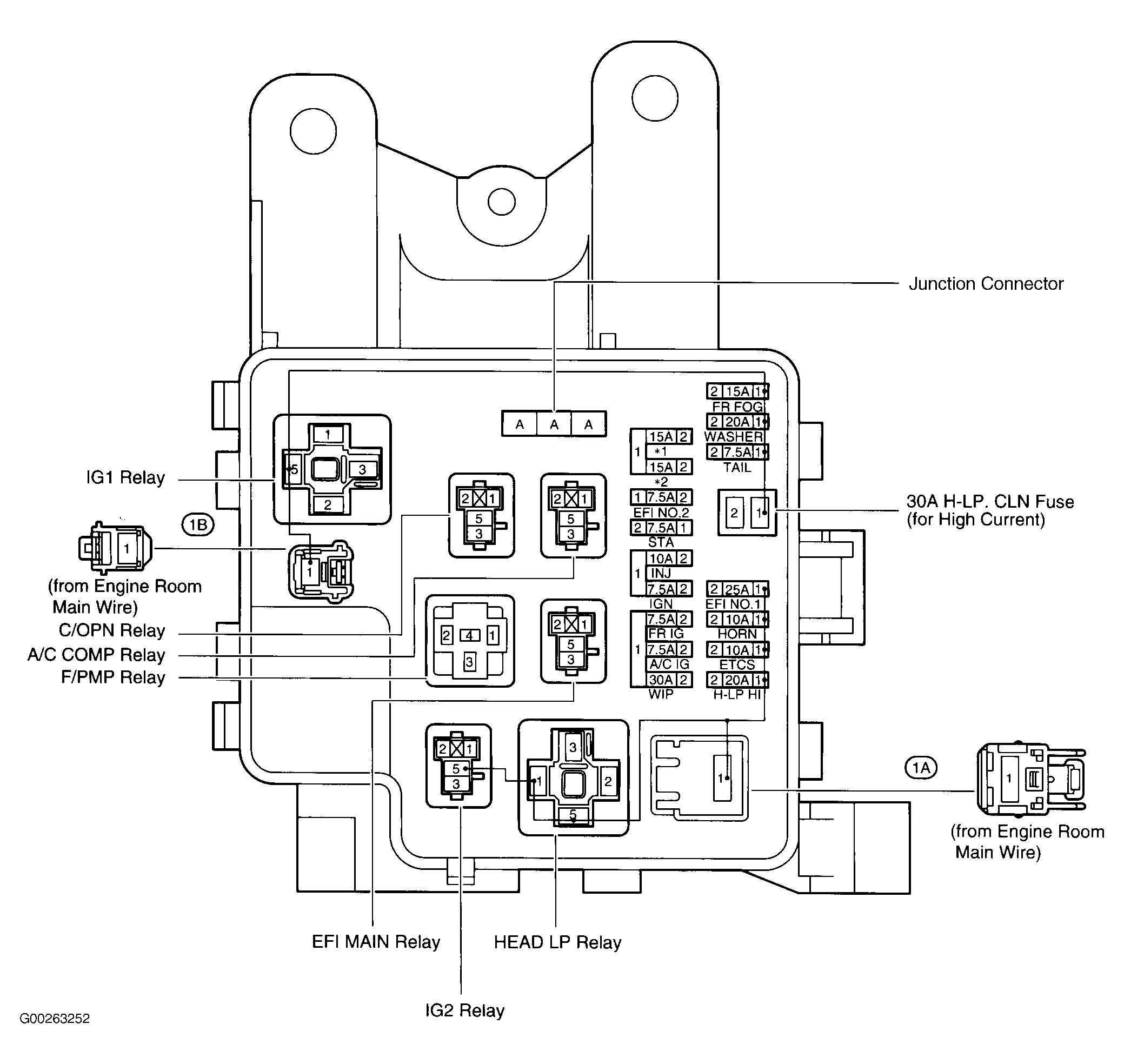

Fig 5: Engine Room No. 1 R/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM NO. 1 JUNCTION & RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
F/PMP Relay
A/C COMP Relay
C/OPN Relay
IG1 Relay
Head LP Relay
IG2 Relay
EFI Main Relay

Fig 6: Engine Room No. 2 R/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM NO. 2 RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Defog Relay

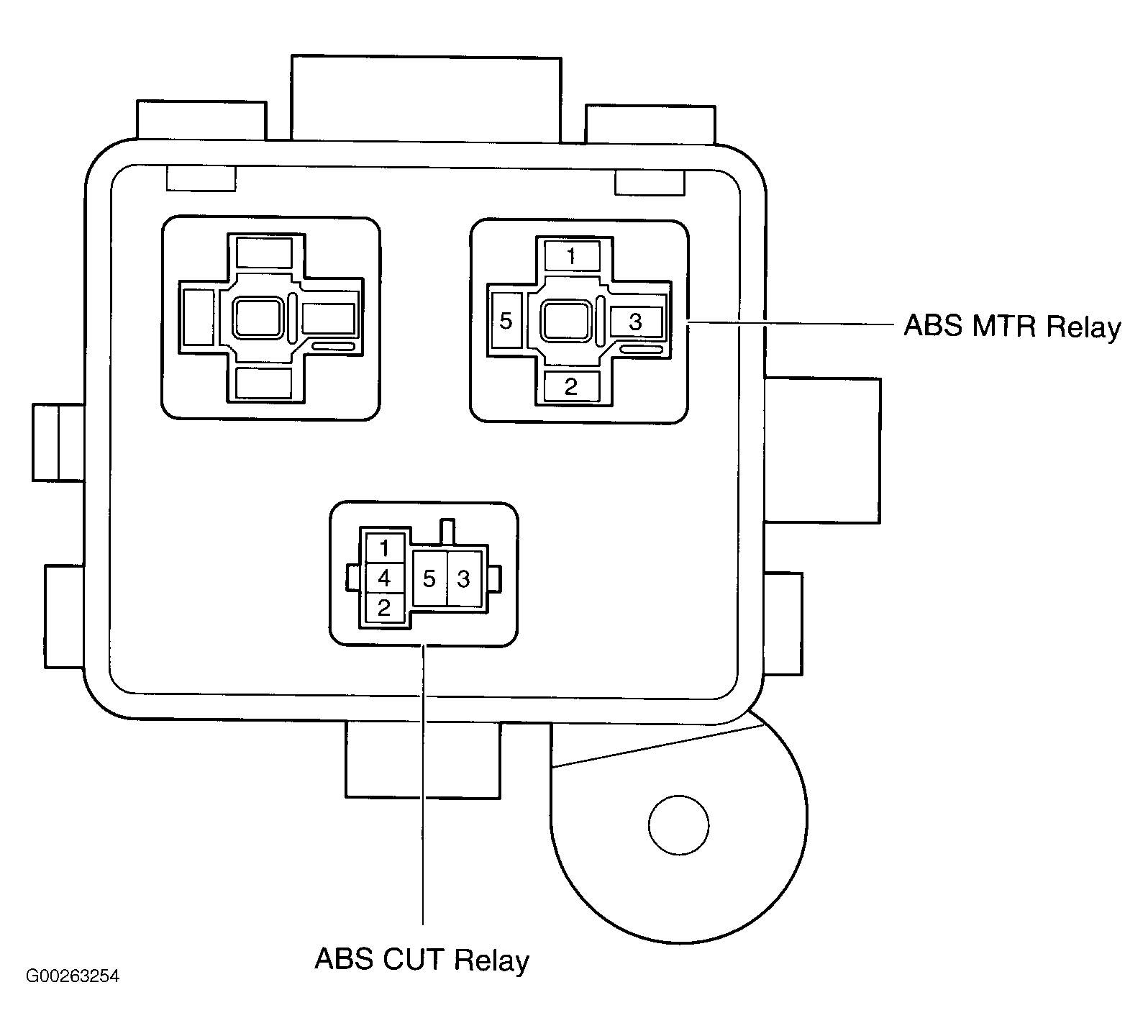

Fig 7: Engine Room No. 3 R/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM NO. 3 RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
ABS MTR Relay
ABS CUT Relay

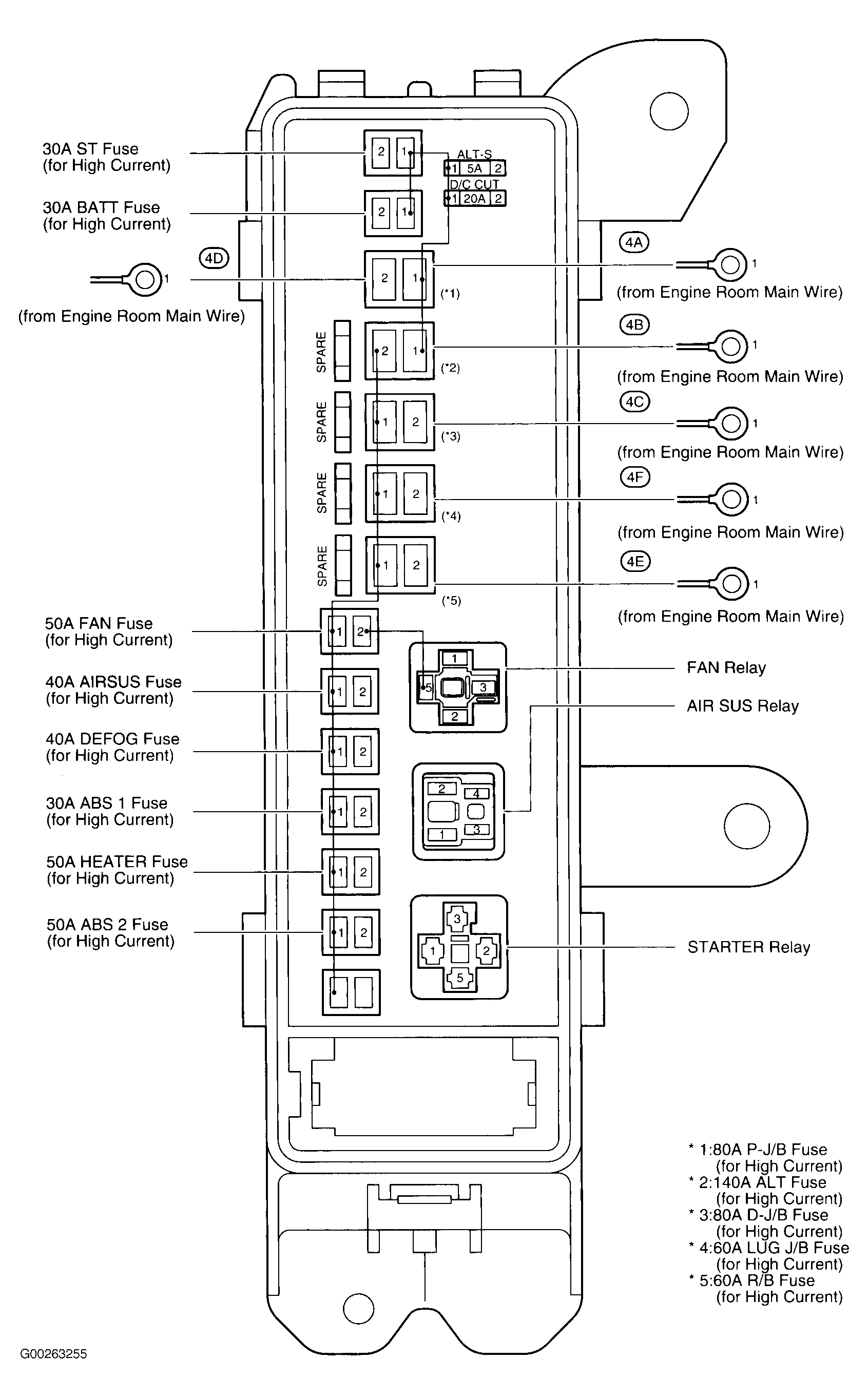

Fig 8: Fusible Link Block

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

FUSIBLE LINK BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Fan Relay
Air SUS Relay
Starter Relay

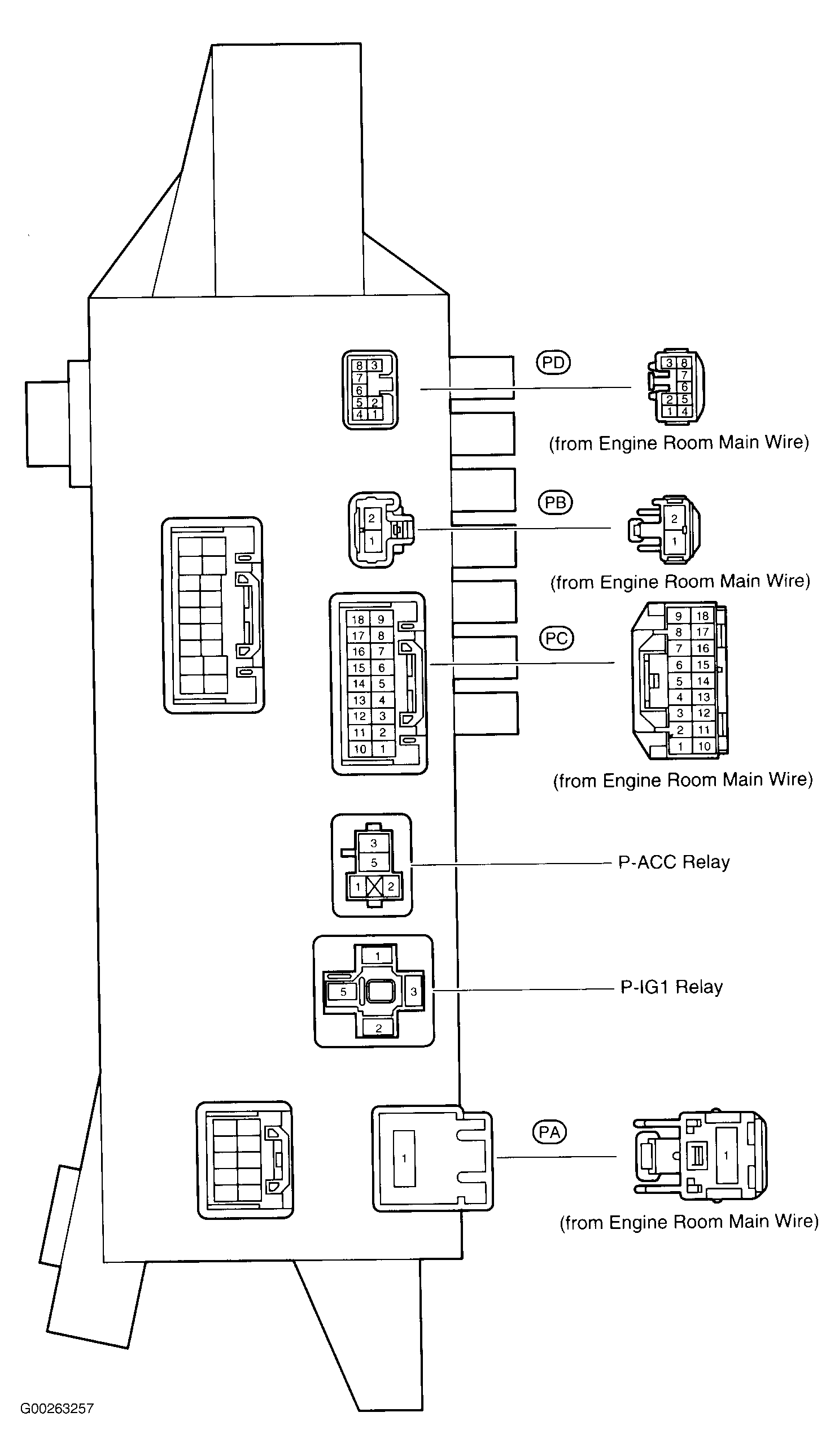

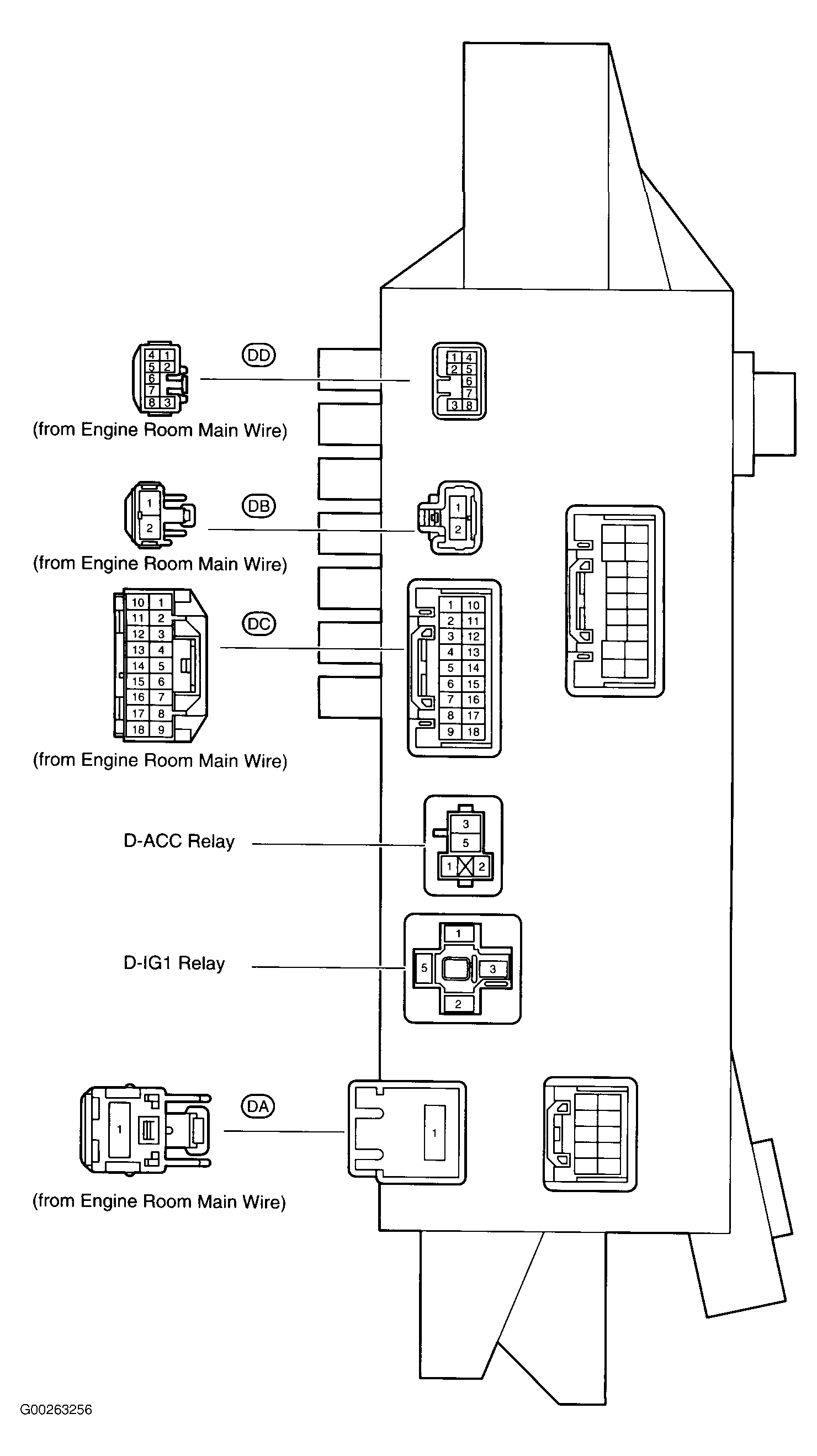

Fig 9: Driver Side J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Driver Side J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

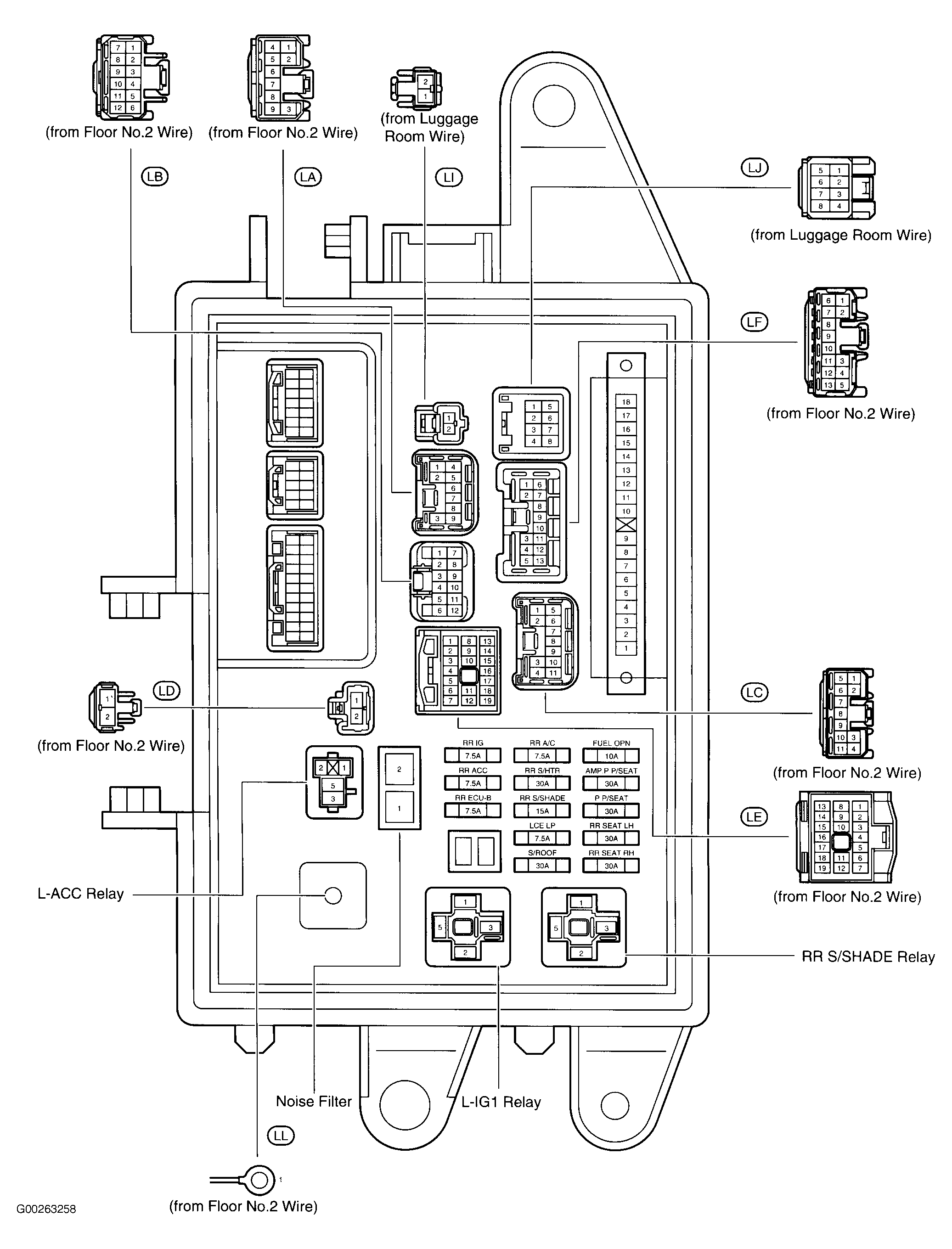

Fig 11: Luggage Room J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

LUGGAGE ROOM JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
L-ACC Relay
RR S/Shade Relay
L-IG1 Relay

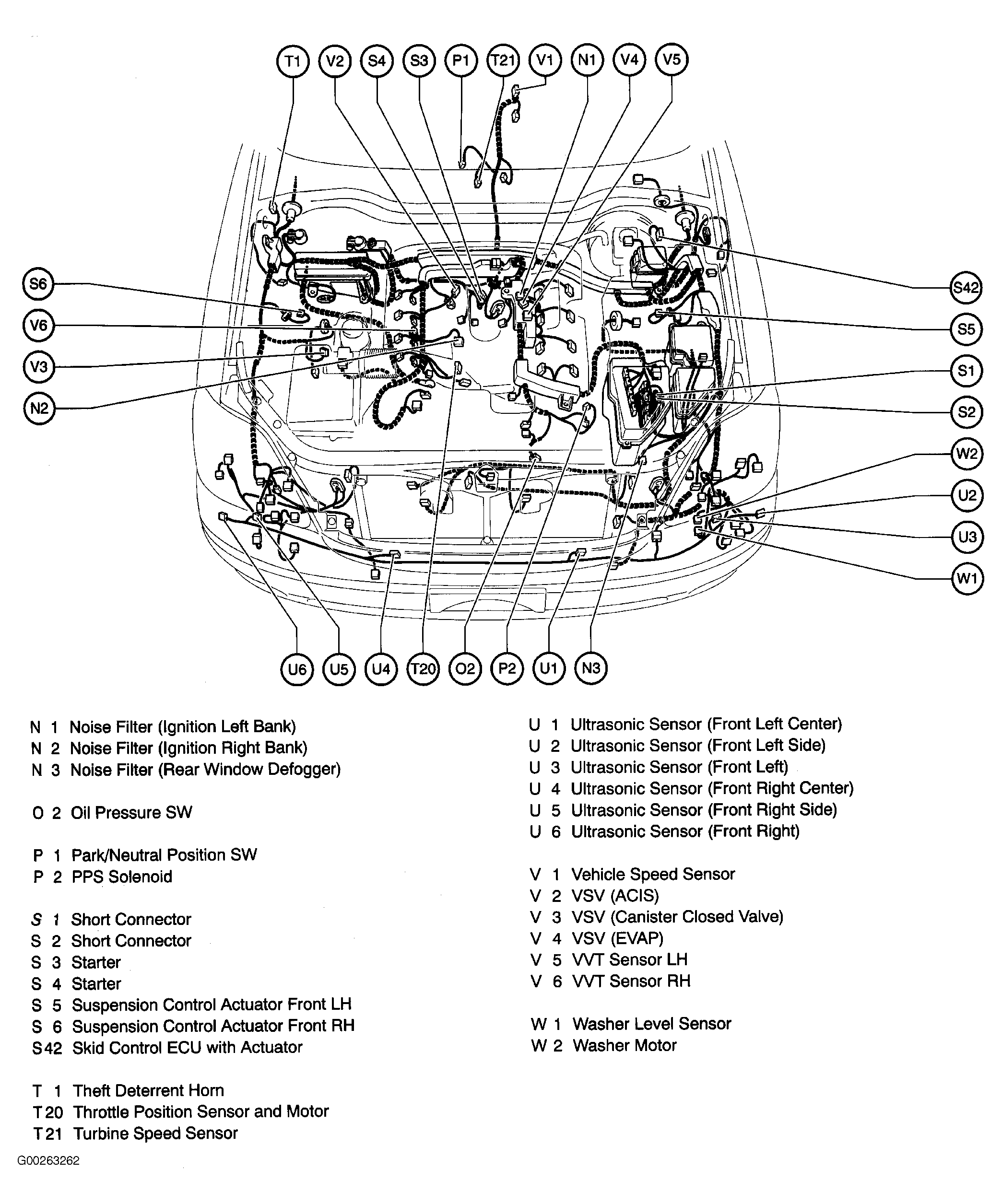

Fig 12: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

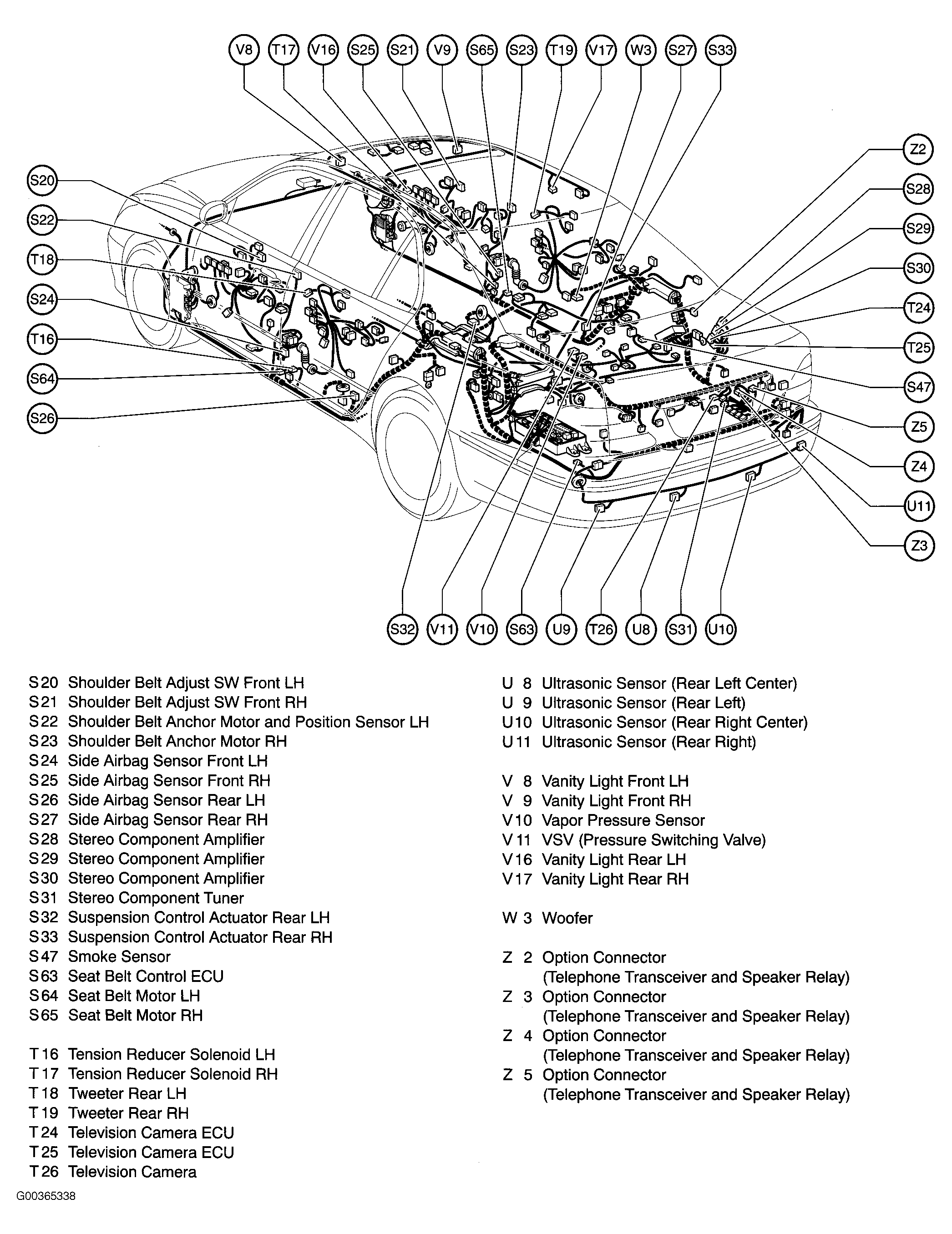

Fig 19: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Dash

Fig 22: Dash

Fig 23: Vehicle Overview

Fig 24: Vehicle Overview

Fig 25: Vehicle Overview

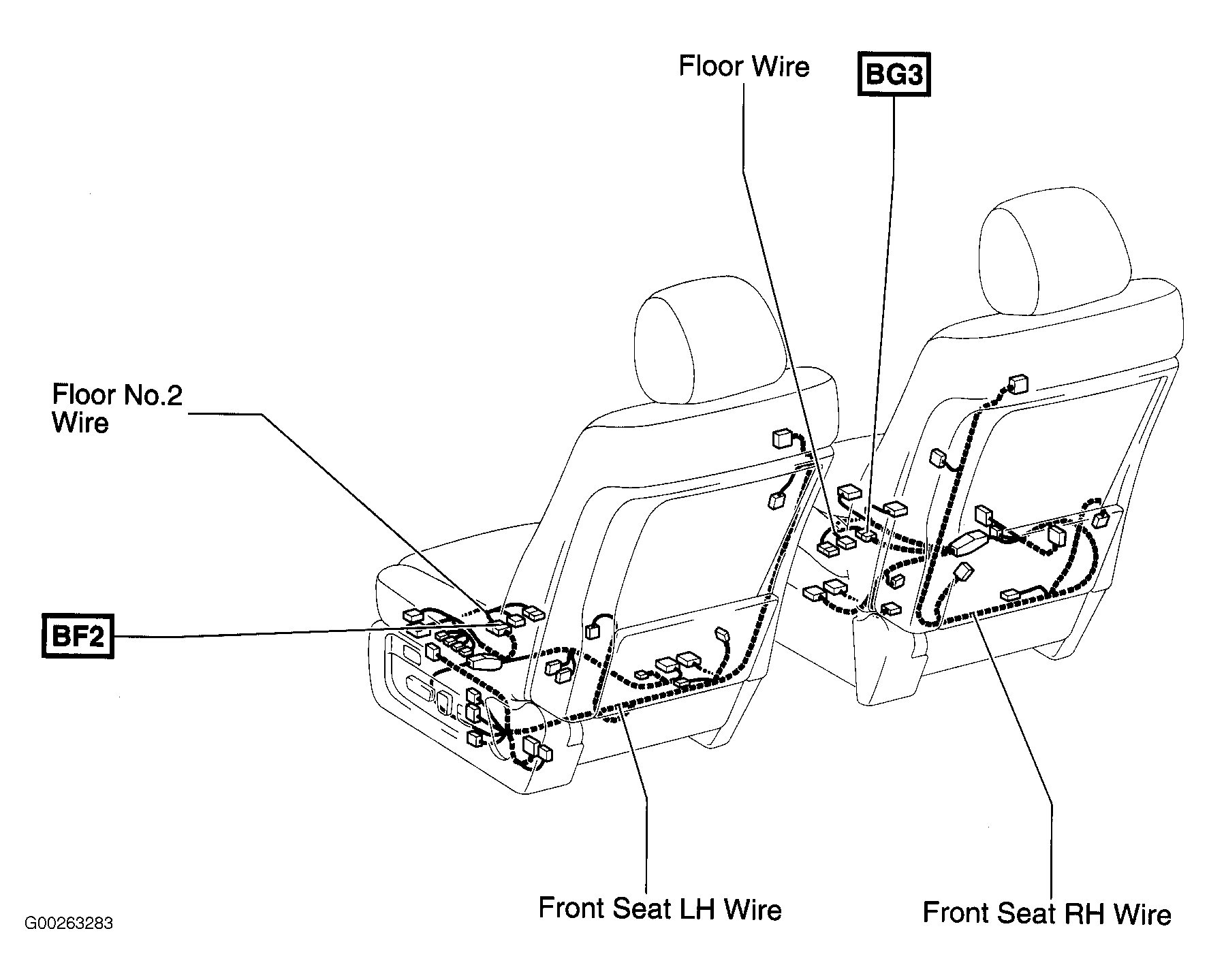

Fig 26: Front Seats

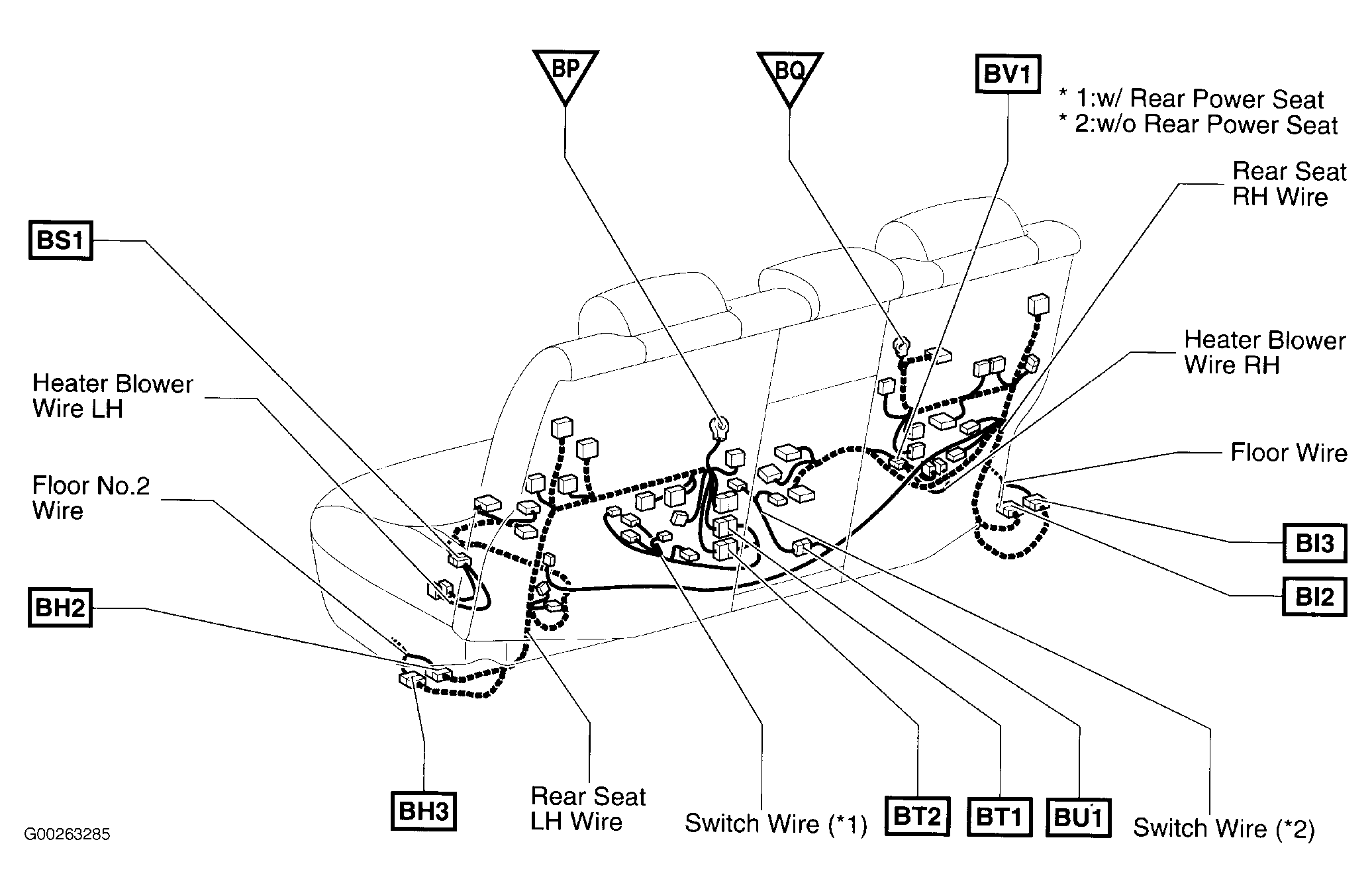

Fig 27: Rear Seat

Fig 28: Vehicle Overview

Fig 29: Vehicle Overview

Fig 30: Vehicle Overview

Fig 31: Front Seats

Fig 32: Rear Seat Assembly
