Fuel Injector ASSY: Components

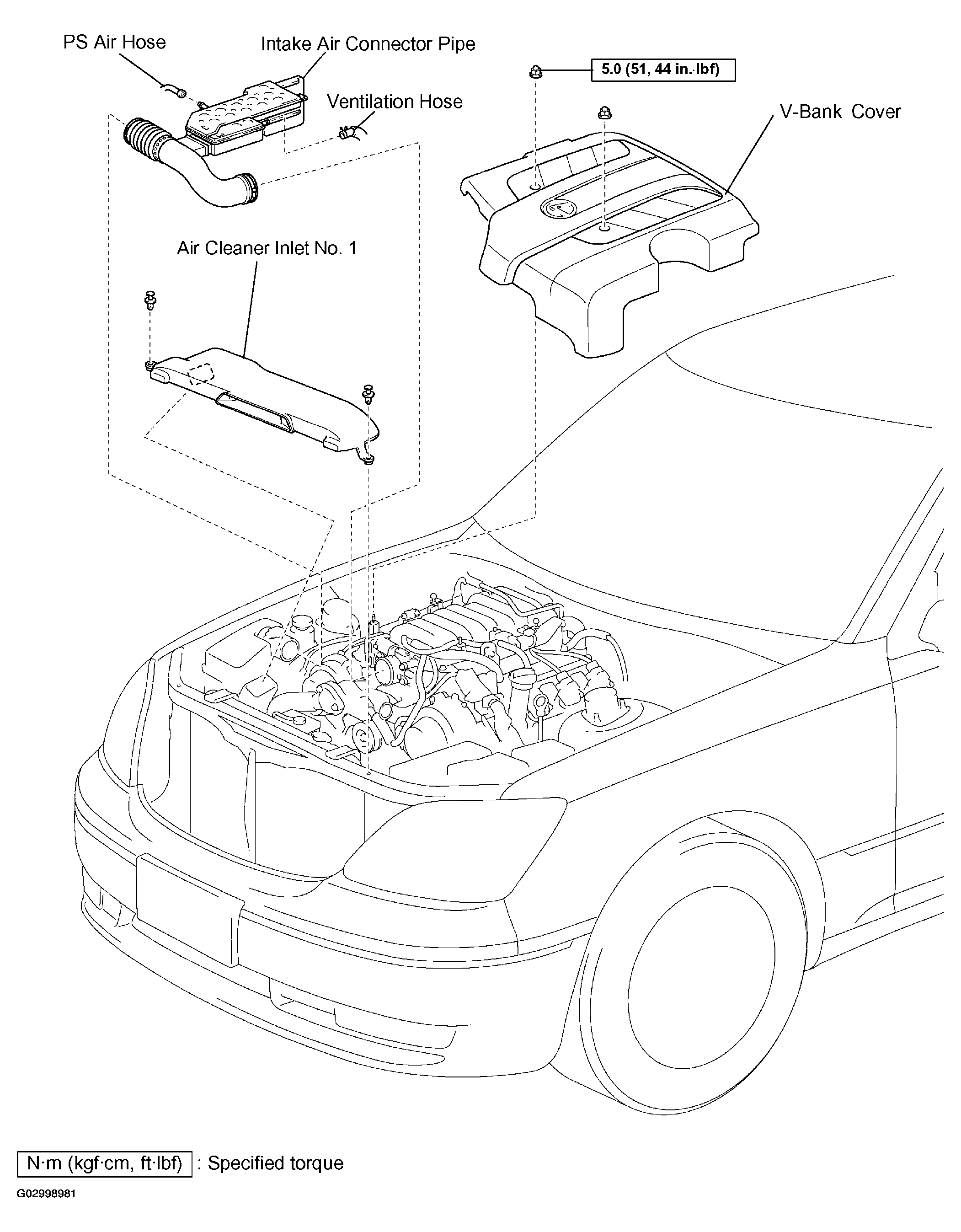

Fig 1: Exploded View Of Fuel Injector Assy Components (1 Of 3)
G02998981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

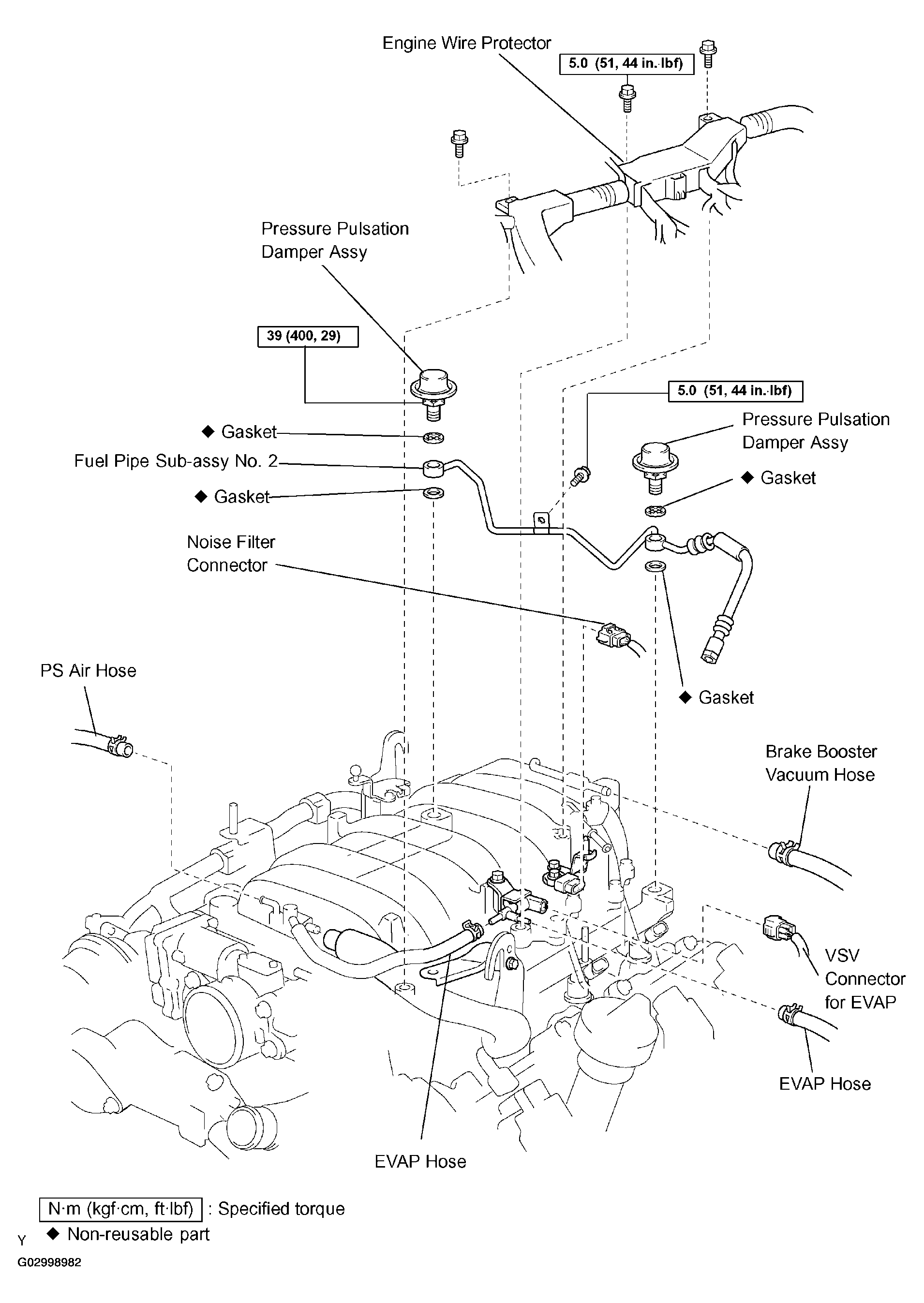

Fig 2: Exploded View Of Fuel Injector Assy Components (2 Of 3)
G02998982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

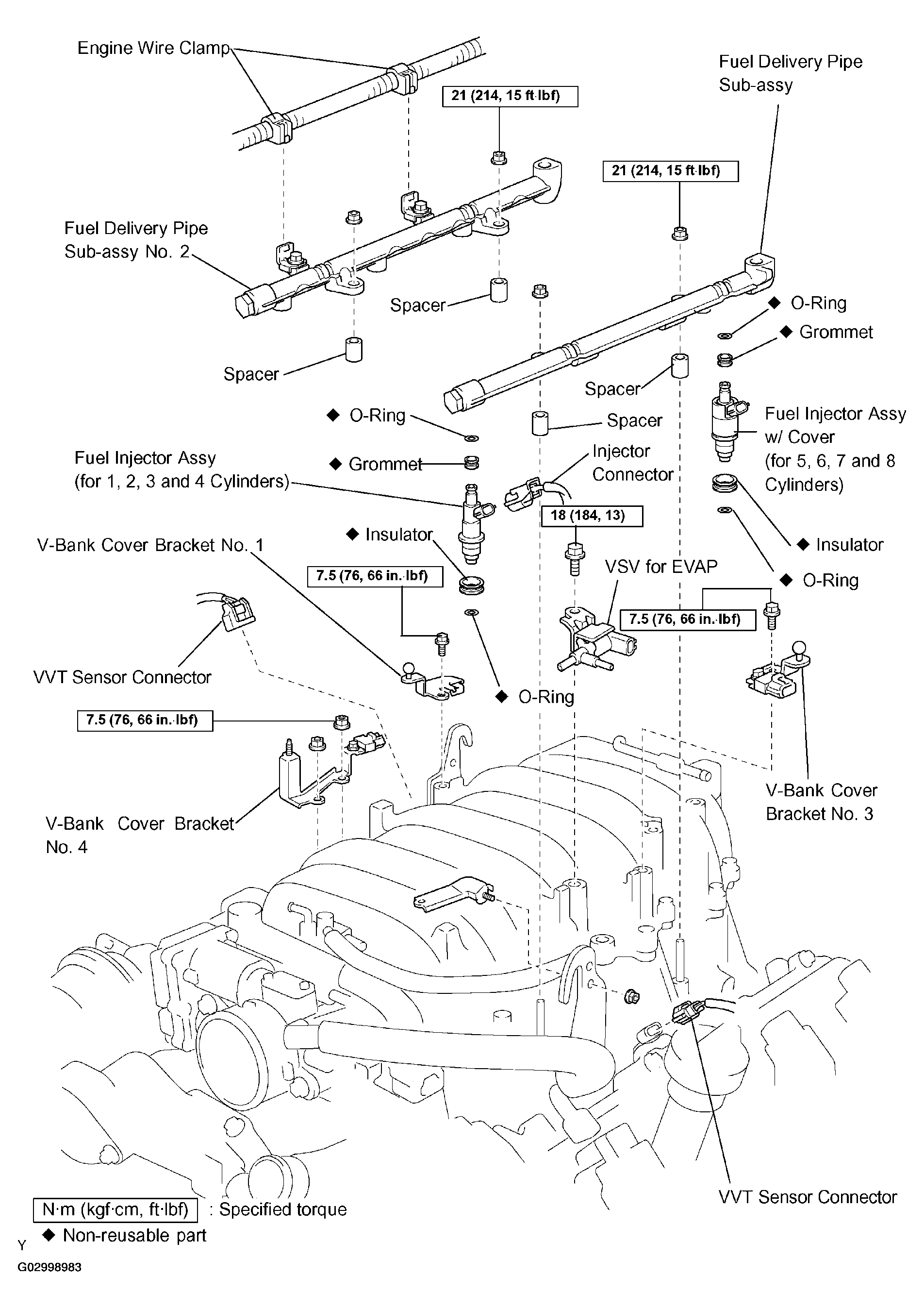

Fig 3: Exploded View Of Fuel Injector Assy Components (3 Of 3)
G02998983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
