Fuel System: Location

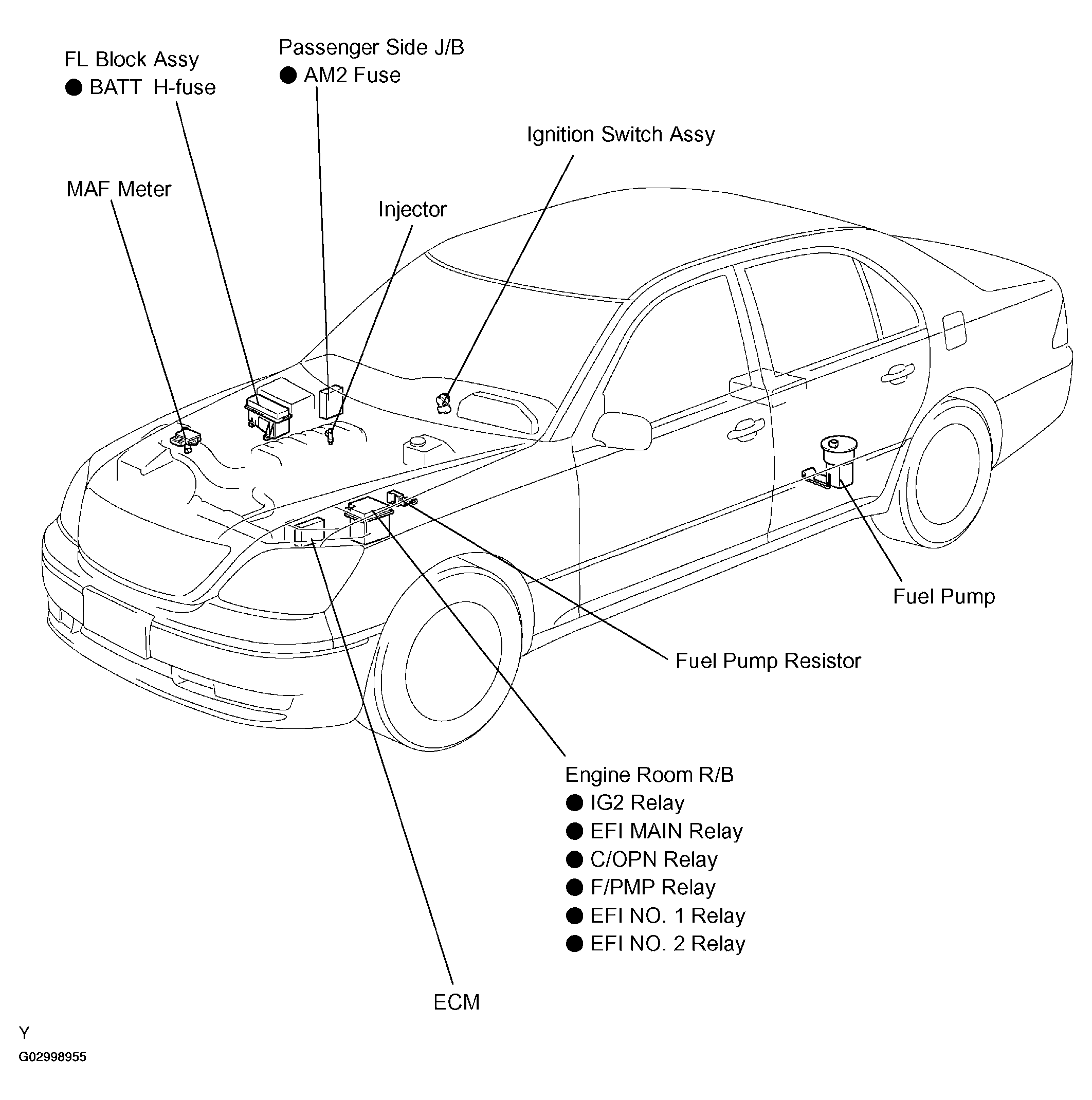

Fig 1: Identifying Fuel System Component Location
G02998955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
