Accelerator Pedal Rod ASSY: Replacement

  1. REMOVE ACCELERATOR PEDAL ROD ASSY

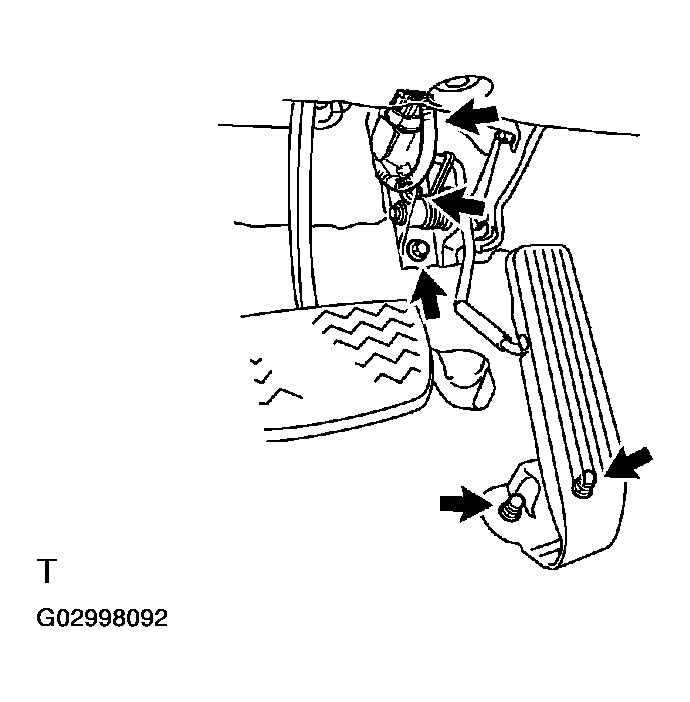

    Fig 1: Removing Bolts, Nuts And Accelerator Pedal Rod
    G02998092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the accelerator pedal position sensor connector.
    2. Remove the 2 bolts, 2 nuts and accelerator pedal rod.
  2. INSTALL ACCELERATOR PEDAL ROD ASSY
    1. Connect the accelerator pedal position sensor connector.
    2. Install the accelerator pedal rod with the 2 bolts and 2 nuts.
    1. Torque: 7.5 N.m (76 kgf.cm, 66 in..lbf)
