System Diagram

Engine control system is determined by the ECM based on signals from various sensors.

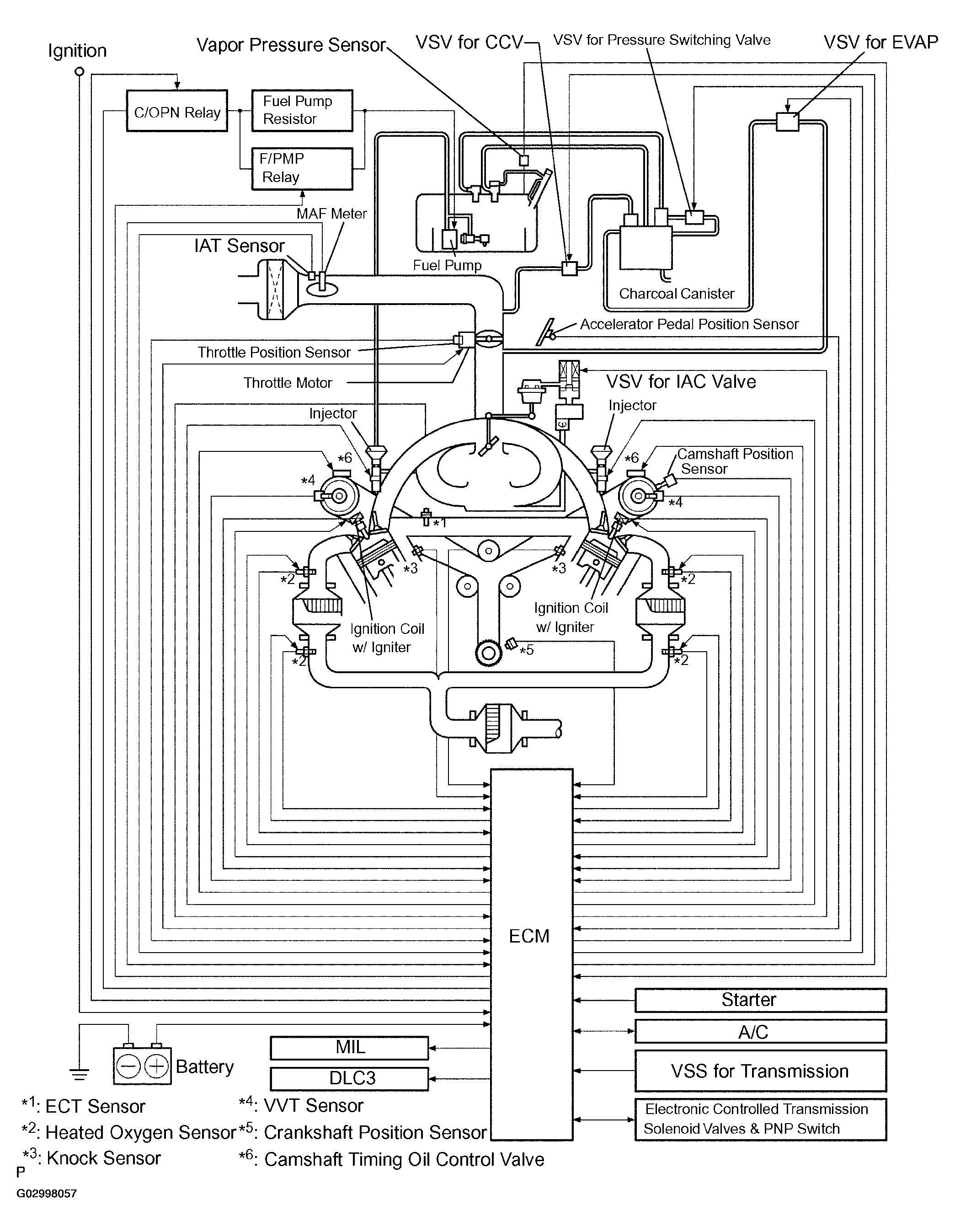

Fig 1: Engine Control - System Diagram
G02998057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
