Monitor Result

Refer to CHECKING MONITOR STATUS (See CHECKING MONITOR STATUS ).

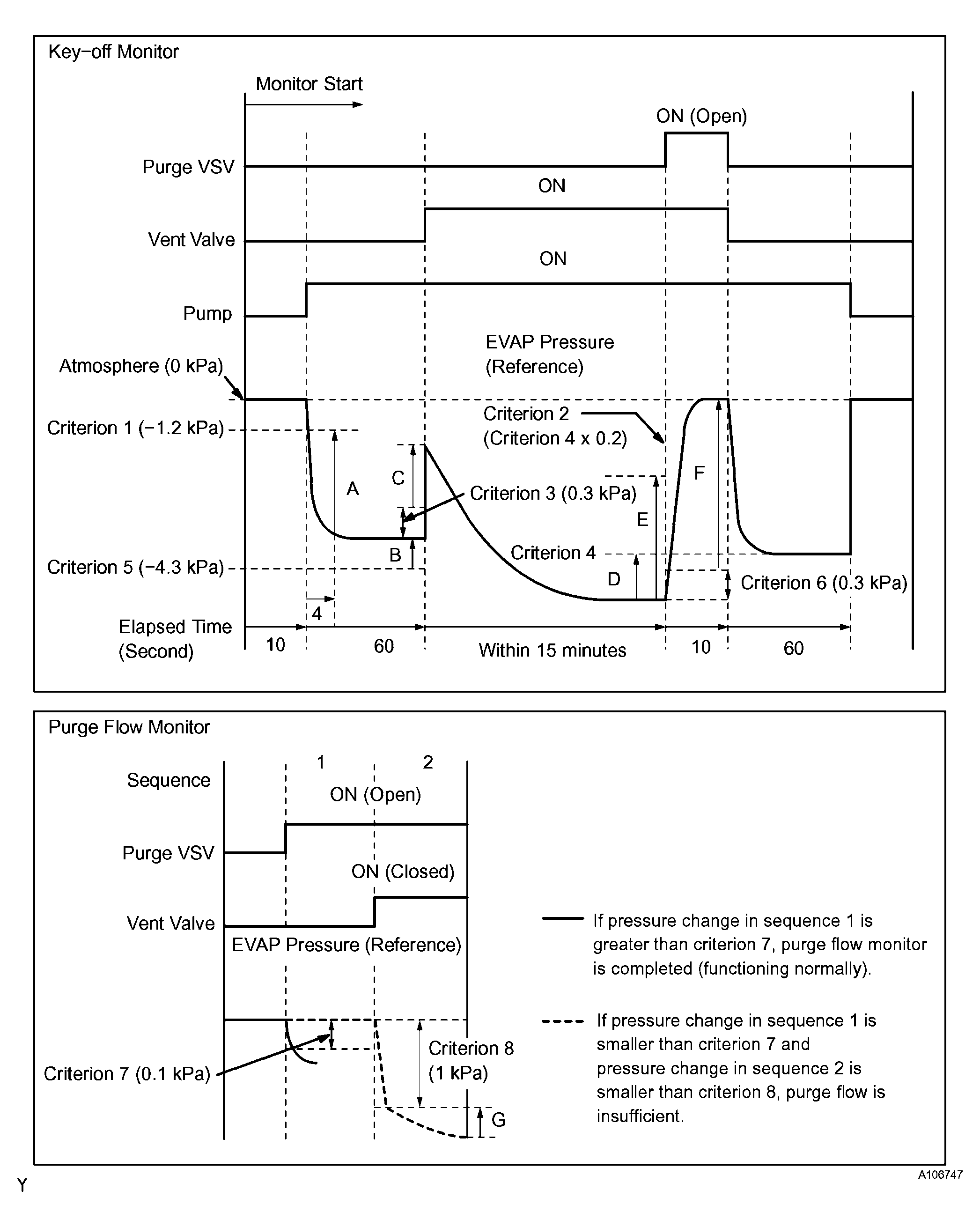

Fig 1: Checking Monitor Status
G04067654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
