VC Output Circuit: Description

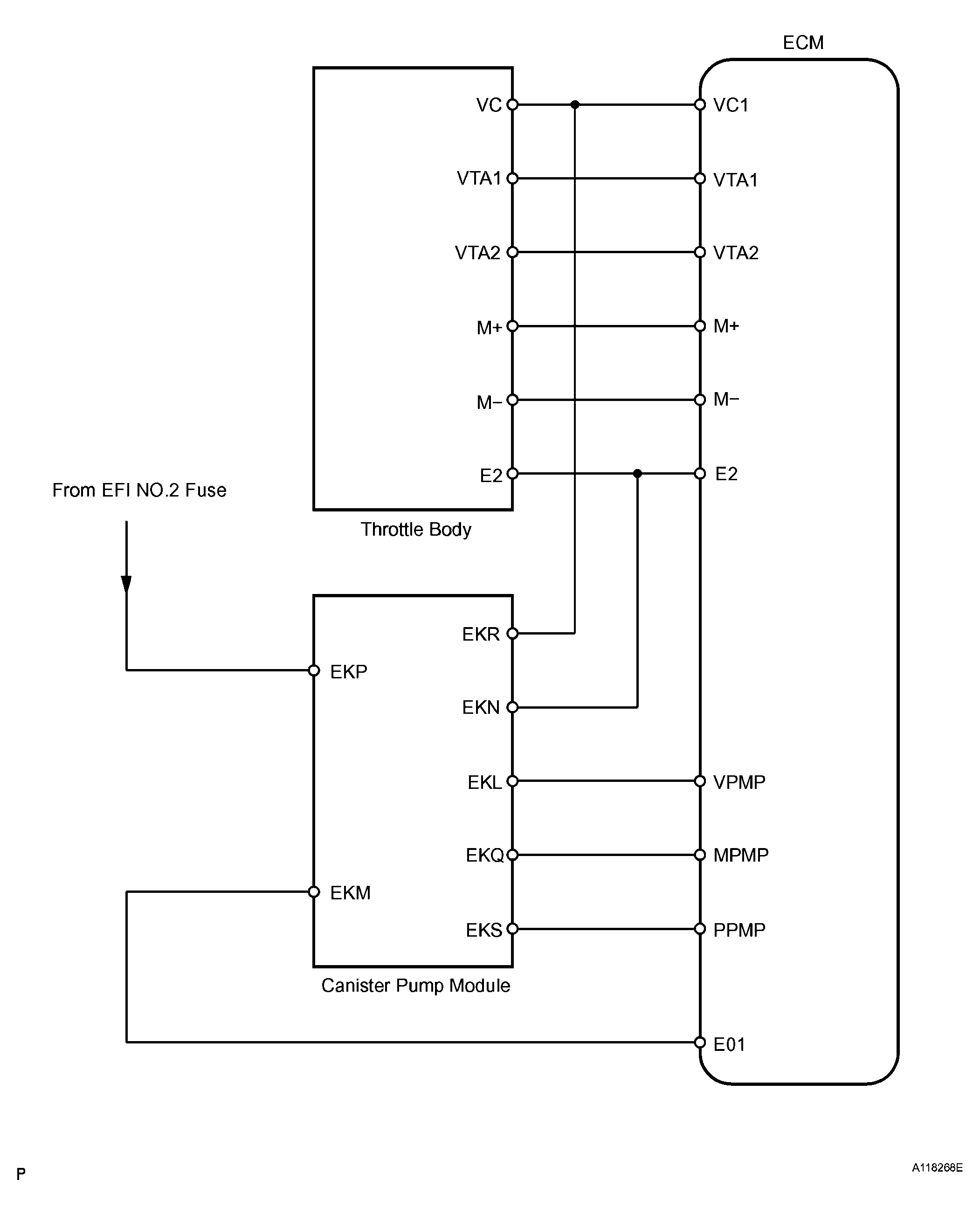

The VC voltage (5 V) is generated in the ECM. The voltage is used to supply power to the throttle position sensor, canister pump module, etc.

Fig 1: Identifying ECM Connectors And Terminals
