Ignition Coil: Components

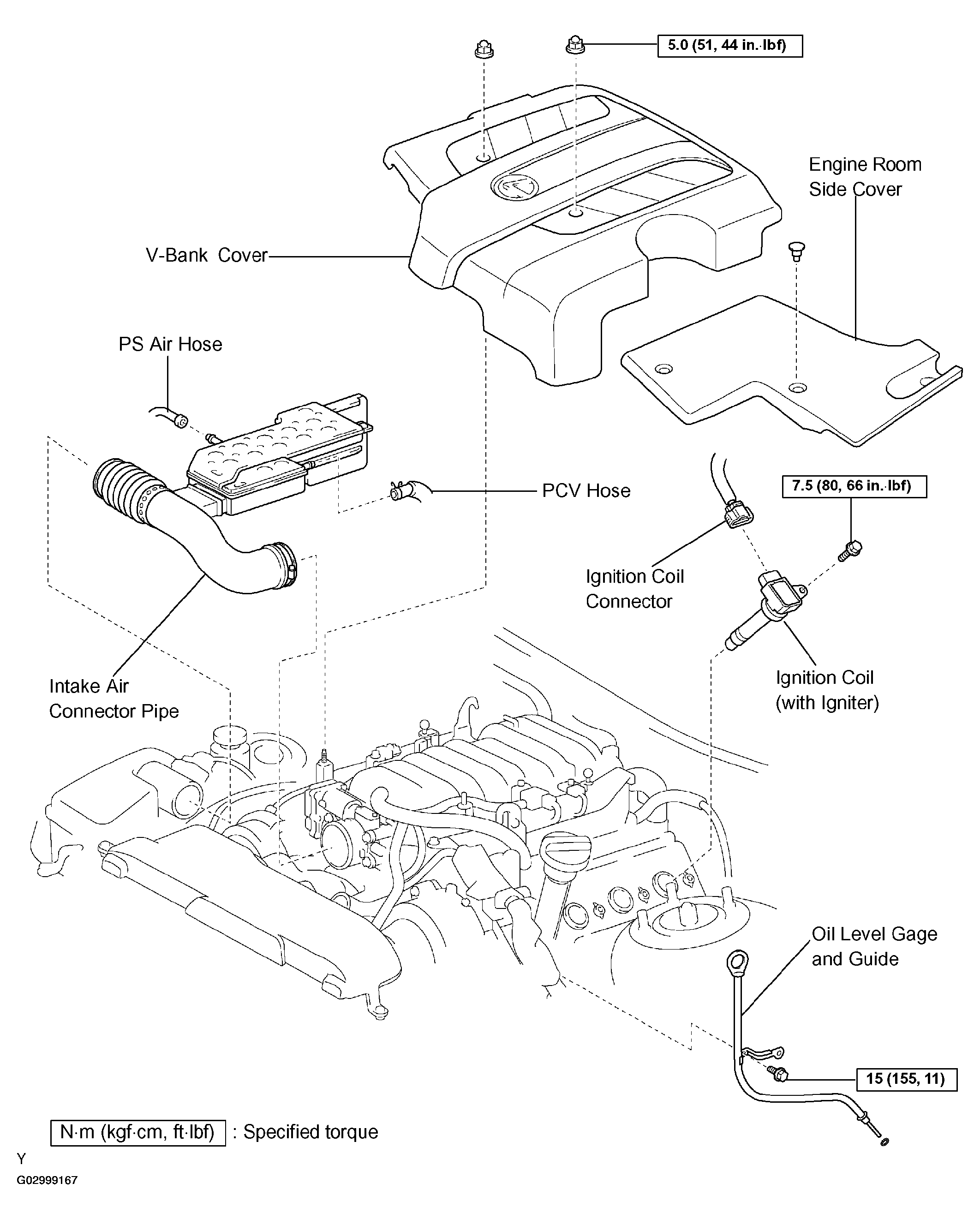

Fig 1: Identifying Ignition Coil Components And Replacements
G02999167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
