Customize Parameters
HINT:
The following can be customized.
NOTE:
- After confirming whether the items of the customer's request are applicable or not for the customized items, perform the customize operation.
- Be sure to record the current value before customizing.
- In case of performing the troubleshooting, pay attention as there is a possibility that the function is OFF by customizing. (Example: In case of the symptom in which "The wireless operation does not function" is displayed, check that the wireless operation is not OFF by customizing, then perform the troubleshooting.)
POWER TILT & TELESCOPIC STEERING COLUMN
TILT & TELESCOPIC REFERENCE CHART
| Display (Item) | Default | Contents | Setting |
|---|---|---|---|
| AUTO TILT AWAY (Auto Away / Return Function) | ON | ON / OFF of the auto away / return function | ON /OFF |
AIR CONDITIONING SYSTEM
AIR CONDITIONER REFERENCE CHART
| Display (Item) | Default | Contents | Setting |
|---|---|---|---|
| SET TEMP SHIFT (Set Temperature Shift) | NORMAL | To control with the shifted temperature against the display temperature | +2C / +1C /2C |
| (Air INLET MODE (Air inlet Mode) | AUTO | In case of turning the A/C ON when you desire to make the compartment cool down quickly, this is the function to change the mode automatically to RECIRCULATED mode. | MANUAL /AUTO |
| COMPRESSOR MODE (Compressor Mode) | AUTO | Function to turn the A/C ON automatically by pressing the AUTO button when the blower is ON and the A/C is OFF. | MANUAL / AUTO |
| COMPRS/DEF OPER (Compressor/Air Inlet DEF Operation) | LINK | Function to turn the A/C ON automatically linking with the FRONT DEF button when A/C is OFF | NORMAL / LINK |
| MOTOR INITIALIZ (Step Motor Initializing (IG/off)) | OFF | Functioned initialize the step motor after the ignition switch is | ON/OFF |
| EVAP CTRL (External Variable Control OFF) | AUTO | Function to set the evaporator control to the AUTOMATIC position (AUTO) to save power or to the coldest position (MANUAL) to dehumidify the air and to prevent the windows from fogging up. | MANUAL / AUTO |
| GAS SENS SHIFT (Shift Emission Gas Sensor Sensitivity) | NORMAL | Function to change the sensitivity of the exhaust gas sensor. | MU MORE / MORE / LI MORE / NORMAL / LILESS / LESS / MULESS |
| AUTO MODE (Cancel Auto Mode) | AUTO | Function to swing the vent vans automatically when A/C is ON. | MANUAL / AUTO |
| BUTTON PRS BUS (Cancel Operating Switch Sound) | ON | Function to sound a buzzer when a button is pressed. | OFF / ON |
| FILTER SENS (Shift Filter Clog Sensitivity) | NORMAL | Function to change the sensitivity of the air conditioning filter choking sensor. | LESS / NORMAL / MORE |
| FOOT AIR LEAK (Cancel Air Outlet Foot II) | ON | Function to cut off the airstream felt underfoot while the vehicle is moving. | OFF/ON |
LIGHTING SYSTEM
LIGHTING SYSTEM - ILLUMINATED ENTRY REFERENCE CHART
| Display (Item) | Default | Contents | Setting |
|---|---|---|---|
| I/L ON/ACC OFF (Light the I/L when ACC OFF) | ON | Illuminates the interior light when the ignition switch is turned from the ACC to LOCK position. | ON OFF) |
| LIGHTING TIME (Lighting time) | 15s | Changes the lighting time after closing the doors (the light quickly fades out when the ignition switch is turned ON). | 7.5s / 15s / 30 s |
| ILLUMI SYSTEM (Operation of illumination) | AVAIL | (Illuminates the step lamp, center console lamp and door inside handle illumination when the ignition switch is turned ON, or the door is unlocked or opened. | AVAIL / NOT AVL |
| LIGHT CONTROL (Light control) | AVAIL | Illuminates the step lamp and door inside handle illumination when the ignition switch is turned ON and the shift lever is in any position except P. | AVAIL / NOT AVL |
| ACC OFF CONTROL (Illumination system with ACC OFF) | AVAIL | Operates the illumination system when the ACC SW is off. | AVAIL/NOT AVL |
Light control:
HINT:
Sensitivity adjustment can hardly be confirmed. Check by driving the customer's vehicle.
LIGHTING SYSTEM - LIGHT CONTROL REFERENCE CHART
| Display (Item) | Default | Contents | Setting |
|---|---|---|---|
| LIGHT OFF DELAY (Light auto OFF delay) | 30s | Keeps the headlamps on for a certain period of time after closing all the doors when the ignition switch is turned ON, the light control switch is in the HEAD or AUTO position, and the headlamps are on. | OFF/30s/60 s/90 s |
| LIGHT CTRL TYPE (Control Type) | CURRENT | Changes the control logic when the light control switch is in the AUTO position. Refer to illustration (*1) Below. | CURRENT / OLD |
| RESPONSE TIME (Response time) | 0.15s | Changes the delay timing of the taillamp when entering a tunnel with the light control switch in the AUTO position. | 1.0s / 0.15s |

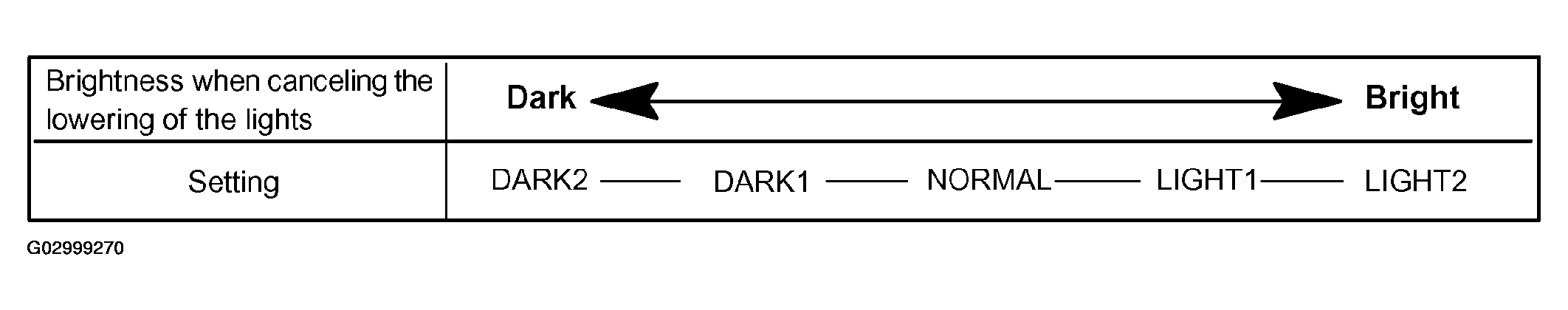

| DISP EX ON SEN (Display extinction luminous intensity) | NORMAL | Changes the brightness when lowering lights such as the combination meter indicator lamp, A/C indicator lamp, and clock lamp. Refer to illustration (*2) below. | DARK2 / DARK1 / NORMAL LIGHT1/ LIGHT2 |
| DISP EX OFF SEN (Display extinction release luminous intensity) | NORMAL | Changes the brightness when lowering lights such as the combination meter indicator lamp, A/C indicator lamp, and clock lamp. Refer to illustration (*3) below. | DARK2 / DARK1 / NORMAL /LIGHT1 / LIGHT2 |
| DRL FUNCTION (DRL function) | ON | ON/OFF of the DRL function | ON/OFF |
| D/FOOT LIGHT T (Foot lamp set up (driver's side)) | 15 s | Set the period the foot light stays on (driver's side). | OFF/7.5 s/15 s/30 s |
| P/FOOT LIGHT T (Foot lamp set up (passenger's side)) | 15 s | Set the period the foot light stays on (passenger's side). | OFF / 7.5 s/15 s/30 s |
(*1) Illustration of
**1 The new one has the logic to light up two times brighter than the old logic.
**2 Delay time until the headlight is turned on when it suddenly gets dark.
(*2) Illustration of
(*3) Illustration of
WIPER AND WASHER SYSTEM
WIPER REFERENCE CHART
| Display (Item) | Default | Contents | Setting |
|---|---|---|---|
| AUTO WIPE (Auto wipe) | AVAIL | Function to operate the wiper automatically when it is raining. | NOT AVAIL / AVAIL |
| INT OPER TIME (Intermittent operation time | 10s | Function to change the maximum time of intermittent operation which changes with the vehicle speed, | 10s/15s/20s |
| REWIPE CONTROL (Rewipe control) | SPD MOD | Function to change the time between end of washer motor operation and start of wiper operation to prevent streaking from washer fluid. | OFF/ 2s / SPD MOD |
| SPEED MODE (Speed mode) | AVAIL | Function to change to the intermittent operation when the vehicle comes to a stop (0 vehicle speed) from driving condition with the wiper switch in the LO position. | NOT AVAIL/AVAIL |

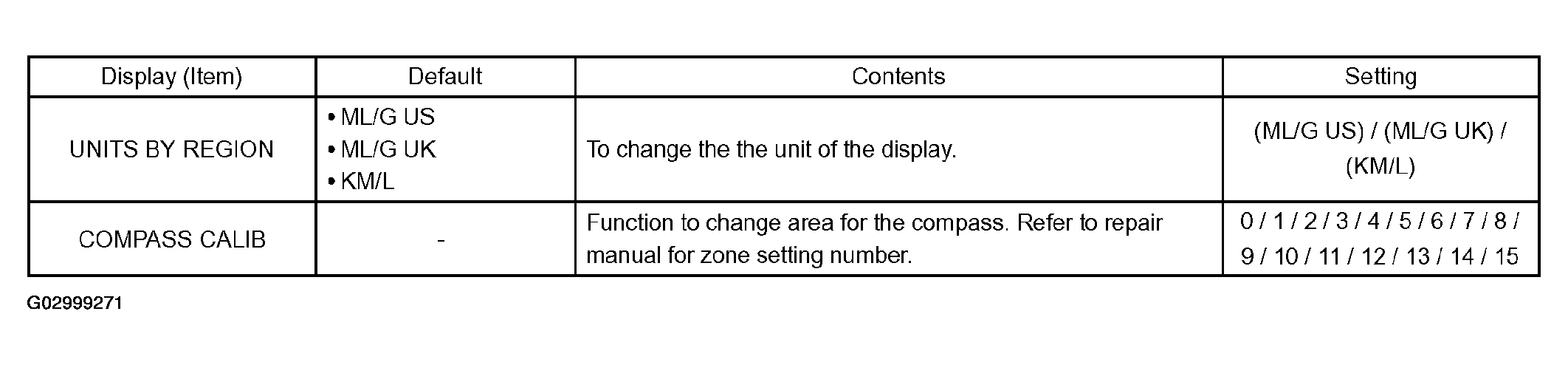

COMBINATION METER
Illuminated entry:
POWER WINDOW CONTROL SYSTEM
POWER WINDOW CONTROL SYSTEM REFERENCE CHART
| Display (Item) | Default | Contents | Setting |
|---|---|---|---|
| UP/DOOR KEY | ON | Function that raises all power windows when, with ignition switch OFF, key is used to hold driver door key cylinder to lock position for more than 1.5 seconds | ON/OFF |
| DOWN/DOOR KEY | ON | Function that lowers all power windows when, with ignition switch OFF, key is used to hold driver door key cylinder to unlock position for more than 1.5 seconds | ON/OFF |
CLEARANCE SONAR SYSTEM
WARNING REFERENCE CHART
| Display (Item) | Default | Contents | Setting |
|---|---|---|---|
| F BUZ SPECIFIED (Front buzzer specified) | OFF | Function to make front buzzer sound when obstacles are within approximately 500 to 1,000 mm (19.69 to 39.37 in.) in the front of the vehicle. | ON/OFF |
| R BUZ SPECIFIED (Rear buzzer specified) | ON | Function to make rear buzzer sound when obstacles are within approximately 500 to 1,000 mm (19.69 to 39.37 in.) in the rear of the vehicle. | ON/OFF |
| NO MOVE BUZZ (No move judgement BUZZER | ON | Function to make buzzer sound when vehicle speed is 0 km/h and sensors detect obstacles, | ON/OFF |
| KEY BATTERY BUZ (Key battery buzzer) | ON | Function to make the warning available when the smart key battery is low. | ON / OFF |
| KEEP SENSE BUZ (Keep sense status Buzzer) | ON | Function to make buzzer sound when distance between vehicle and obstacle does not change for more than 3 seconds. | ON / OFF |
| F & R BUZZER FREQ (Front & rear buzzer frequency | 1.0/1.5 | Function to change of front and rear buzzers. | (1/1.5)/(1.3/1.8)/(1.5/2) |
| F & R BUZZER VOLM (Front & rear buzzer volume | M2 | Function to change volume of front and rear buzzers. | L/M1/M2/M3/H |
SENSOR REFERENCE CHART
| Display (Item) | Default | Contents | Setting |
|---|---|---|---|
| R SENSOR (Rear sensor) | ON | Function to make 4 rear sensors available. | ON / OFF |
| REV RNG SENS (Reverse range sensor) | Fsde2,R | Function to set available sensors when shift position is R. | ALL/Fcrn4,R/Fsde2,R |
| NON-P/R RNG SEN (Non P/R range sensor) | F | Function to set available sensors when shift position is not P or R | ALL / F,Rcrn2 /F |
| SENSOR COND/N (Sensor condition N range) | ON | Function to make sensors available when shift position is N. | OFF/ON |
| F SIDE DIST SEN (Front side distance sensor | LONG | Function to change maximum distance that front side sensors are able to detect. (SHORT: 375 mm (14.76 in.), LONG: 500 mm (19.69 in.)) | SHORT / LONG |
DISPLAY REFERENCE CHART
| Display (Item) | Default | Contents | Setting |
|---|---|---|---|
| APPRCH DISP OFF (Approach display off) | OFF | Function to make multi-information display turn off when vehicle starts to leave obstacles which are within approximately 250 mm (9.84 in.) of vehicle. | ON / OFF |
| DISP TIMEOUT (Display timeout time) | INVALID | Function to change time until multi-information display turns off when detected distance by sensors does not change. | 5s / 10s / 20s / INVALID |
| SONAR DISP OFF (Sonar display off time) | 3s | Function to change time until multi-information display turns off after sensors stop detecting obstacle. | 1s / 2s / 3s / 4s |
FRONT POWER SEAT CONTROL SYSTEM
FRONT POWER SEAT REFERENCE CHART
| Display (Item) | Default | Contents | Setting |
|---|---|---|---|
| HEADREST CONTROL | AVAIL | Function that activates physique compensation headrest control when driver seat is moved (sliding). | NOT AVL/AVAIL |
POWER DOOR LOCK CONTROL SYSTEM
THEFT WARNING ECU REFERENCE CHART
| Display (Item) | Default | Contents | Setting |
|---|---|---|---|
| UNLK/KEY TWICE (Unlock w/2 times D key operation) | ON | Function that unlocks only driver side door when driver side door key cylinder is turned to unlock once and unlocks all the doors when it is turned to unlock twice. In OFF setting, turning it once unlocks all doors. |
ON/OFF |
| UNLOCK/PARK (Unlock w/IGON, shift P, speed 0 km/h (0 mph)) | OFF | Function that unlocks doors when lever is shifted to P position from any position other than P while the ignition switch is ON. | ON/OFF |
| AUTO LOCK (ONCE) (Auto Lock (ONCE)) | OFF | Function that locks the doors once when the vehicle speed reaches a certain level. | ON/OFF |
WIRELESS DOOR LOCK CONTROL SYSTEM (W/ SMART KEY SYSTEM)
WIRELESS DOOR LOCK REFERENCE CHART
| Display (Item) | Default | Contents | Setting |
|---|---|---|---|
| WIRELESS OPER (Wireless Door Lock Control Function) | ON | Function that turns wireless door lock function ON/OFF. | ON/OFF |
| HAZARD ANS BACK (Hazard Answer-back of Wireless) | ON | When LOCK switch on transmitter is pressed, this function illuminates all hazard warning lamps once. When UNLOCK switch is pressed, all hazard warning lamps illuminate twice. | ON/OFF |
| DOWN/WIRELESS | ON | When UNLOCK switch on transmitter is held for 3 seconds, this function opens all door windows and sliding roof. | ON/OFF |
| OPEN DOOR WARN (Open Door Warning) | ON | If door is not completely closed and transmitter LOCK switch is pressed, this function makes buzzer sound for 10 seconds. | ON/OFF |
| AUTO LOCK DELAY (Auto Lock Time) | 30s | This function controls amount of time from unlocking doors to automatic re-locking function. | 30s / 60s |
| TRUNK LID OPER (Luggage compartment door open function) | 0.8s PR | This function changes transmitter operation method for opening luggage compartment door, | 1 time/2 time /0. 8s PR/OFF |
| UNLOCK / 2OPER (2 Times Operation Wireless Unlock) | D_door | When UNLOCK switch is pressed once, this function unlocks only designated door. When UNLOCK switch is pressed again within 3 seconds, all doors unlock. If setting is on ALL, pressing UNLOCK switch once unlocks all doors. | ALL/D_door/D_side |
| ALARM FUNCTION (Panic Function) | ON | Function that operates theft deterrent system when transmitter LOCK (PANIC) switch is held for 3 seconds. | ON/OFF |
WIRELESS DOOR LOCK CONTROL SYSTEM (W/O SMART KEY SYSTEM)
WIRELESS DOOR LOCK REFERENCE CHART
| Display (Item) | Default | Contents | Setting |
|---|---|---|---|
| WIRELESS OPER (Wireless Door Lock Control Function) | ON | Function that turns wireless door lock function ON/OFF. | ON/OFF |
| HAZARD ANS BACK (Hazard Answer-back of Wireless) | ON | When LOCK switch on transmitter is pressed, this function illuminates all hazard warning lamps once. When UNLOCK switch is pressed, all hazard warning lamps illuminate twice. | ON/OFF |
| DOWN/WIRELESS | ON | When UNLOCK switch on transmitter is held for 3 seconds, this function opens all door windows and sliding roof. | ON/OFF |
| OPEN DOOR WARN (Open Door Warning) | ON | If door is not completely closed and transmitter LOCK switch is pressed, this function makes buzzer sound for 10 seconds. | ON/OFF |
| AUTO LOCK DELAY (Auto Lock Time) | 30s | This function controls amount of time from unlocking doors to automatic re-locking function | 30 s/60 s |
| TRUNK LID OPER (Luggage compartment door open function) | 0.8PR | This function changes transmitter operation method for opening luggage compartment door, | 1 time/2 times/0.8s PR/OFF |
SMART KEY SYSTEM
THEFT WARNING ECU REFERENCE CHART
| Display (Item) | Default | Contents | Setting |
|---|---|---|---|
| SMART IGNITION (Smart ignition) | Function to choose available areas for smart key to start engine and cancel steering | LOCK. | Front/Fr & Rr |
| TRANSMIT INTVAL (Transmission interval) | 300 ms | Function to set smart key signal interval transmitted from outside of vehicle when vehicle is parked. | 150ms/300ms/450ms/600ms |
| SMART TRUNK (Smart trunk) | ON | Function that opens trunk with smart key. | ON/OFF |
| SMART TRUNK (Smart trunk key inside) | OFF | Function that opens trunk automatically when trunk is closed with smart key left inside. If owner forgets that trunk is opened automatically by this function, it is possible vehicle may be stolen. | ON/OFF |
| DOR OP-CL BUZ (door open-close buzzer) | ON | Function that makes warning available when smart key is taken outside vehicle, any door is opened, shift position is P and ignition switch is pushed, ACC or ON (engine is not running). | ON/OFF |
| HALF LOCK BUZ (Half lock buzzer) | ON | Function that makes warning available for locking doors with smart key when doors are opened. | ON/OFF |
| KEY BATTERY BUZ (Key battery buzzer) | ON | Function that makes warning available when smart key cannot be identified. | ON/OFF |
| KEY NO FIT BUZ (Key no fit buzzer) | ON | Function that makes warning available when smart key cannot be identified. | ON/OFF |
| SMART BUZ NUM (Smart buzzer number) | 3 TINES | Function that sets number of times wireless buzzer sounds, which warns ignition switch is still ON. | 10 TIMES /7 TIMES/5 TIMES /3 TIMES /0 TIME |
| SMART BUZ VOL (Smart buzzer volume) | MAX | Function that sets sound volume of wireless buzzer, which warns ignition switch is still ON. | MAX/MID 3/MID 2/MID 1/MIN/OFF |
| BUZZER LENGTH (Buzzer length) | 2s | 2 s/1 s/0 s/OFF | |
| P-ON D-CL BUZ (Push-on door-close buzzer) | ON | Function that makes warning available when smart key is taken outside vehicle, driver door is opened and closed, shift position is not P and ignition switch is ACC or ON. | ON/OFF |
| KEY IN LOCK BUZ (Key inside lock buzzer) | 2s | Function that makes warning available when doors are locked with trigger switch with smart key left inside vehicle. | 2 s/1 s/0 s/OFF |
| KEY TAKEOUT BUZ (Key take out buzzer) | ON | Function that sets interval of searching key inside vehicle and sounds buzzer when key is found inside vehicle. | 300 s/60 s/30 s/10 s/5 s/3 s/OFF |
METER ECU REFERENCE CHART
| Display (Item) | Default | Contents | Setting |
|---|---|---|---|
| KEY REMND VOLUM (Key reminder buzzer volume) | LARGE | Function that changes volume of key reminder buzzer. | LARGE/MEDIUM/SMALL |
| KEY REMND SOUND (Key reminder buzzer sound) | NORMAL | Function that changes frequency of key reminder buzzer. sound) | NORMAL/FAST/SLOW |
KEY REMINDER WARNING SYSTEM
METER ECU REFERENCE CHART
| Display (Item) | Default | Contents | Setting |
|---|---|---|---|
| KEY REMND VOLUM | LARGE | Function that changes key reminder buzzer's volume | LARGE/MEDIUM/SMALL |
| KEY REMND SOUND | NORMAL | Function that changes key reminder buzzer's frequency | NORMAL/FAST/SLOW/0s |
SLIDING ROOF SYSTEM
SLIDING ROOF REFERENCE CHART
| Display (Item) | Default | Contents | Setting |
|---|---|---|---|
| OPEN/DOOR KEY Door key related OPEN) | ON | Function to open sliding roof manually. OFF. Sliding roof links with power window after driver side door key is held to unlock side for 2 seconds or more. | ON/OFF |
| CLOSE/DOOR KEY (Door key related CLOSE) | ON | Function to close sliding roof manually. Turn ignition switch OFF Sliding roof links with power window after driver side door key is held to lock side for 2 seconds or more. | ON/OFF |
| OPEN/WIRELESS (Wireless key related (OPEN) | ON | Function to open sliding roof manually. Turn ignition switch OFF Sliding roof links with power window after transmitter unlock button is pressed for 2 seconds. | ON/OFF |
| DOOR KEY OPER (Door key related operation) | SLIDE | Function to select manual opening direction. Turn ignition switch OFF. Sliding roof links with power window after key is inserted into driver side door key cylinder and key is held to unlock side for 2 seconds or more. | TILT/SLIDE |
| WIRELESS OPER (Wireless key related operation) | SLIDE | Function to select manual opening direction. Turn ignition switch OFF. Sliding roof links with power window after transmitter unlock button is pressed for 3 seconds or more. | TILT/SLIDE |
THEFT DETERRENT SYSTEM

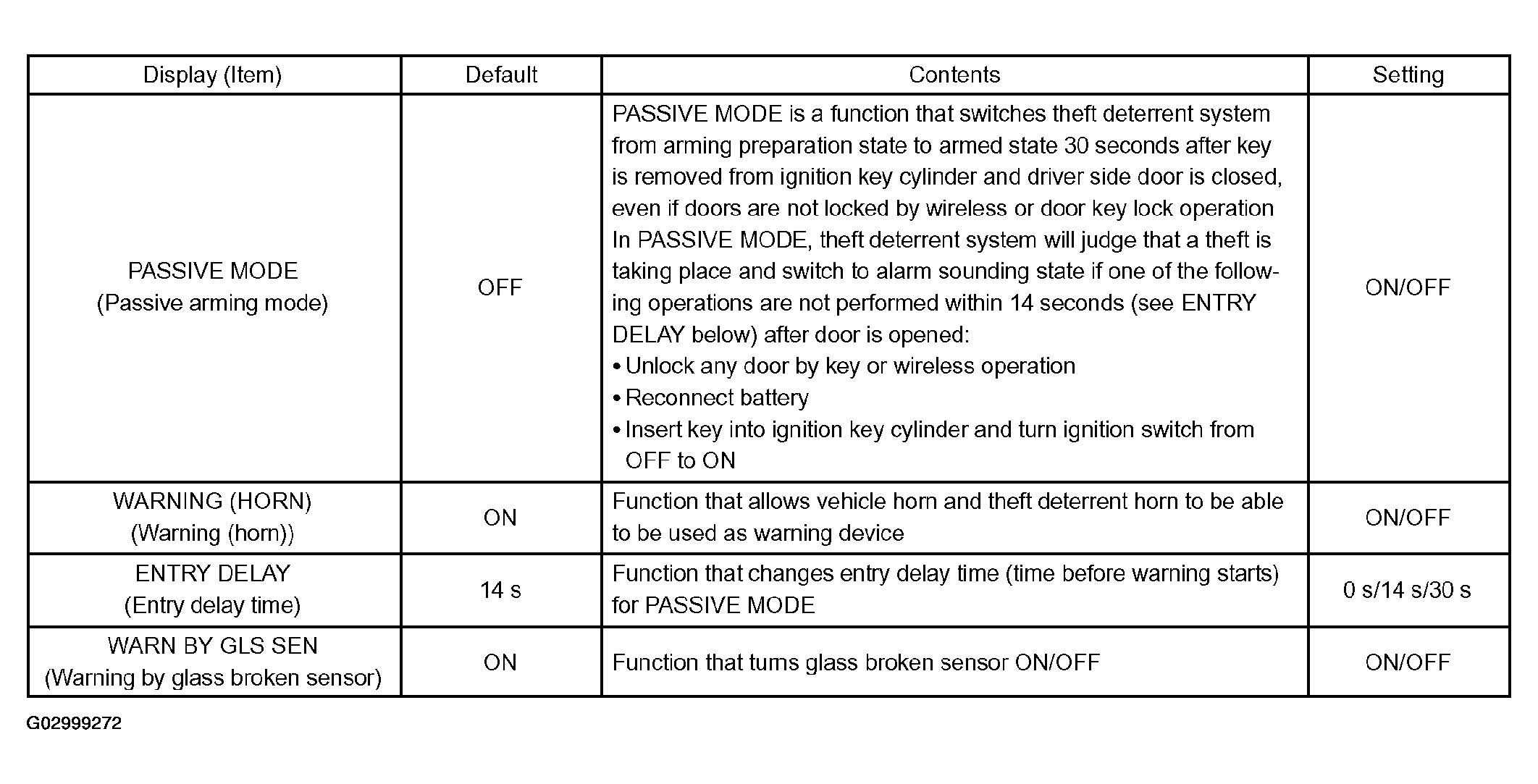

Theft deterrent system:
