Height Control Compressor ASSY: Replacement

REMOVE FRONT WHEELS
REMOVE FRONT FENDER LINER LH
REMOVE HEIGHT CONTROL DRYER ASSY
1. Disconnect the connector.
2. Disconnect the air tube (see PRECAUTION ).
3. Remove the 3 bolts, nut and height control compressor assy and height control dryer assy.

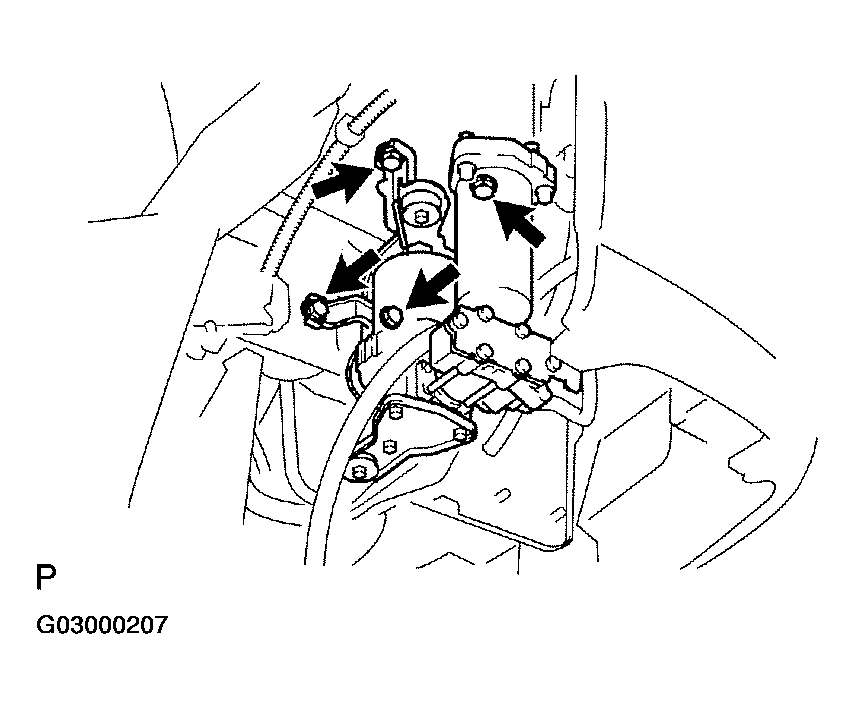

  Fig 1: Removing 3 Bolts, Nut And Height Control Compressor Assy And Height Control Dryer Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the bolt and height control dryer assy.
5. Remove the O-ring.

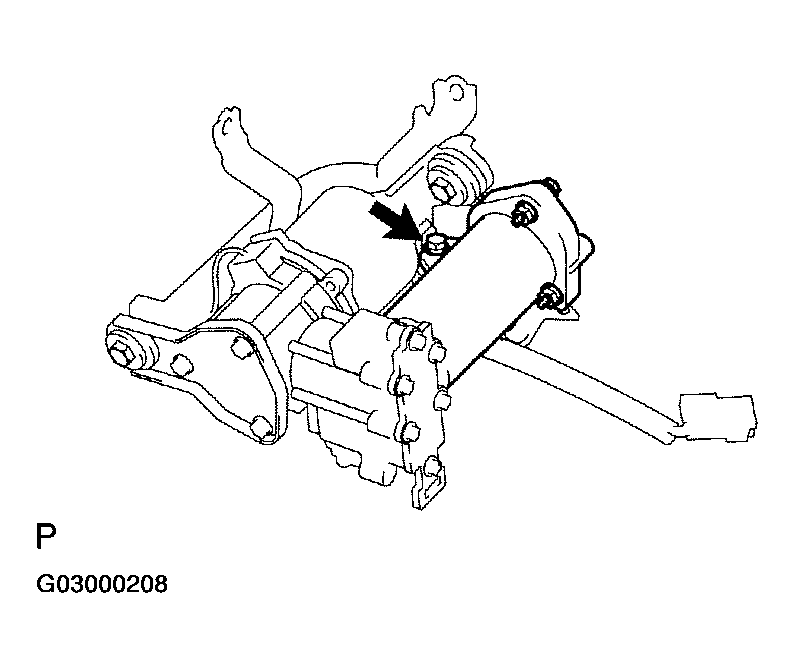

  Fig 2: Removing Bolt And Height Control Dryer Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEIGHT CONTROL COMPRESSOR ASSY
1. Remove the 3 bolts, bushing and bracket from height control compressor assy.

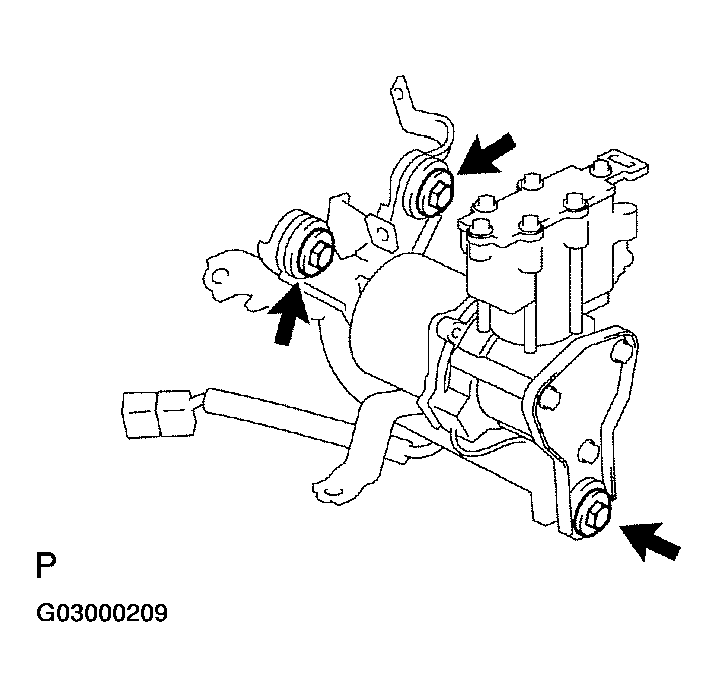

  Fig 3: Removing 3 Bolts, Bushing And Bracket From Height Control Compressor Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEIGHT CONTROL COMPRESSOR ASSY
1. Install the bracket and bushing with 3 bolts to height control compressor assy.
  1. Torque: 5.9 N.m (60 kgf.cm, 52 in.lbf)
INSTALL HEIGHT CONTROL DRYER ASSY
1. Coat the O-ring with MP grease and install it to height control dryer assy.

  Fig 4: Installing Bracket And Bushing With 3 Bolts To Height Control Compressor Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the height control dryer assy with a bolt.
  1. Torque: 6.4 N.m (65 kgf.cm, 56 in.lbf)

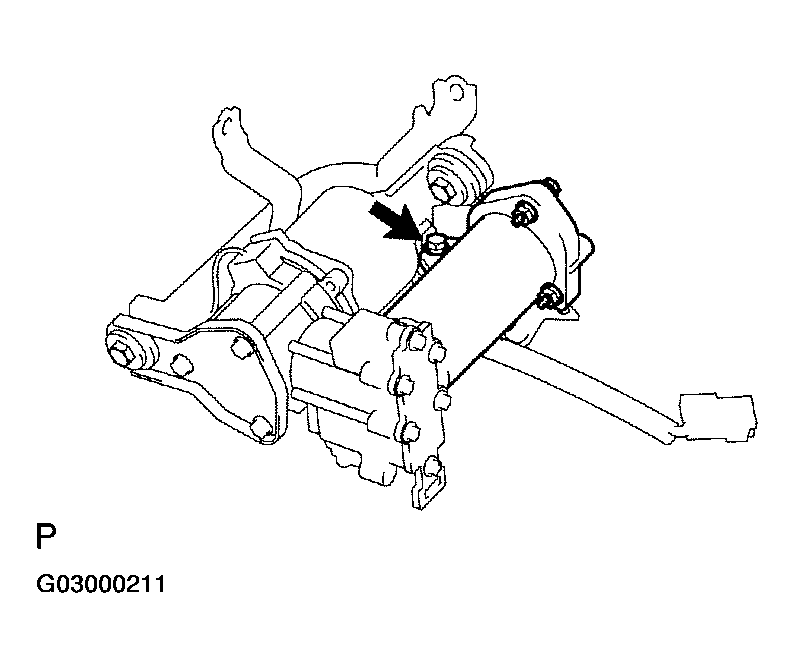

  Fig 5: Installing Height Control Dryer Assy With A Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the height control compressor assy and height control dryer assy with 3 bolts and nut.
  1. Torque: 19 N.m (195 kgf.cm, 14 ft lbf)
4. Connect the air tube (see PRECAUTION ).
5. Connect the connector.

  Fig 6: Installing Height Control Compressor Assy And Height Control Dryer Assy With 3 Bolts And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT FENDER LINER LH
INSTALL FRONT WHEELS
1. Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
INSPECT AIR LEAK (SEE ON-VEHICLE INSPECTION )
