Height Control Sensor Sub-ASSY Front: Replacement

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. REMOVE FRONT WHEELS
2. REMOVE HEIGHT CONTROL SENSOR SUB-ASSY FRONT LH
   1. Disconnect the connector.
   2. Remove the nut and disconnect the height control sensor link.

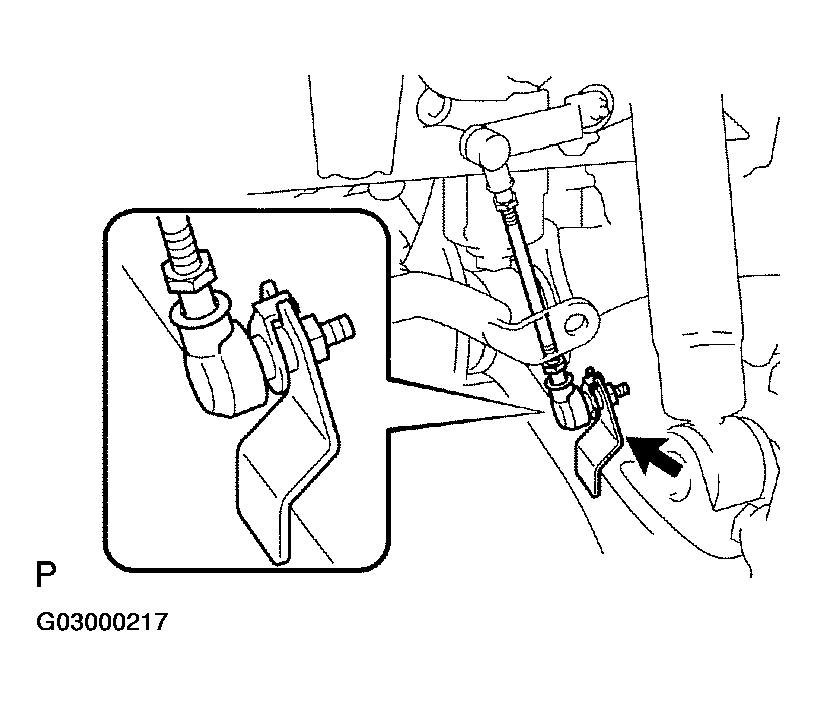

      Fig 1: Removing Nut And Disconnecting Height Control Sensor Link

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Remove the 2 bolts and height control sensor sub-assy front LH.

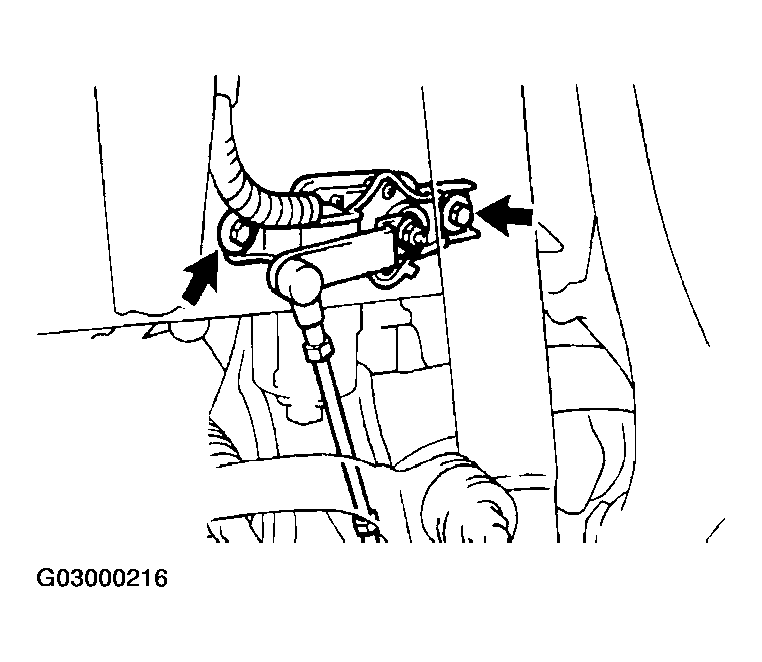

      Fig 2: Removing 2 Bolts And Height Control Sensor Sub-Assy Front LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL HEIGHT CONTROL SENSOR SUB-ASSY FRONT LH
   1. Install the height control sensor sub-assy front LH with 2 bolts.
      1. Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)
      Fig 3: Installing Height Control Sensor Sub-Assy Front LH With 2 Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Connect the height control sensor link with a nut.
      1. Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
   3. Connect the connector.
      Fig 4: Connecting Height Control Sensor Link With A Nut

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL FRONT WHEELS
   1. Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
5. ADJUST VEHICLE HEIGHT (SEE  ON-VEHICLE INSPECTION   )
