Transmission Revolution Sensor: Replacement

  1. REMOVE TRANSMISSION REVOLUTION SENSOR (NC0 SENSOR)
    1. Disconnect the transmission revolution sensor connector.
    2. Remove the bolt and transmission revolution sensor.
    3. Remove the O-ring from the transmission revolution sensor.

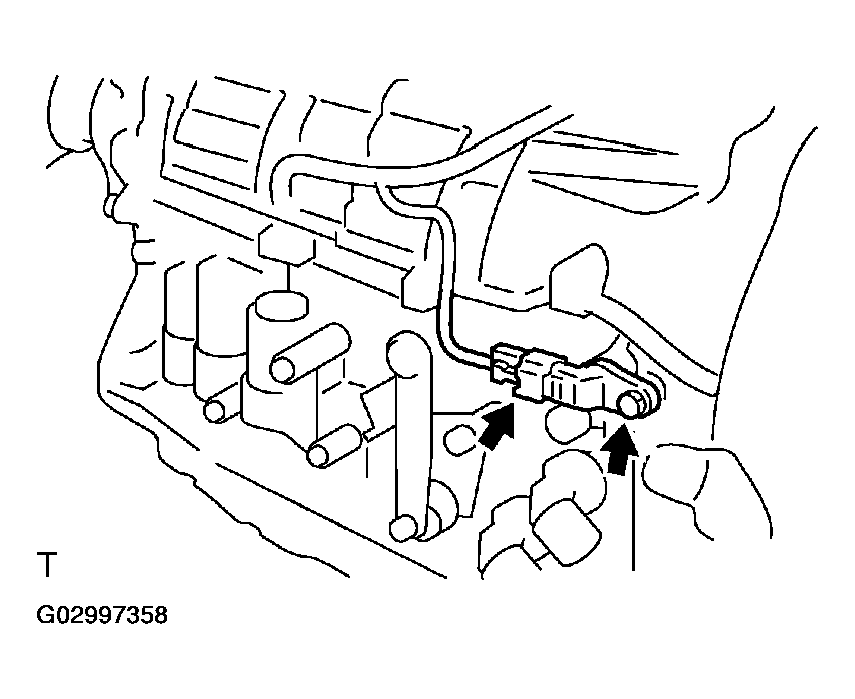

    Fig 1: Removing Bolt And Transmission Revolution Sensor
    G02997358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE TRANSMISSION REVOLUTION SENSOR (SP2 SENSOR)
    1. Disconnect the transmission revolution sensor connector.
    2. Remove the bolt and transmission revolution sensor.
    3. Remove the O-ring from the transmission revolution sensor.

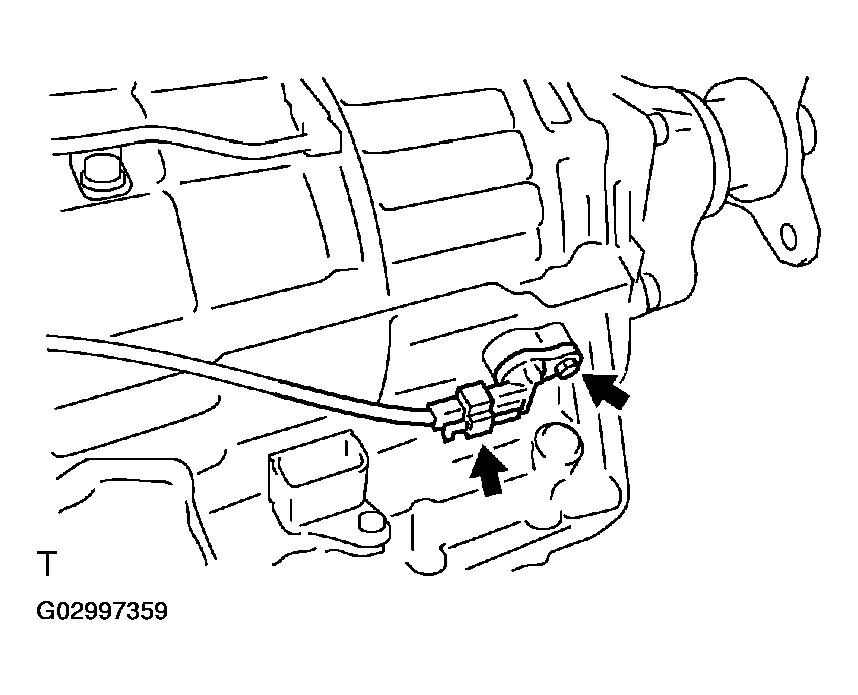

    Fig 2: Removing Bolt And Transmission Revolution Sensor
    G02997359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL TRANSMISSION REVOLUTION SENSOR (SP2 SENSOR)
    1. Coat a new O-ring with ATF and install it to the transmission revolution sensor.
    2. Install the transmission revolution sensor with the bolt.
      1. Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)
    3. Connect the transmission revolution sensor connector.
    Fig 3: Installing Transmission Revolution Sensor With Bolt
    G02997360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL TRANSMISSION REVOLUTION SENSOR (NC0 SENSOR)
    1. Coat a new O-ring with ATF and install it to the transmission revolution sensor.
    2. Install the transmission revolution sensor with the bolt.
      1. Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)
    3. Connect the transmission revolution sensor connector.

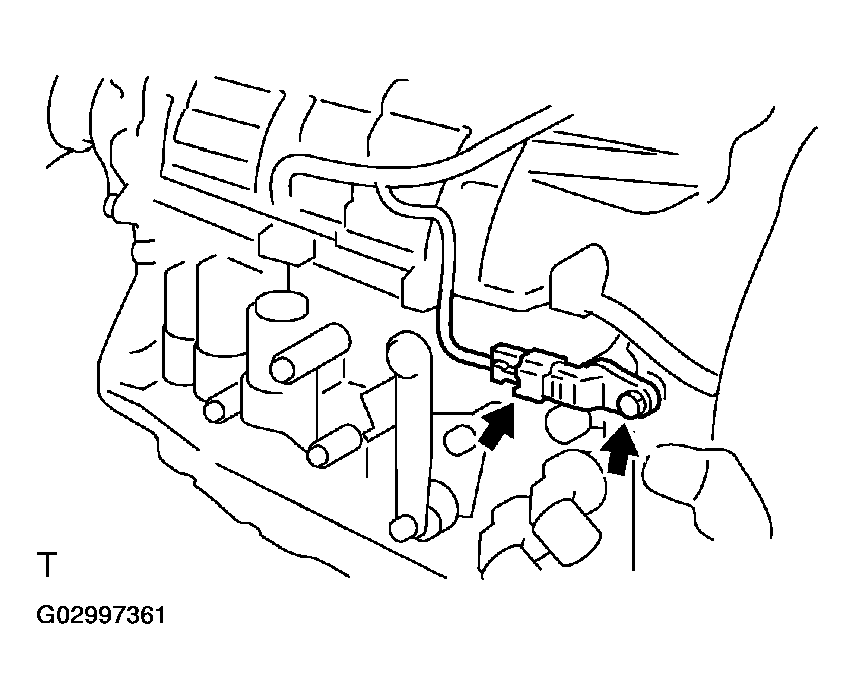

    Fig 4: Installing Transmission Revolution Sensor With Bolt
    G02997361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
