VSC TRAC Warning Light Circuit: Wiring Diagram

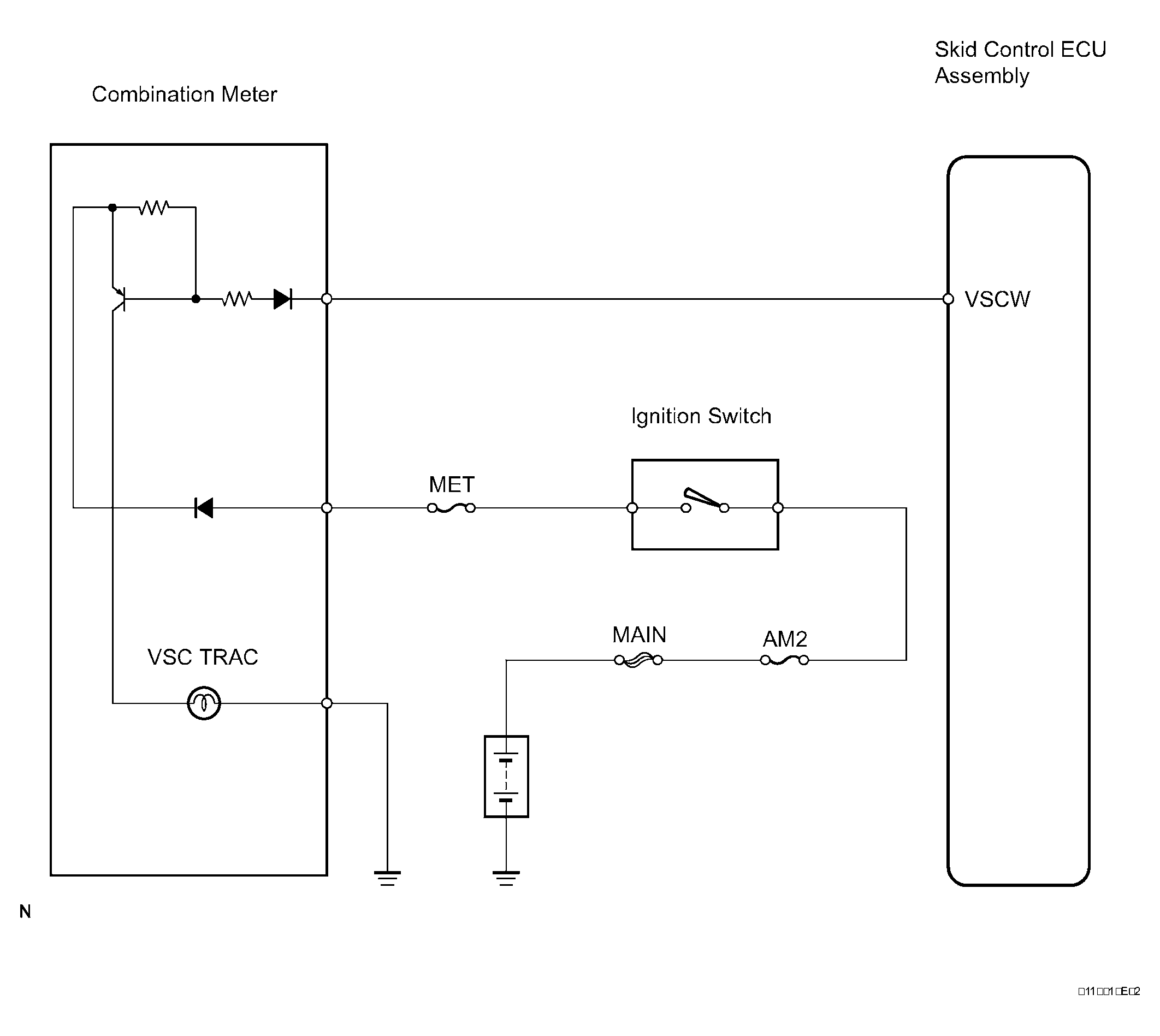

Fig 1: VSC TRAC Warning Light Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• When using the intelligent tester, start form *1 if the VSC TRAC warning light does not light up, or start form *3 if the VSC TRAC warning light remains on.
• When not using the intelligent tester, start form *2 if the VSC TRAC warning light does not light up, or start form *4 if the VSC TRAC warning light remains on.

1. PERFORM ACTIVE TEST BY INTELLIGENT TESTER (WARNING LIGHT)*1
   1. Select the ACTIVE TEST, generate a control command, and then check that the VSC TRAC warning light operates.

   Skid control ECU

   ACTIVE TEST REFERENCE CHART



   Item	Vehicle Condition / Test Details	Diagnostic Note
   VSC TRAC WARN LIGHT	Turn VSC TRAC warning light ON / OFF	Observe combination meter

   OK : VSC TRAC warning light turns on or off.

   OK : REPLACE SKID CONTROL ECU ASSEMBLY

   NG : Go To Next Step

2. CHECK VSC TRAC WARNING LIGHT*2
   1. Disconnect the A40 ECU connector.
   2. Turn the ignition switch ON.
   3. Using a service wire, connect terminal WA to GND3 or GND4 of the A40 ECU connector. Check the VSC TRAC warning light.

      OK : VSC TRAC warning light turns off.

   4. Turn the ignition switch OFF.
   5. Remove the service wire.
   6. Turn the ignition switch ON. Check the VSC TRAC warning light.

   OK : VSC TRAC warning light illuminates.

   OK : REPLACE SKID CONTROL ECU ASSEMBLY

   NG : Go To Next Step

3. INSPECT RELAY (Marking: IG1 NO. 2)
   1. Remove the IG1 NO. 2 relay from the cowl side junction block LH.
   2. Measure the resistance of the relay.

   Standard resistance

   TESTER CONNECTION AND SPECIFIED CONDITION CHART



   Tester Connection	Specified Condition
   1 - 2	10 kΩ or higher
   1 - 2	Below 1 Ω (when battery voltage is applied to terminals 3 and 4)

   NG : REPLACE RELAY

   Fig 2: Identifying Relay Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK : CHECK COMBINATION METER (COMBINATION METER CIRCUIT)

4. INSPECT SKID CONTROL ECU CONNECTOR*3
   1. Check that each ECU connector is properly installed.

   OK : Each ECU connector is properly installed.

   NG : CONNECT CONNECTOR TO ECU CORRECTLY

   OK : Go To Next Step

5. PERFORM ACTIVE TEST BY INTELLIGENT TESTER (VSC TRAC WARNING LIGHT)
   1. Select the ACTIVE TEST, generate a control command, and then check that the VSC TRAC warning light operates.

   Skid control ECU

   ACTIVE TEST REFERENCE CHART



   Item	Vehicle Condition / Test Details	Diagnostic Note
   VSC TRAC WARN LIGHT	Turn VSC TRAC warning light ON / OFF	Observe combination meter

   OK : VSC TRAC warning light turns on or off.

   OK : REPLACE SKID CONTROL ECU ASSEMBLY

   NG : Go To Next Step

6. CHECK FOR DTC*4
   1. Turn the ignition switch ON.
   2. Check that the VSC TRAC warning light illuminates.
   3. Check if the same DTCs are recorded.

   Result:

   RESULT REFERENCE



   Result	Proceed to
   DTC is not output	A
   DTC is output	B

   B : REPAIR CIRCUIT INDICATED BY OUTPUT DTC

   A : Go To Next Step

7. CHECK WIRE HARNESS (SKID CONTROL ECU ASSEMBLY - COMBINATION METER)

   NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

   OK : REPLACE SKID CONTROL ECU ASSEMBLY
