Throttle Body: Installation

INSTALL THROTTLE BODY ASSEMBLY
1. Install a new gasket to the intake air connector.
2. TMC Made
  1. Install the throttle body with the 4 bolts.
  Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

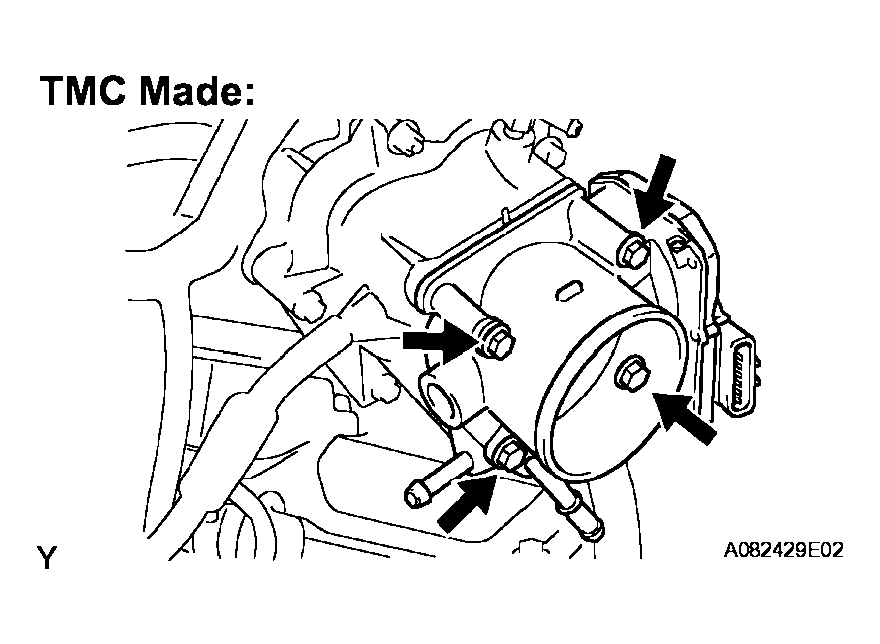

  Fig 1: Installing Throttle Body With Bolts (TMC Made)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. TMMWV Made
  1. Install the throttle body with the 2 bolts and 2 nuts.
  Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

  Fig 2: Installing Throttle Body With Bolts (MWV Made)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the water by-pass hose No. 3.
5. Connect the water by-pass hose No. 2.
6. Connect the throttle motor connector.

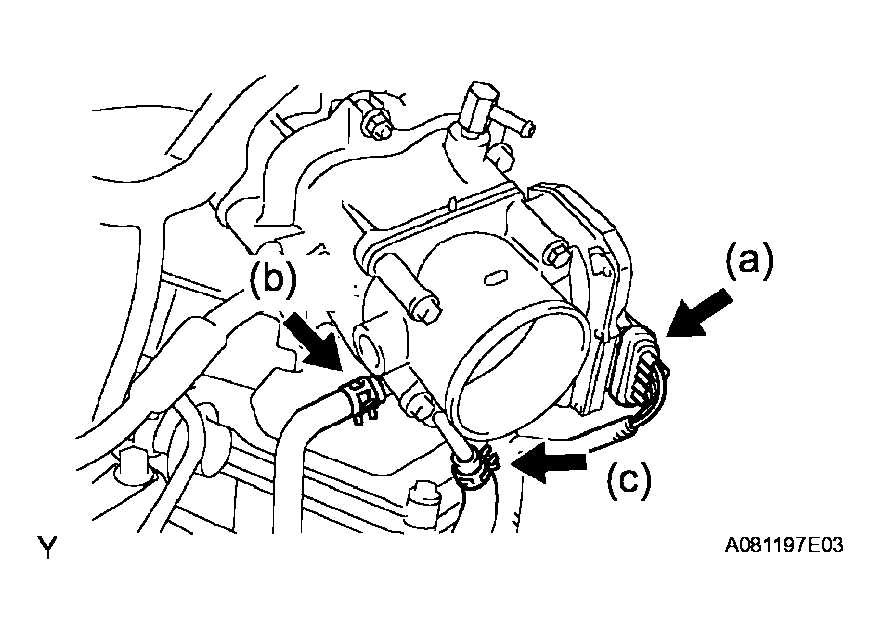

Fig 3: Connecting Throttle Motor Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INTAKE AIR RESONATOR
INSTALL AIR CLEANER ASSEMBLY (See INSTALLATION )
INSTALL AIR CLEANER INLET NO. 2 (See INSTALLATION )
CHECK CONNECTION OF VACUUM HOSE (See INSTALLATION )
ADD ENGINE COOLANT (See COOLANT )
CHECK FOR ENGINE COOLANT LEAKS (See ON-VEHICLE INSPECTION )
INSTALL V-BANK COVER SUB-ASSEMBLY
1. Fit the 2 retainers and install the V-bank cover.
2. Using a socket hexagon wrench 5, tighten the 3 nuts.
Torque: 7.9 N*m (81 kgf*cm, 70 in.*lbf)
