Knock Sensor: Inspection

  1. INSPECT KNOCK SENSOR
    1. Continuity inspection.
      1. Using an ohmmeter, measure the resistance between the terminals.

      Resistance: 120 to 280 kΩ at 20°C (68°F)

      HINT:

      If the resistance is not specified, replace the sensor.

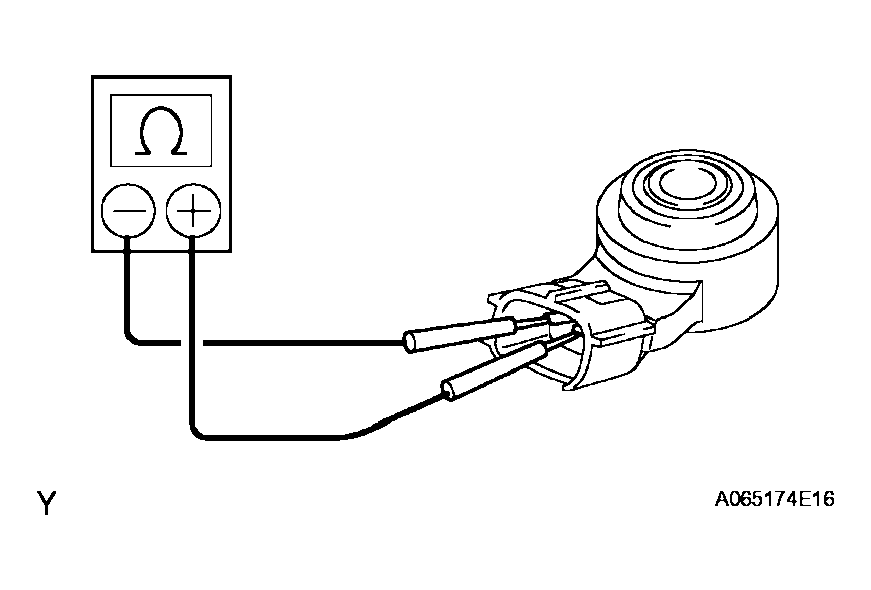

    Fig 1: Inspecting Knock Sensor
    G04087517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
