Knock Sensor: Removal

  1. DISCHARGE FUEL SYSTEM PRESSURE

    HINT:

    (See FUEL SYSTEM )

  2. DRAIN ENGINE COOLANT (See  COOLANT  )
  3. REMOVE FR WIPER ARM LH (See  REMOVAL  )
  4. REMOVE FR WIPER ARM RH (See  REMOVAL  )
  5. REMOVE FRONT FENDER TO COWL SIDE SEAL LH
  6. REMOVE FRONT FENDER TO COWL SIDE SEAL RH
  7. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    (See  REMOVAL  )

  8. REMOVE WINDSHIELD WIPER LINK ASSEMBLY (See  REMOVAL  )
  9. REMOVE COWL TOP PANEL SUB-ASSEMBLY OUTER (See  REMOVAL  )
  10. REMOVE V-BANK COVER SUB-ASSEMBLY (See  REMOVAL   )
  11. REMOVE AIR CLEANER CAP SUB-ASSEMBLY (See  REMOVAL  )
  12. REMOVE EMISSION CONTROL VALVE SET (See  REMOVAL  )
  13. REMOVE INTAKE AIR SURGE TANK (See  REMOVAL  )
  14. REMOVE INTAKE MANIFOLD
    1. Disconnect the fuel pipe No. 1.
      1. Remove the EFI fuel pipe clamp.
      2. Pinch the tube connector and then pull out the fuel pipe No. 1.
      NOTE:
      • Check if there is any dirt or mud around the connector before this operation and remove the dirt as necessary.
      • Be careful of mud because the quick connector has an O-ring which seals the pipe and connector that can be contaminated.
      • Do not use any tool in this operation.
      • Do not bend or twist the nylon tube. Protect the connector by covering it with a vinyl or plastic bag.
      • When the pipe and the connector are stuck, push and pull the connector to release and pull the connector out carefully.

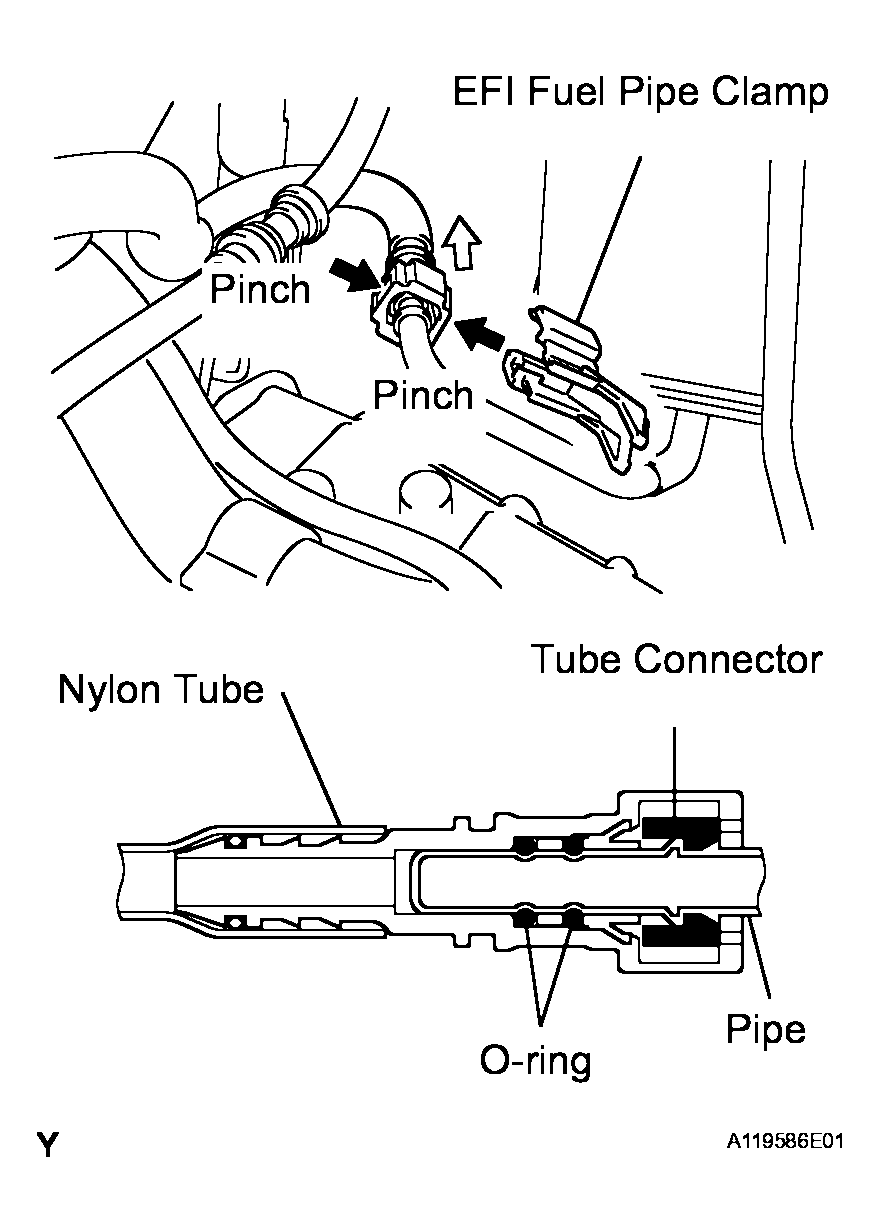

      Fig 1: Disconnecting Fuel Pipe No. 1
      G04087510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Lock the hose clamp as shown in the illustration.
    3. Disconnect the heater inlet water hose.

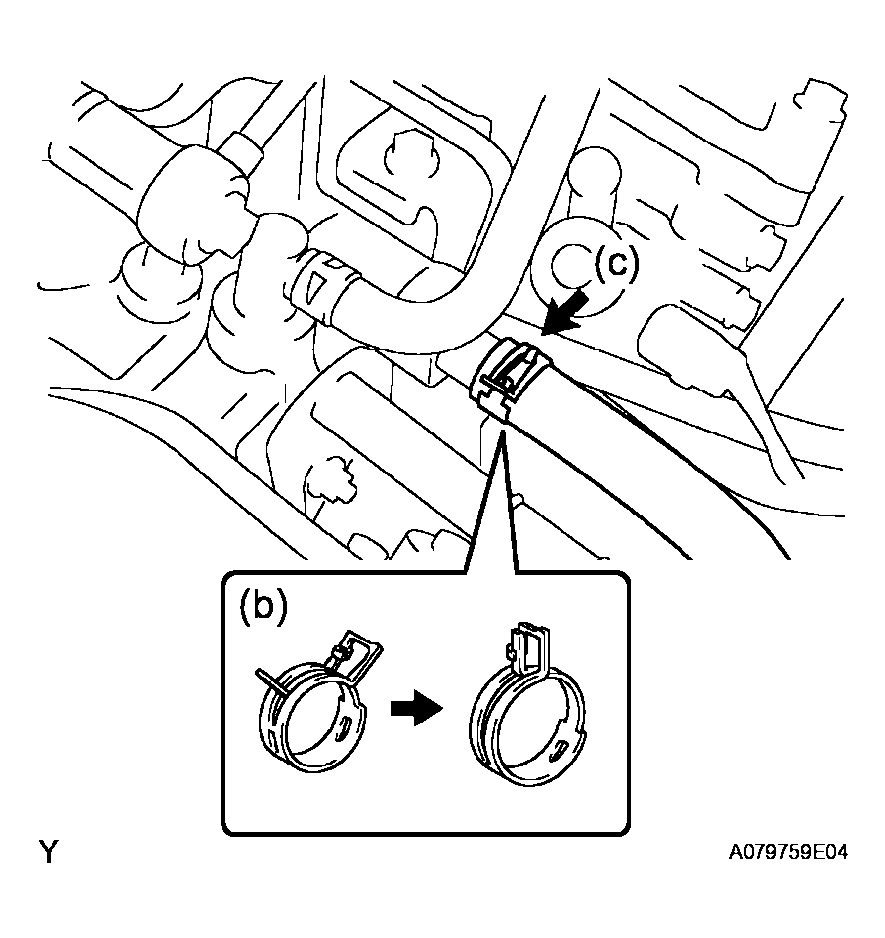

      Fig 2: Locking Hose Clamp
      G04087511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the nut and disconnect the ground cable.
    5. Disconnect the 6 fuel injector connectors.

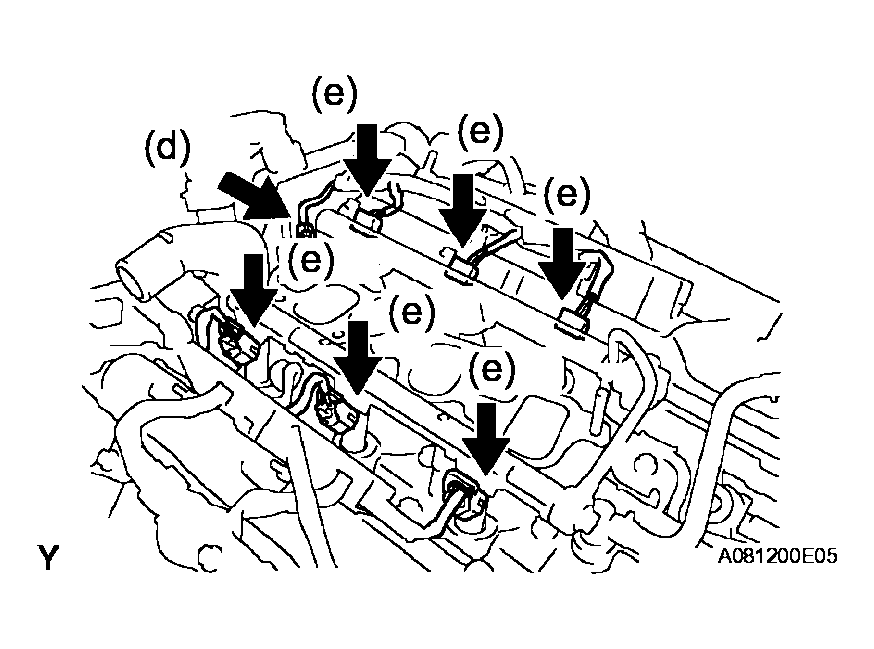

      Fig 3: Disconnecting 6 Fuel Injector Connectors
      G04087512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. In order to remove the intake manifold, using several steps, remove the 9 bolts and 2 nuts in the sequence shown in the illustration.

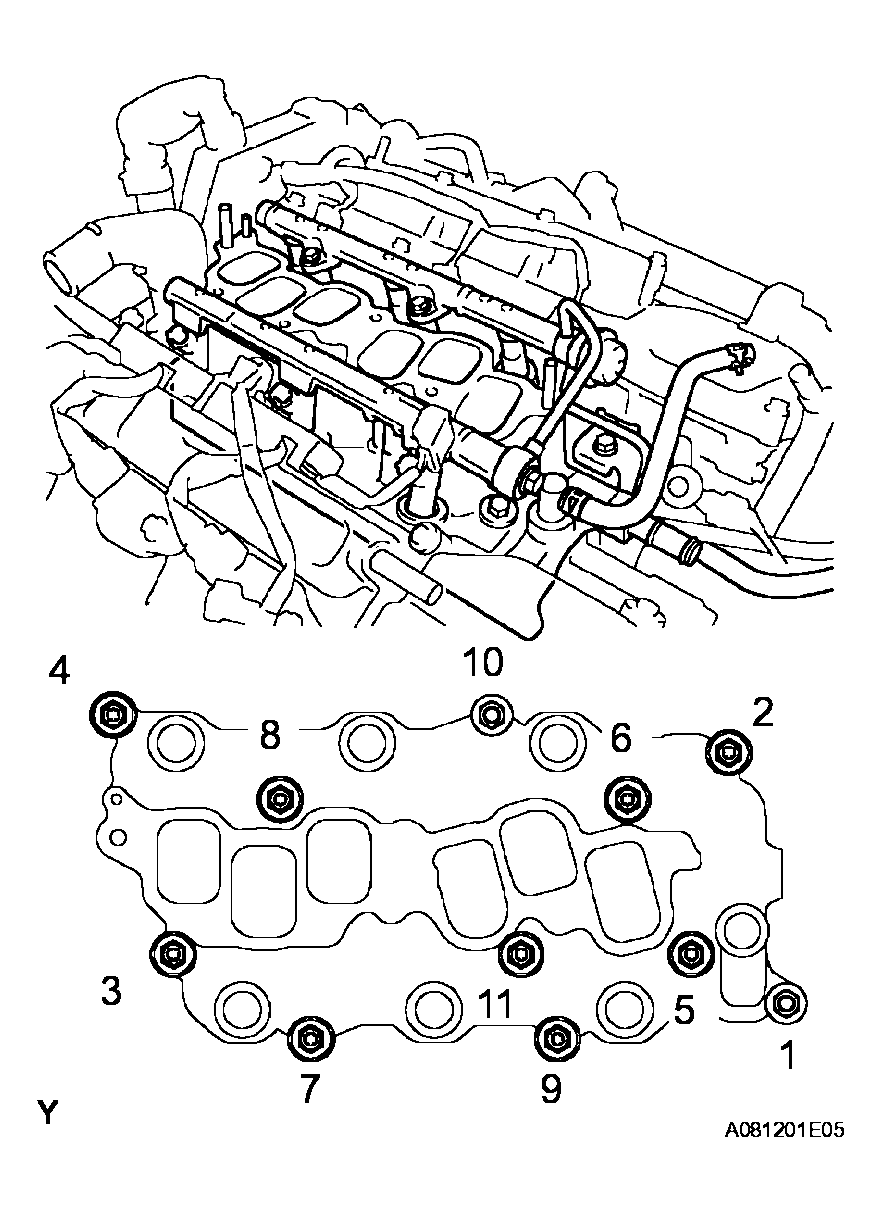

    Fig 4: Removing Intake Manifold Bolts And Nuts In Sequence
    G04087513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE ENGINE MOVING CONTROL ROD (See  REMOVAL  )
  16. REMOVE WATER OUTLET
    1. Disconnect the radiator hose inlet.

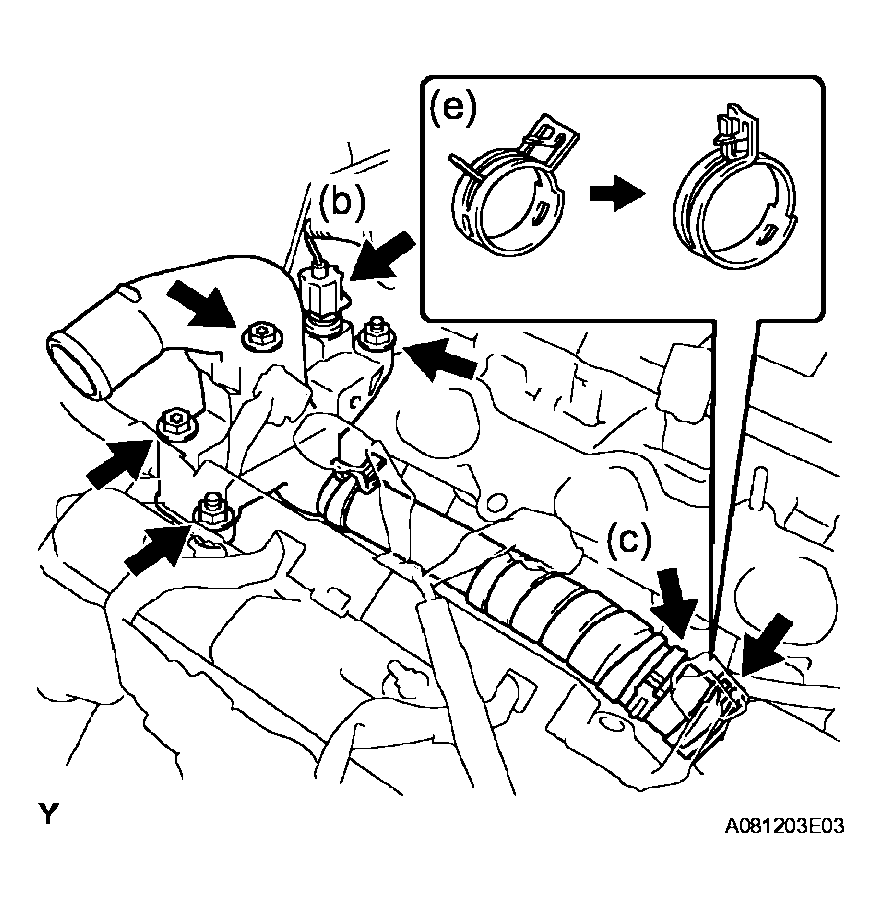

      Fig 5: Disconnecting Radiator Hose Inlet
      G04087514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the engine coolant temperature sensor connector.
    3. Remove the clamp.
    4. Remove the 2 bolts, 2 nuts and 2 washers.
    5. Lock the hose clamp as shown in the illustration and remove the water outlet together with water by-pass hose No. 1.
    6. Remove the 2 gaskets from the 2 cylinder heads.

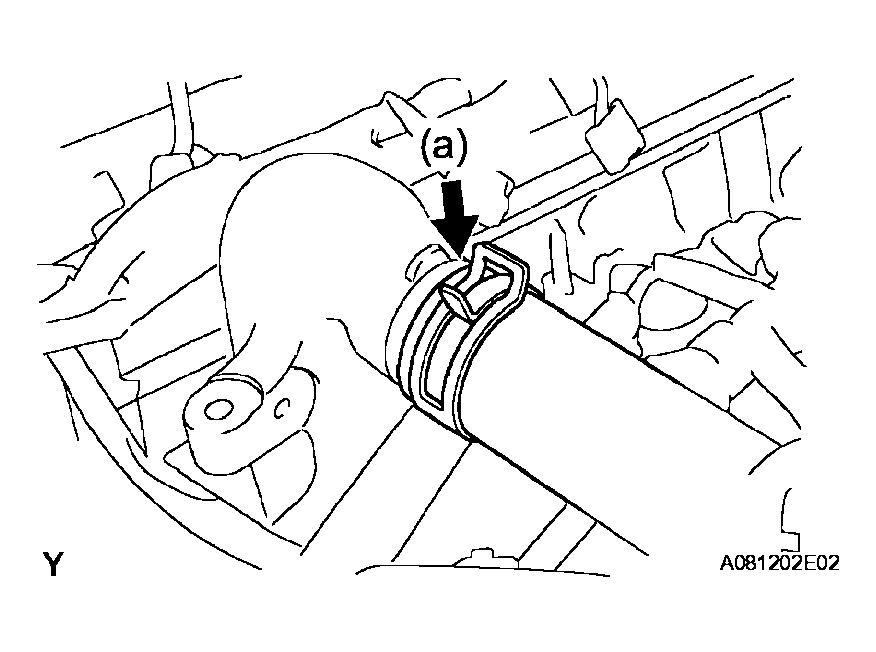

    Fig 6: Locking Hose Clamp
    G04087515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE KNOCK SENSOR
    1. Disconnect the 2 knock sensor connectors.
    2. Remove the 2 nuts, and then remove the 2 knock sensors.

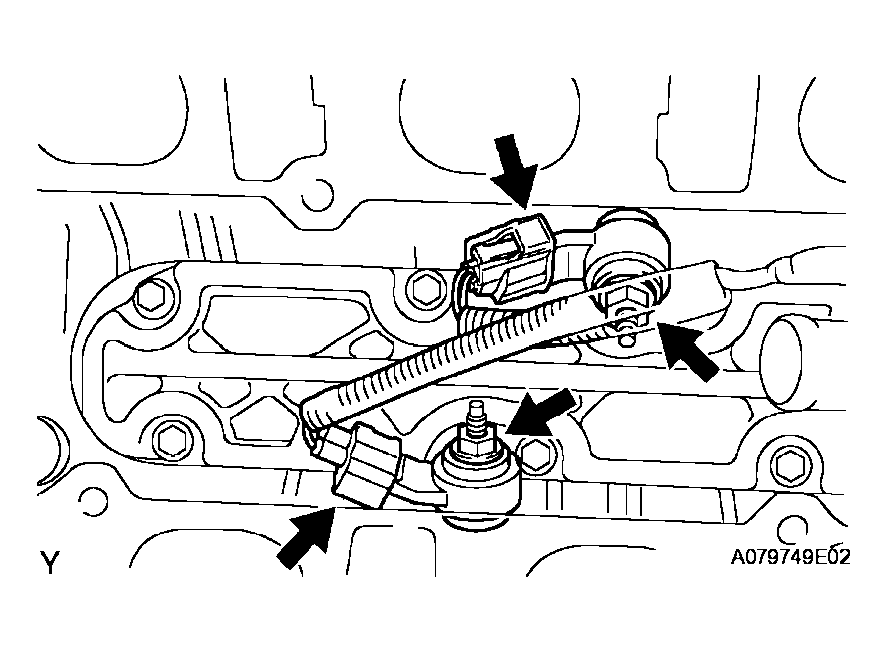

    Fig 7: Disconnecting Knock Sensor Connectors
    G04087516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
