Camshaft Timing Oil Control Valve Assembly: Removal

REMOVE ENGINE ROOM SIDE LH COVER (See REMOVAL )
REMOVE ENGINE ROOM COVER SIDE (See REMOVAL )
REMOVE COOL AIR INTAKE DUCT SEAL (See REMOVAL )
REMOVE AIR CLEANER CAP W/ INLET (See REMOVAL )
REMOVE AIR CLEANER CASE W/ RESONATOR (See REMOVAL )
REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 1)
1. Disconnect the oil control valve connector.
2. Remove the bolt and oil control valve.

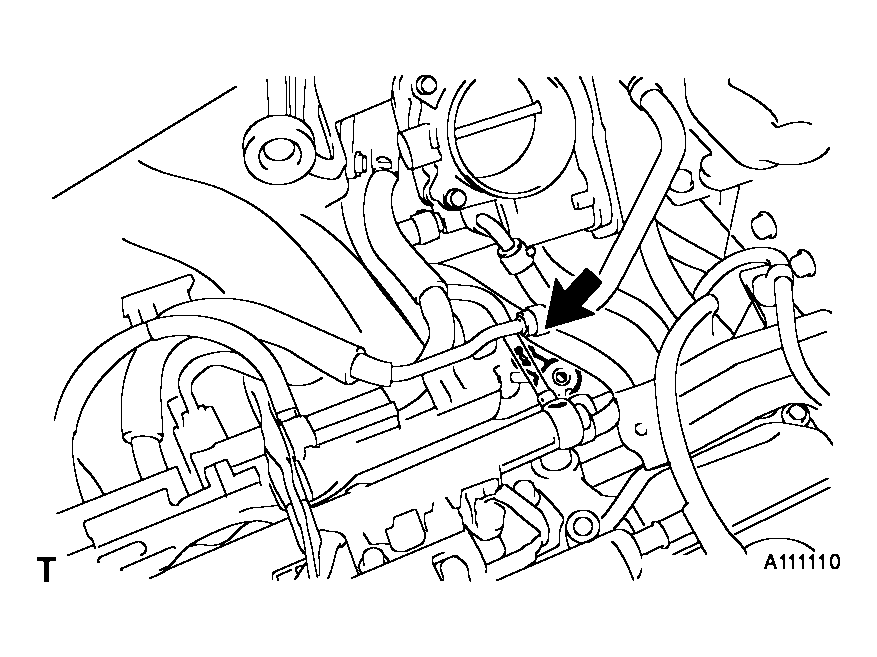

  Fig 1: Identifying Bolt And Oil Control Valve (for Bank 1)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 2)
1. Disconnect the oil control valve connector.
2. Remove the bolt and oil control valve.

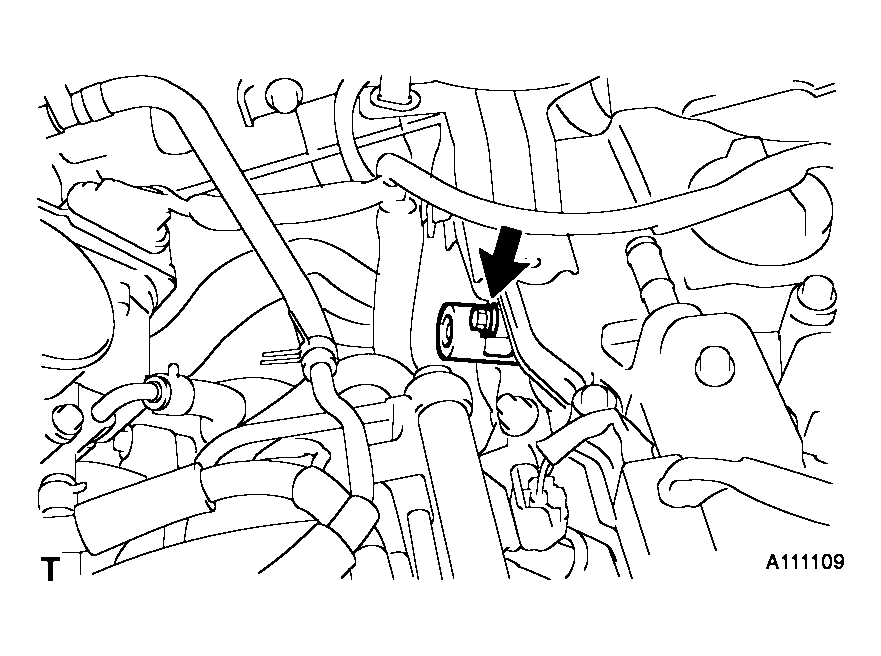

  Fig 2: Identifying Bolt And Oil Control Valve (For Bank 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
