Knock Sensor: Inspection

  1. KNOCK CONTROL SENSOR
    1. Using an ohmmeter, measure the resistance between the terminals.

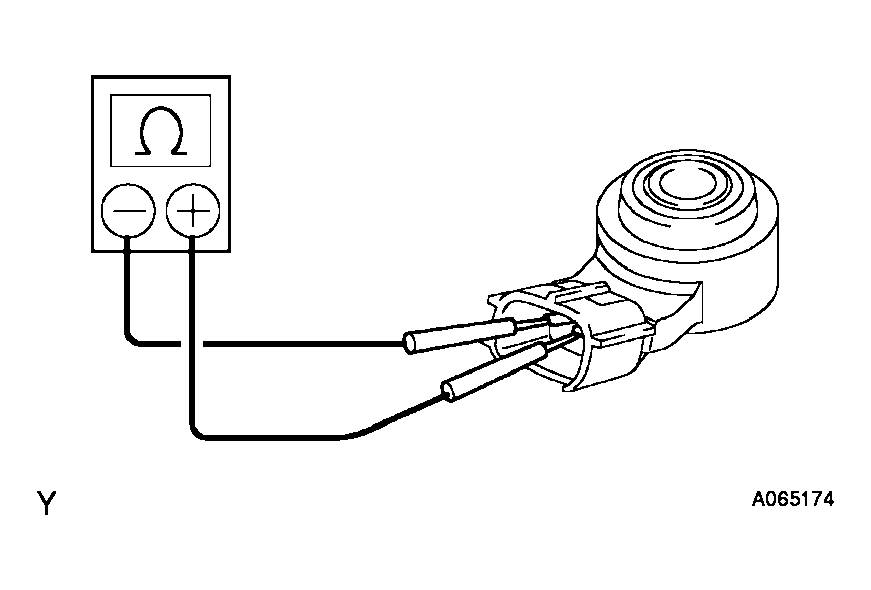

      Fig 1: Measuring Resistance Between Terminals Using Ohmmeter
      G04110906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Resistance:

      120 to 280 kΩ at 20°C (68°F)

      If the resistance is not specified, replace the sensor.
