Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER

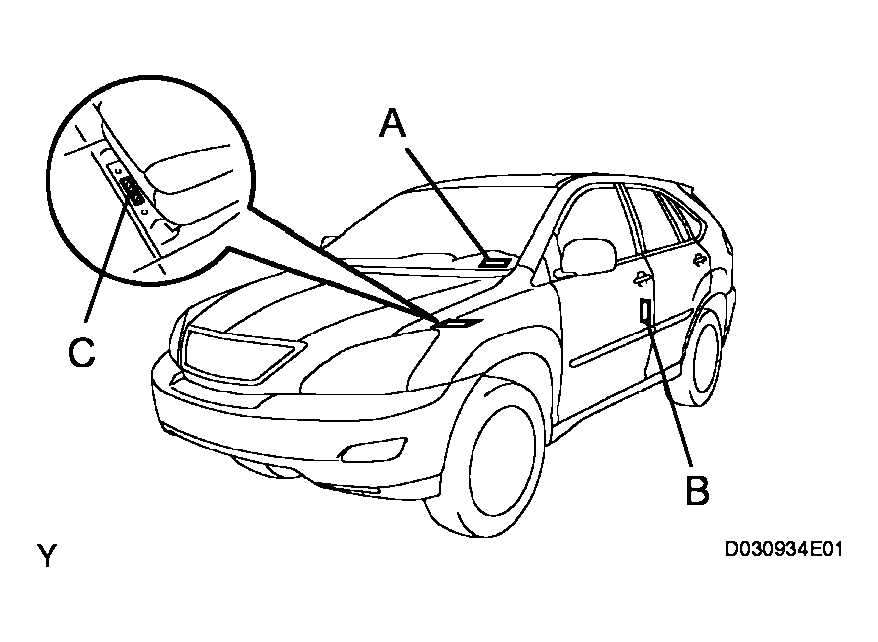

1. The vehicle identification number is stamped on the vehicle body and on the certification label, as shown in the illustration.
  A:

  Vehicle Identification Number

  B:

  Certification Label

  C:

  Frame Number

  Fig 1: Identifying Vehicle Identification Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER

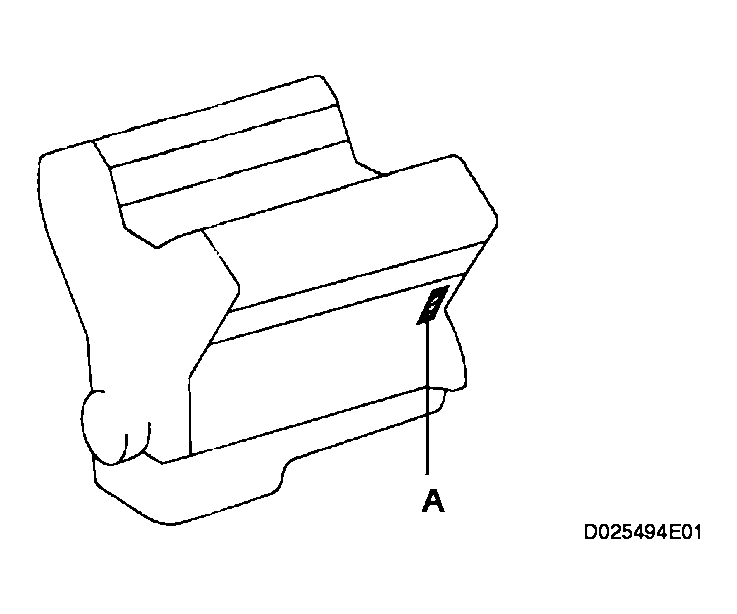

1. The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.
  A:

  Engine Serial Number

  Fig 2: Identifying Engine Serial Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

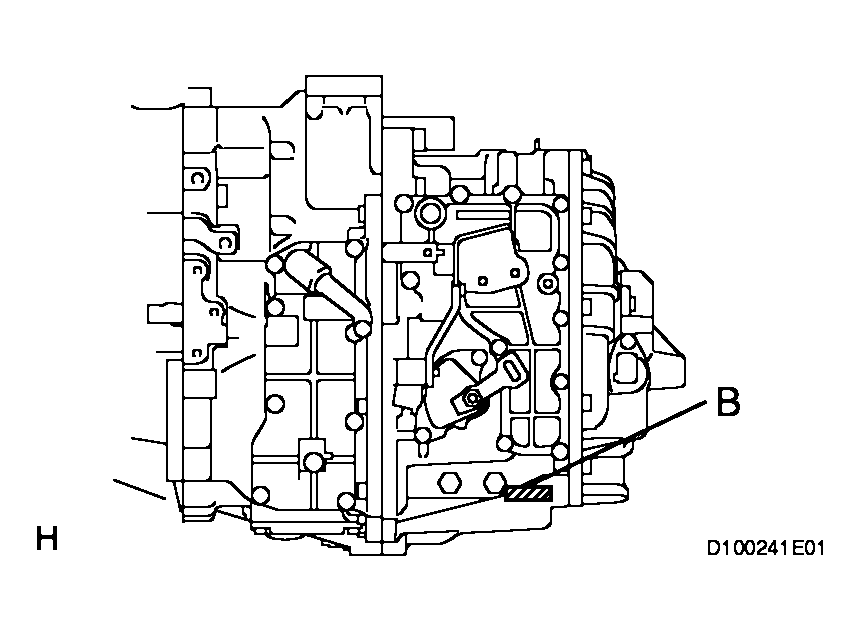

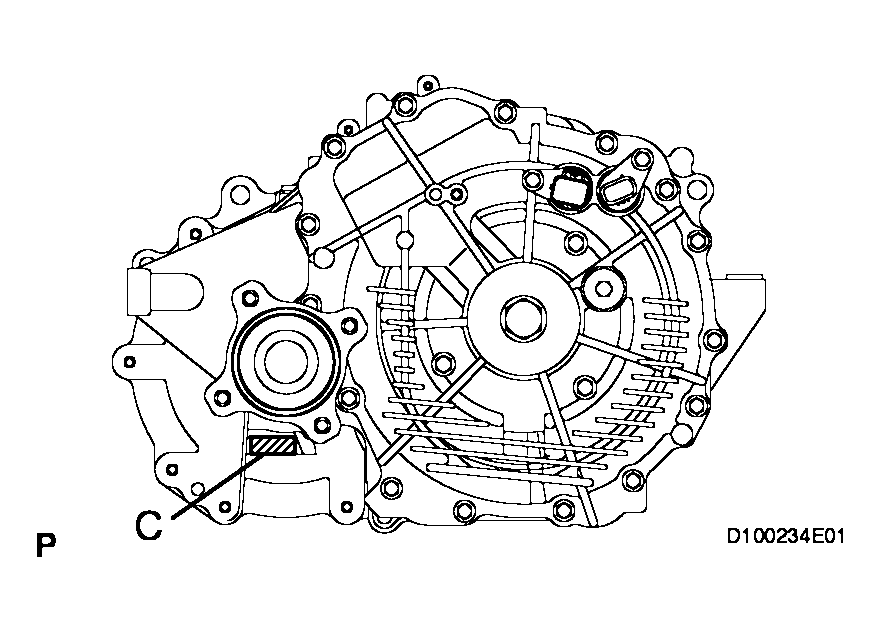

2. The transaxle serial number is stamped on the housing as shown in the illustration.
  B:

  P310 Transaxle Serial Number

  C:

  Q211 Transaxle Serial Number

  Fig 3: Identifying P310 Transaxle Serial Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 4: Identifying Q211 Transaxle Serial Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
