Automatic Air Conditioning: Notes

Fig 1: Automatic Air Conditioning - Wiring Diagram (1 Of 5)
G08930576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

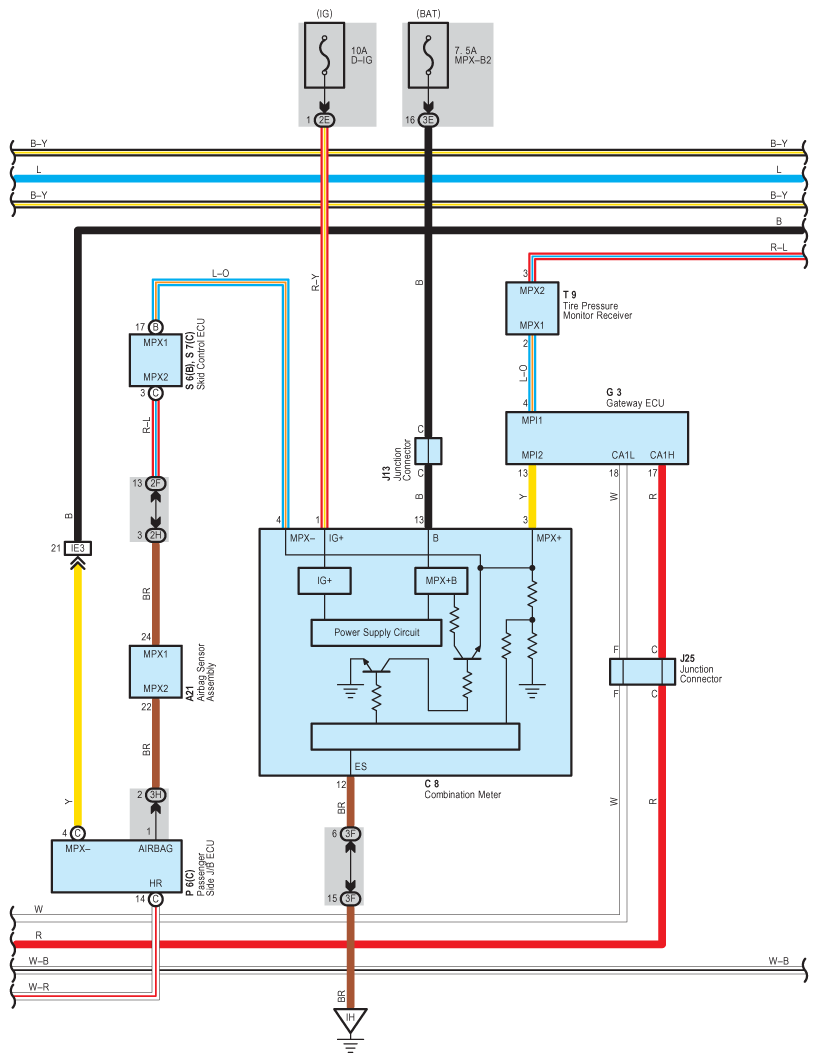

Fig 2: Automatic Air Conditioning - Wiring Diagram (2 Of 5)
G08930577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

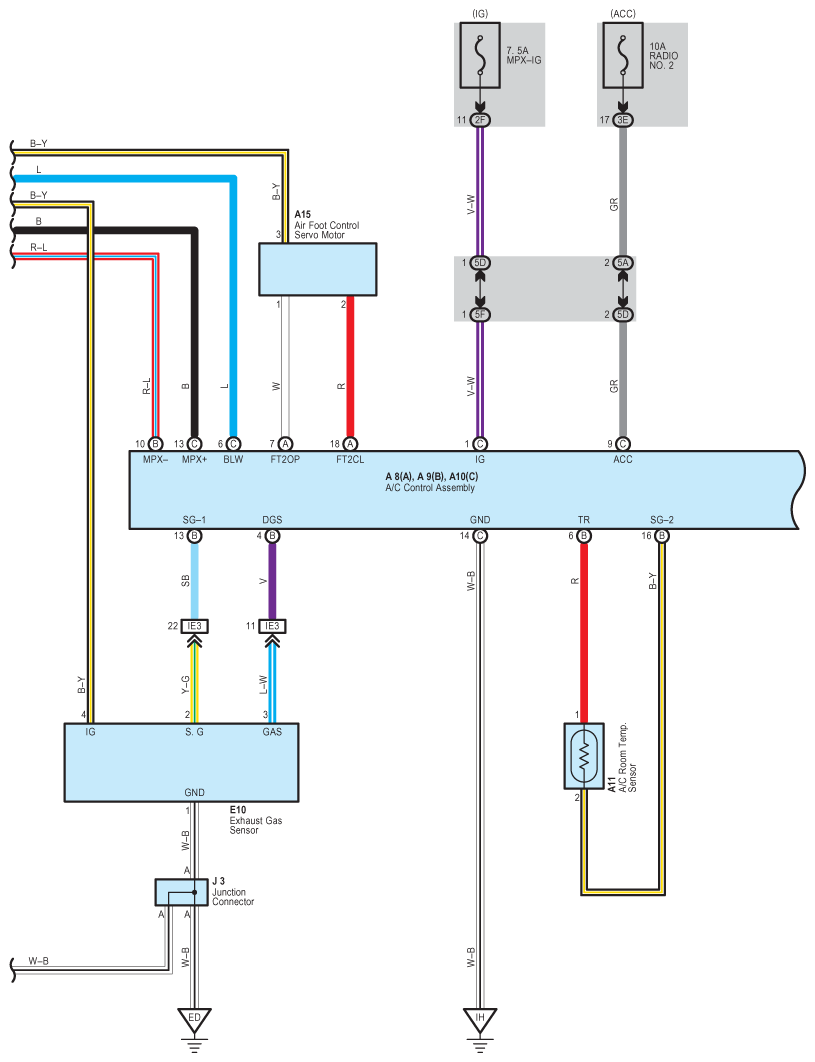

Fig 3: Automatic Air Conditioning - Wiring Diagram (3 Of 5)
G08930578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

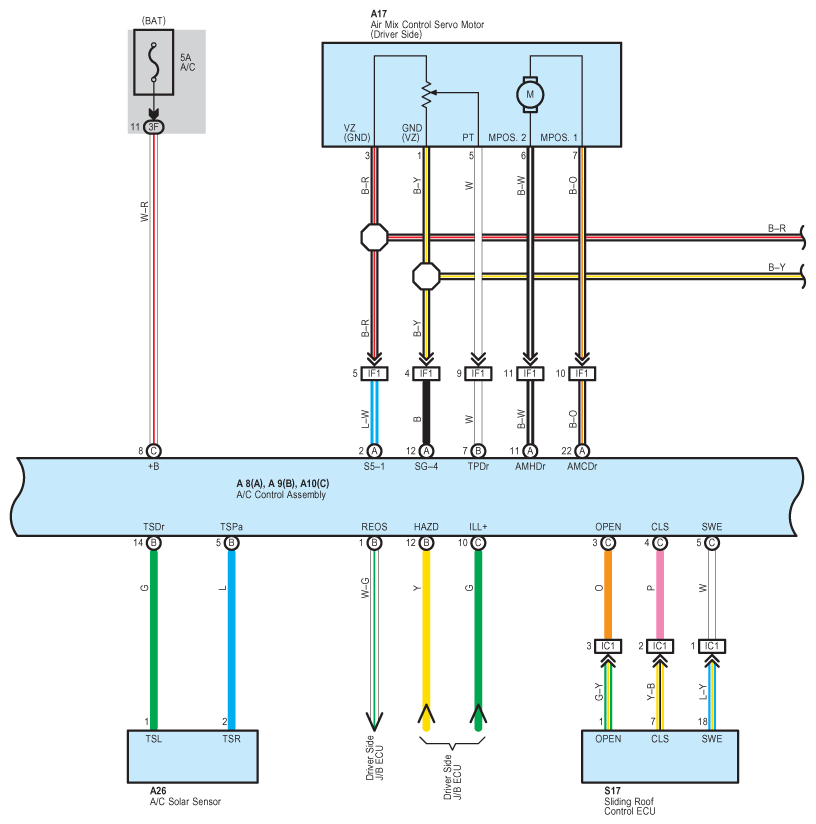

Fig 4: Automatic Air Conditioning - Wiring Diagram (4 Of 5)
G08930579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

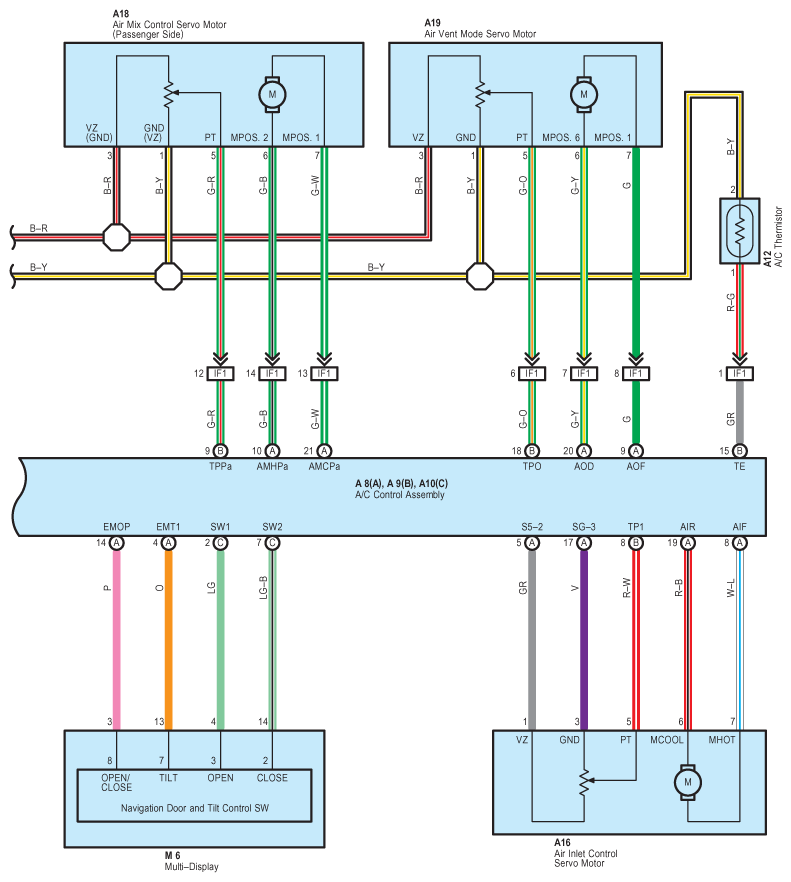

Fig 5: Automatic Air Conditioning - Wiring Diagram (5 Of 5)
G08930580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
