Engine Immobiliser System: Notes

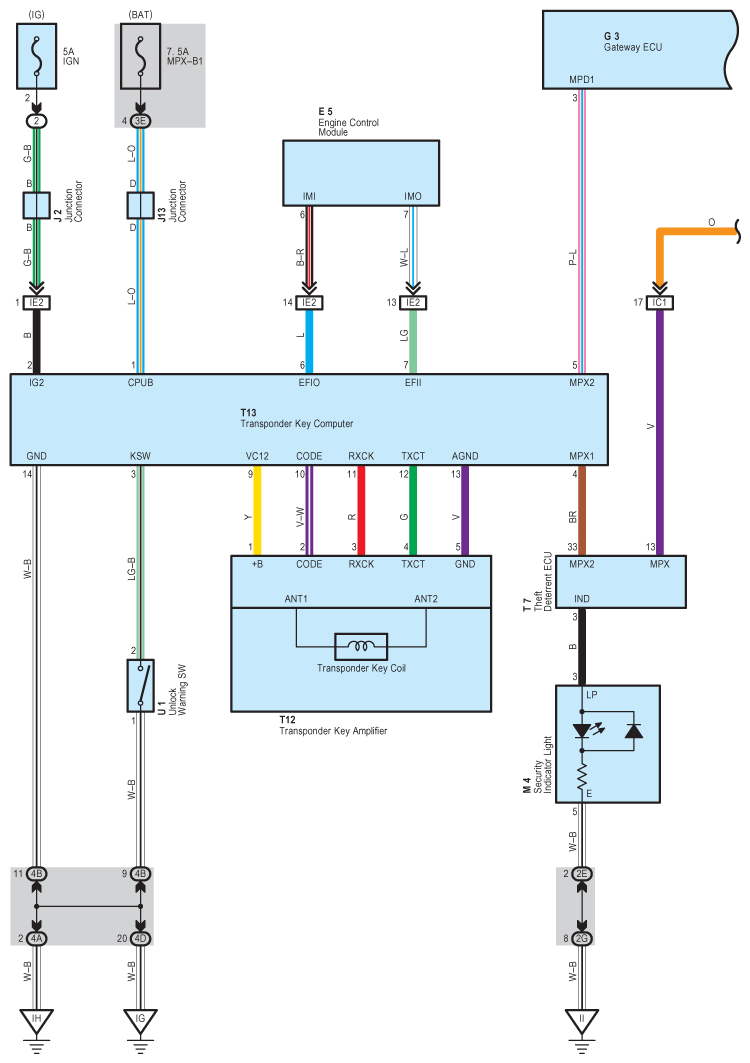

Fig 1: Engine Immobiliser System - Wiring Diagram (1 Of 2)
G08930422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

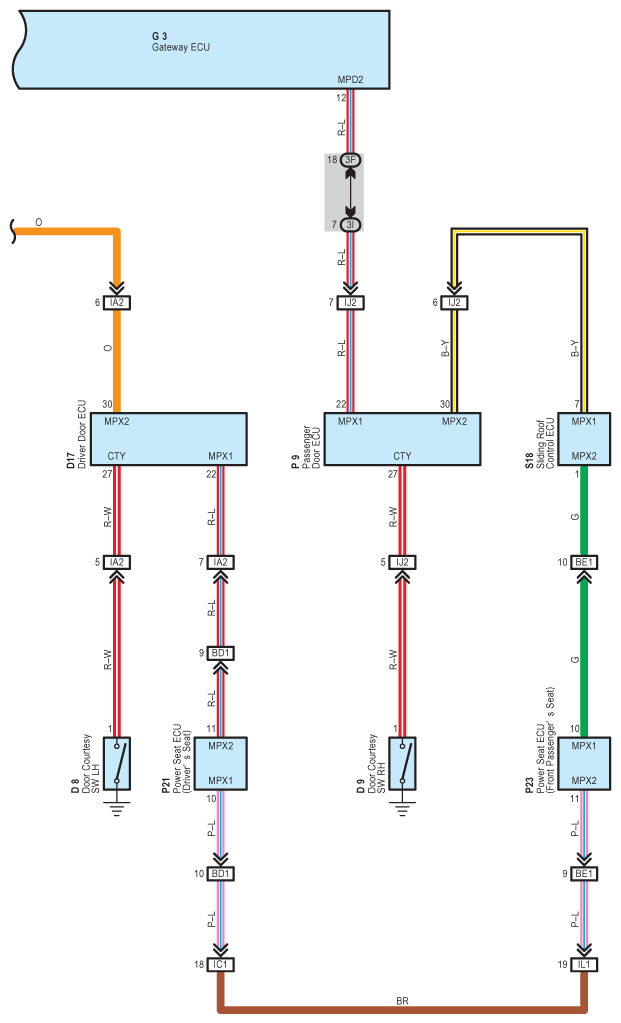

Fig 2: Engine Immobiliser System - Wiring Diagram (2 Of 2)
G08930423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
