Interior Light: Notes

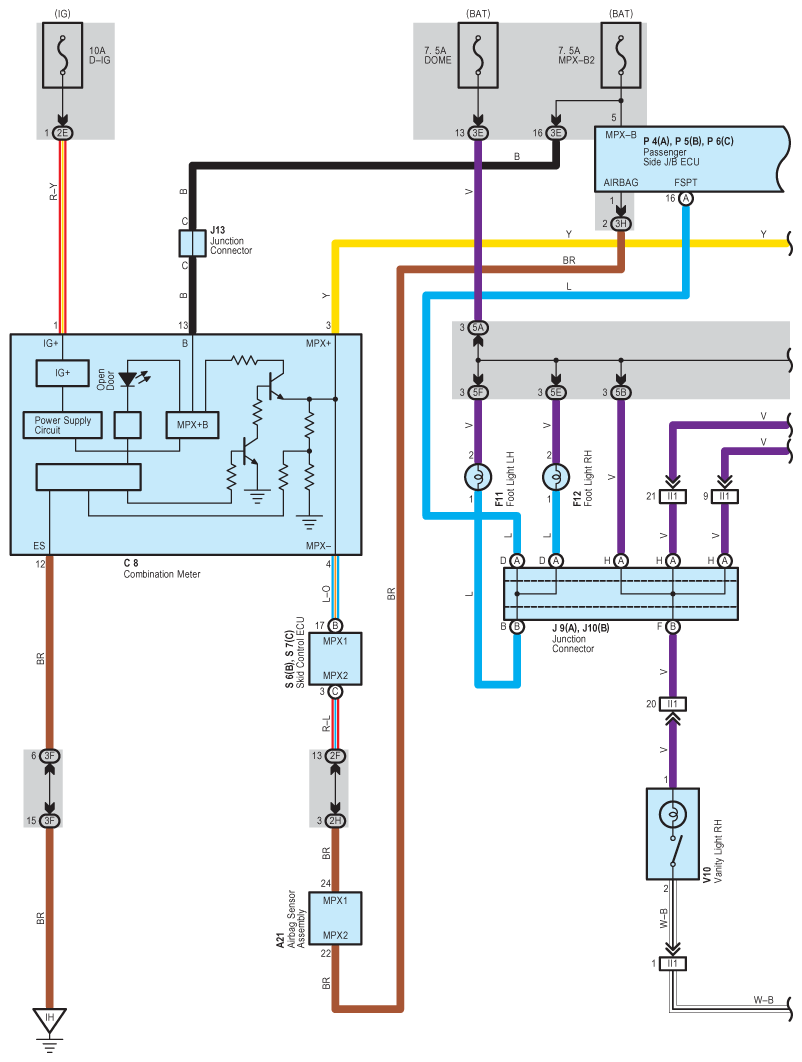

Fig 1: Interior Light - Wiring Diagram (1 Of 5)
G08930472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

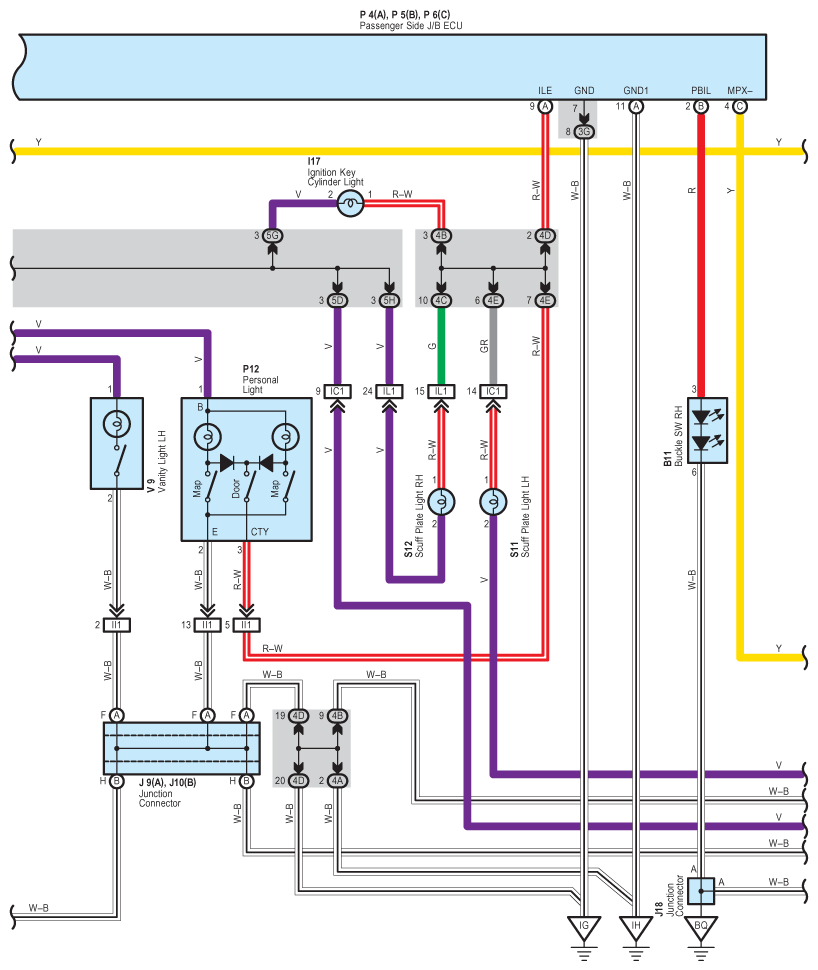

Fig 2: Interior Light - Wiring Diagram (2 Of 5)
G08930473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

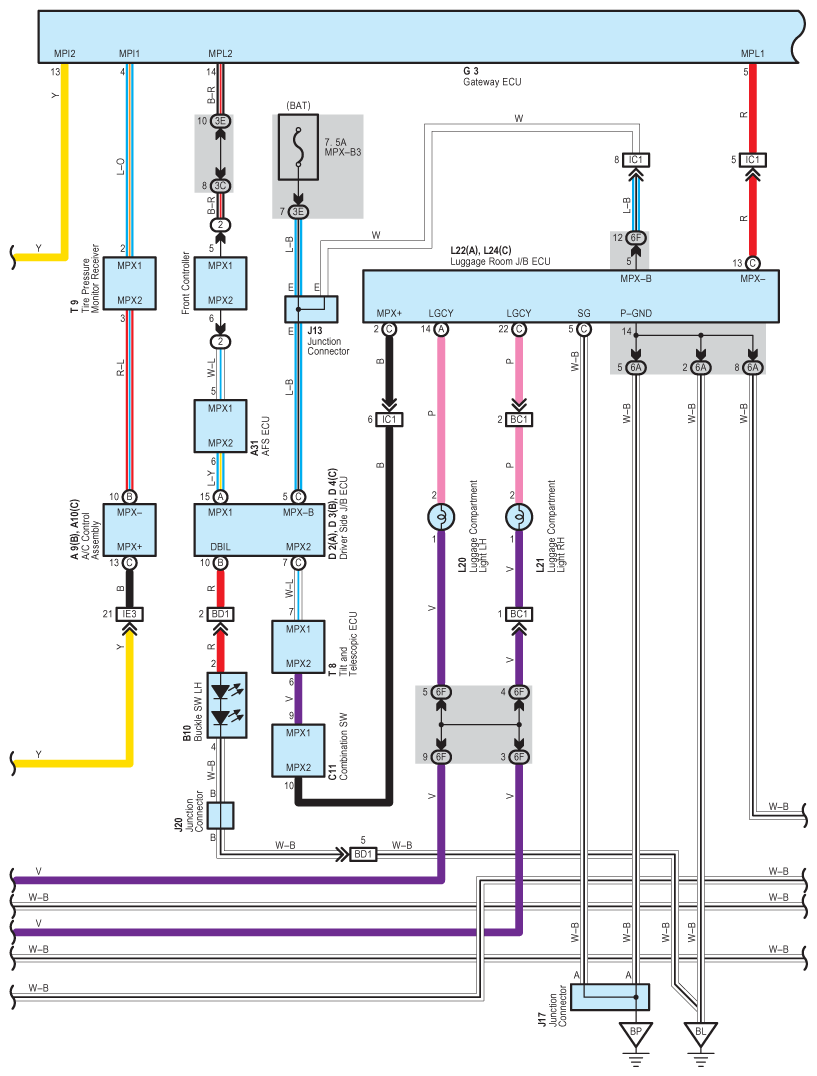

Fig 3: Interior Light - Wiring Diagram (3 Of 5)
G08930474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

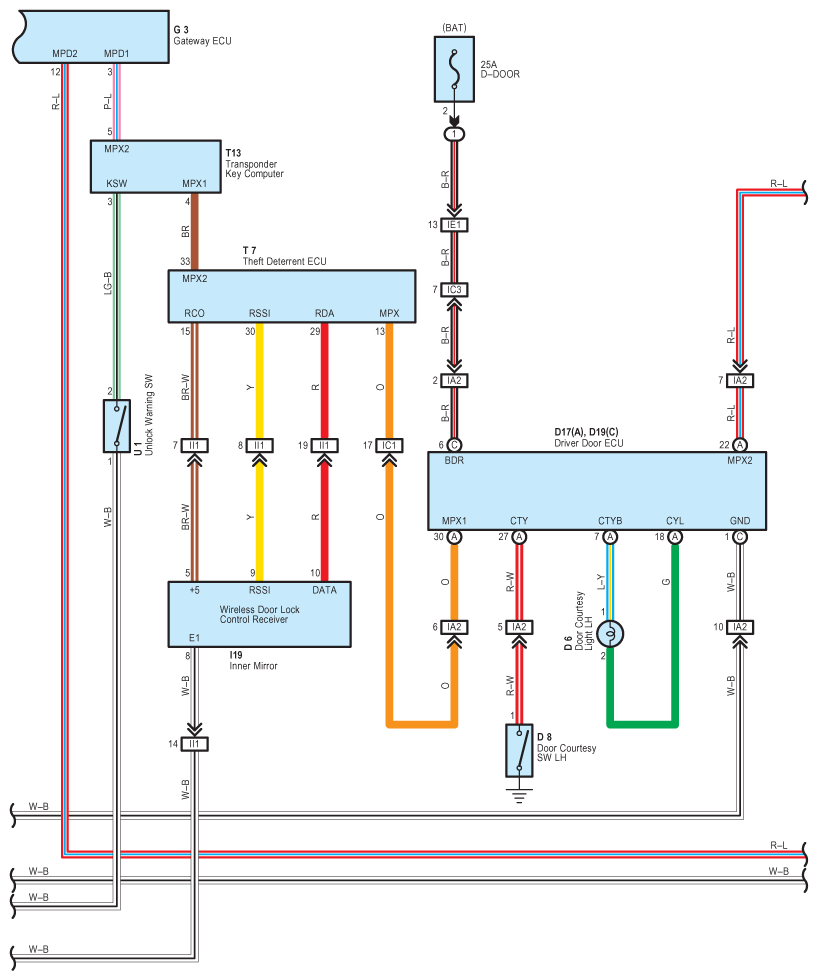

Fig 4: Interior Light - Wiring Diagram (4 Of 5)
G08930475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

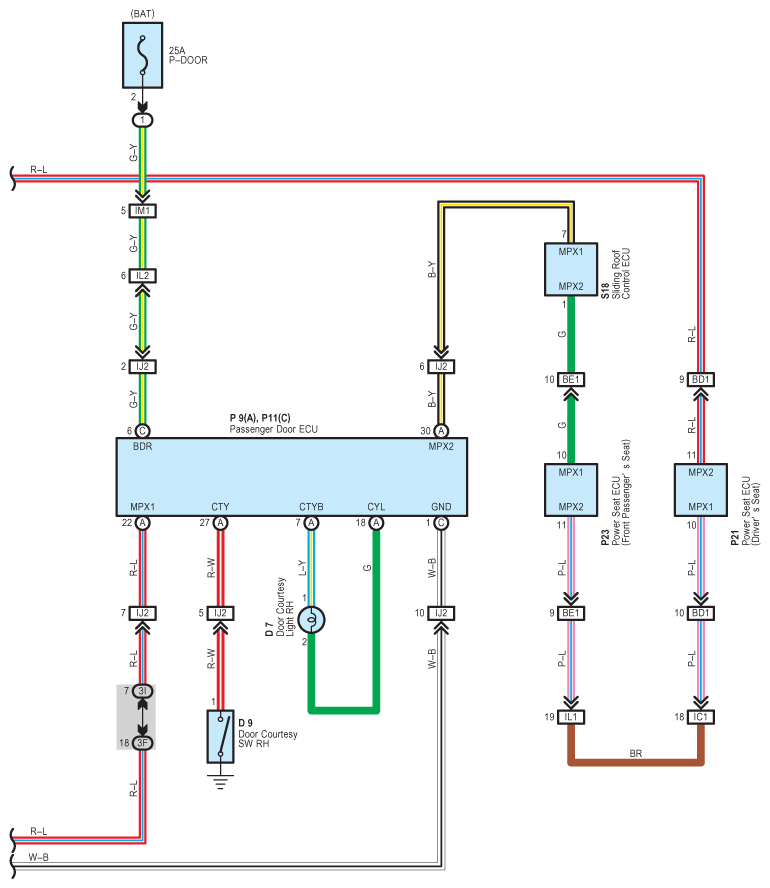

Fig 5: Interior Light - Wiring Diagram (5 Of 5)
G08930476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
