LEXUS Navigation System: Notes

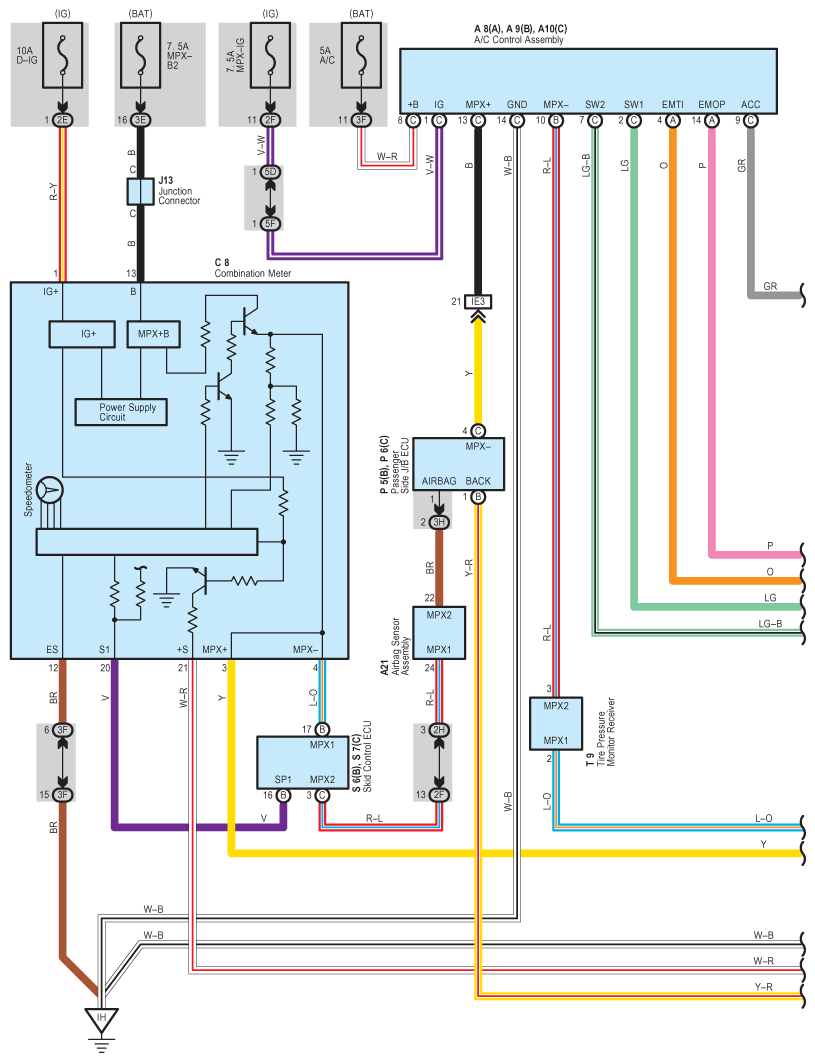

Fig 1: Lexus Navigation System - Wiring Diagram (1 Of 5)
G08930560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

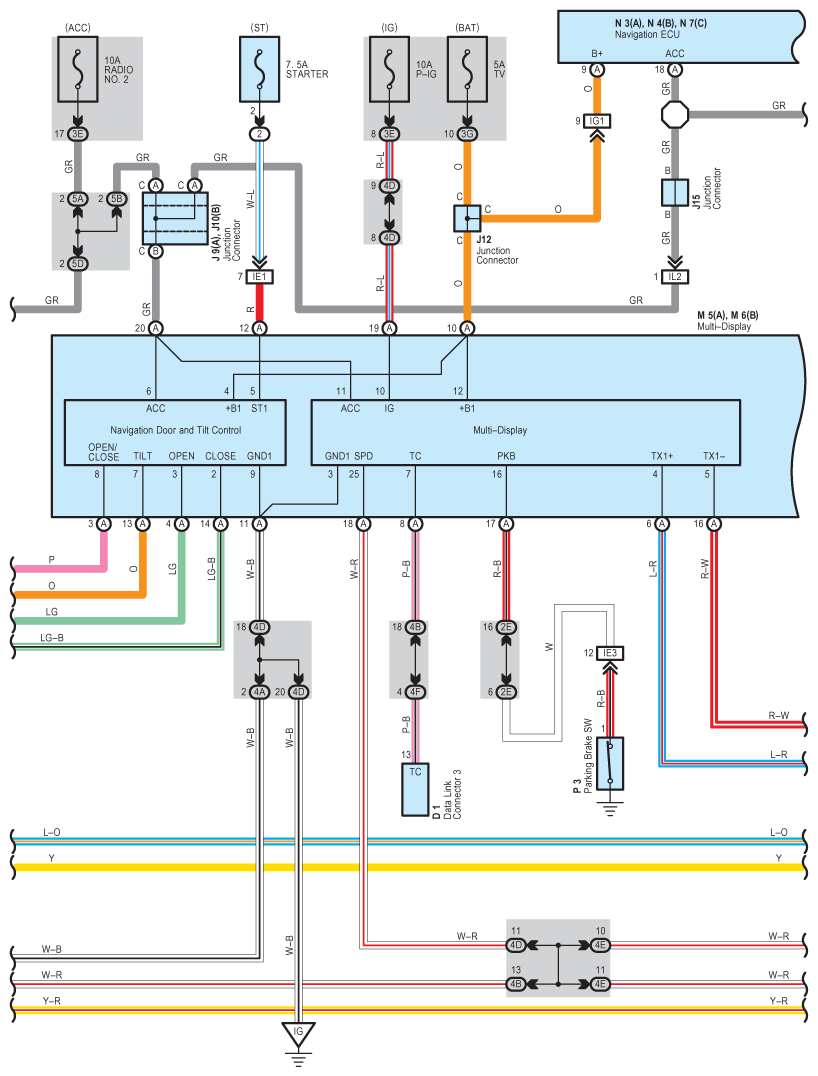

Fig 2: Lexus Navigation System - Wiring Diagram (2 Of 5)
G08930561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

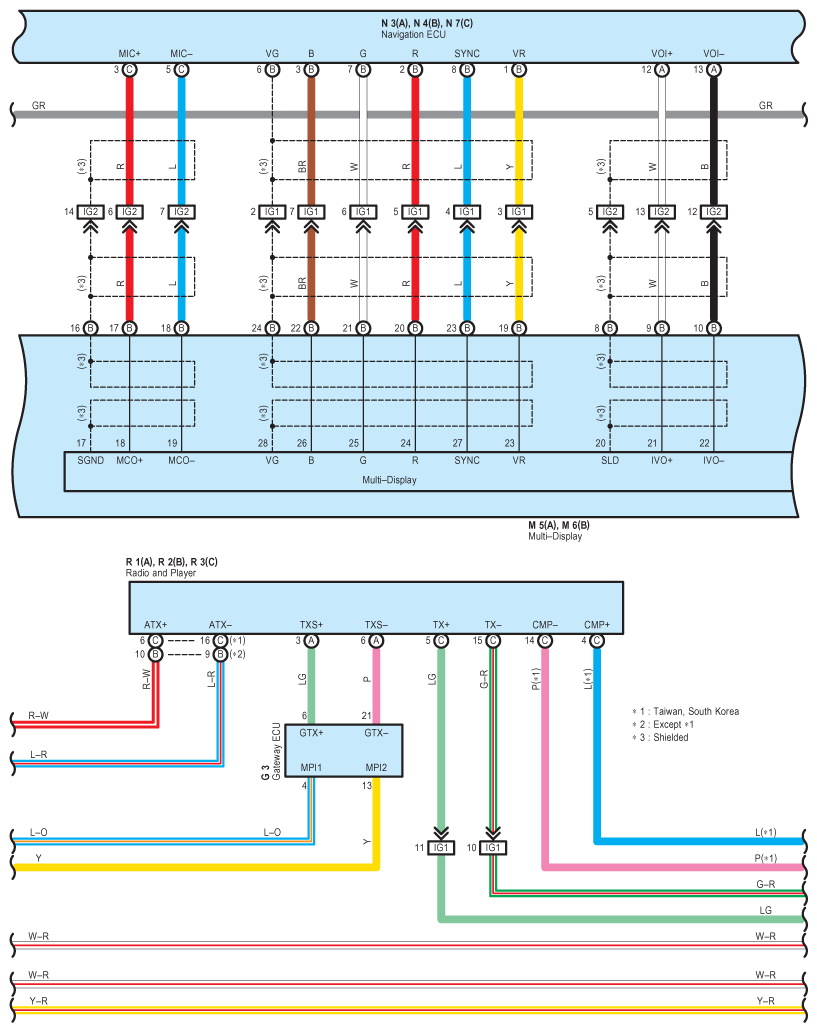

Fig 3: Lexus Navigation System - Wiring Diagram (3 Of 5)
G08930562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

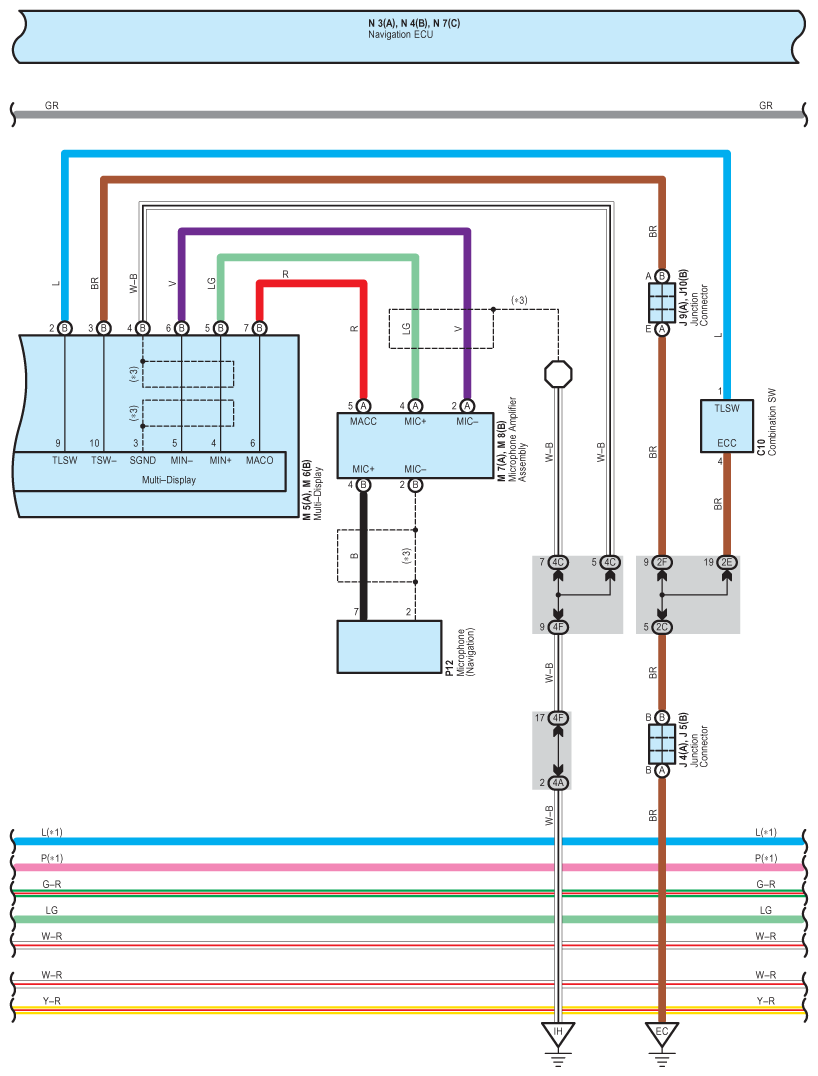

Fig 4: Lexus Navigation System - Wiring Diagram (4 Of 5)
G08930563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

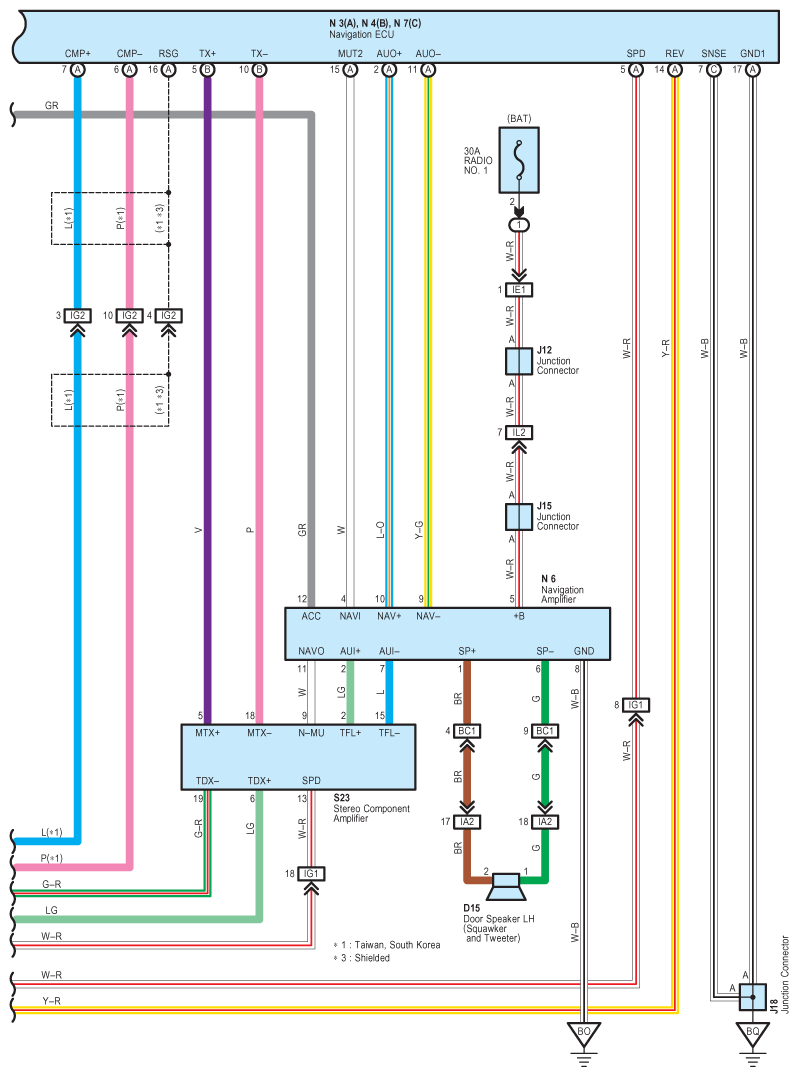

Fig 5: Lexus Navigation System - Wiring Diagram (5 Of 5)
G08930564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
