Multiplx Communication System - Junction Block ECU: Notes

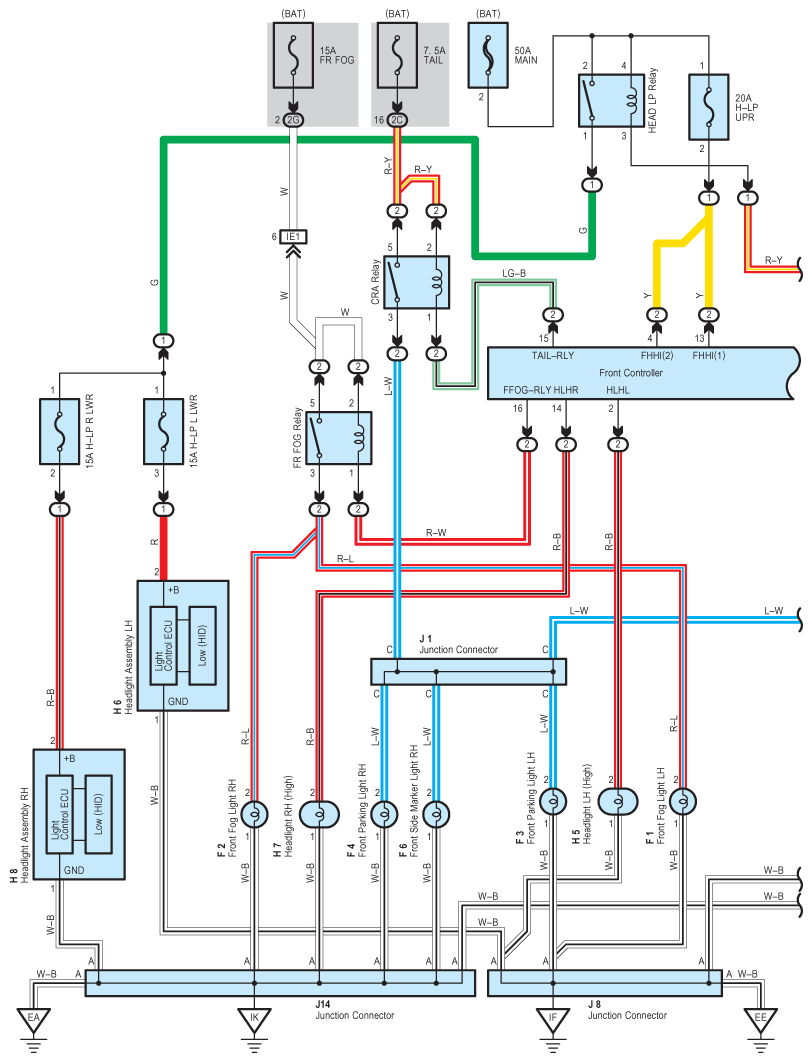

Fig 1: Multiplx Communication System - J/B ECU - Wiring Diagram (1 Of 20)

G08930428

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

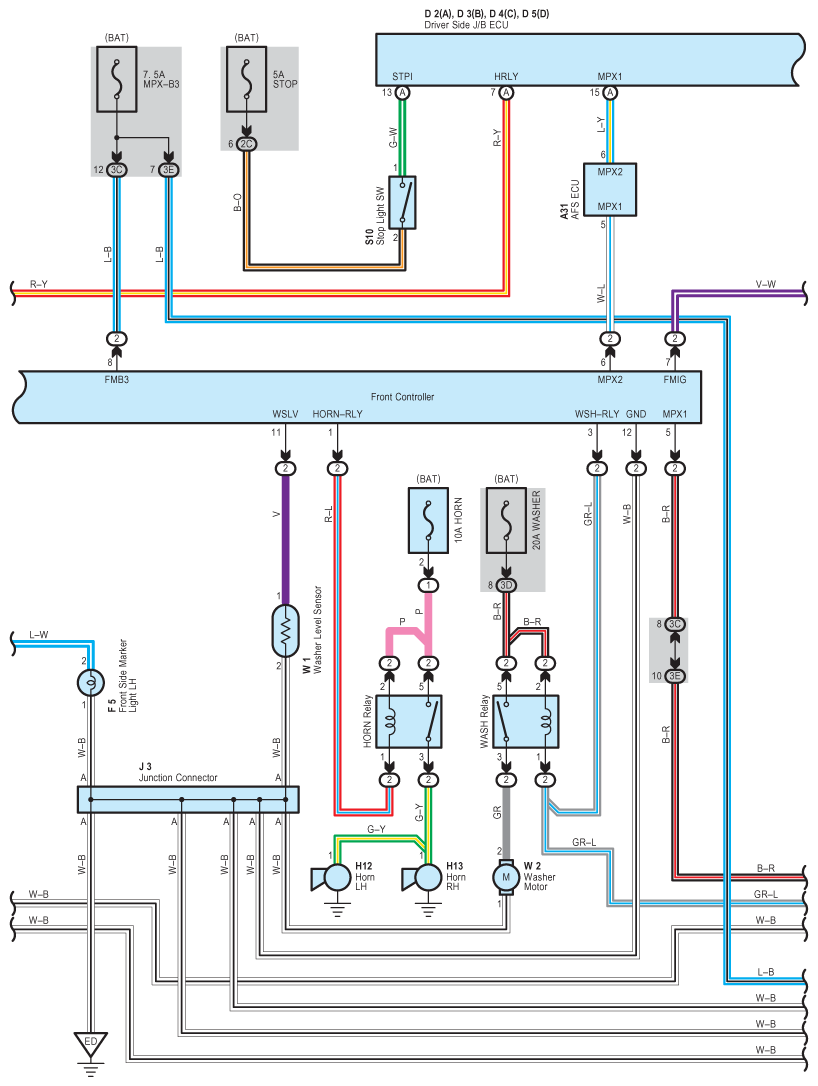

Fig 2: Multiplx Communication System - J/B ECU - Wiring Diagram (2 Of 20)

G08930429

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

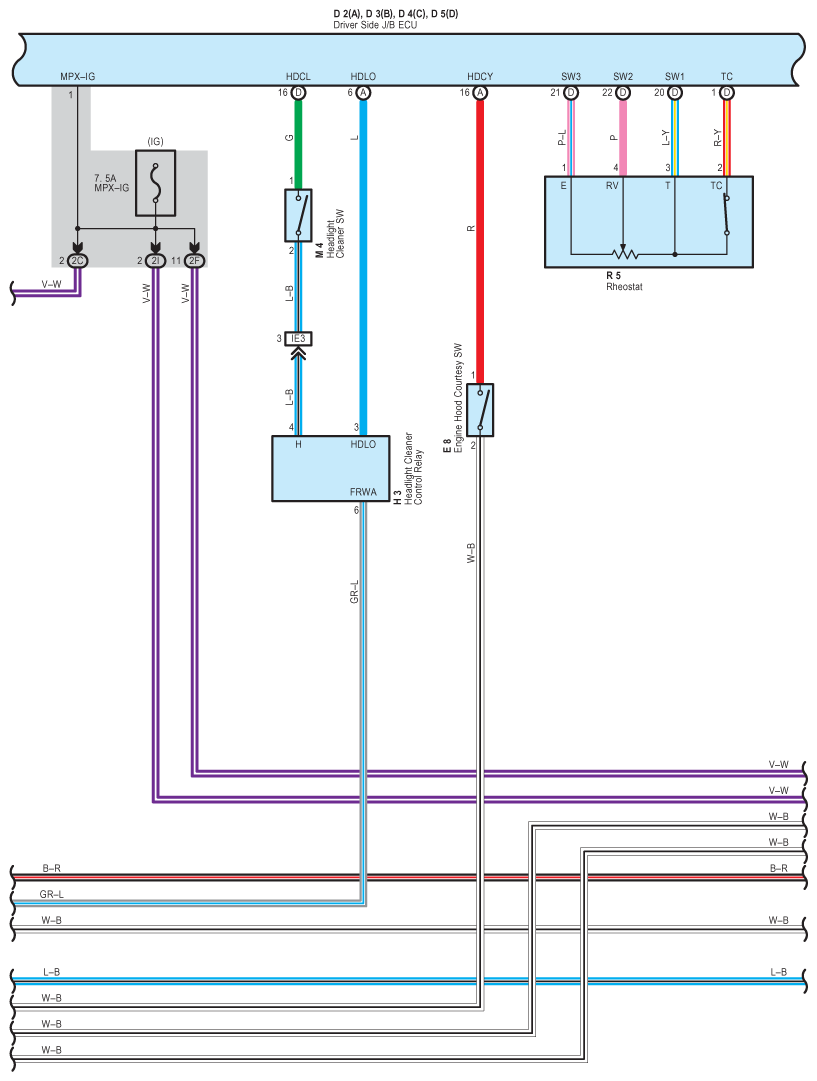

Fig 3: Multiplx Communication System - J/B ECU - Wiring Diagram (3 Of 20)

G08930430

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

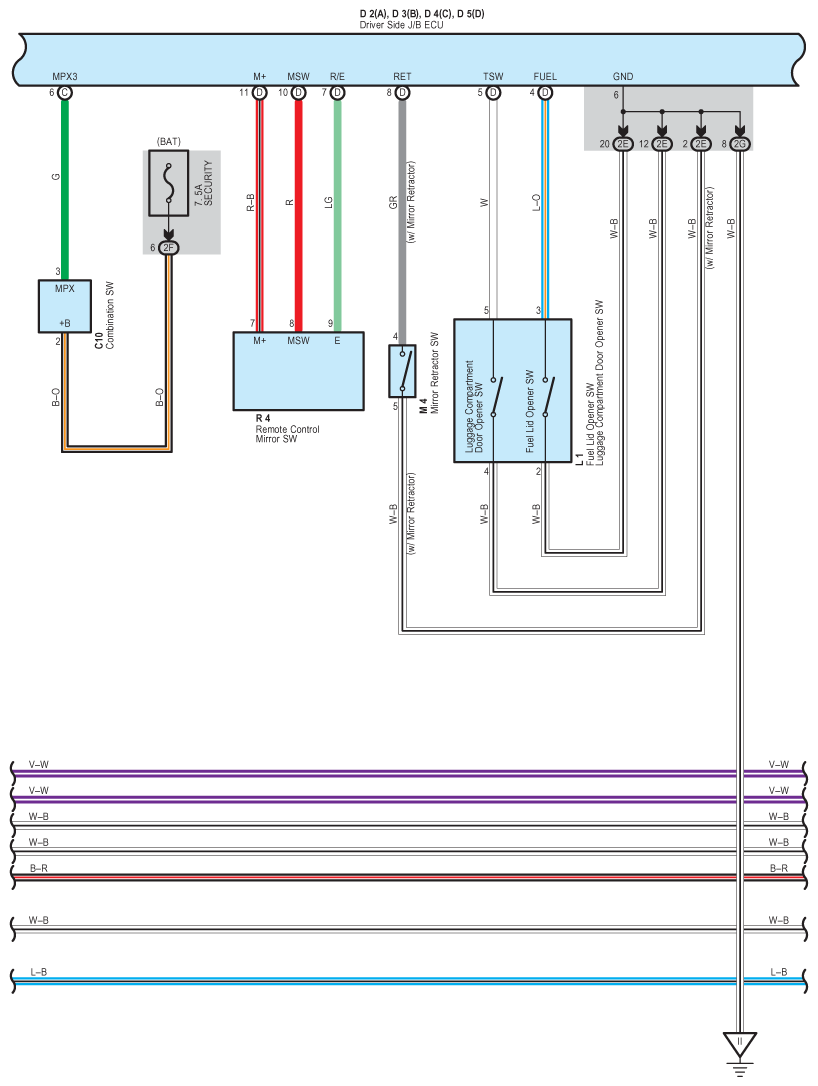

Fig 4: Multiplx Communication System - J/B ECU - Wiring Diagram (4 Of 20)

G08930431

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

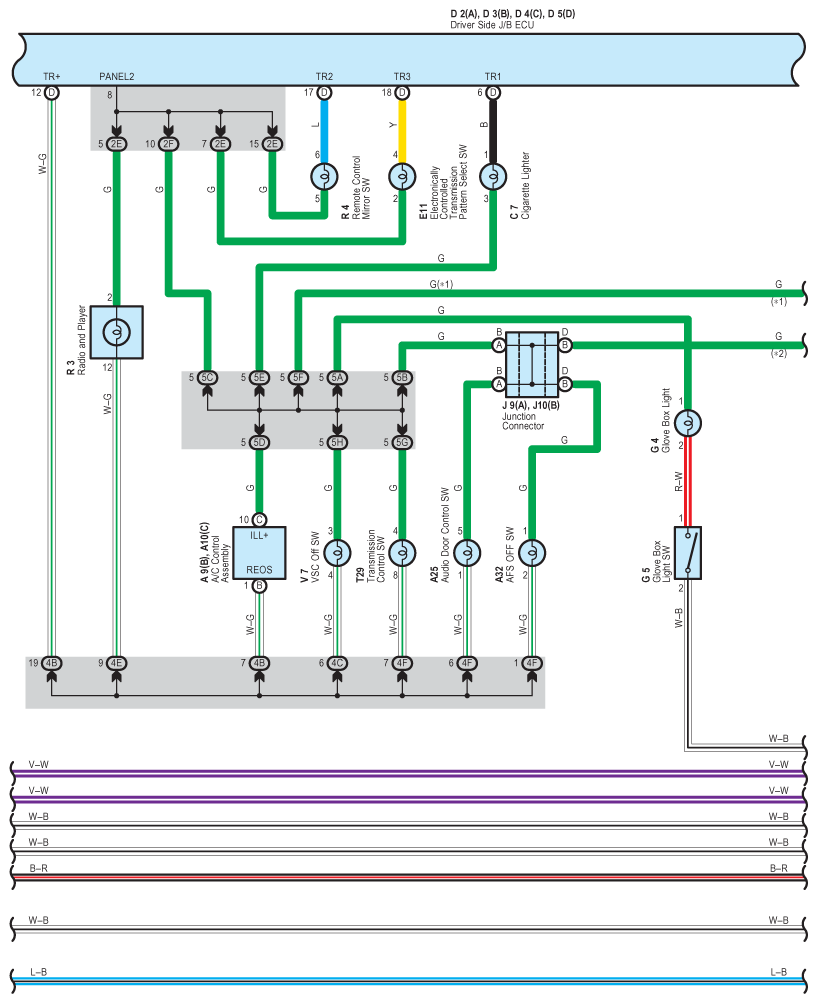

Fig 5: Multiplx Communication System - J/B ECU - Wiring Diagram (5 Of 20)

G08930432

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

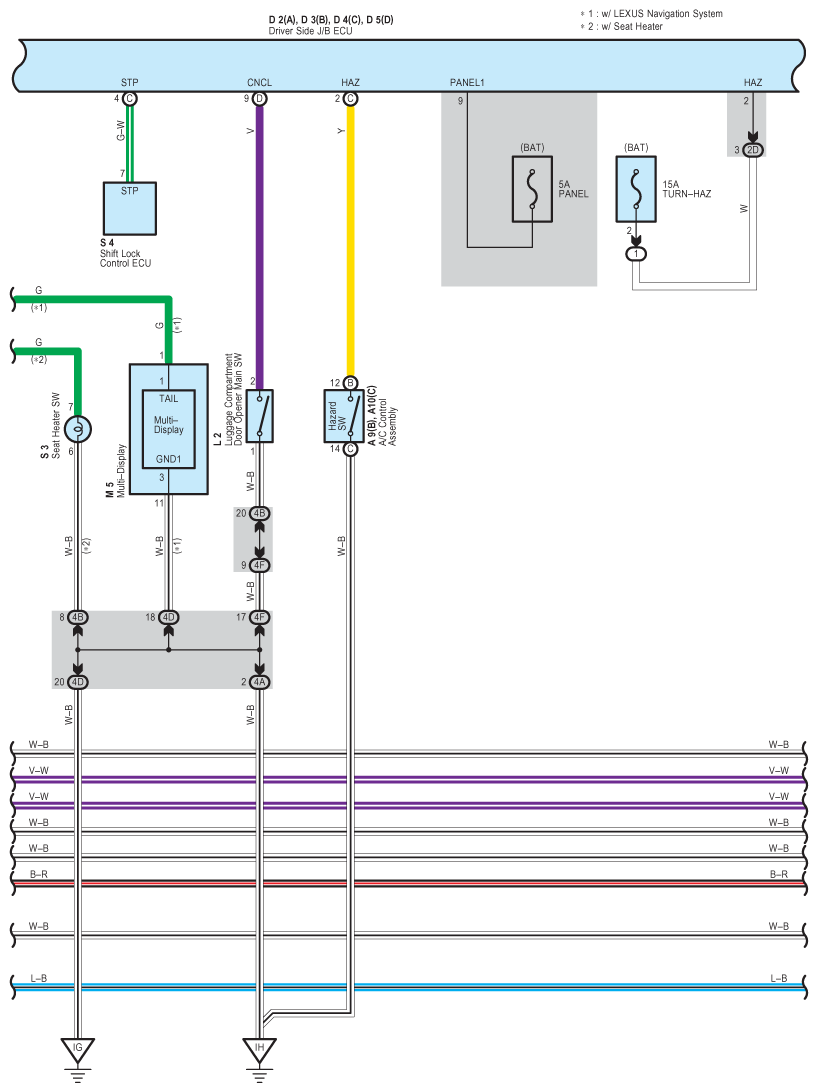

Fig 6: Multiplx Communication System - J/B ECU - Wiring Diagram (6 Of 20)

G08930433

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

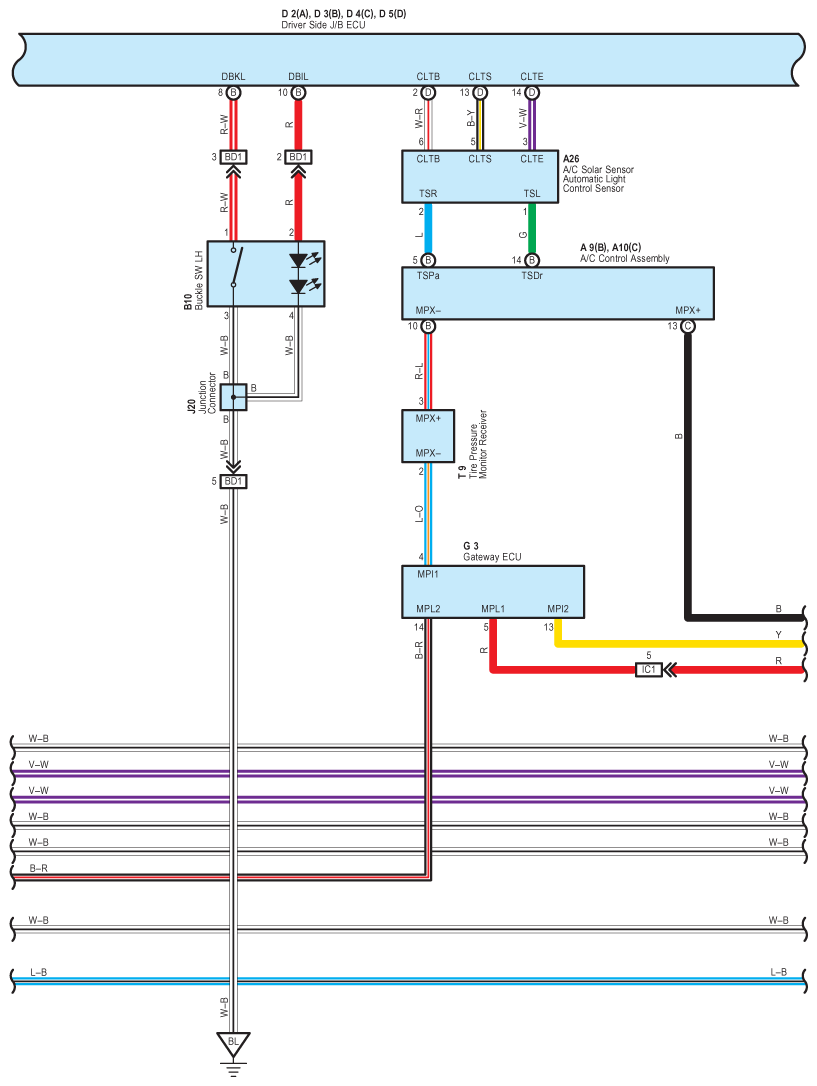

Fig 7: Multiplx Communication System - J/B ECU - Wiring Diagram (7 Of 20)

G08930434

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

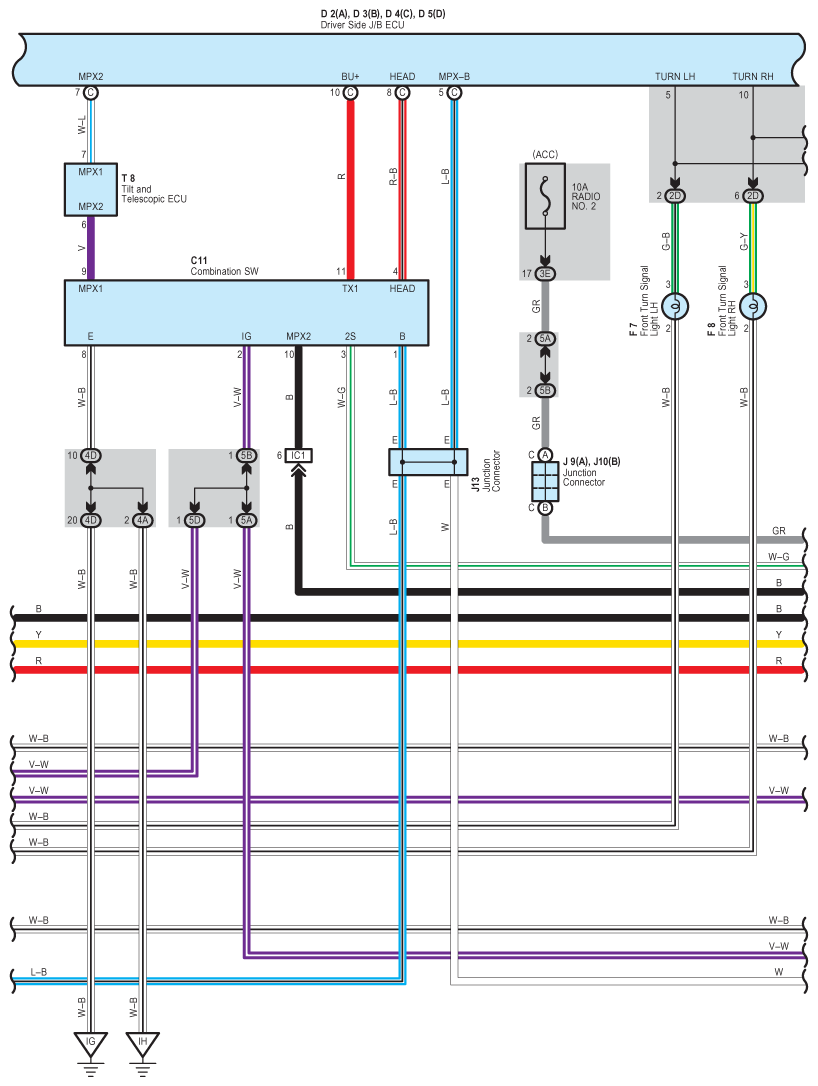

Fig 8: Multiplx Communication System - J/B ECU - Wiring Diagram (8 Of 20)

G08930435

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

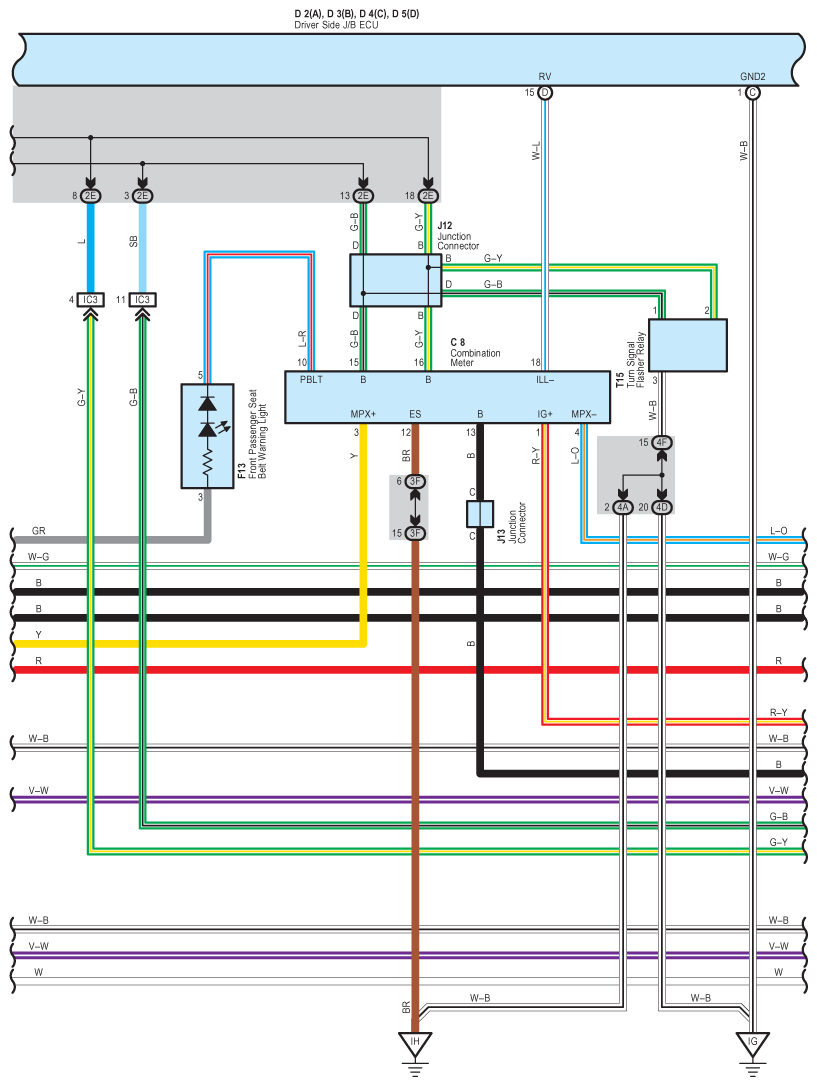

Fig 9: Multiplx Communication System - J/B ECU - Wiring Diagram (9 Of 20)

G08930436

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

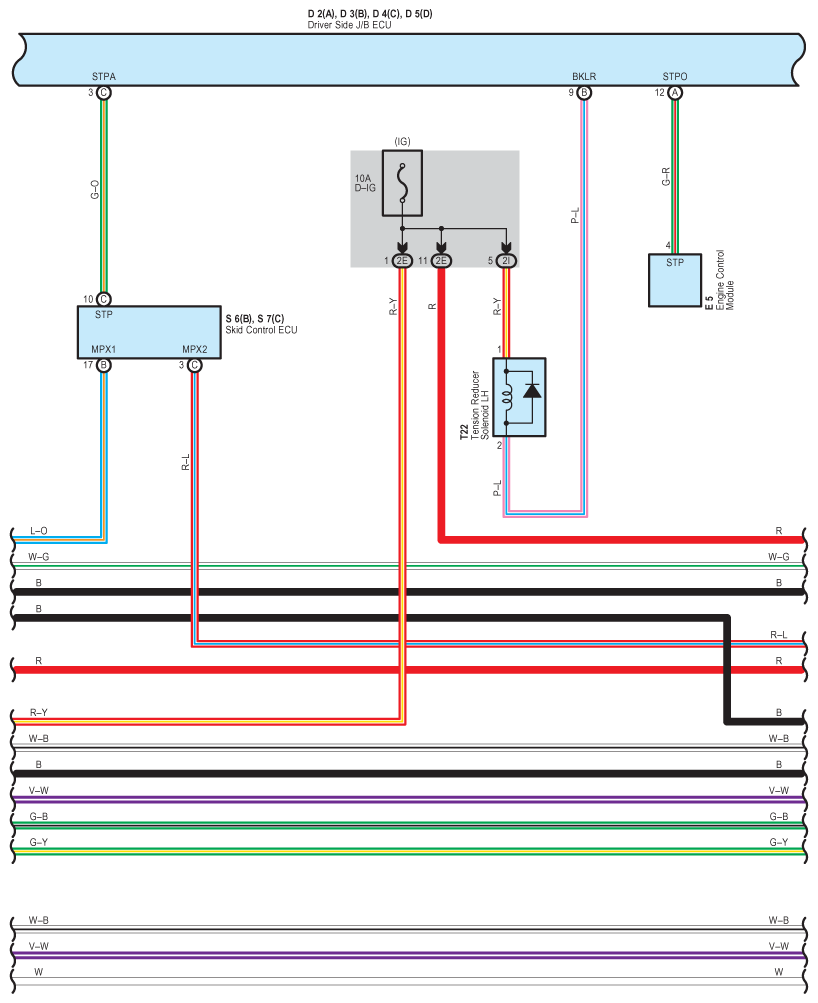

Fig 10: Multiplx Communication System - J/B ECU - Wiring Diagram (10 Of 20)

G08930437

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

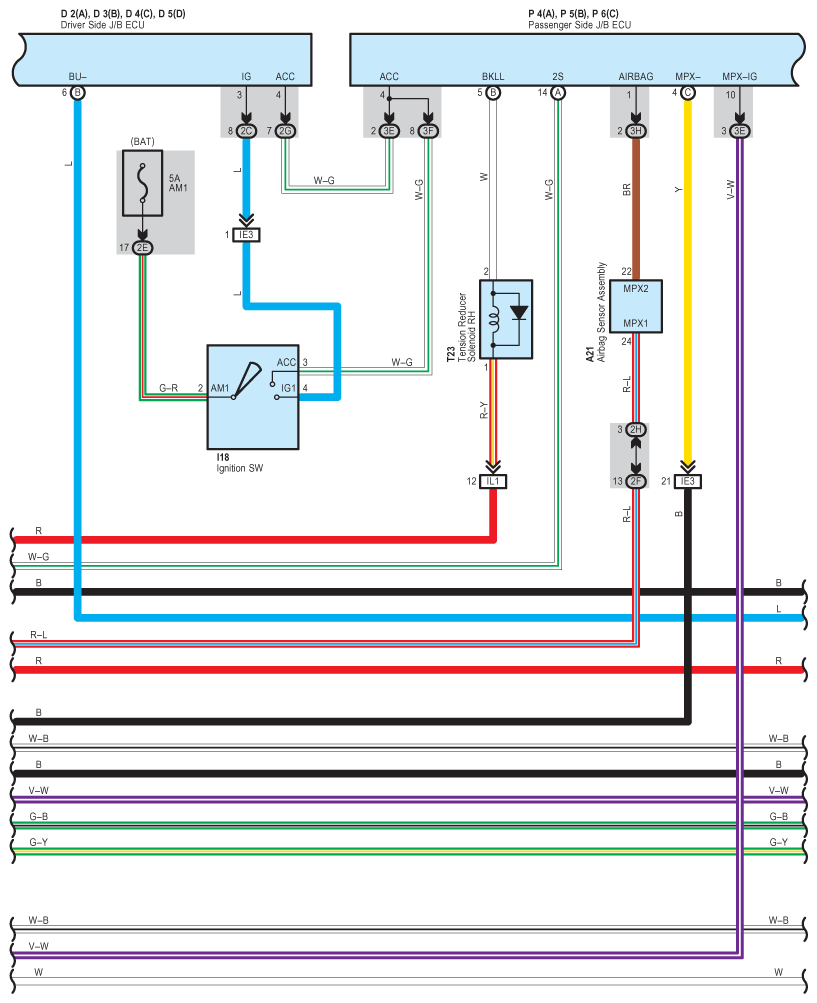

Fig 11: Multiplx Communication System - J/B ECU - Wiring Diagram (11 Of 20)

G08930438

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

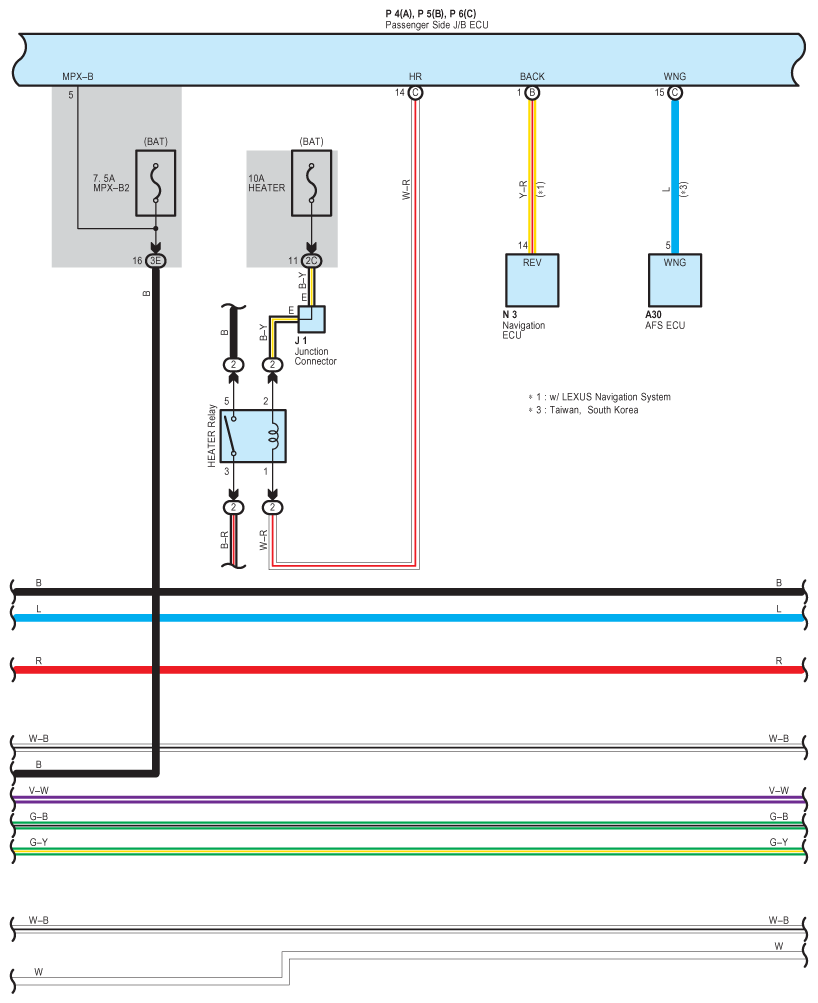

Fig 12: Multiplx Communication System - J/B ECU - Wiring Diagram (12 Of 20)

G08930439

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

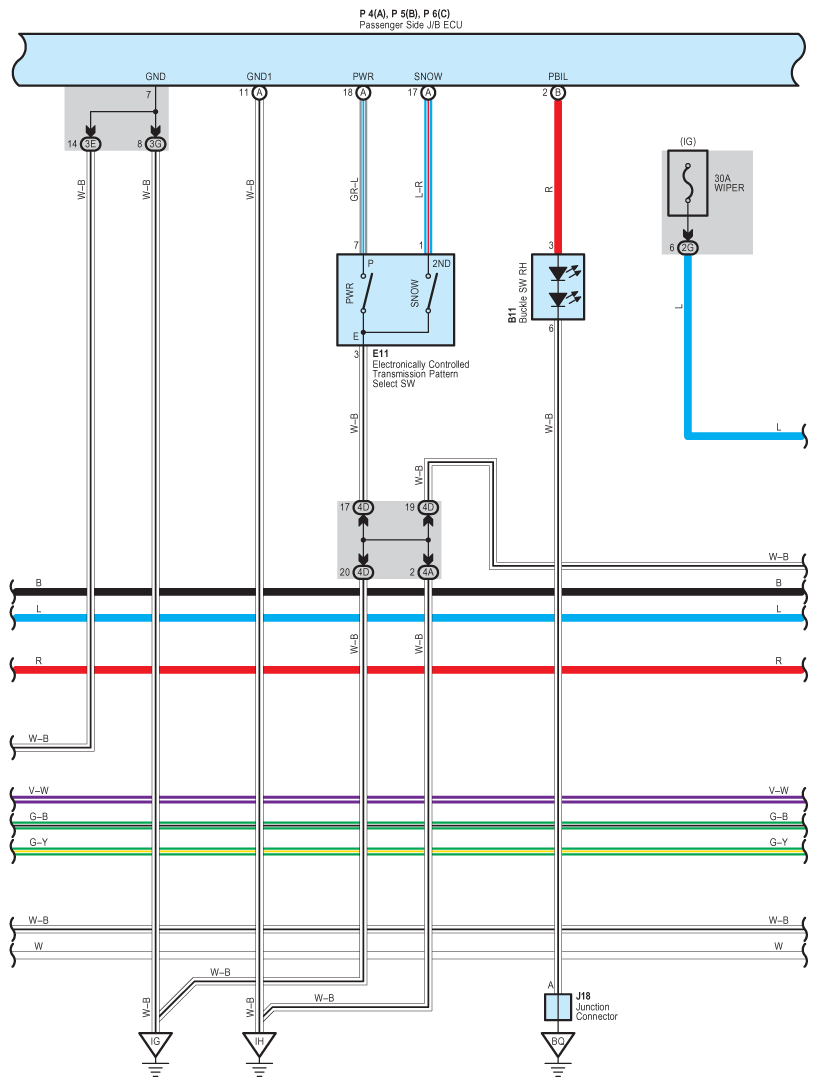

Fig 13: Multiplx Communication System - J/B ECU - Wiring Diagram (13 Of 20)

G08930440

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

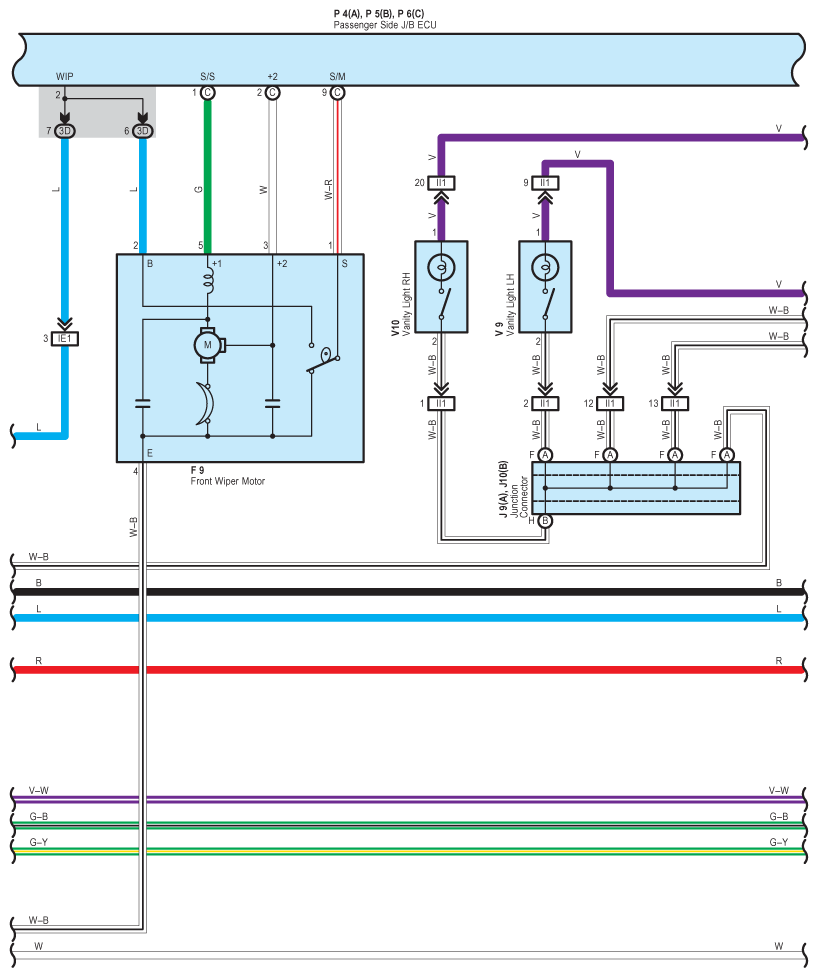

Fig 14: Multiplx Communication System - J/B ECU - Wiring Diagram (14 Of 20)

G08930441

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

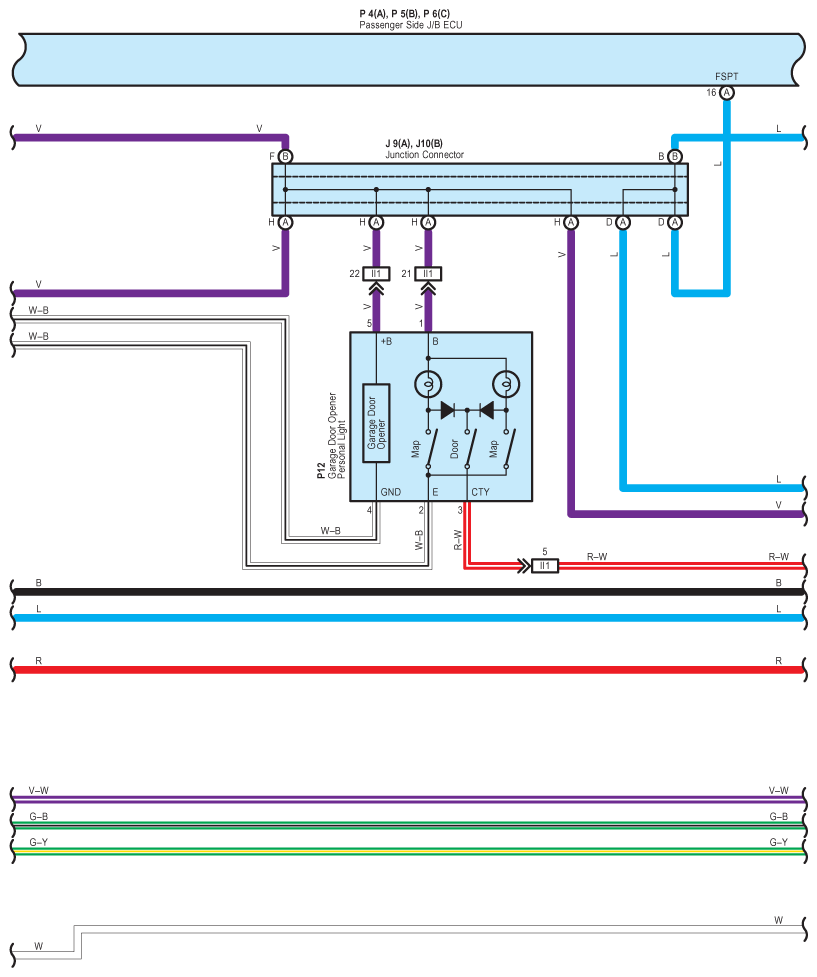

Fig 15: Multiplx Communication System - J/B ECU - Wiring Diagram (15 Of 20)

G08930442

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

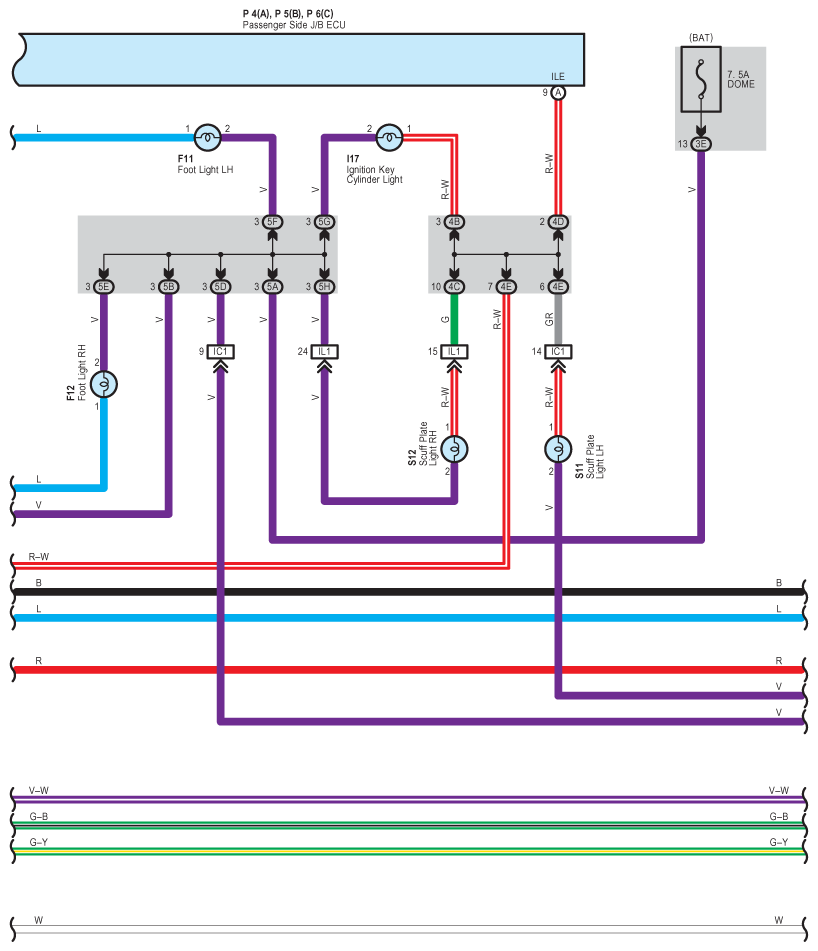

Fig 16: Multiplx Communication System - J/B ECU - Wiring Diagram (16 Of 20)

G08930443

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

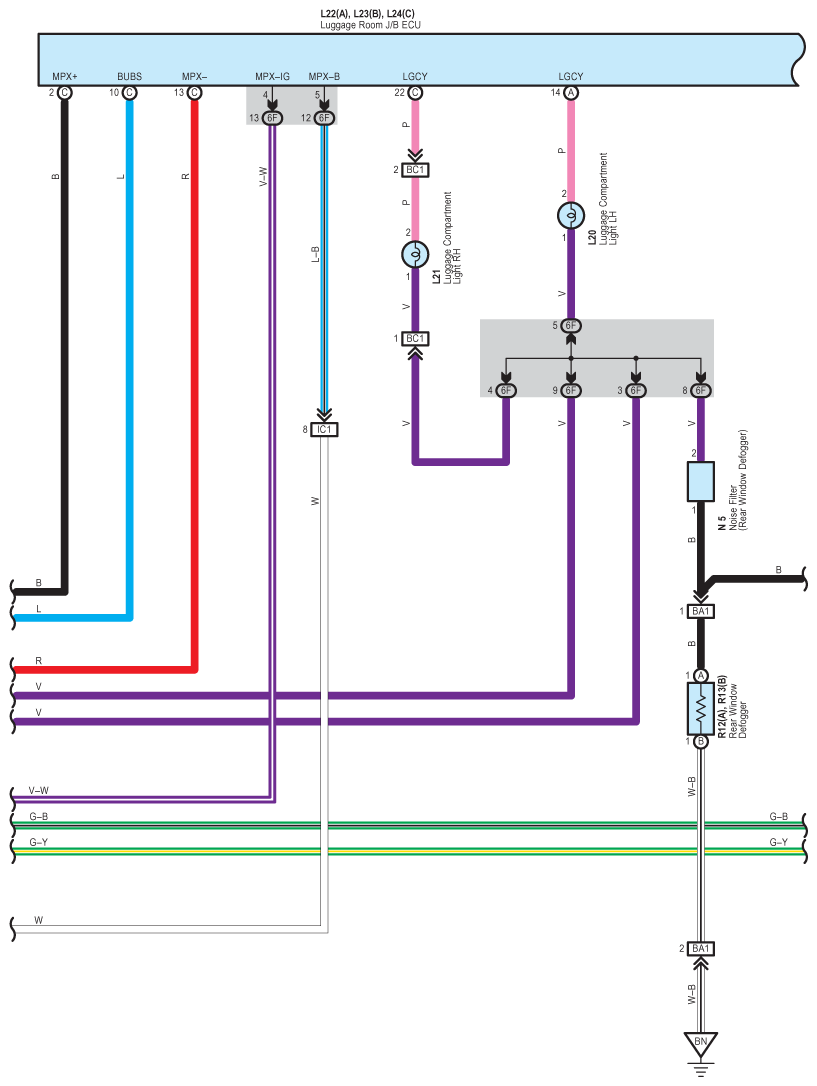

Fig 17: Multiplx Communication System - J/B ECU - Wiring Diagram (17 Of 20)

G08930444

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

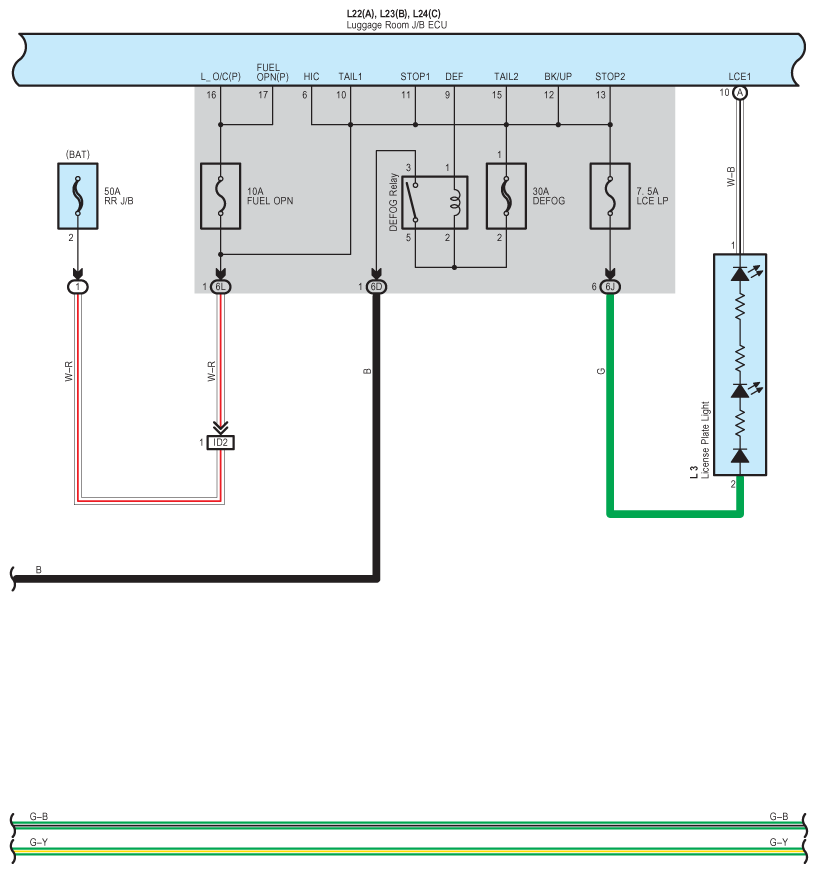

Fig 18: Multiplx Communication System - J/B ECU - Wiring Diagram (18 Of 20)

G08930445

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

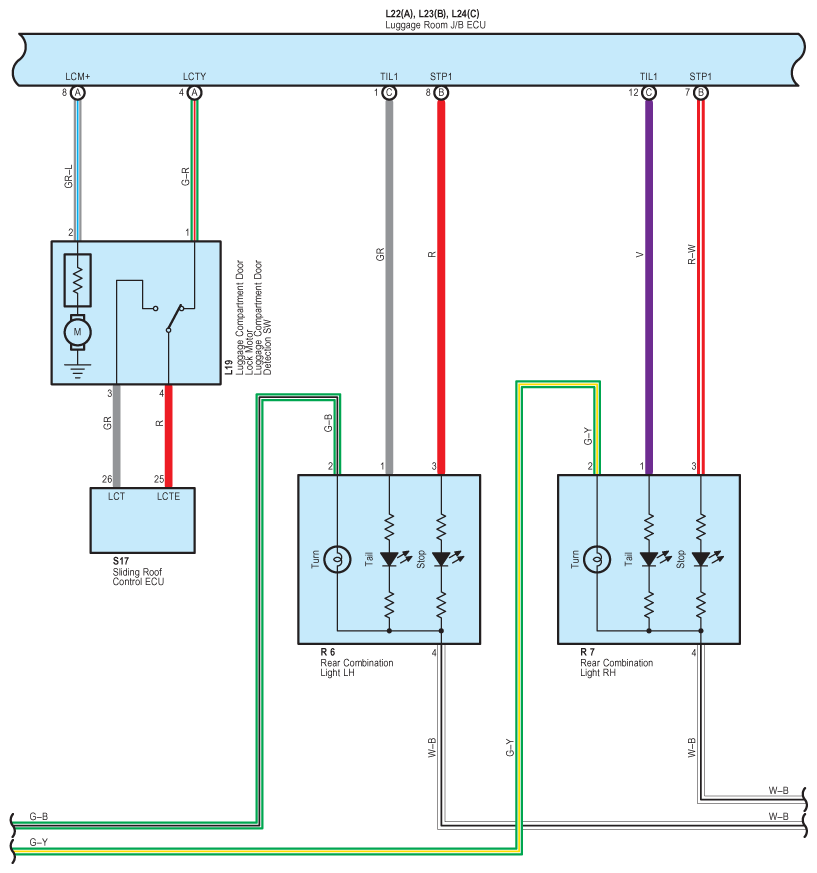

Fig 19: Multiplx Communication System - J/B ECU - Wiring Diagram (19 Of 20)

G08930446

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

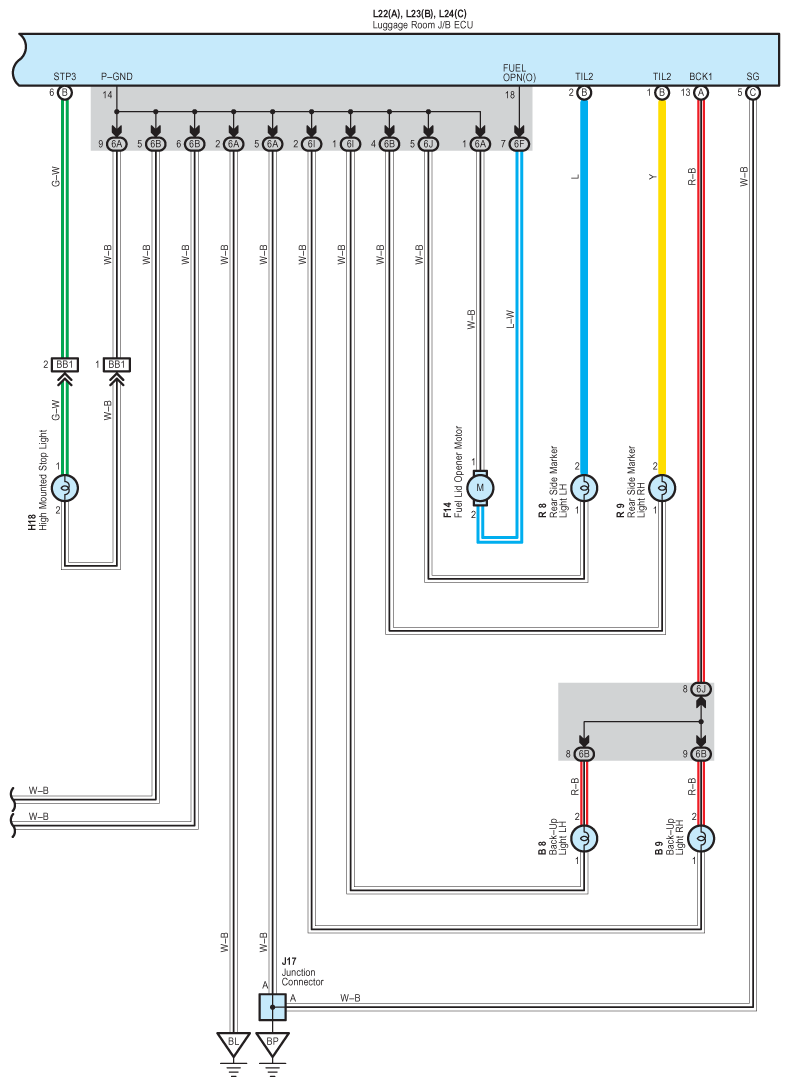

Fig 20: Multiplx Communication System - J/B ECU - Wiring Diagram (20 Of 20)

G08930447

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
