Retractable Hardtop: Notes

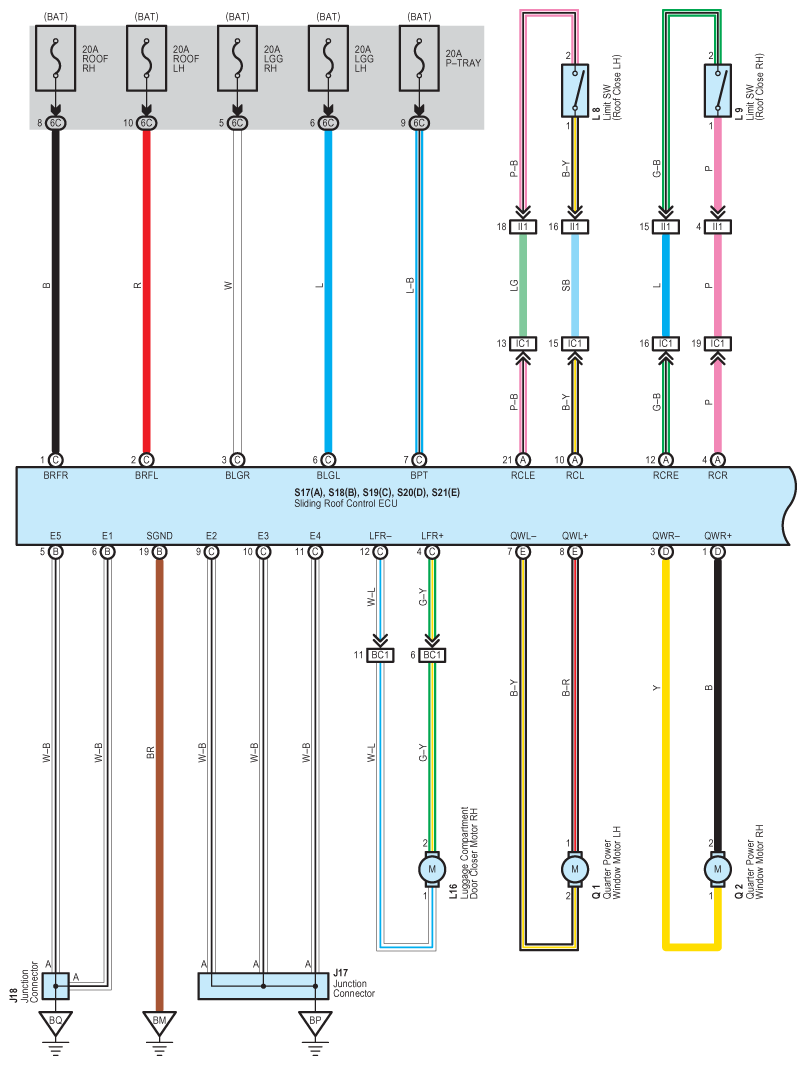

Fig 1: Retractable Hardtop - Wiring Diagram (1 Of 7)
G08930495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

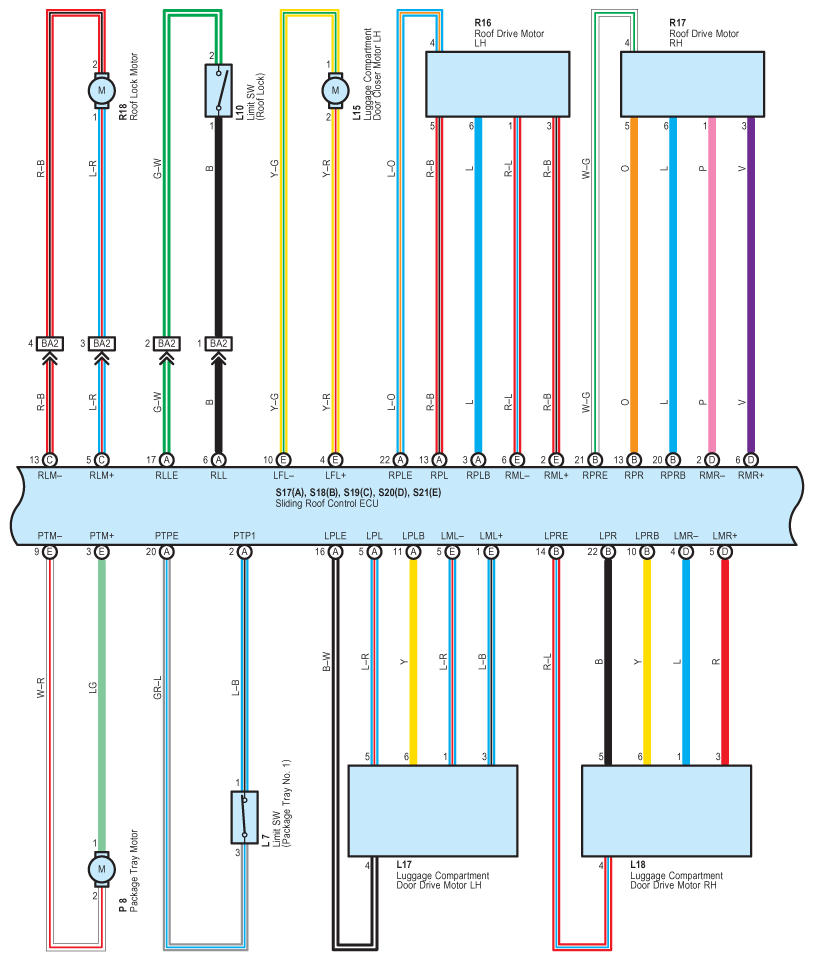

Fig 2: Retractable Hardtop - Wiring Diagram (2 Of 7)
G08930496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

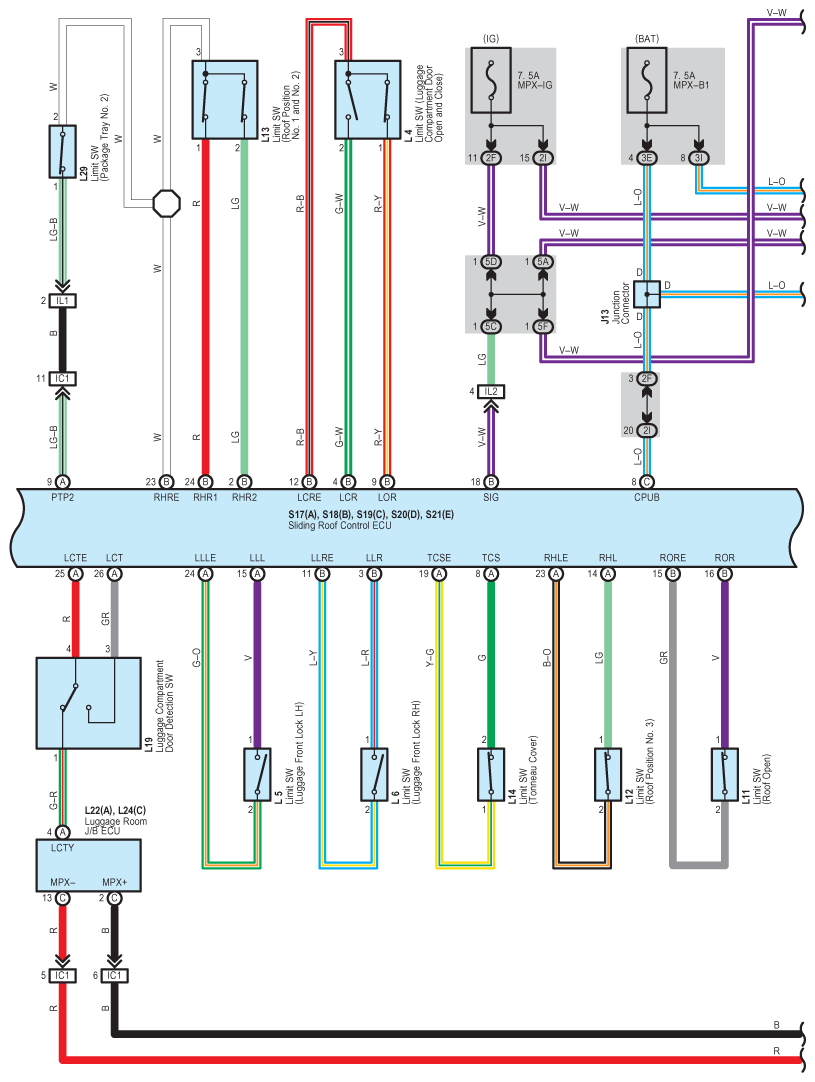

Fig 3: Retractable Hardtop - Wiring Diagram (3 Of 7)
G08930497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

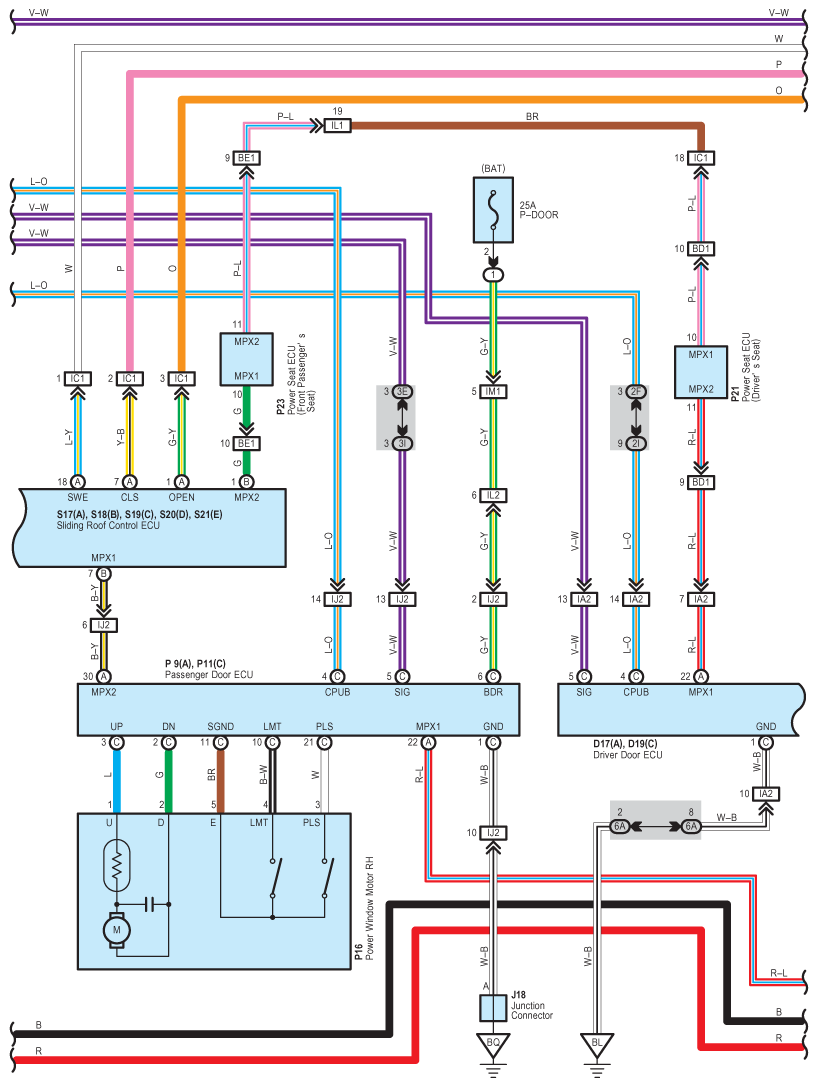

Fig 4: Retractable Hardtop - Wiring Diagram (4 Of 7)
G08930498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

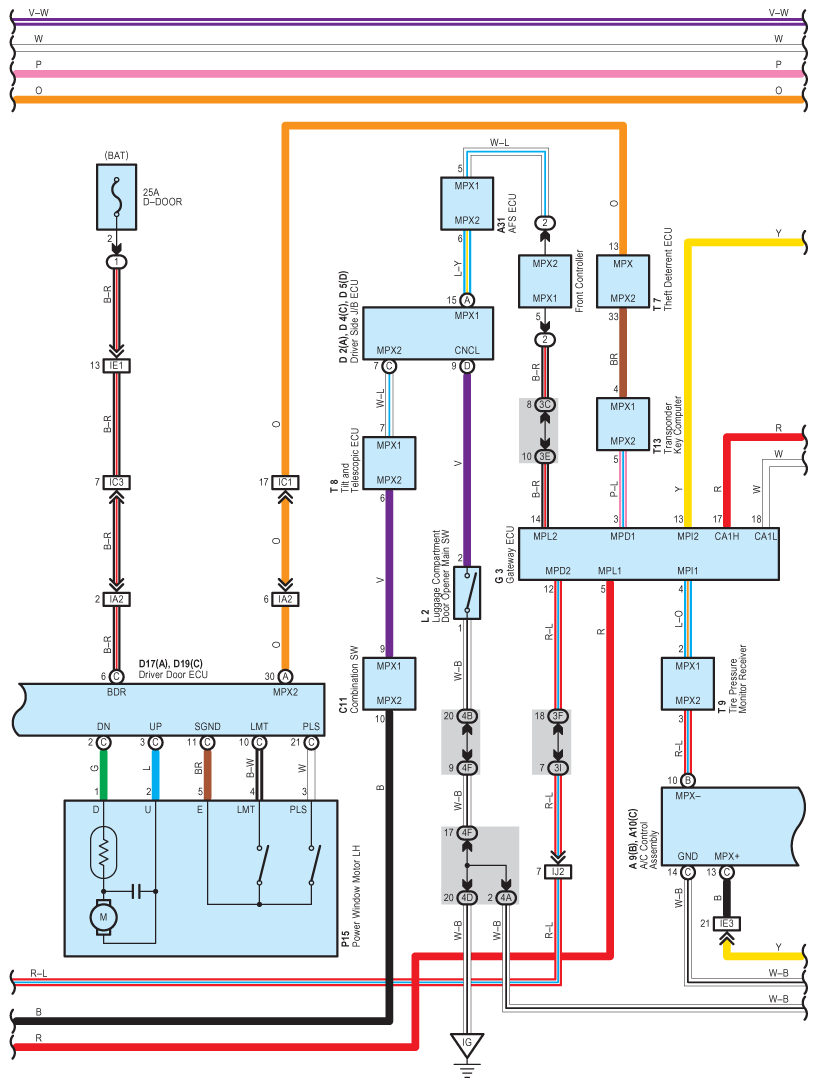

Fig 5: Retractable Hardtop - Wiring Diagram (5 Of 7)
G08930499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

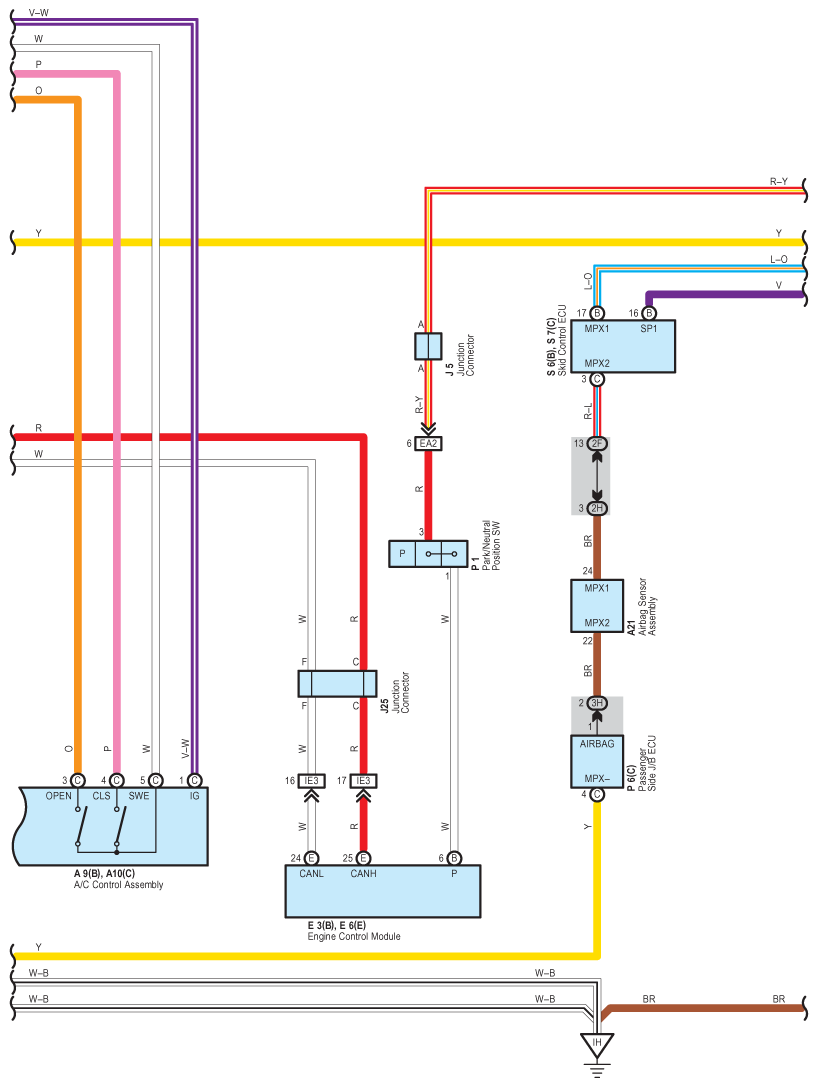

Fig 6: Retractable Hardtop - Wiring Diagram (6 Of 7)
G08930500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

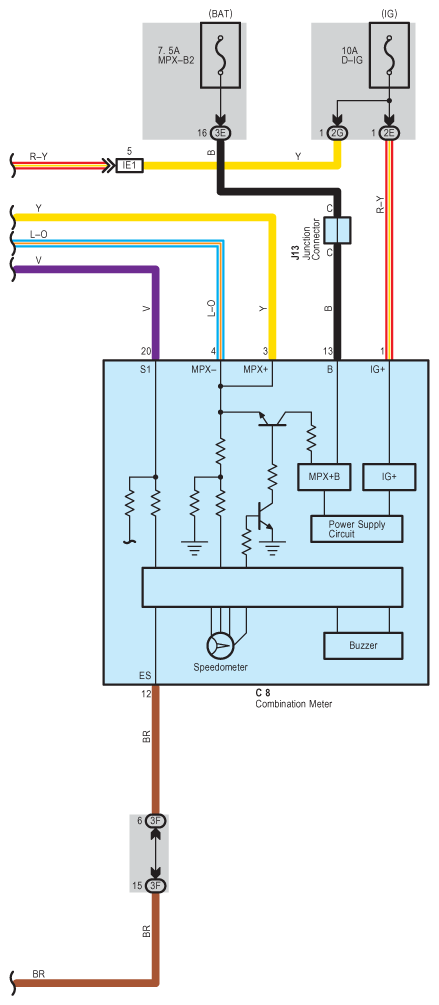

Fig 7: Retractable Hardtop - Wiring Diagram (7 Of 7)
G08930501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
