Fuel Pump ASSY: Components

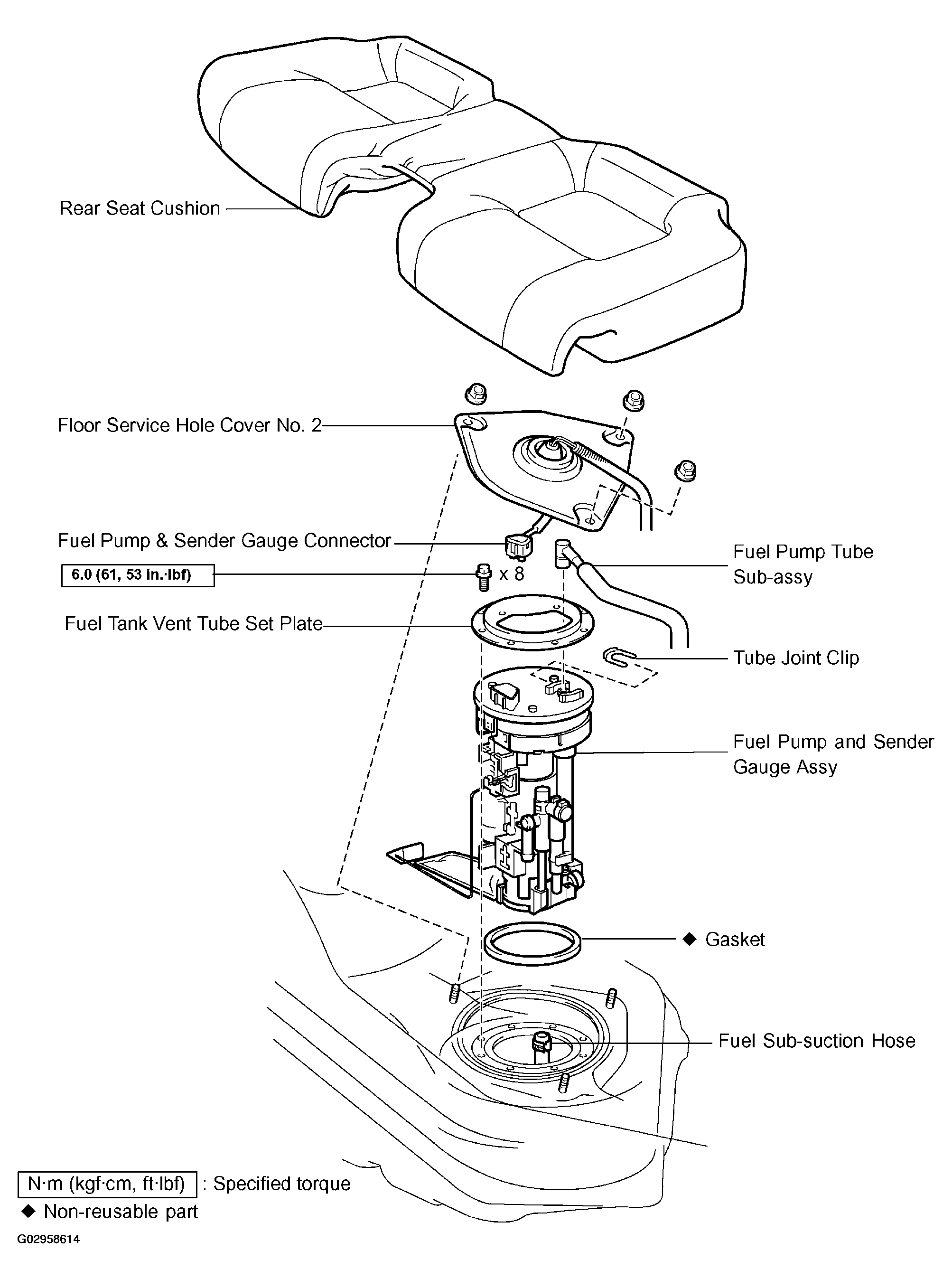

Fig 1: Identifying Fuel Pump Assy Components & Replacements (1 Of 2)
G02958614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

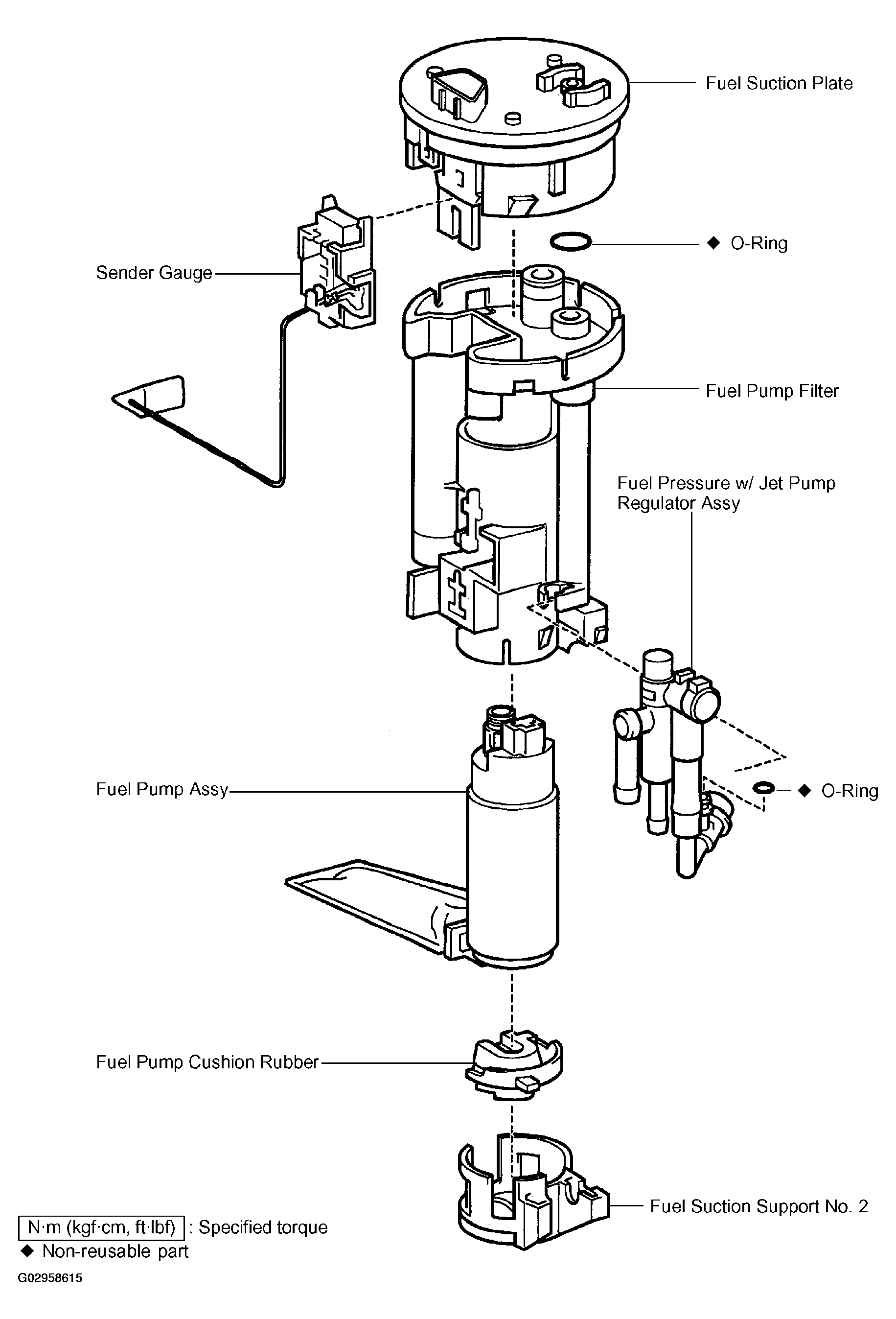

Fig 2: Identifying Fuel Pump Assy Components & Replacements (2 Of 2)
G02958615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
