System Diagram

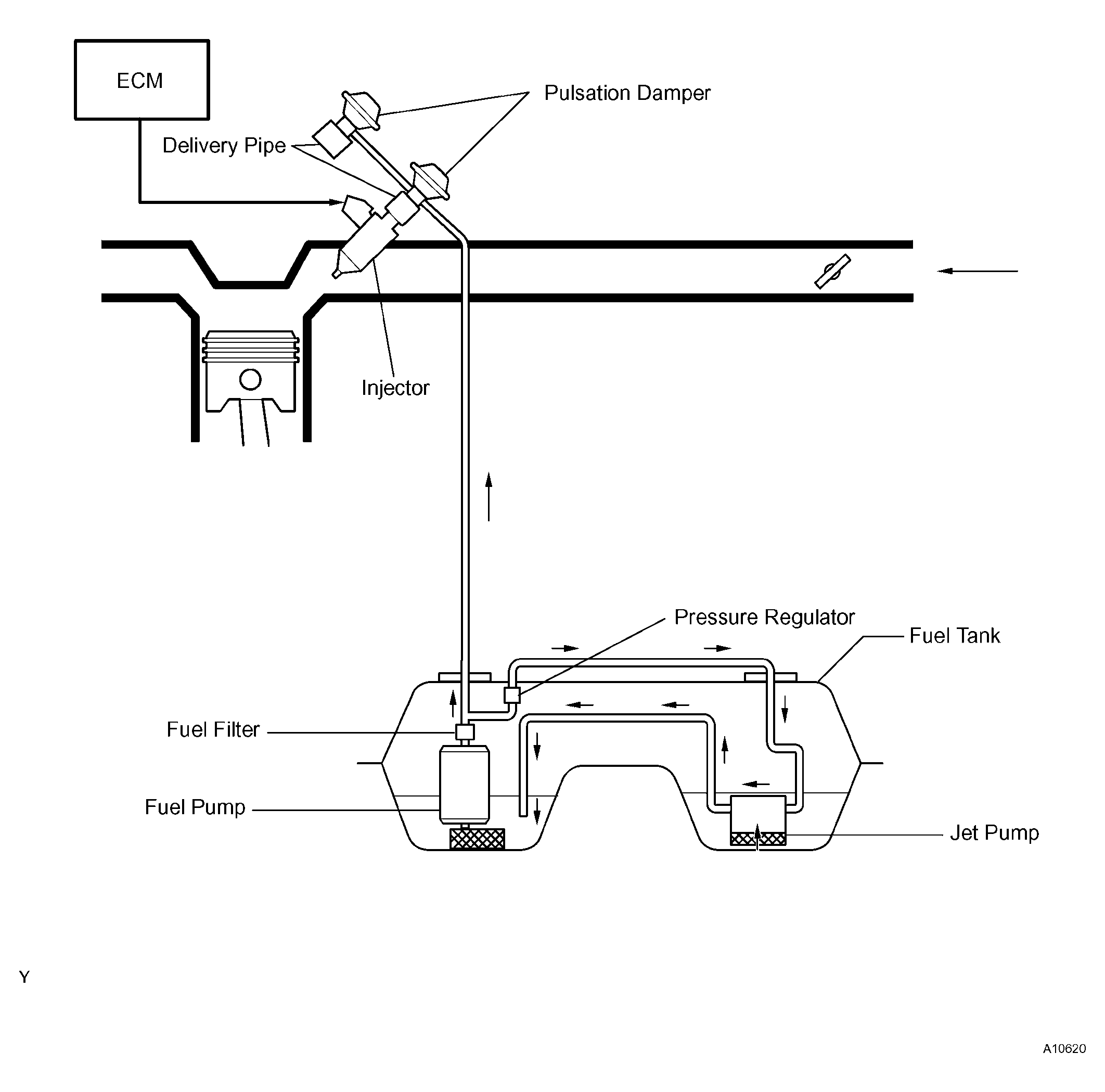

Fig 1: Fuel System Diagram (1 Of 3)
G04107784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The fuel system is controlled by the ECM based on signals from various sensors.

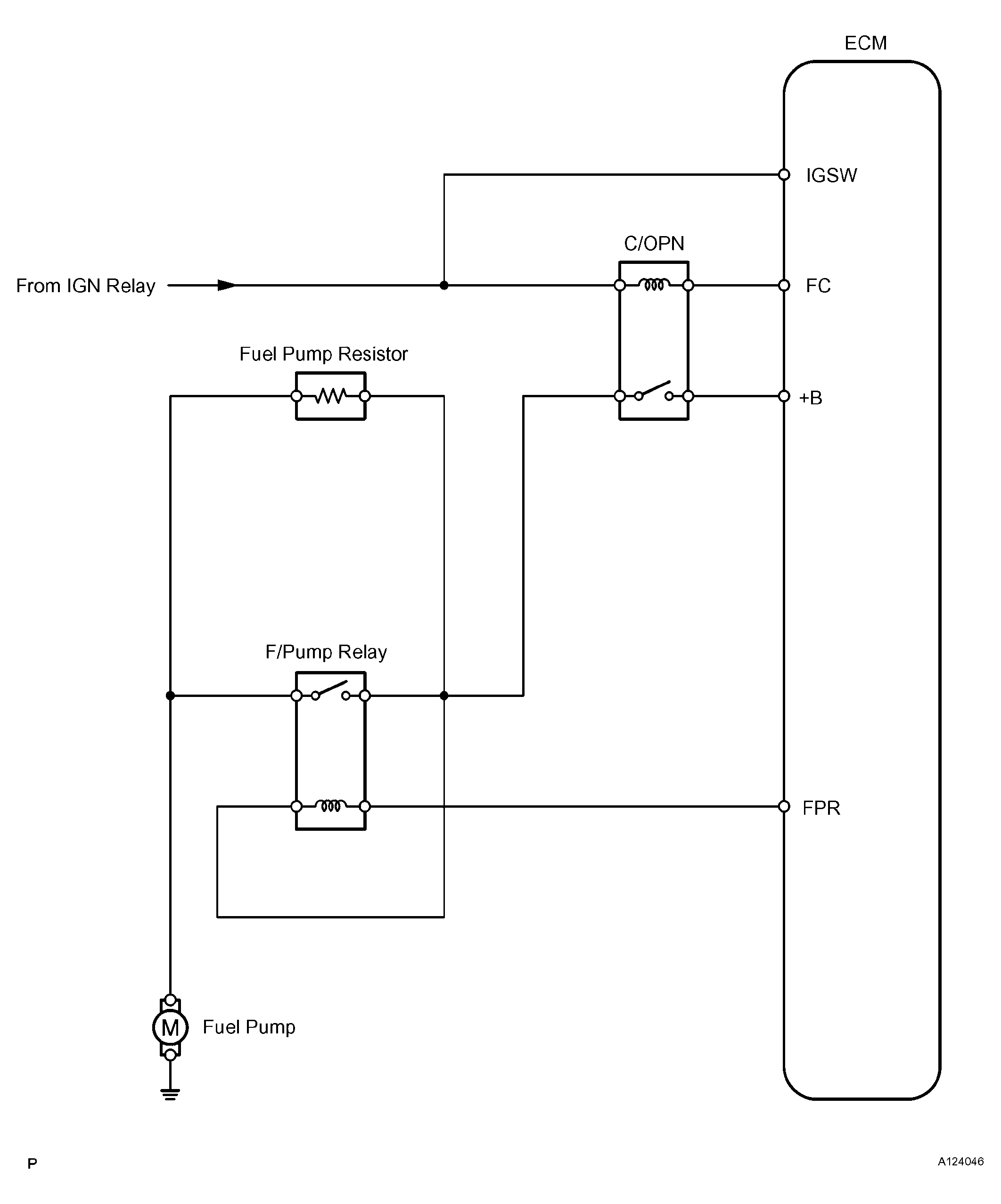

Fig 2: Fuel System Diagram (2 Of 3)
G04107785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

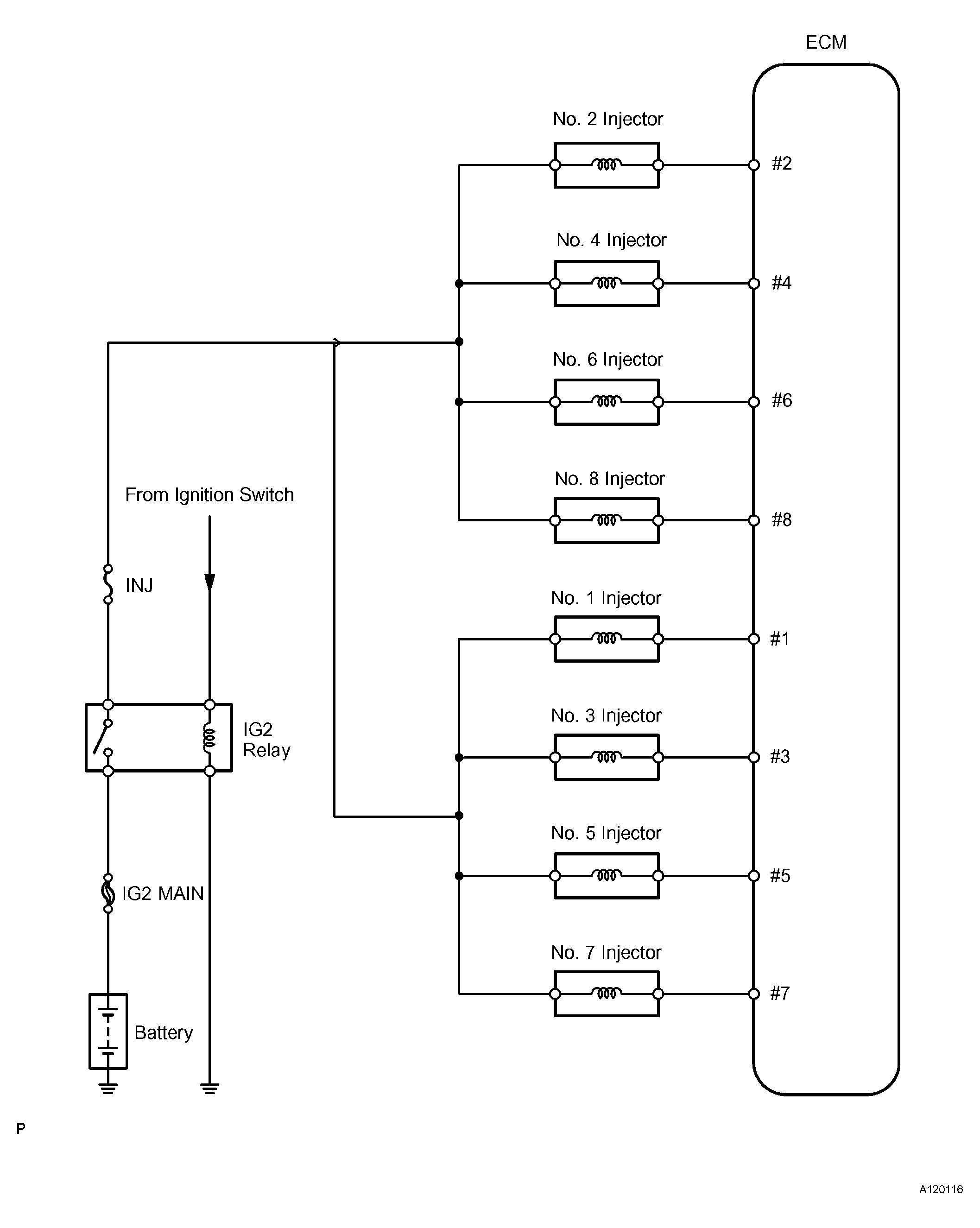

Fig 3: Fuel System Diagram (3 Of 3)
G04107786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
