Fuel Tank ASSY: Components

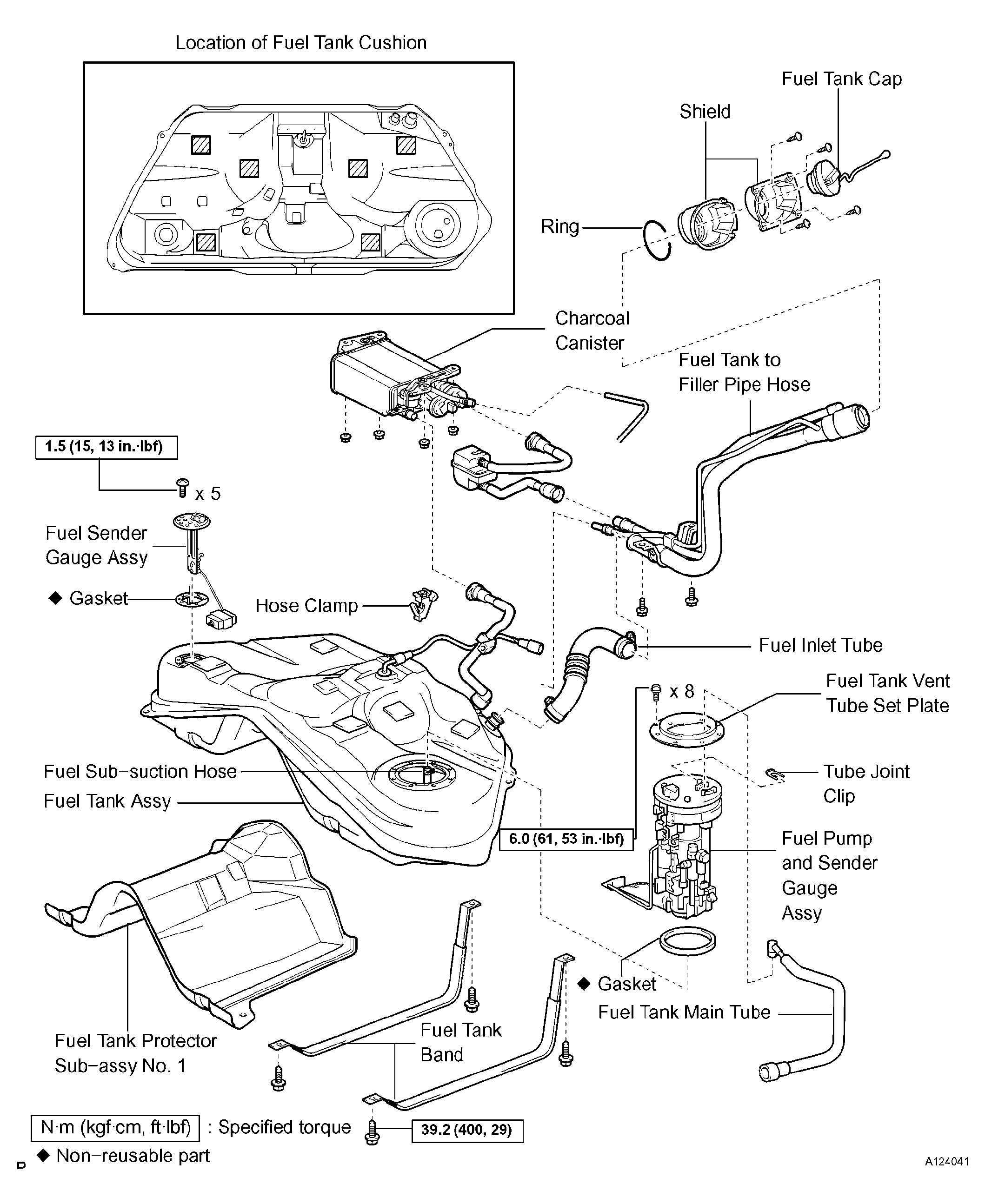

Fig 1: Identifying Fuel Tank Assy Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
