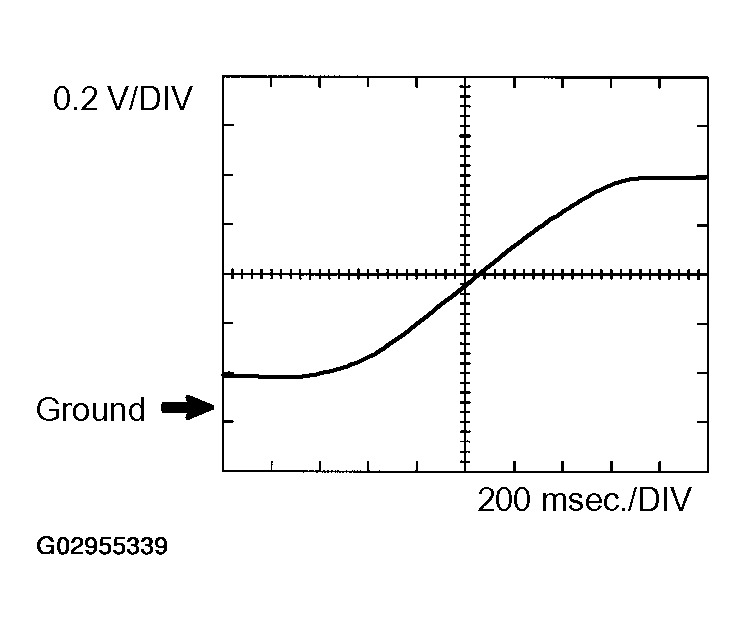

Waveform 11
- Heated oxygen sensor (HO2S) (Sensor 2)
WAVEFORM SPECIFICATIONS
| Symbols (Terminal No.) | OXL2 (E5-28), OXR2 (E5-17) - E1 (E3-7) |
| Tester Range | 0.2 V/DIV, 200 msec./DIV |
| Condition | Maintain engine RPM at 2,500 rpm after engine warmed-up |
HINT:
In the DATA LIST, the items O2S B1 and B2 S1 show the ECM input values of the HO2S (sensor 2).
