Camshaft Position Sensor: Components

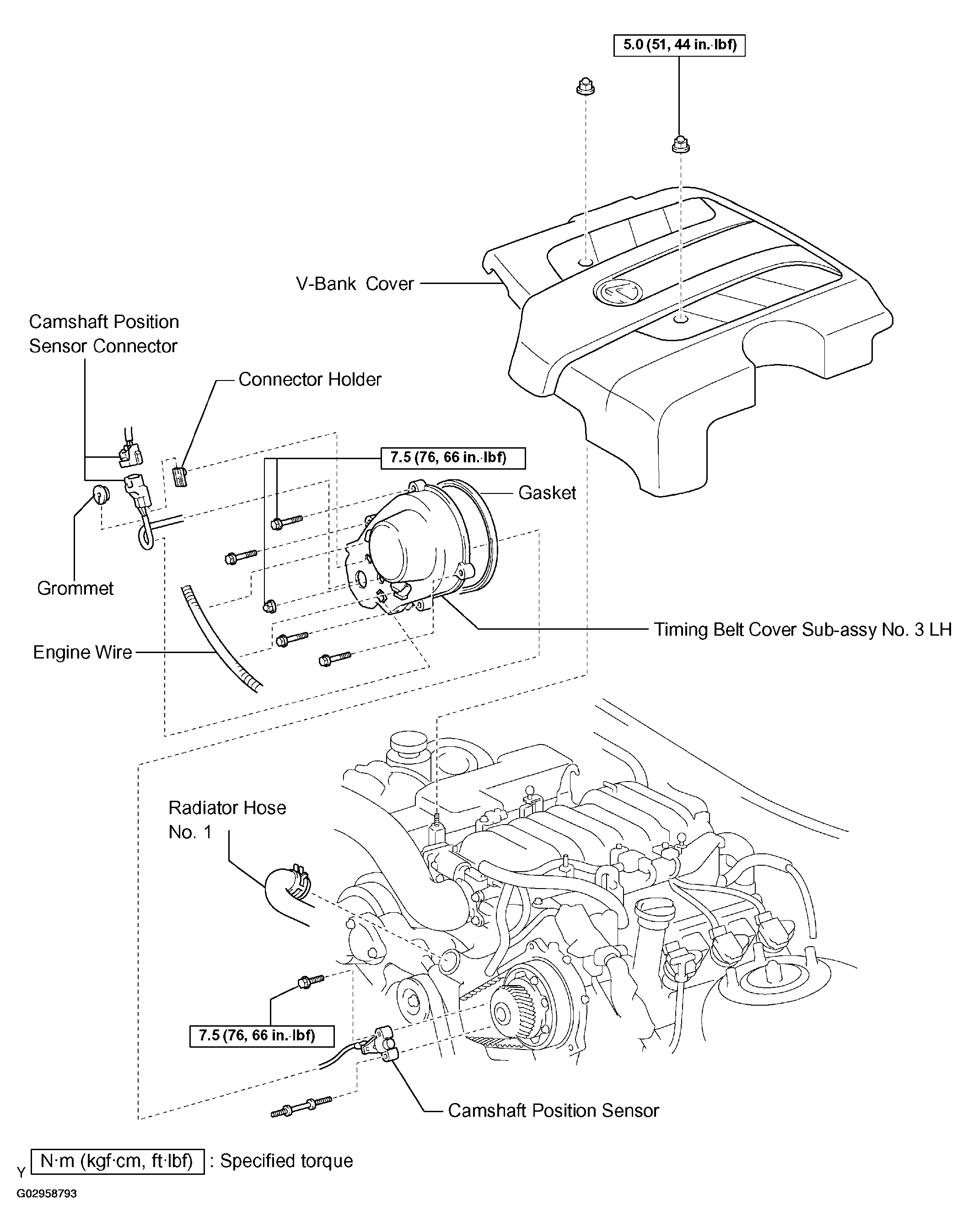

Fig 1: Identifying Camshaft Position Sensor Components & Replacements
G02958793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
