Crankshaft Position Sensor: Components

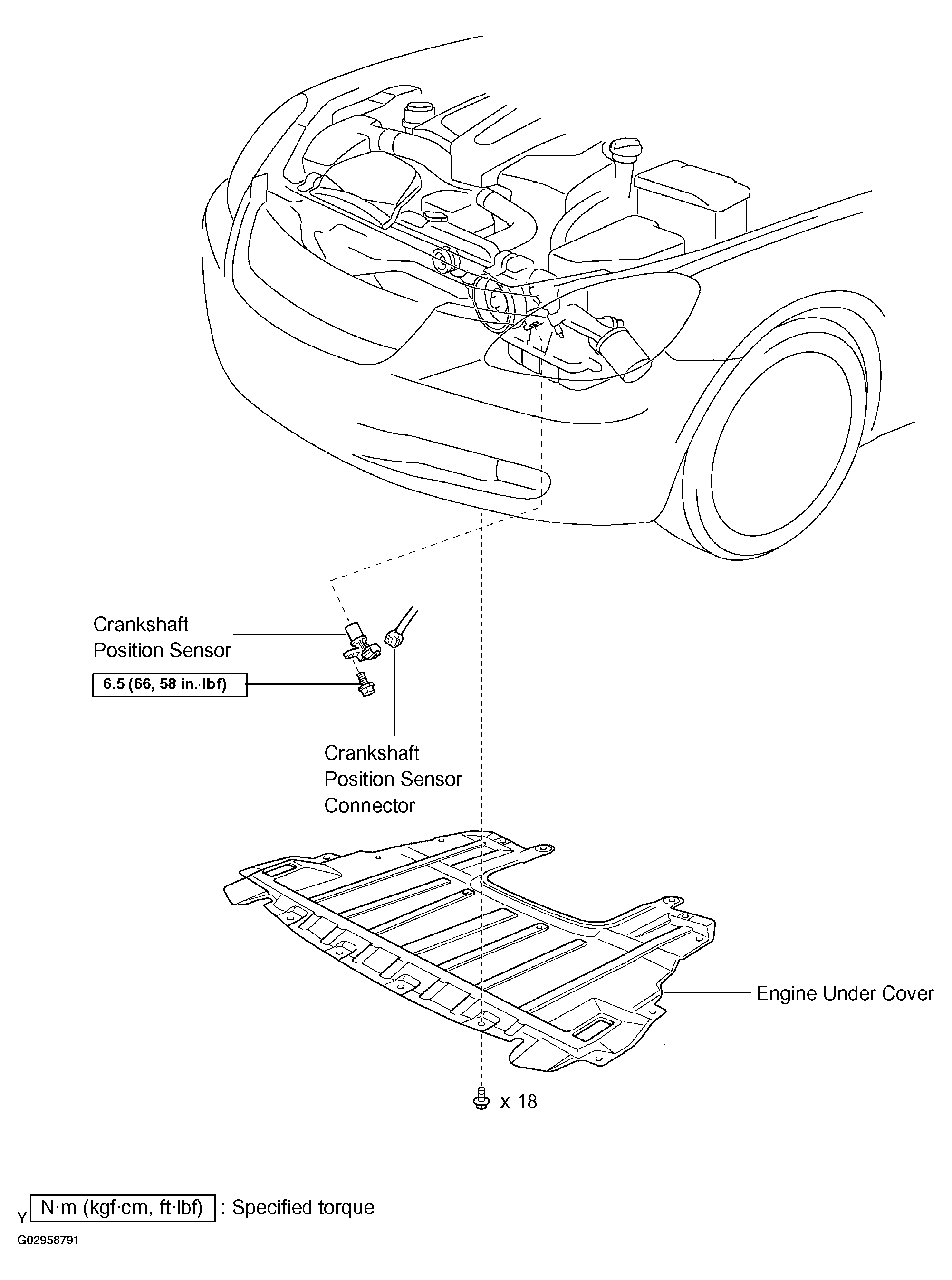

Fig 1: Identifying Crankshaft Position Sensor Components & Replacements
G02958791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
